MODEL SD-15010

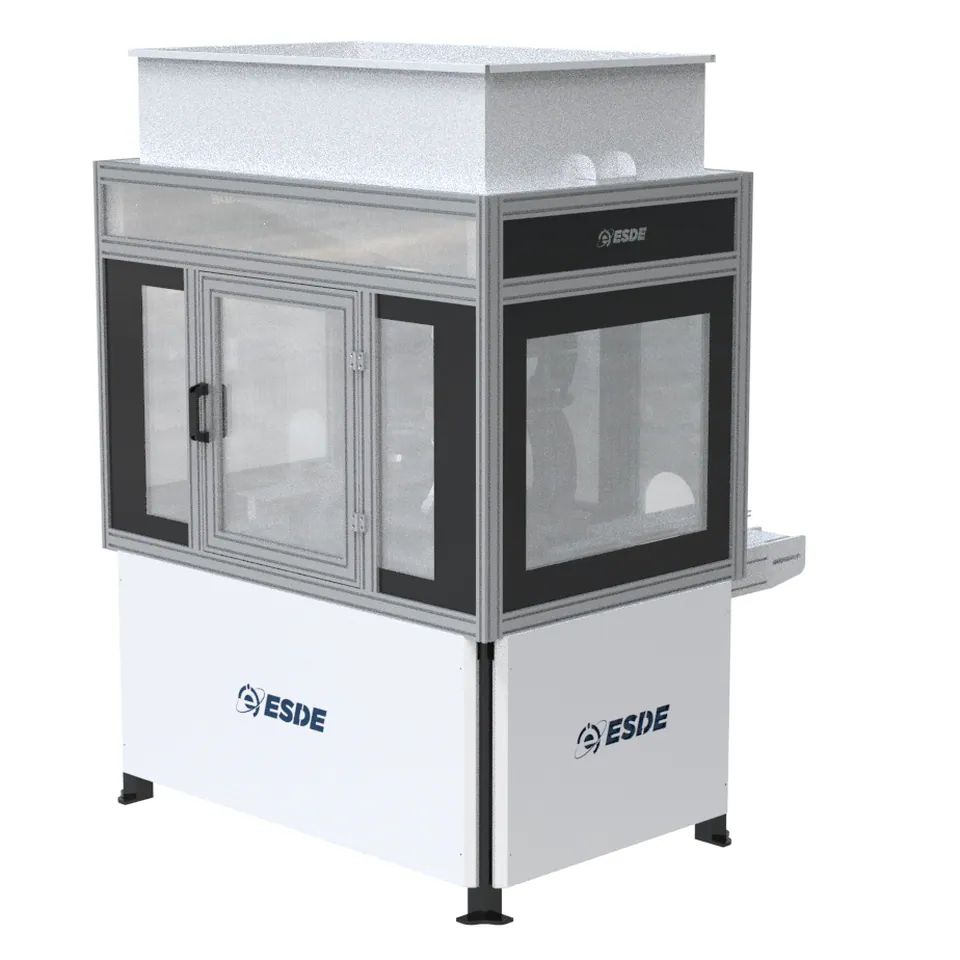

Full Automatic Tin Lid Sealing Machine
Weighing, filling and pneumatic lid closing in one automatic system.
6-10Tins per minute
100 g-1 kgFill range
±2 gPrecision
Drag to turn
Overview
This precision-engineered system combines filling, weighing and lid sealing. Integrated load cells deliver accurate, consistent weights, a weighing platform at the filling neck streamlines filling, and pneumatic impact technology closes lids smoothly and securely - boosting efficiency and reducing errors.
Key Features
- Electrostatic painted profiles and industrial aluminium
- 0.37 kW gearmotor drive
- Adjustable aluminium railings
- Integrated 5 kg load cells
- Fill adjustable from 100 g to 1 kg, 1 g graduation
- Pneumatic impact lid closing
- Control panel with PLC and filling indicator
- Operates at 6 - 8 bar air pressure
Technical Specifications | SD-15010
| Parameter | Specification |
|---|---|
| Capacity | 6 - 10 tins per minute (depending on tin size) |
| Dimensions (L x W x H) | 1605 x 1635 x 2090 mm |
| Electrical connection | 200 - 220 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 0.22 kW / 10 A |
| Connections | Compressed air 6 bar; PLC control |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic paint and aluminium |
| Weight net / packed | approx. 320 / 360 kg |
| Included | 2 sets of molds and carrying arm set |
| Optional | Different molds and carrying arm set |
| Certification | CE |

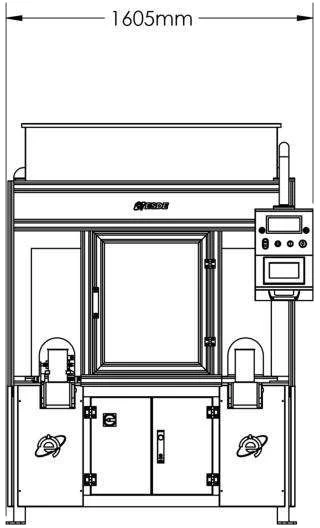

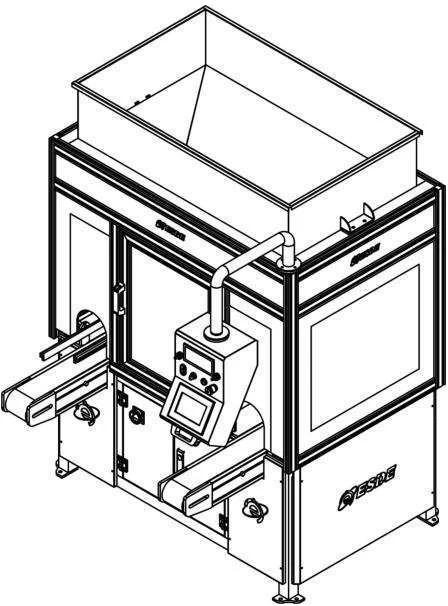

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
