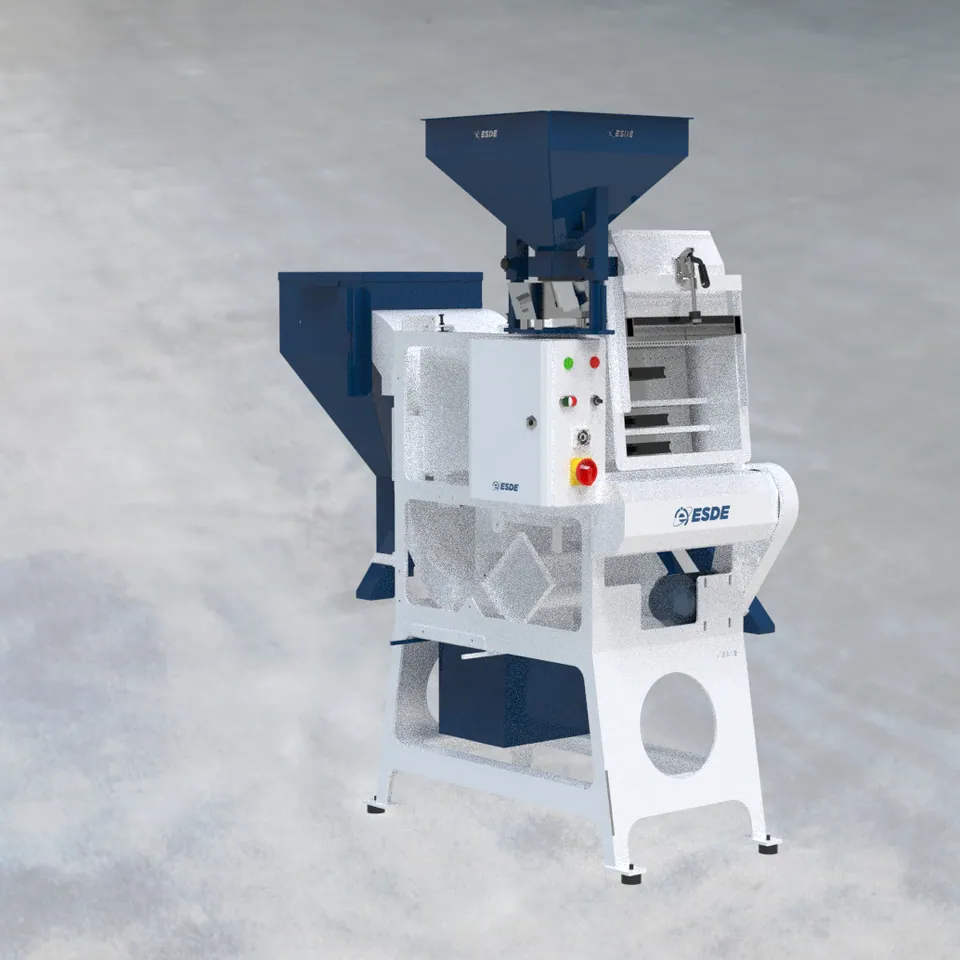

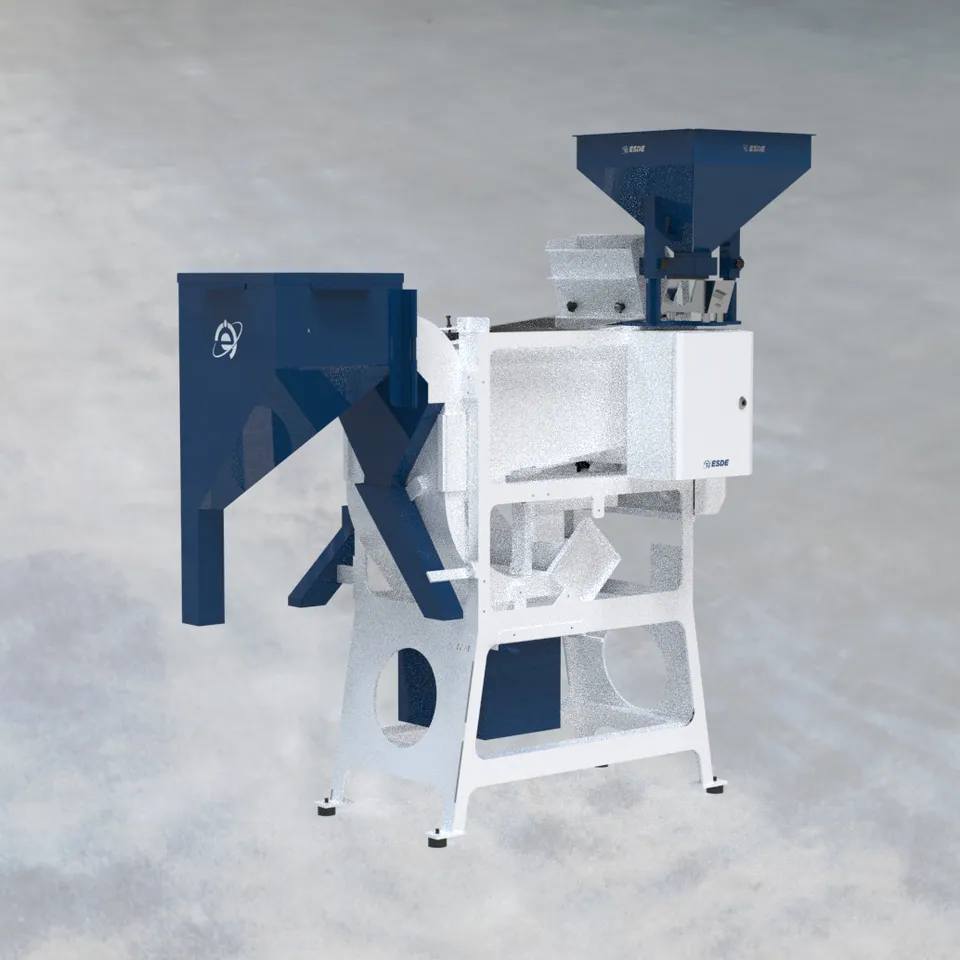

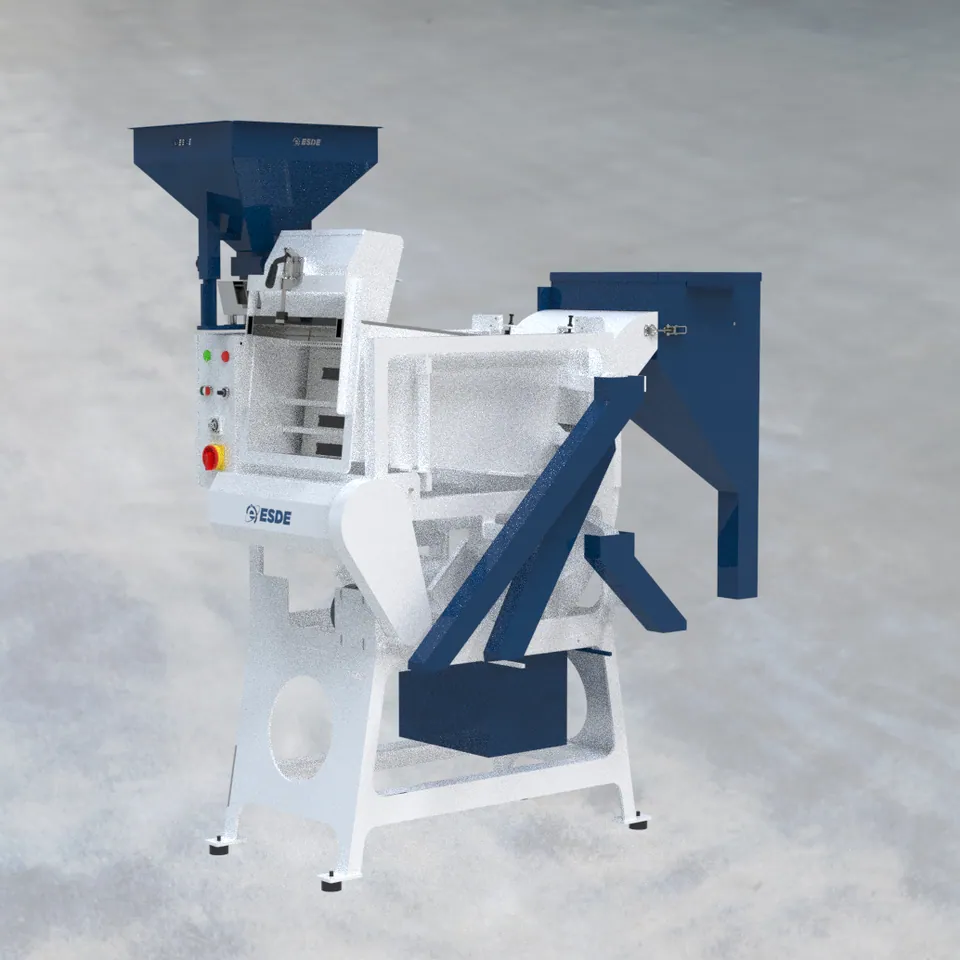

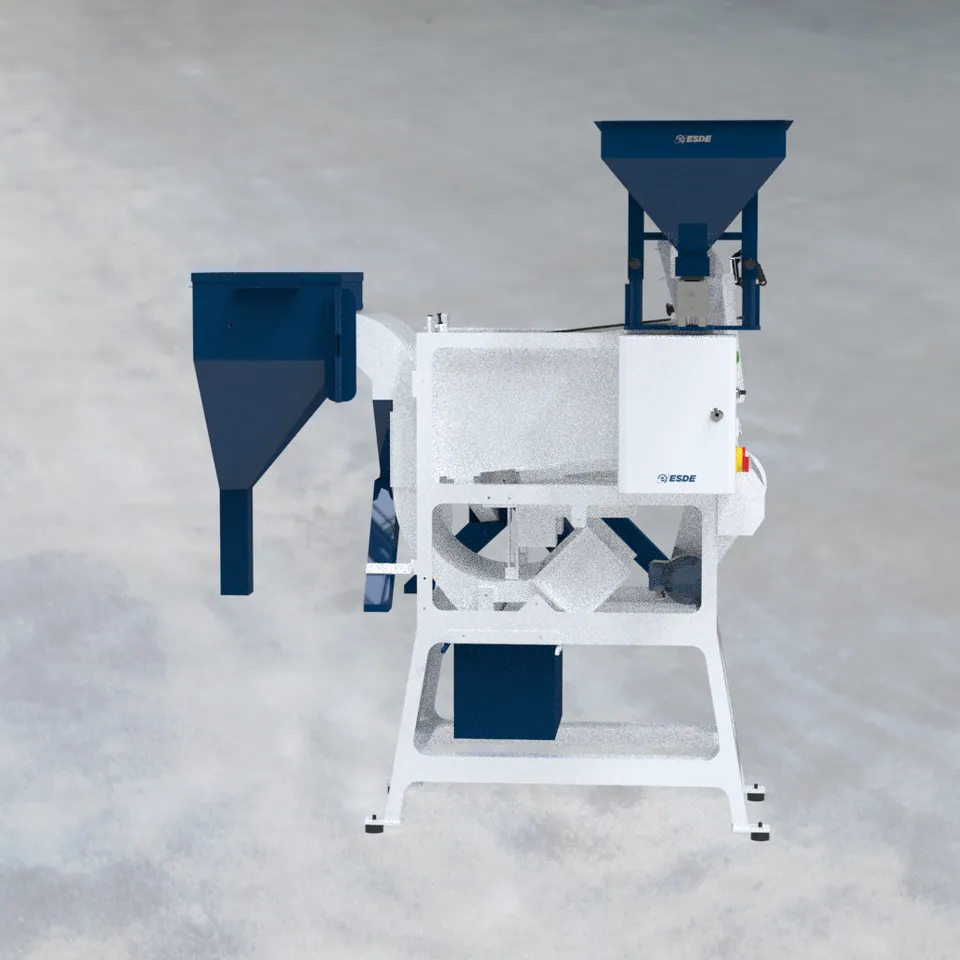

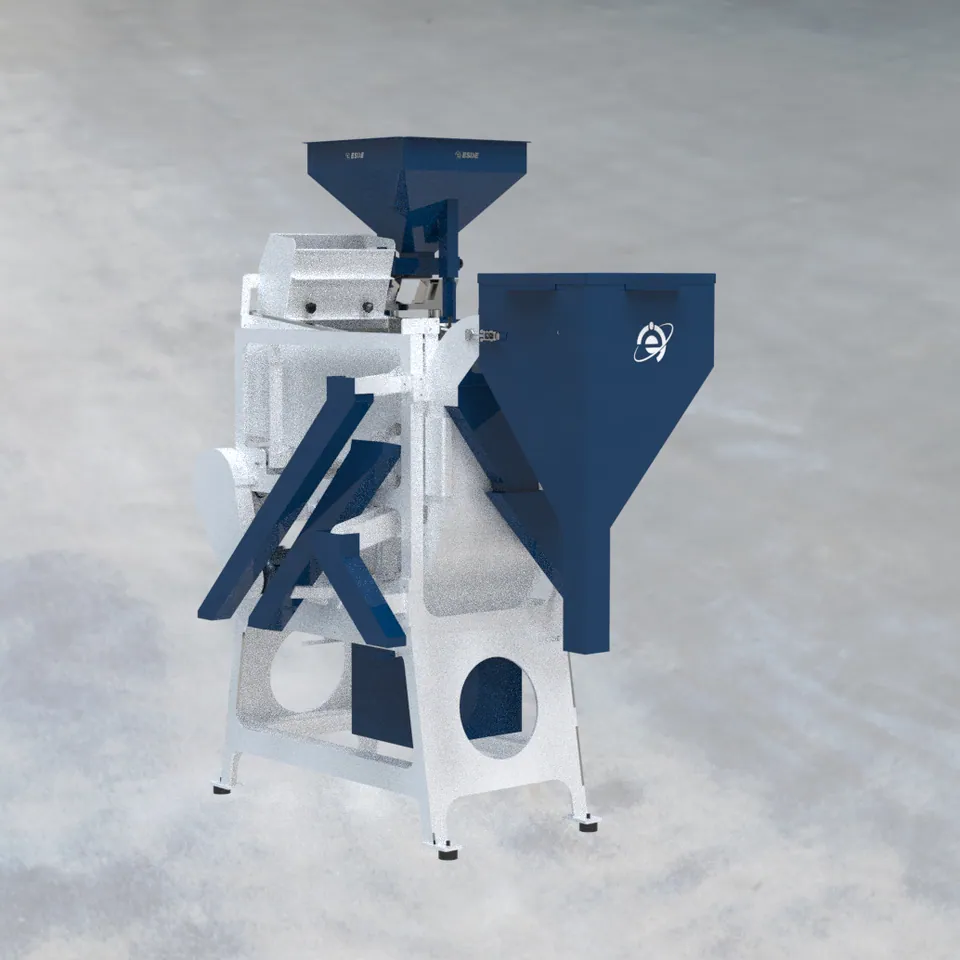

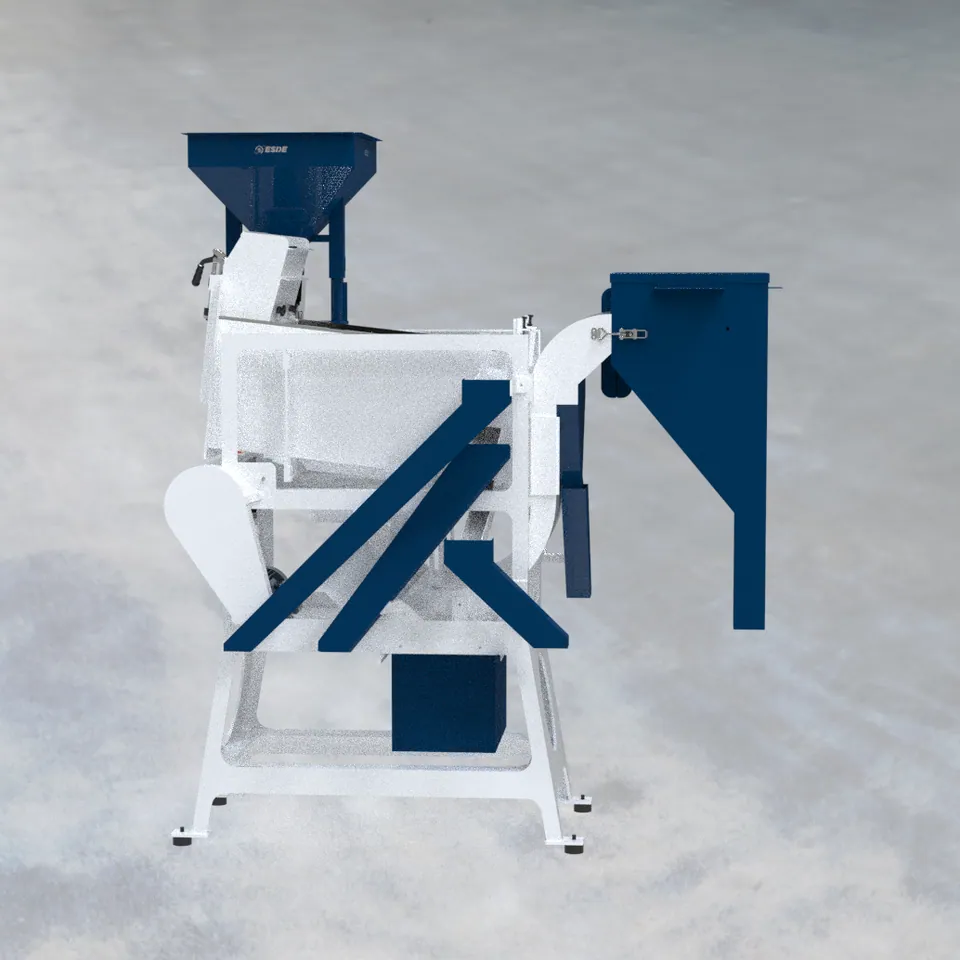

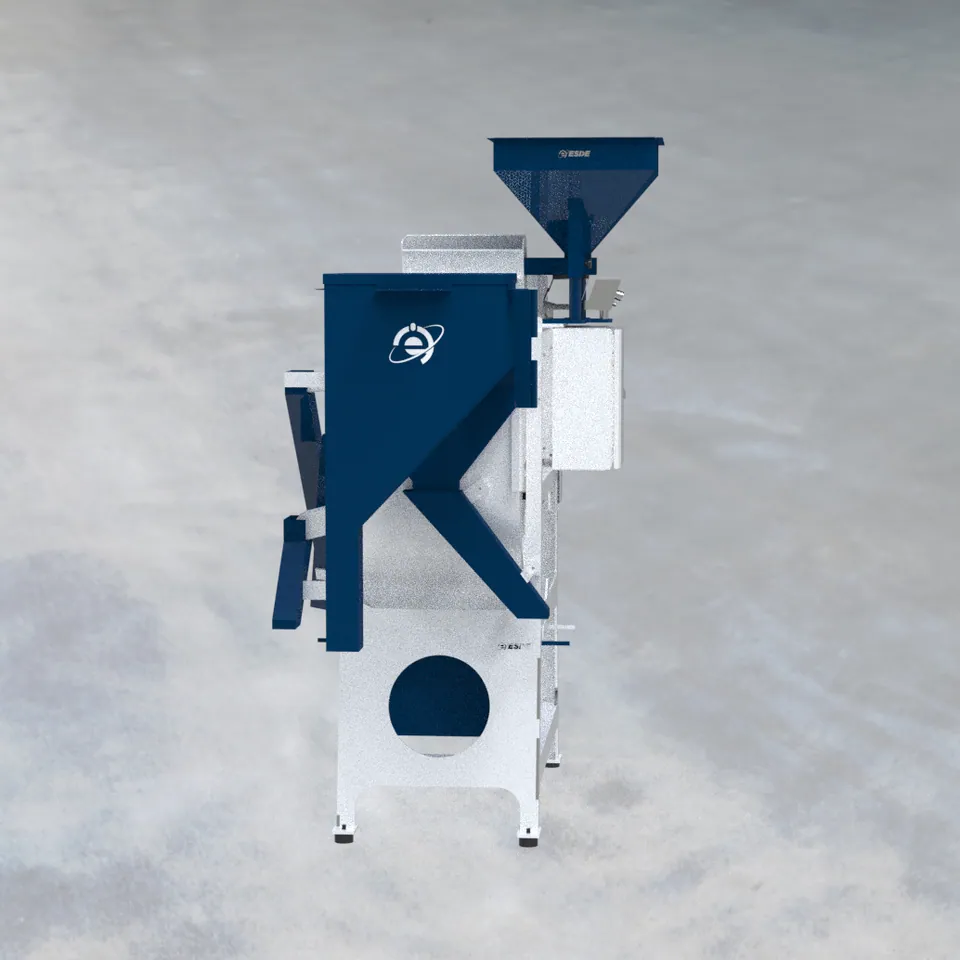

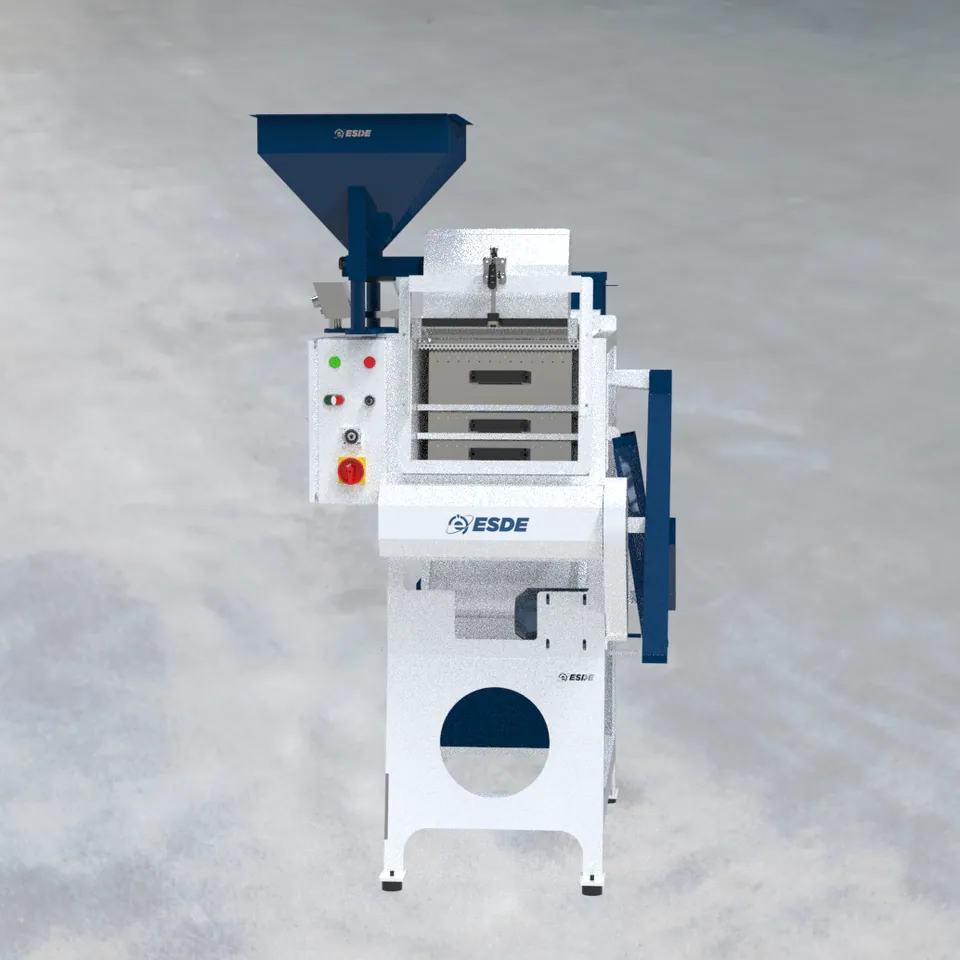

MODEL SD-6210
Seed Air Screen Selector
Three-screen air-screen cleaning for fine seed with minimal losses.
150 kg/hCapacity
3Screens included
1-12 mmOptional sieves
Drag to turn
Overview
Purpose-built for the fine seed industry, the SD-6210 minimises losses and contamination risk. This air-screen cleaner serves seed production lots, breeding plots, laboratories and commercial fine seed multiplication (e.g. vegetable and flower seed). Compatibility with a wide range of screens makes it suitable for almost any crop.
Key Features
- Continuously adjustable feeding for even distribution
- Three-stage screening with skid plates
- Overflow of each screen exits at its own outlet
- Undersize particles removed on the third screen
- Post-aspiration: heaviest, most vigorous seed collected
- Lightest seeds and debris removed by suction
- Optional dust extraction hood
Technical Specifications | SD-6210
| Parameter | Specification |
|---|---|
| Capacity | 150 kg per hour |
| Dimensions (L x W x H) | 1615 x 1010 x 1885 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 1.5 kW / 16 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet and profile, aluminium |
| Weight net / packed | approx. 100 / 130 kg |
| Included | 3 x sieves |
| Optional | Sieves from 1 mm to 12 mm; dust extraction hood |
| Certification | CE |

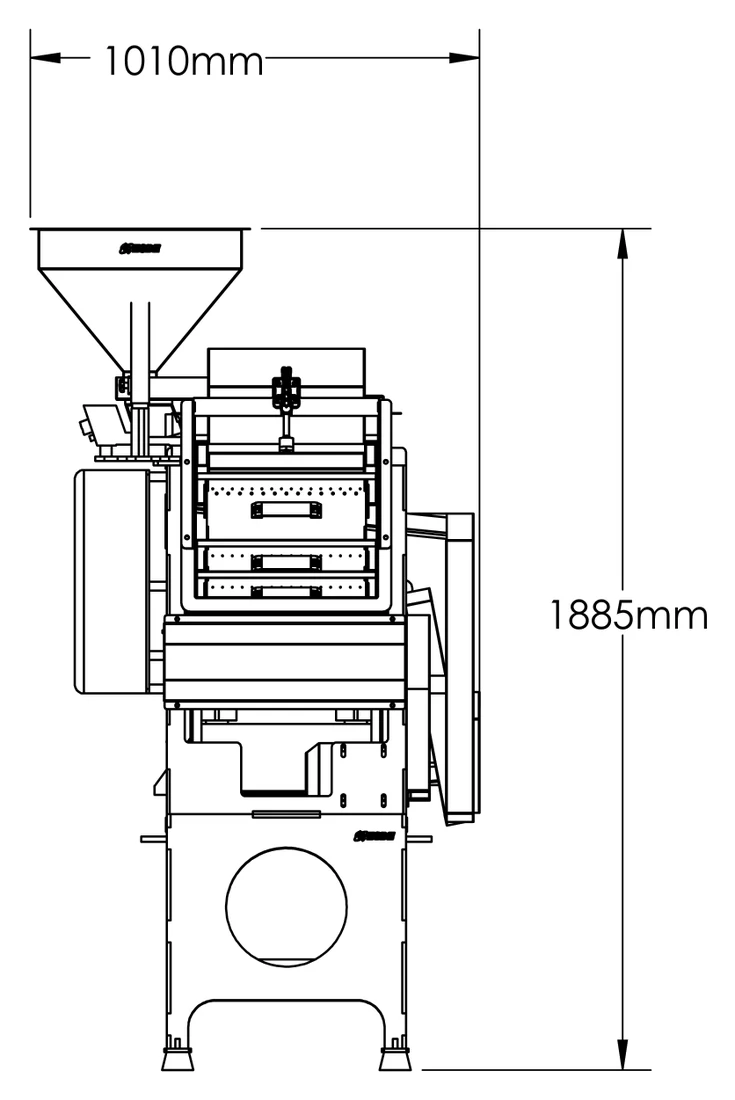

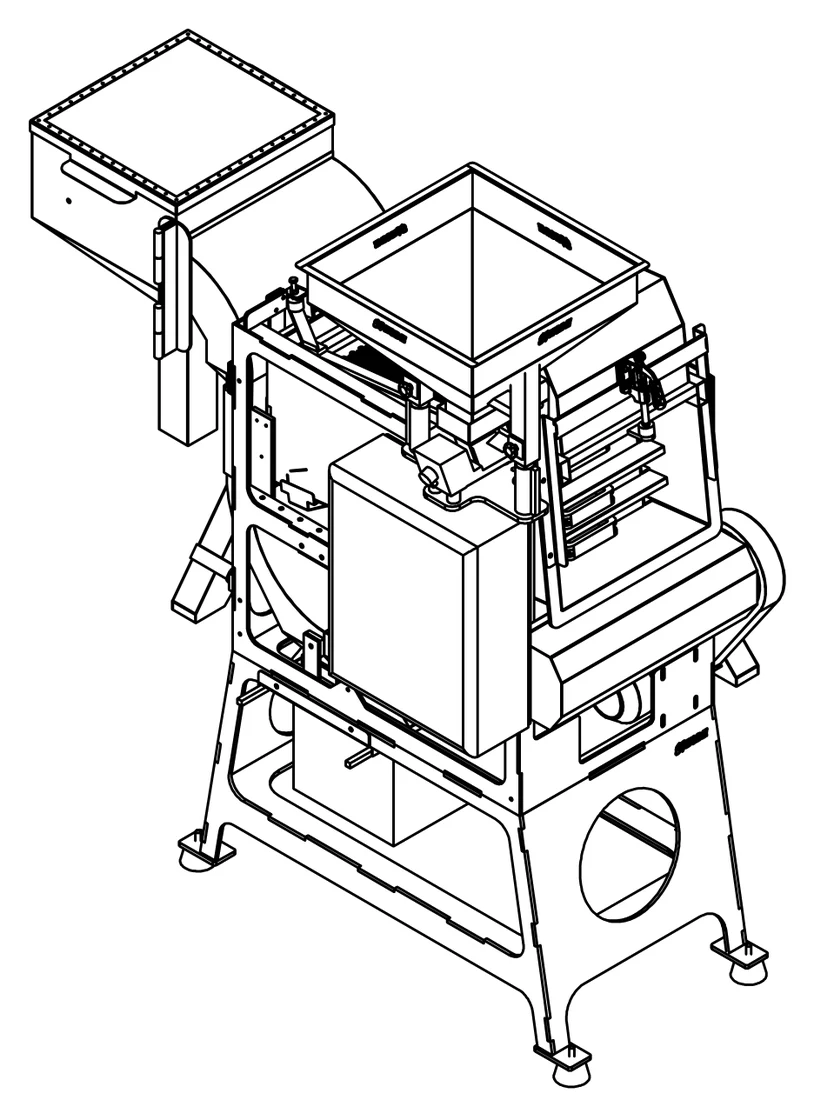

Technical Drawings
