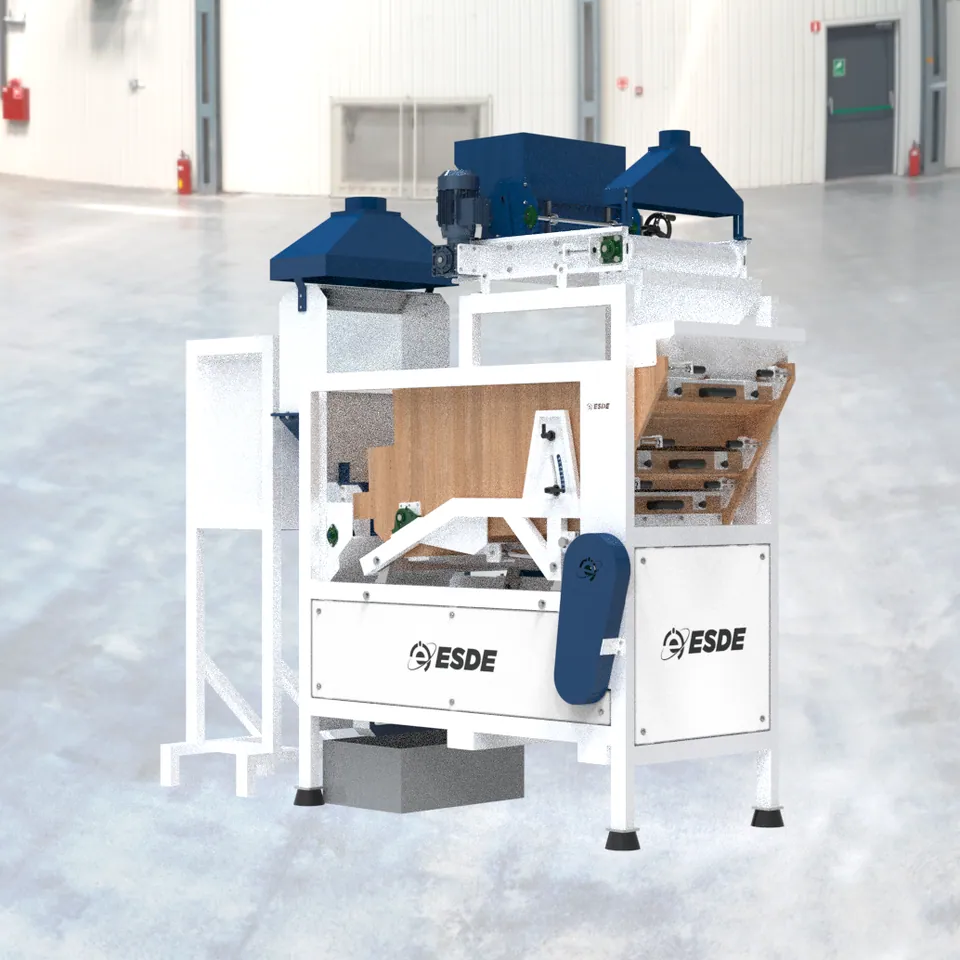

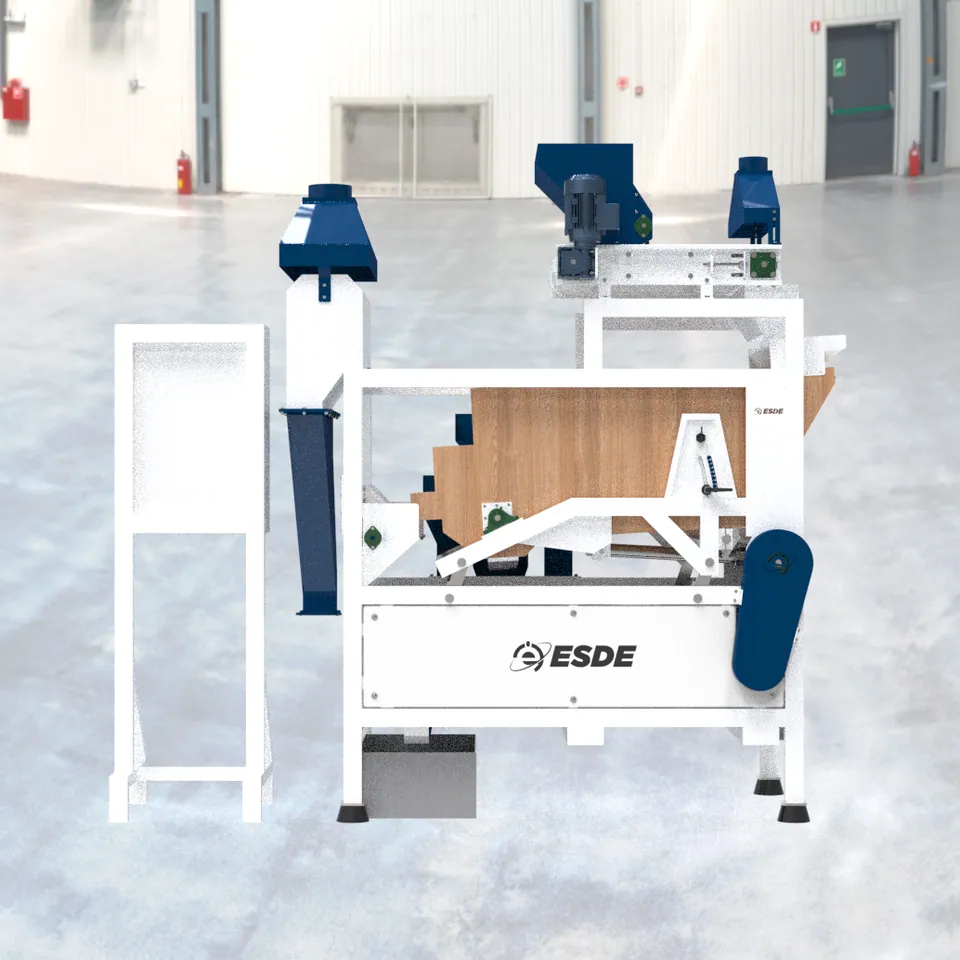

MODEL SD-6310
Seed Air Screen Cleaner
High-capacity air-screen cleaning and sorting for commercial seed.
300 kg/hCapacity
3-4Screen levels
1-12 mmOptional sieves
Drag to turn
Overview
Designed for the seed sector, the SD-6310 prioritises quality while minimising losses and contamination risk. It processes commercial seed multiplications, production lots and commercial plots, including vegetable and flower seeds, and adapts to virtually any crop thanks to its extensive screen selection.
Key Features
- Adapts to a wide range of crops
- Three screen levels, four-level option available
- Rubber ball cleaning in removable aluminium frames
- Central clamp-locking for fast screen changes
- Oscillation speed adjustable via frequency inverter
- Counter-balanced screen compartment for low vibration
- Variable fan speed for stable, reproducible output
Technical Specifications | SD-6310
| Parameter | Specification |
|---|---|
| Capacity | 300 kg per hour |
| Dimensions (L x W x H) | 1890 x 1030 x 2260 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 1.5 kW / 16 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet and profile, aluminium |
| Weight net / packed | approx. 220 / 260 kg |
| Included | 3 x sieves |
| Optional | Sieves from 1 mm to 12 mm |
| Certification | CE |

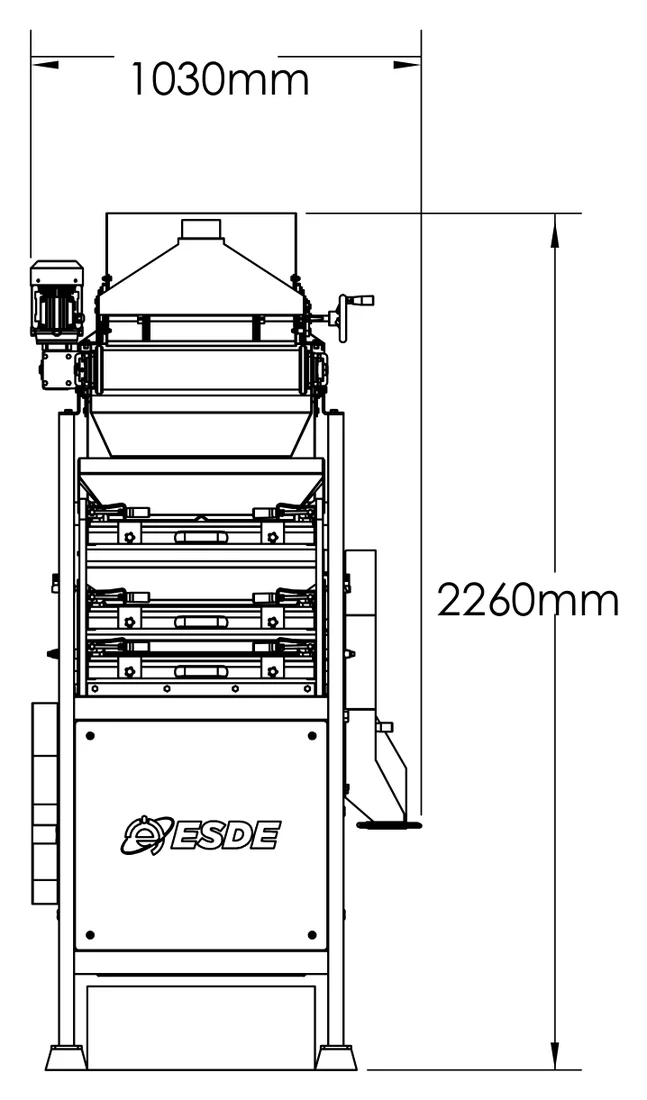

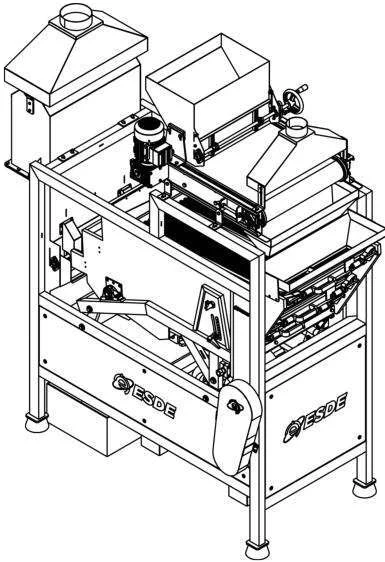

Technical Drawings
