MODEL SD-10040

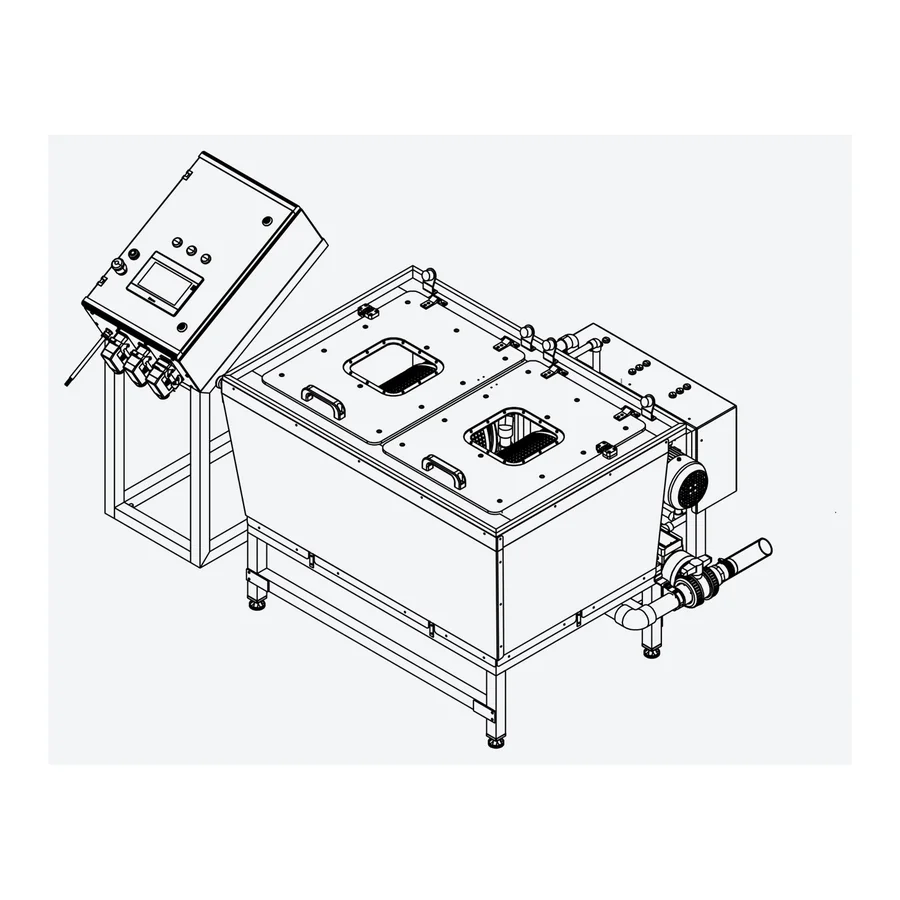

Hot Water Disinfection Unit
Precise hot-water treatment with ±0.5 °C temperature stability.
±0.5 °CAccuracy
15-60 °COperating range
7" HMIPLC control
Overview
The SD-10040 is engineered for precise seed treatment through controlled hot-water processes. It provides effective disinfection against bacterial infections and seed-borne diseases while maintaining seed viability through precise temperature and timing control. A temperature stabiliser, maintained by continuous water circulation with a circulation pump, keeps the bath within ±0.5 °C.
Key Features
- 7-inch HMI touch screen for operation and monitoring
- PLC control with automated process management
- Temperature control up to 60 °C, ±0.5 °C accuracy
- Dual basket system for continuous processing
- Automatic water level control with sensors
- Cold, hot and mixed water operating modes
- Real-time temperature graphing
- Emergency stops and alarm management
- Stainless steel 304 construction
- Basket rotation for uniform treatment
Technical Specifications | SD-10040
| Parameter | Specification |
|---|---|
| Capacity | 2 baskets of 41 L each (varies by seed type and treatment) |
| Dimensions (L x W x H) | 1150 x 1260 x 900 mm |
| Electrical connection | 380 - 415 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | > 32 kW / 40 A circuit breaker; professional installation mandatory |
| Temperature range | 15 - 60 °C, ±0.5 °C, rapid heating with circulation |
| Connections | Water 22 mm; drain 50 mm |
| Noise emission | approx. 65 dB(A), without product |
| Materials | SS 304 frame; SS baskets with locks; corrosion-resistant water-contact parts |
| Weight net / packed | approx. 380 / 400 kg |
| Included | 2 treatment baskets with covers, circulation and heating, probes, multilingual HMI, process documentation and alarms |
| Certification | CE |

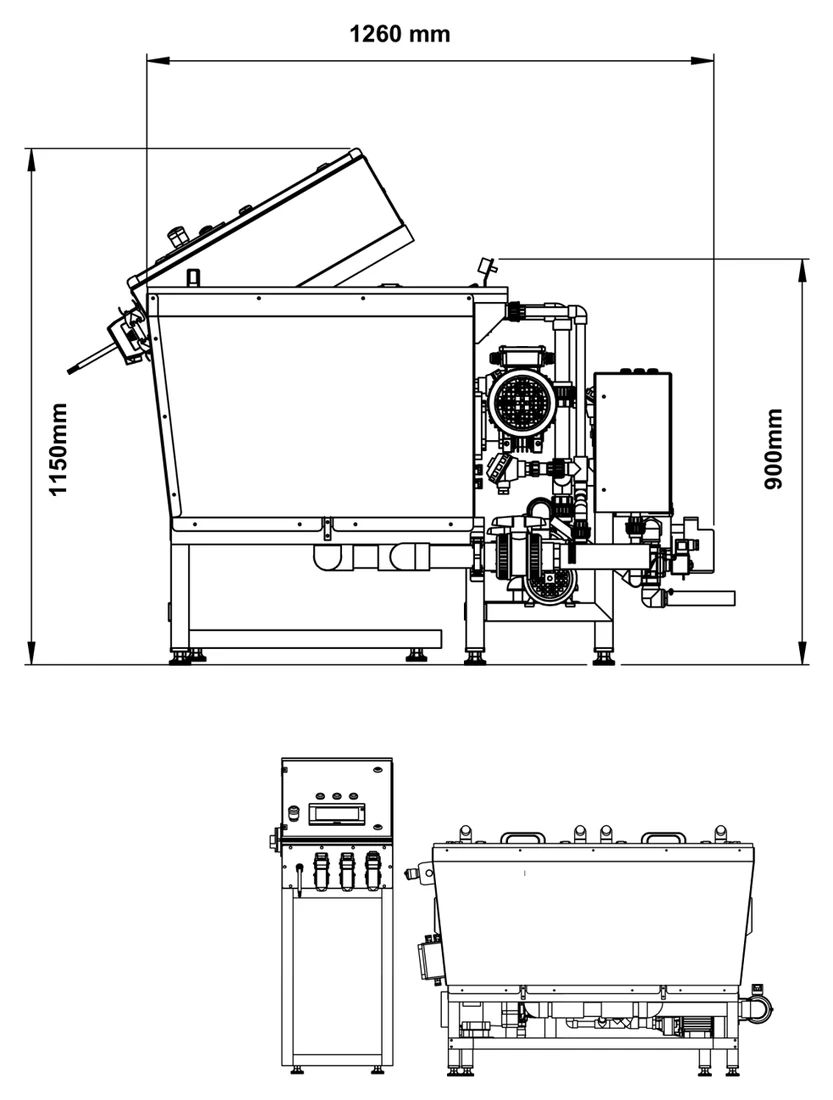

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
