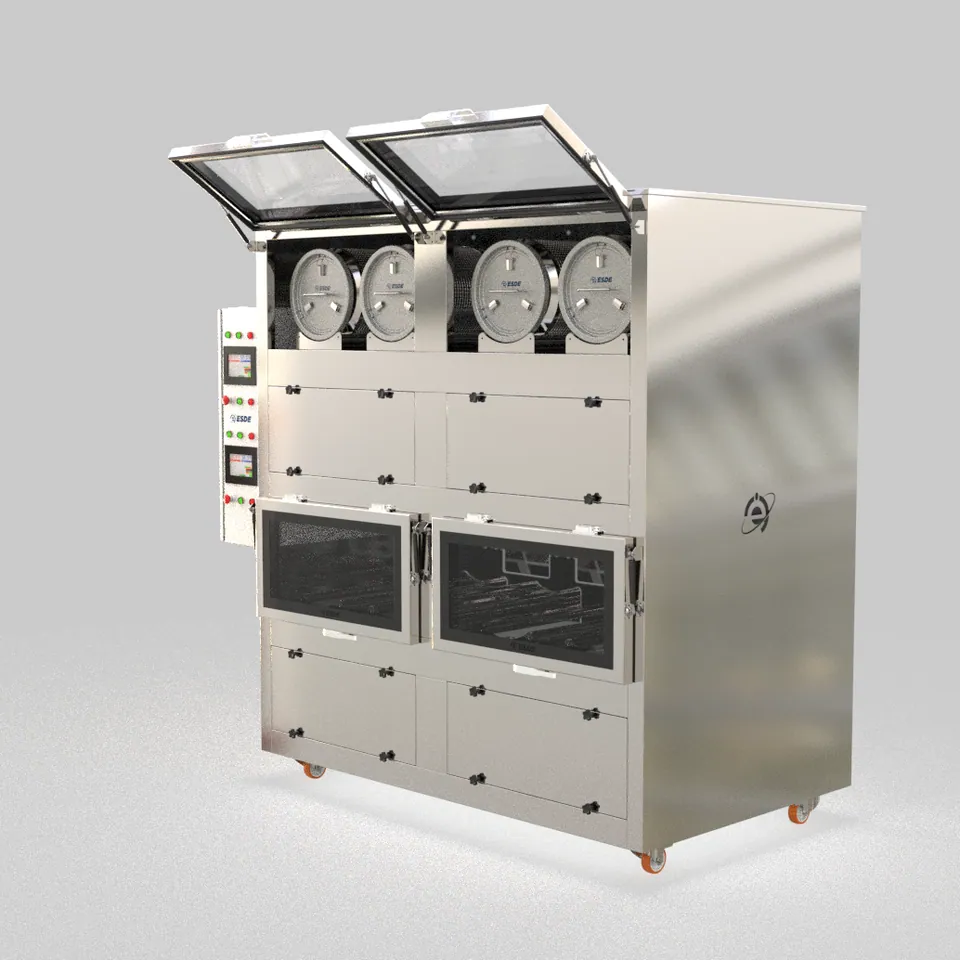

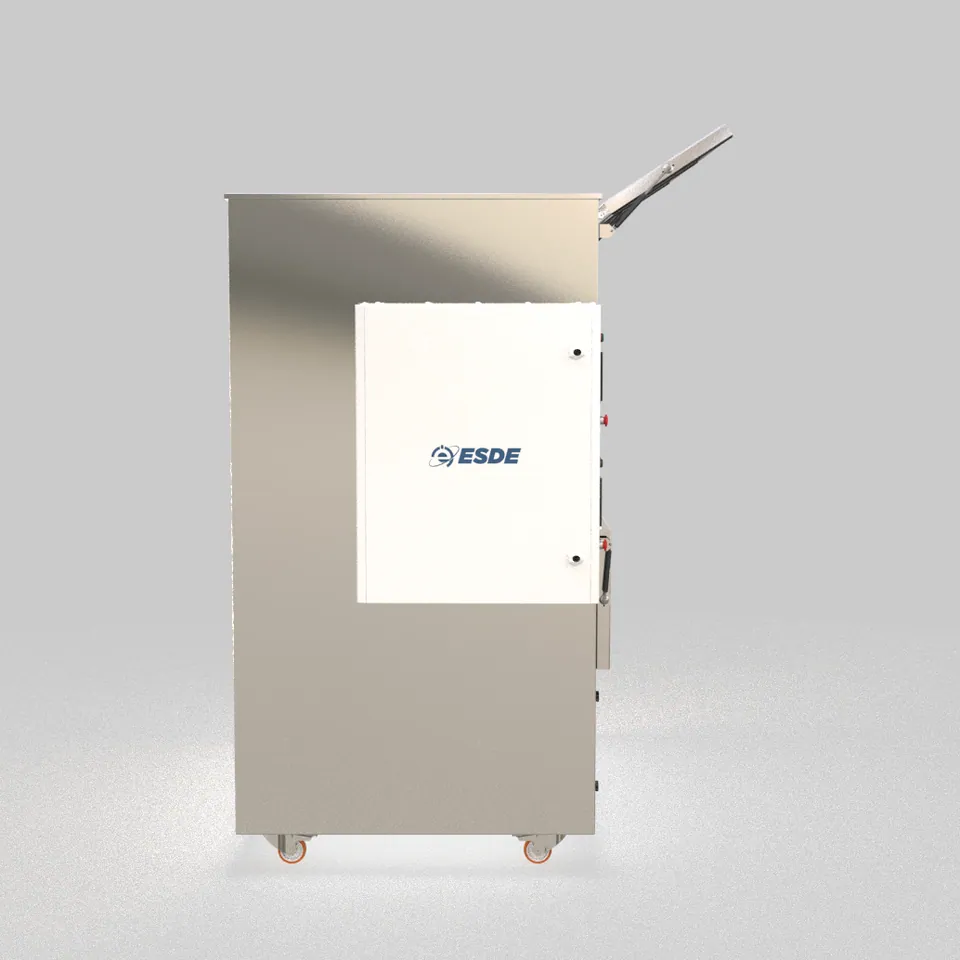

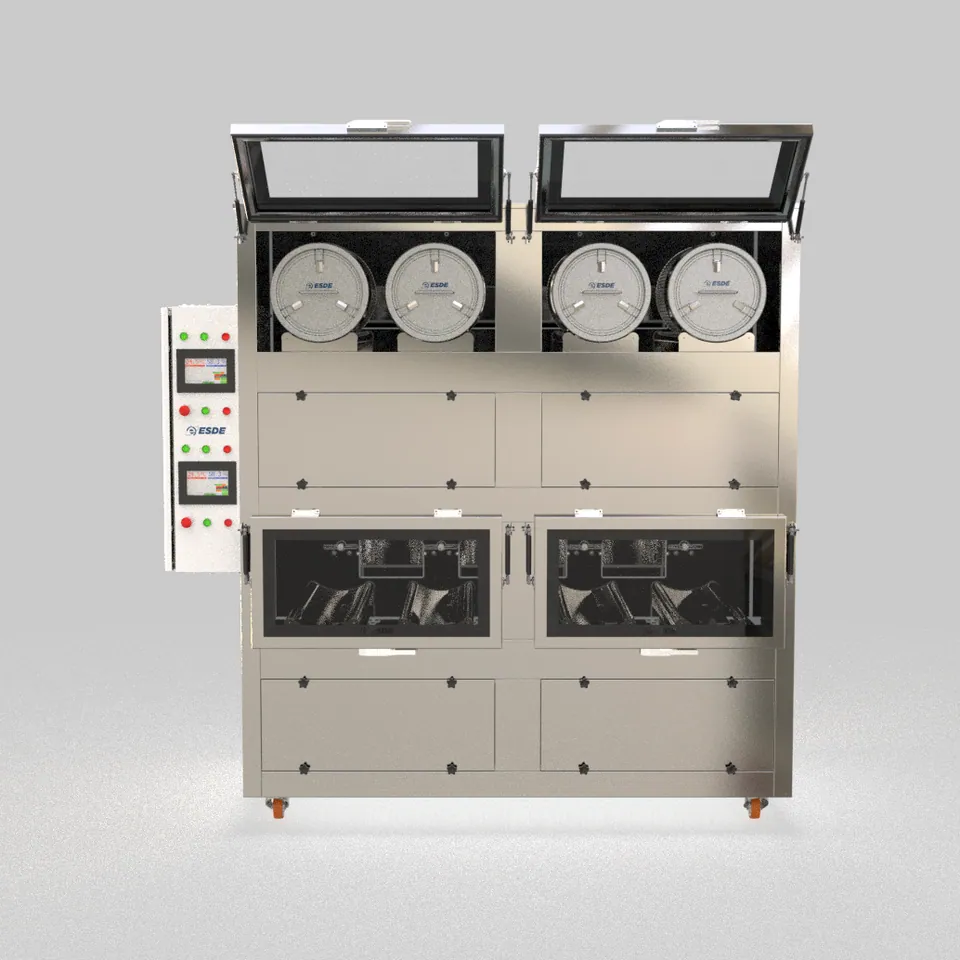

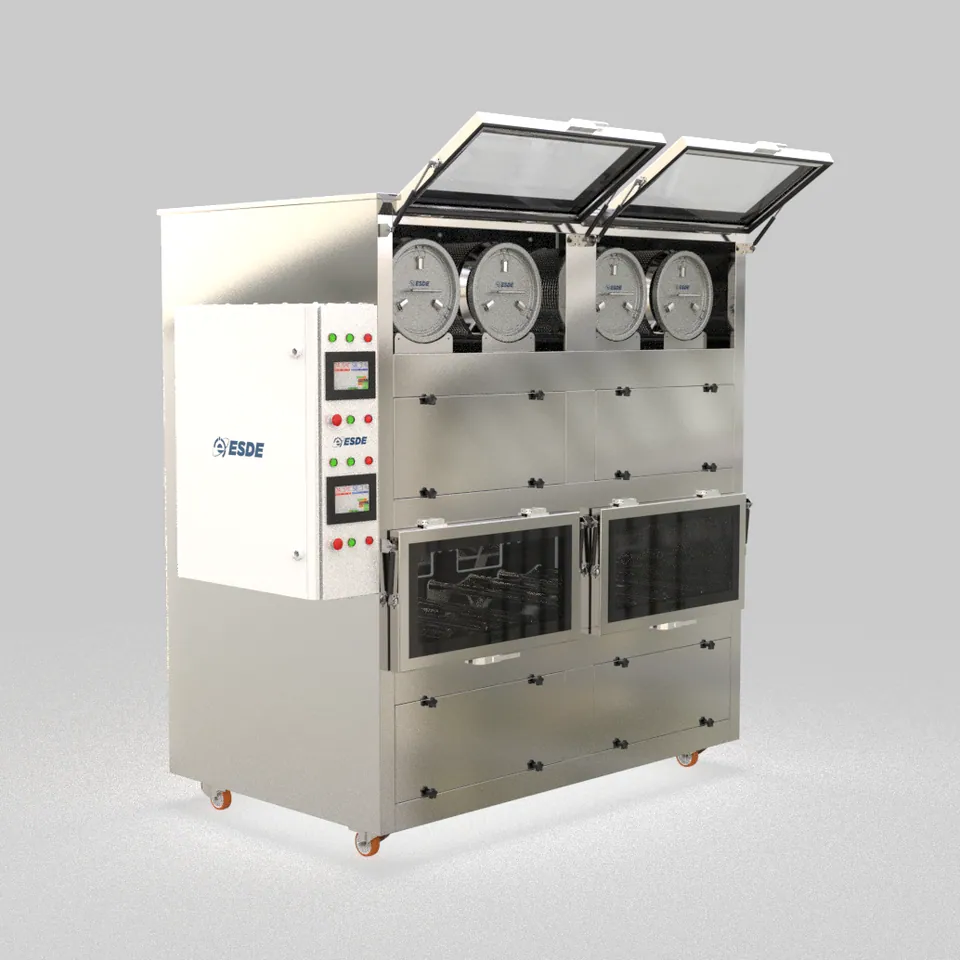

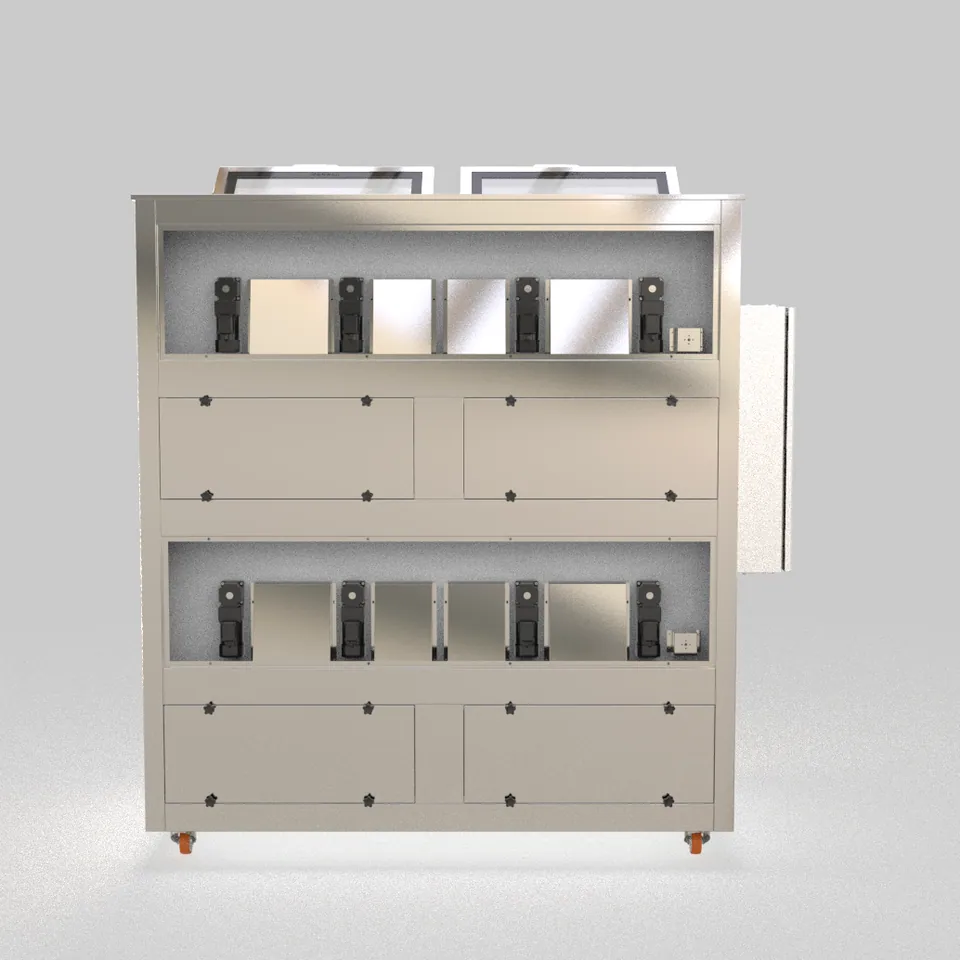

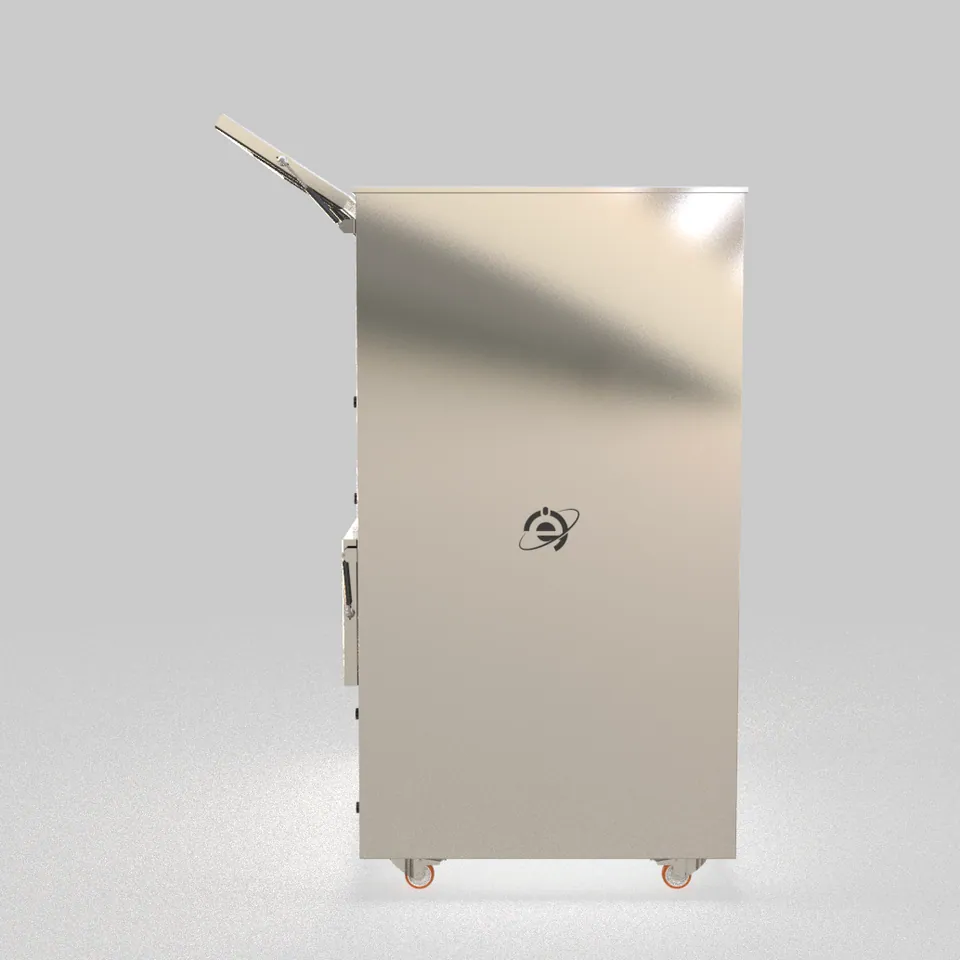

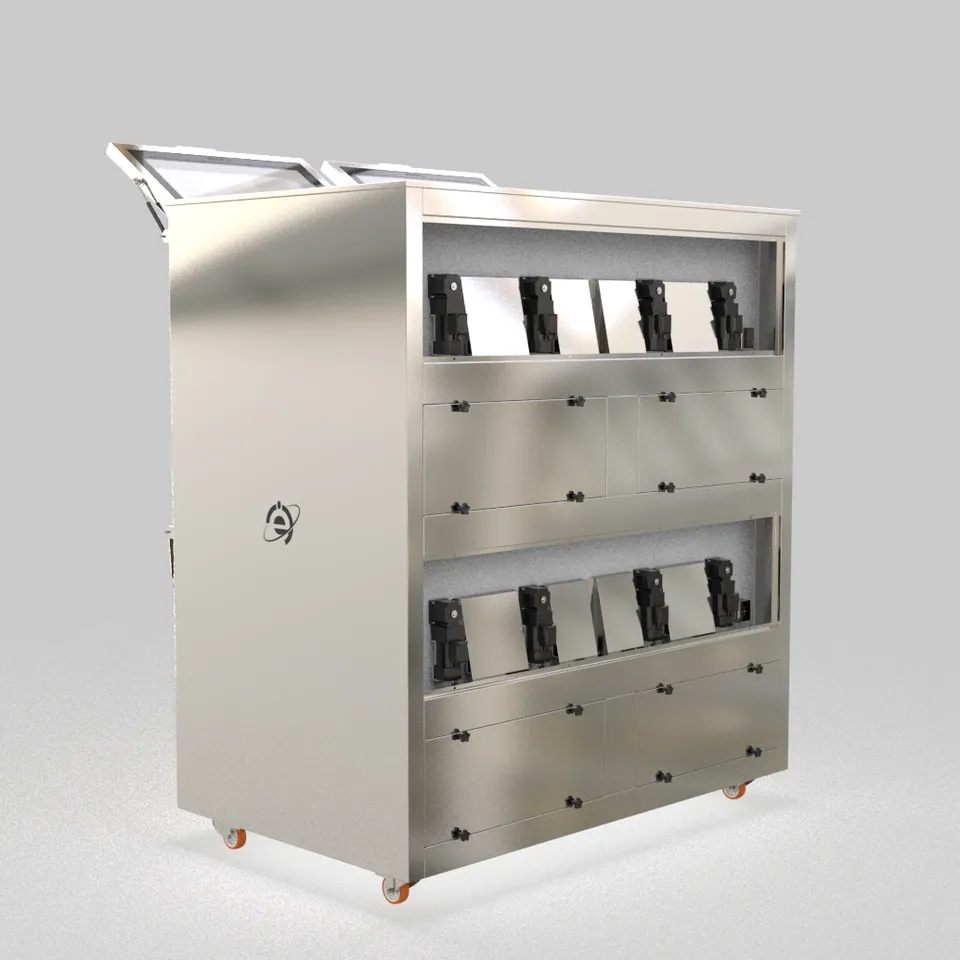

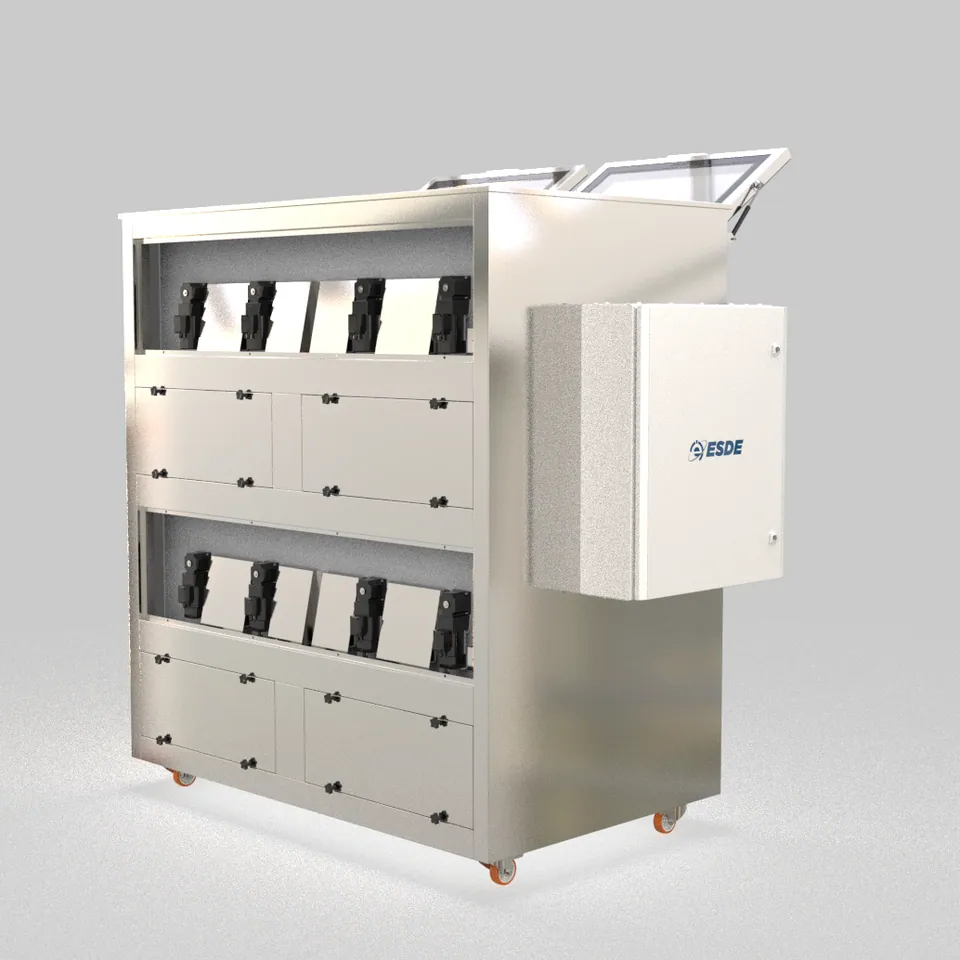

MODEL SD-5016
D16 Conditioned Seed Dryer
16 baskets in two independent sections for large production lots.
16 x 41 LBaskets
2Independent sections
13 kWMax. power
Drag to turn
Overview
The SD-5016 is engineered for precise, controlled drying of vegetable and hemp seed lots in commercial processing plants, where seed quality and efficiency are paramount. Automatic, reproducible drying processes preserve the quality of your seed and can be stored as recipes for future use.
Good to know: average drying time is approx. 60 minutes per batch. For film-coated seed we recommend a working fill of 6 - 8 kg per basket.
Key Features
- Up to 16 baskets for large seed batches
- Two independent sections with 8 baskets each
- Automatic, reproducible drying processes
- Recipes stored for future use
- Evaporator-based dehumidification
- Stainless steel 304 Cr-Ni construction
Technical Specifications | SD-5016
| Parameter | Specification |
|---|---|
| Capacity | 16 baskets of 41 L each; 1 - 12.5 kg seed per basket |
| Dimensions (L x W x H) | 2080 x 1330 x 2340 mm |
| Electrical connection | 380 - 400 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 13 kW / 32 A (slow blow) |
| Drain connection | 32 mm |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Stainless steel 304 Cr-Ni |
| Weight net / packed | approx. 820 / 940 kg |
| Included | 16 x basket |
| Optional | Ozone, UV |
| Certification | CE |

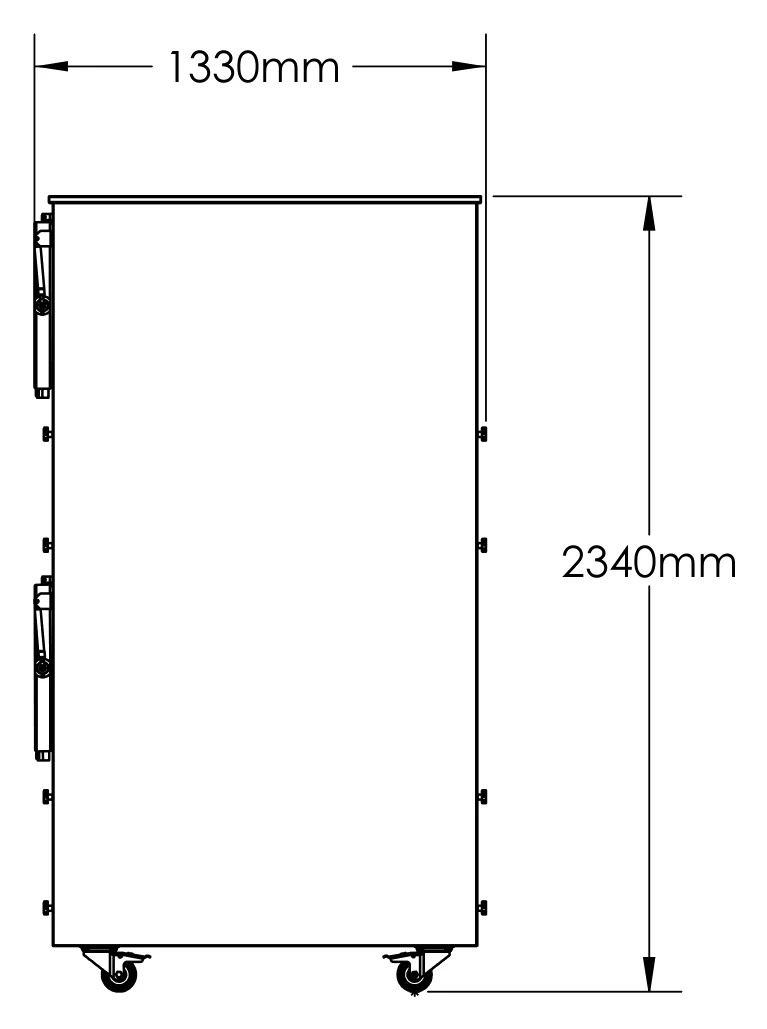

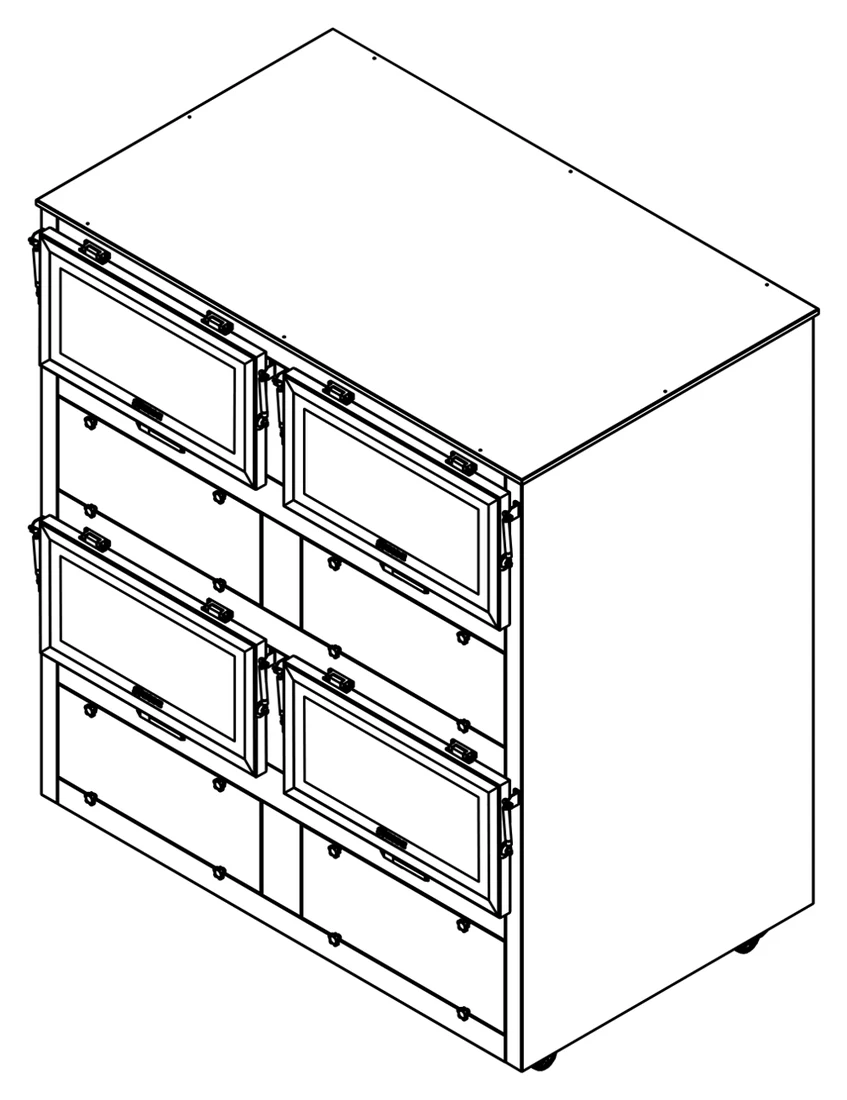

Technical Drawings
