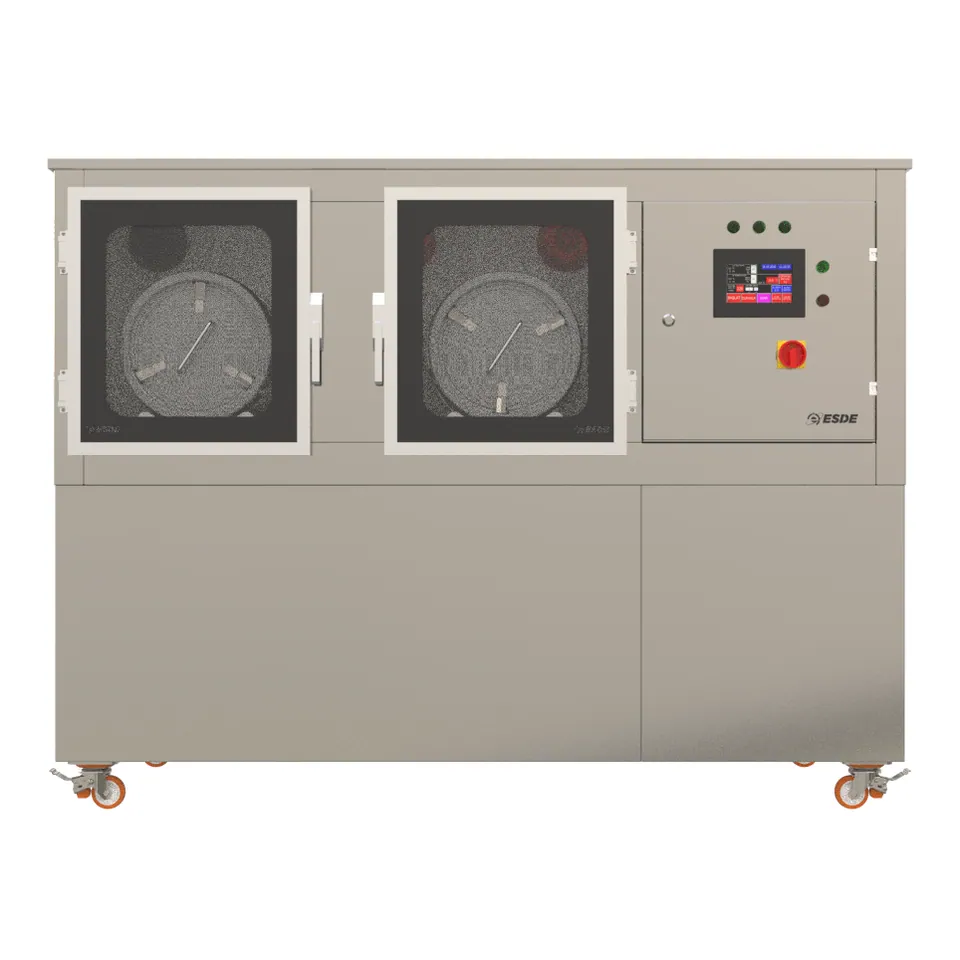

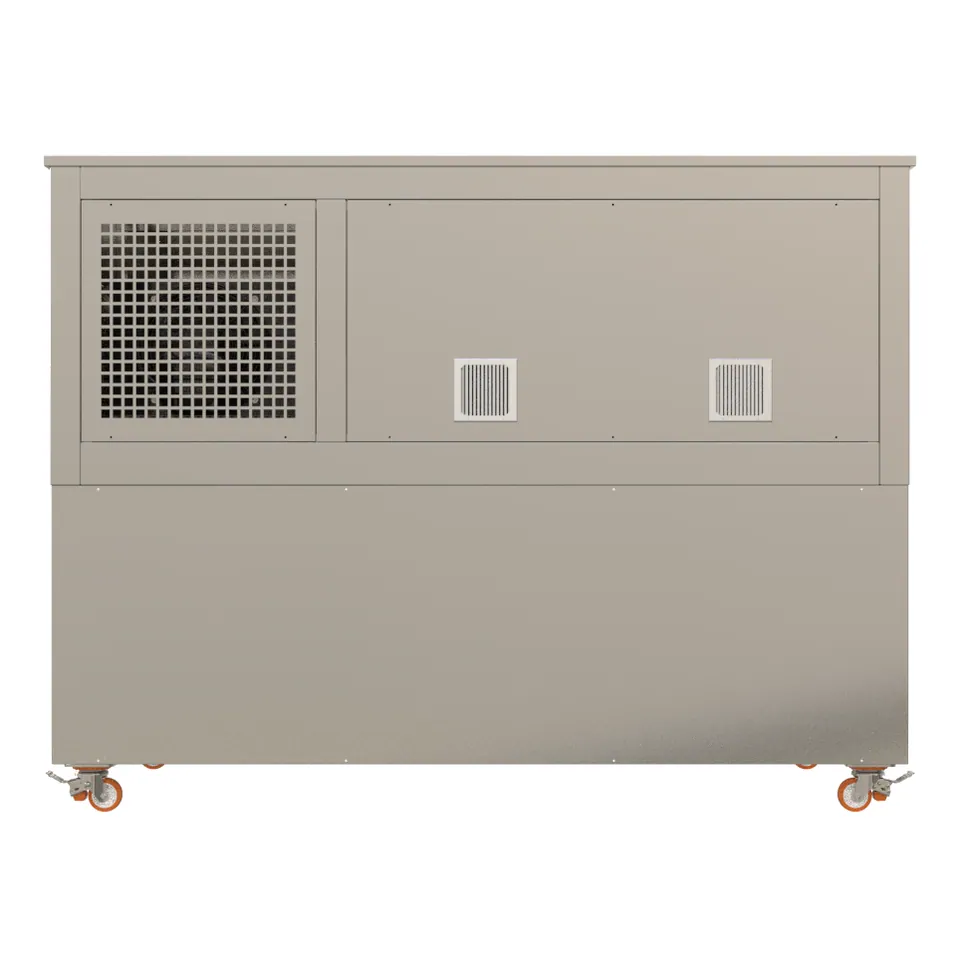

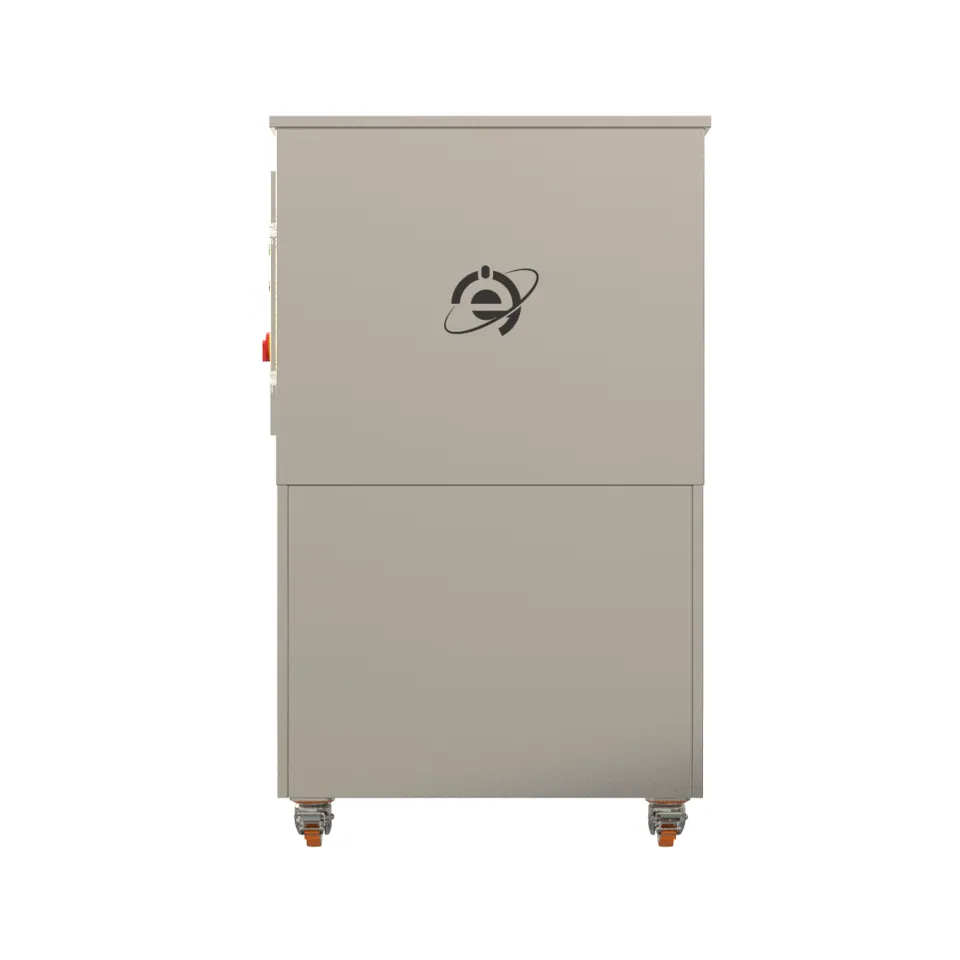

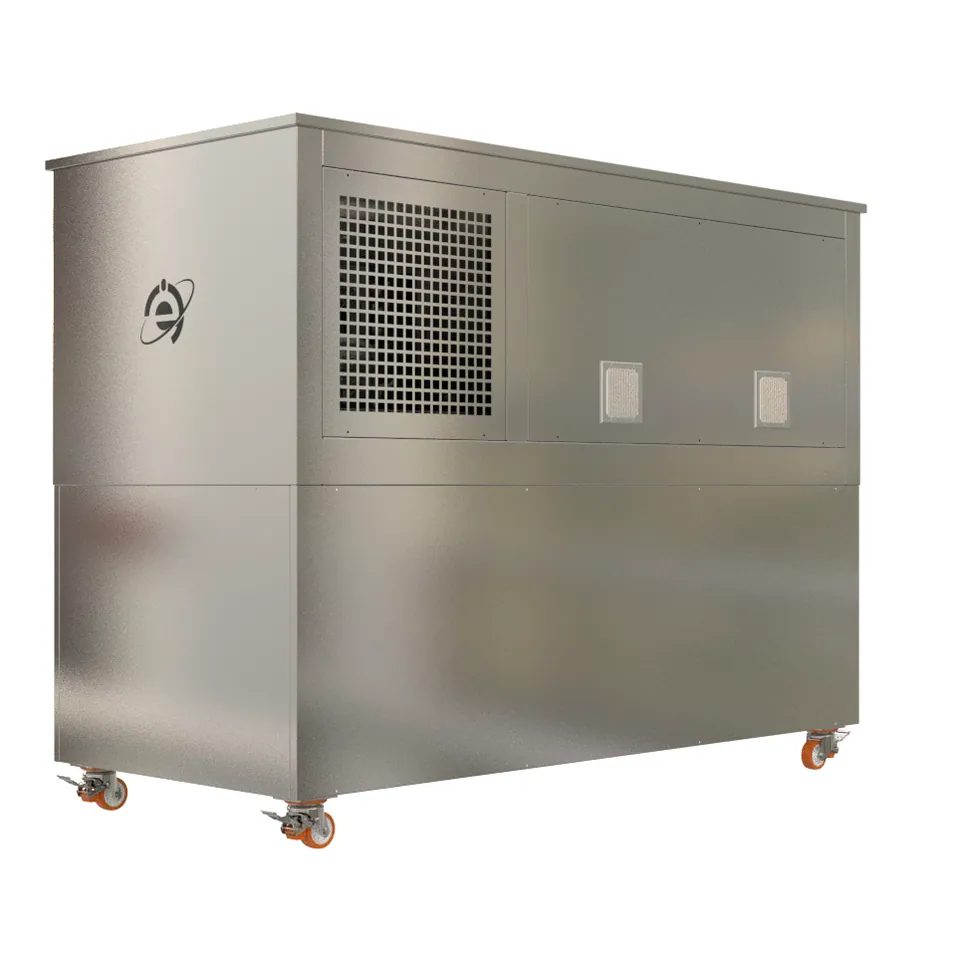

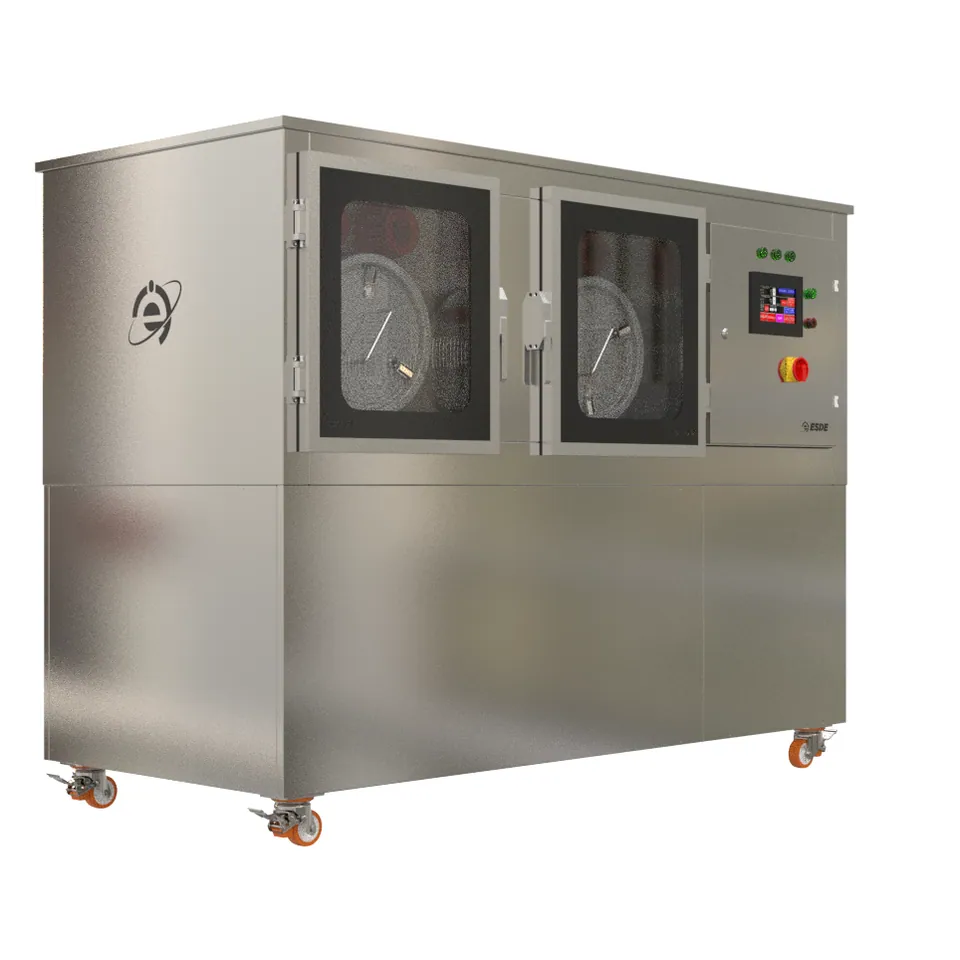

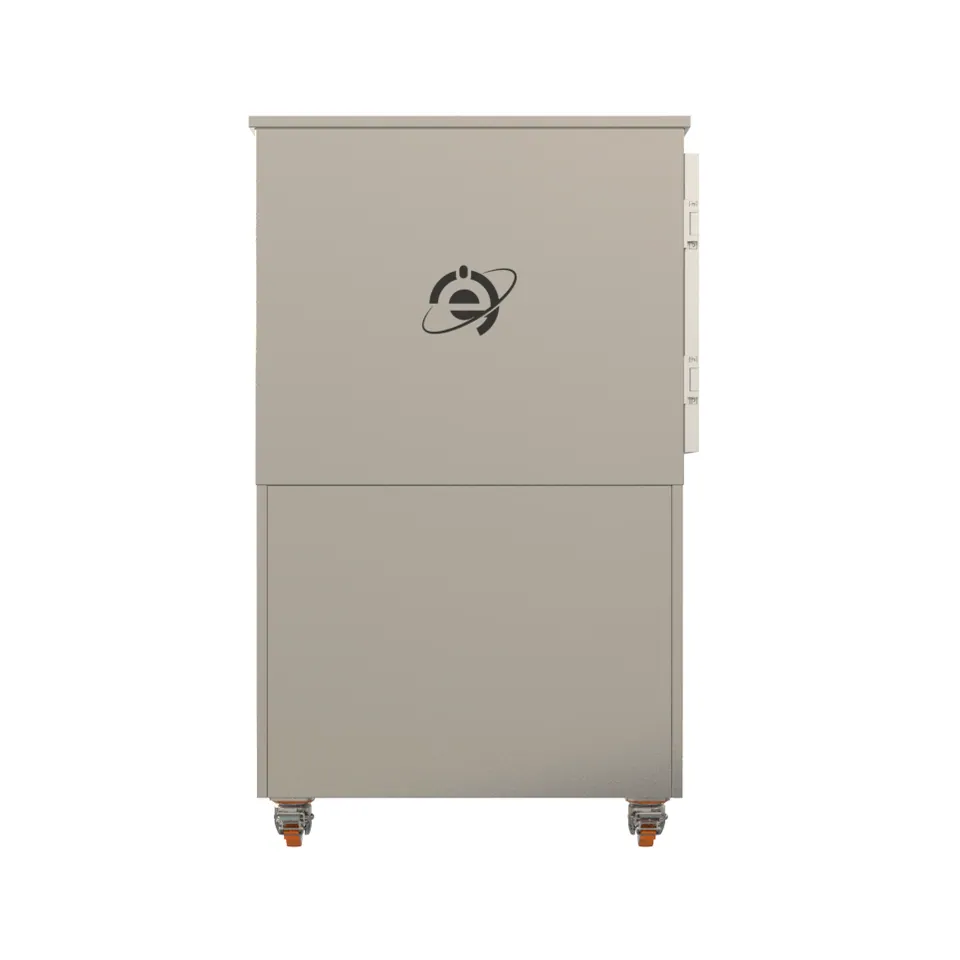

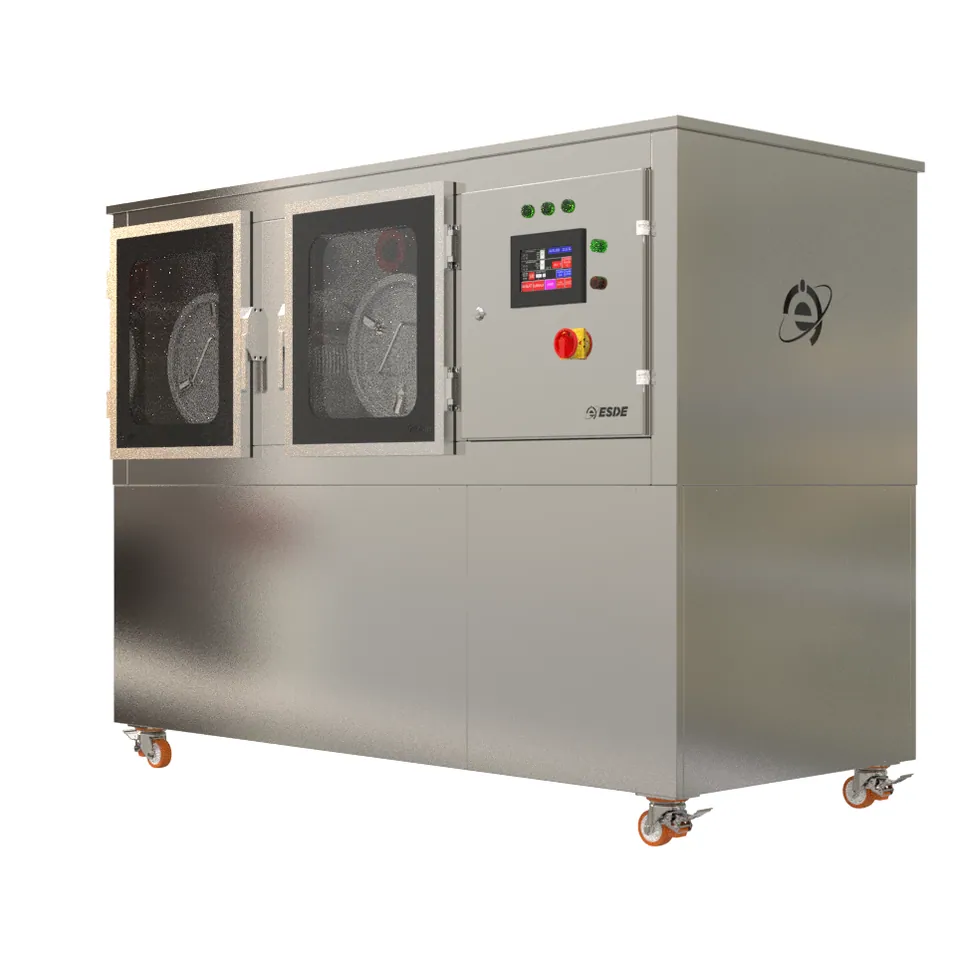

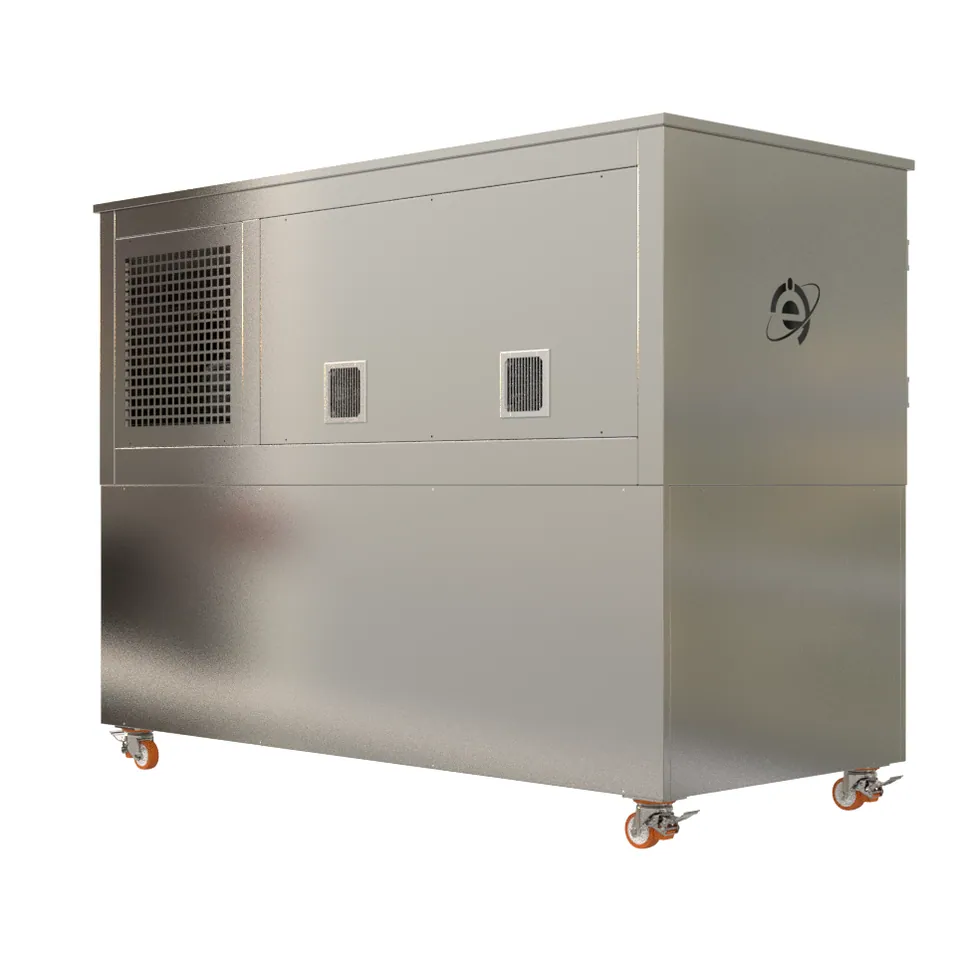

MODEL SD-5020 | SD-5040
Seed Double & Quattro Dryer
Controlled, reproducible batch drying for vegetable and hemp seed.
41 LPer basket
1-12.5 kgSeed per basket
3 kWMax. power
Drag to turn
Overview
The SD-5020 dries seed batches in two independent baskets under fully controlled air conditions. Drying parameters are saved as recipes, so every batch of the same variety is dried exactly like the last. Recirculating AC fans and evaporator-based dehumidification keep energy use low and avoid the extra heat that desiccant rotors produce. The SD-5040 Quattro Dryer offers the same technology with four baskets.
Good to know: average drying time is approx. 60 minutes per batch. For film-coated seed we recommend a working fill of 6 - 8 kg per basket.
Key Features
- Automatic, reproducible drying with recipe memory
- Precise control regardless of ambient climate
- Energy efficient: AC recirculating fans and dehumidification
- Ideal for conditional drying of high-value seed
- Industry-standard 41 L baskets
- Double (2 baskets) or Quattro (4 baskets)
Technical Specifications | SD-5020 | SD-5040
| Parameter | Specification |
|---|---|
| Capacity | 41 L per basket; 1 - 12.5 kg seed per basket |
| Baskets included | 2 (SD-5020 Double) / 4 (SD-5040 Quattro) |
| Dimensions (L x W x H) | 2025 x 980 x 1545 mm (Double); 2025 x 1435 x 1545 mm (Quattro) |
| Electrical connection | 380 - 400 V, 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 3 kW / 16 A |
| Drain connection | 25 mm |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Stainless steel 304 and plastics |
| Weight net / packed | approx. 360 / 420 kg (Double); 420 / 480 kg (Quattro) |
| Certification | CE |

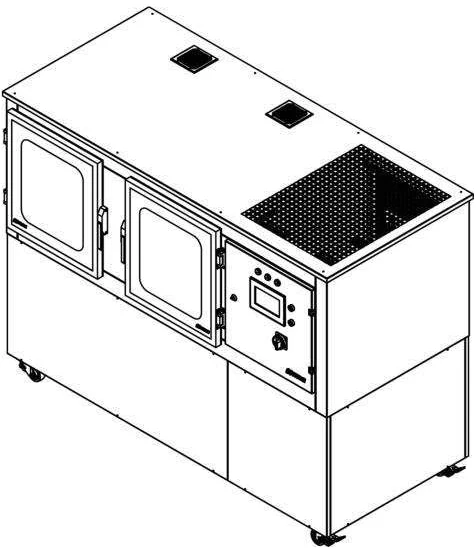

Technical Drawings
