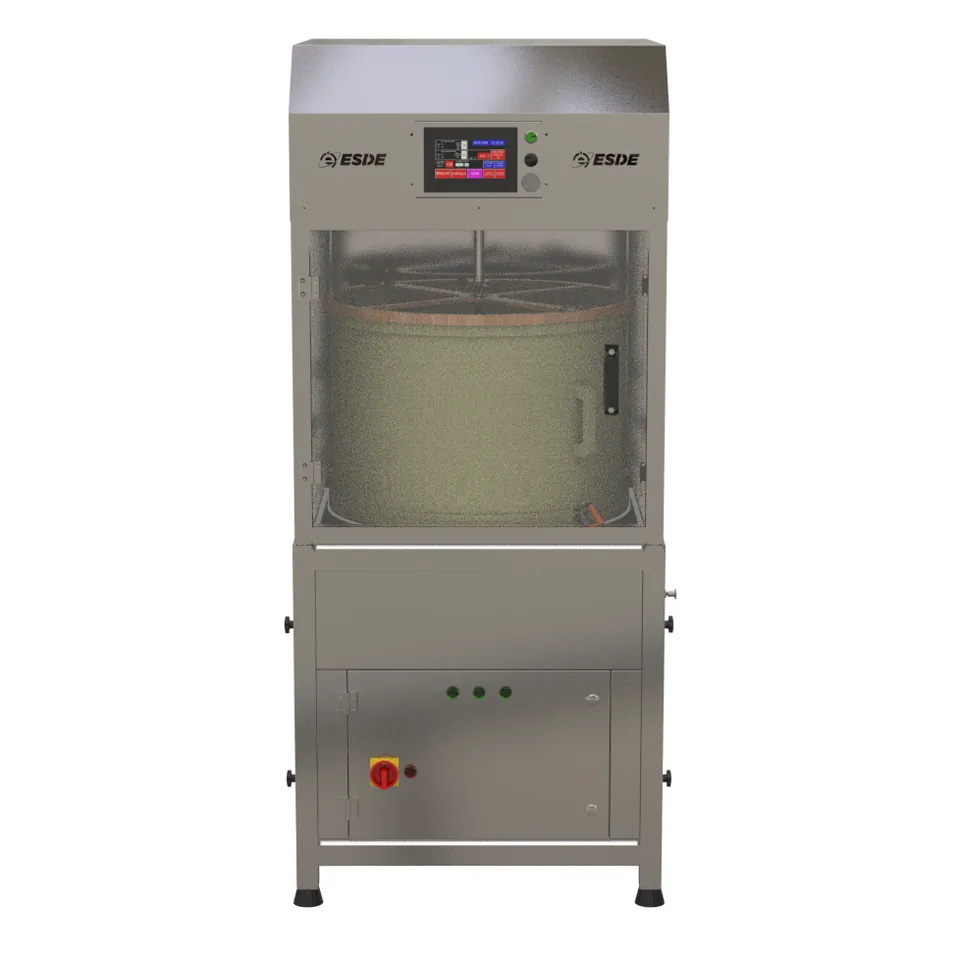

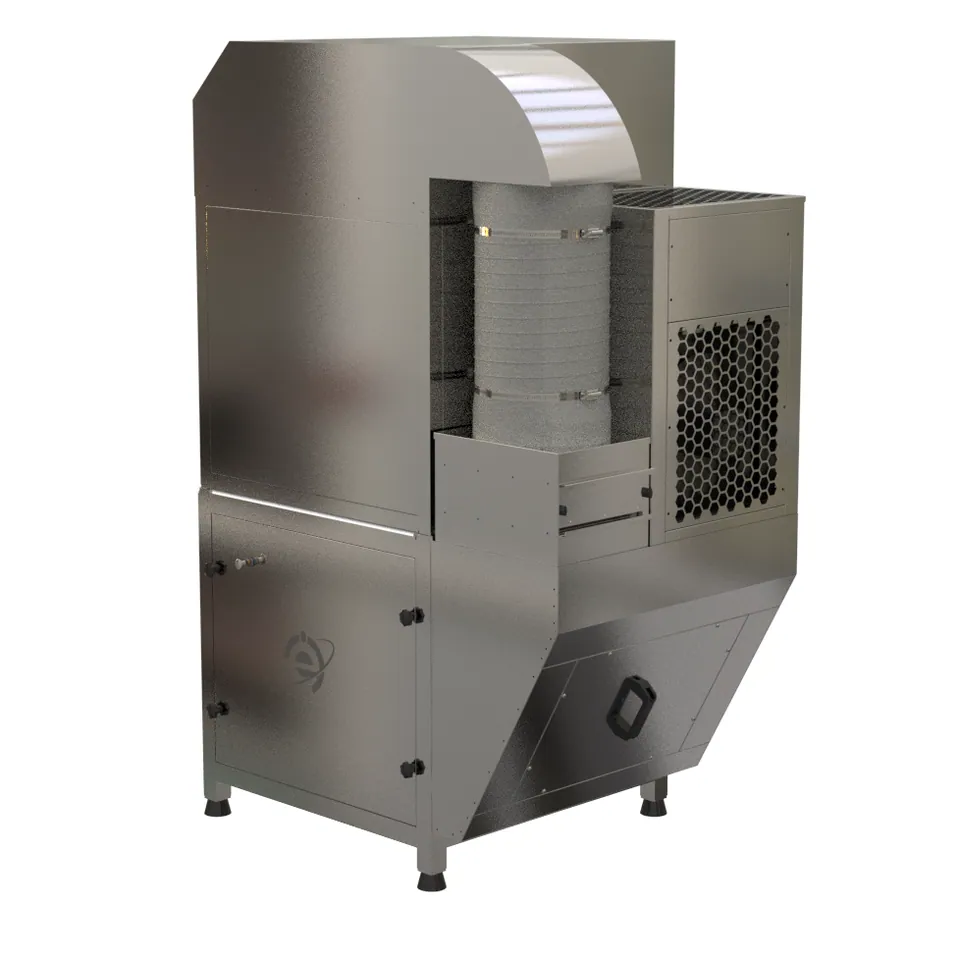

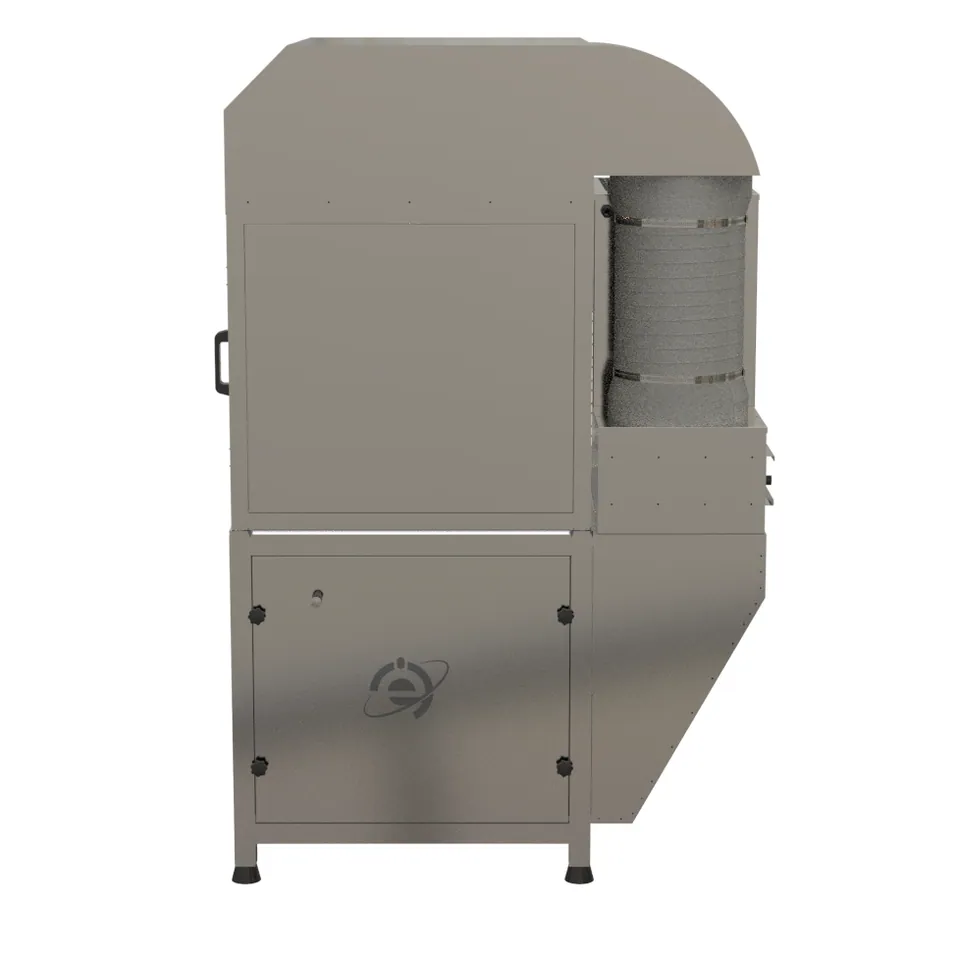

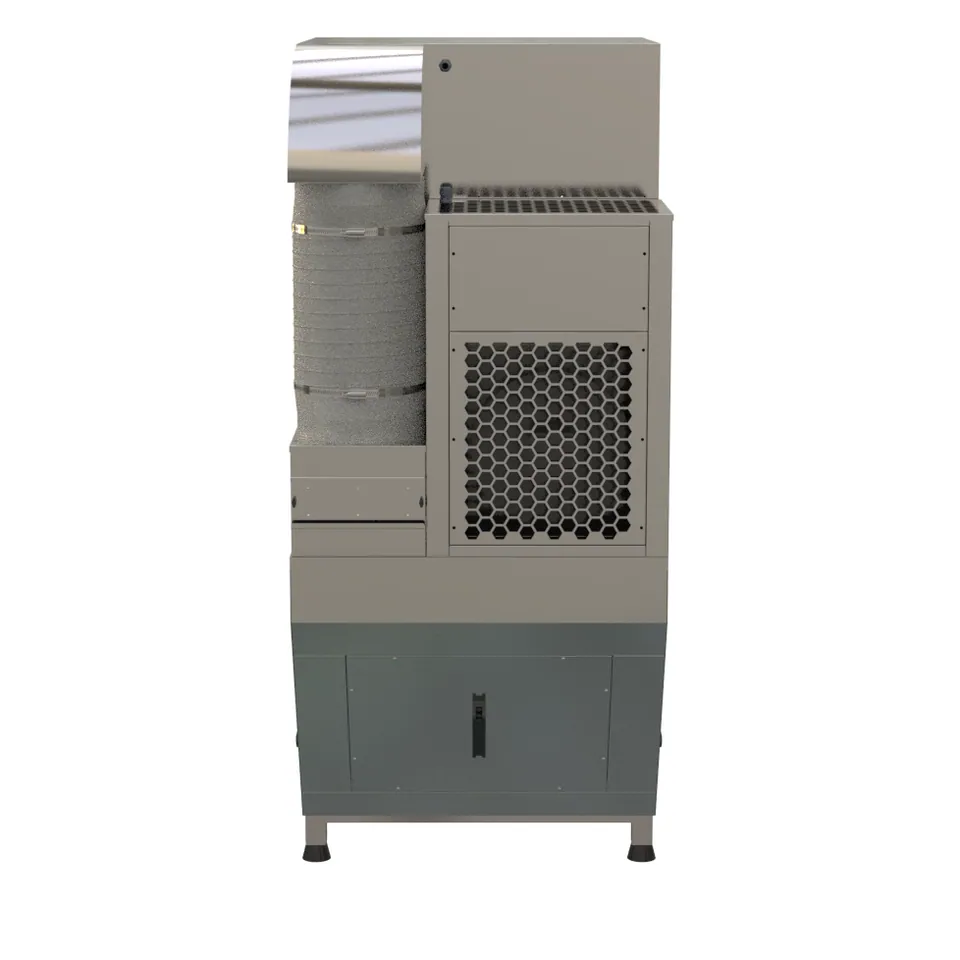

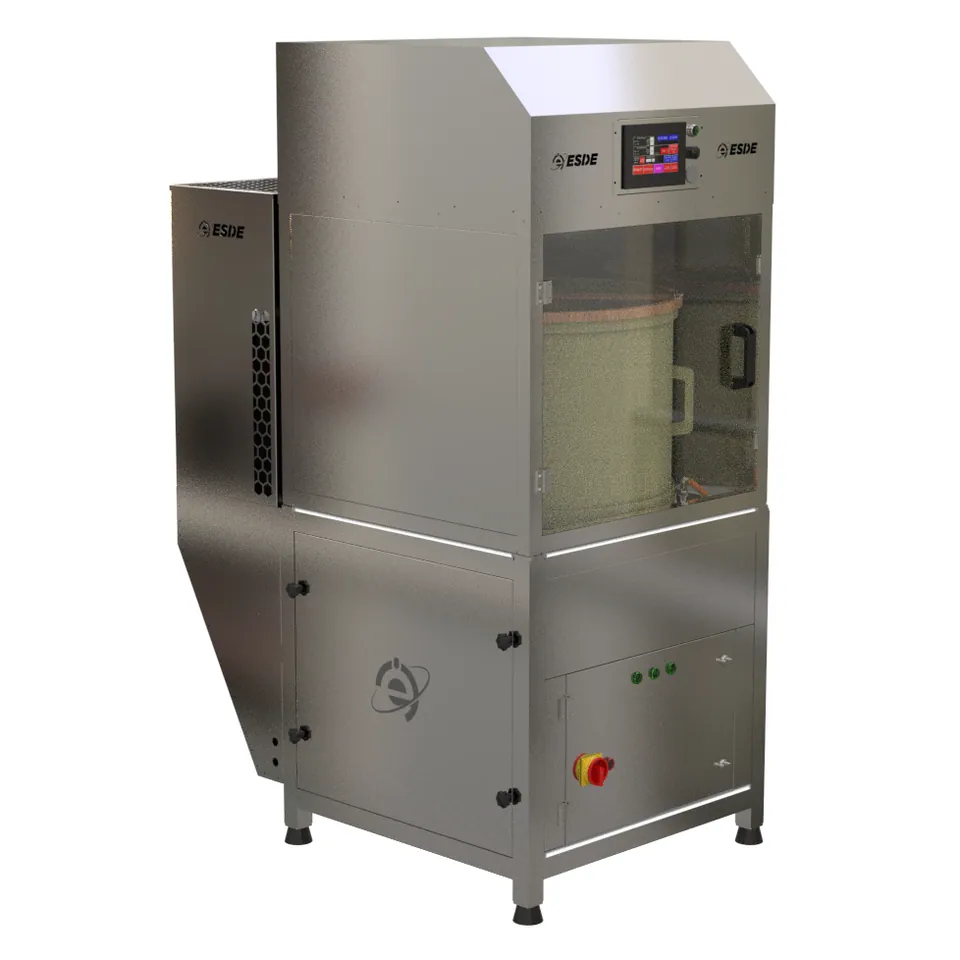

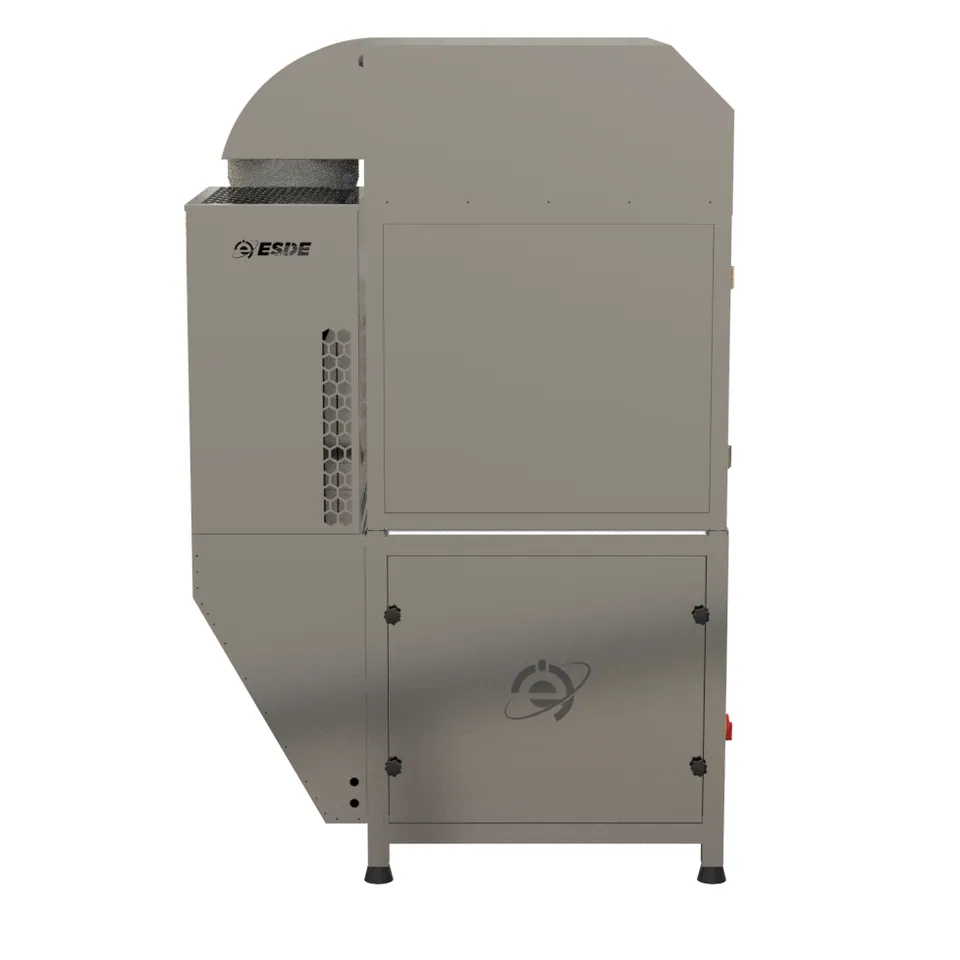

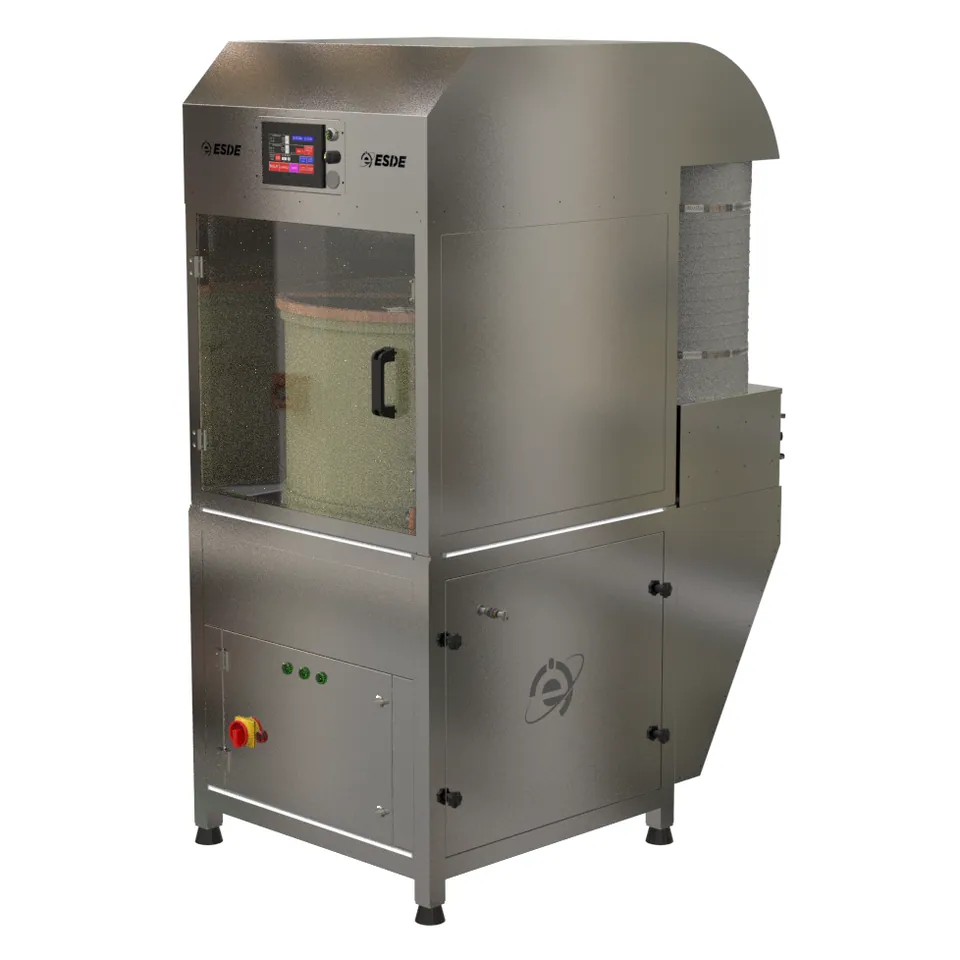

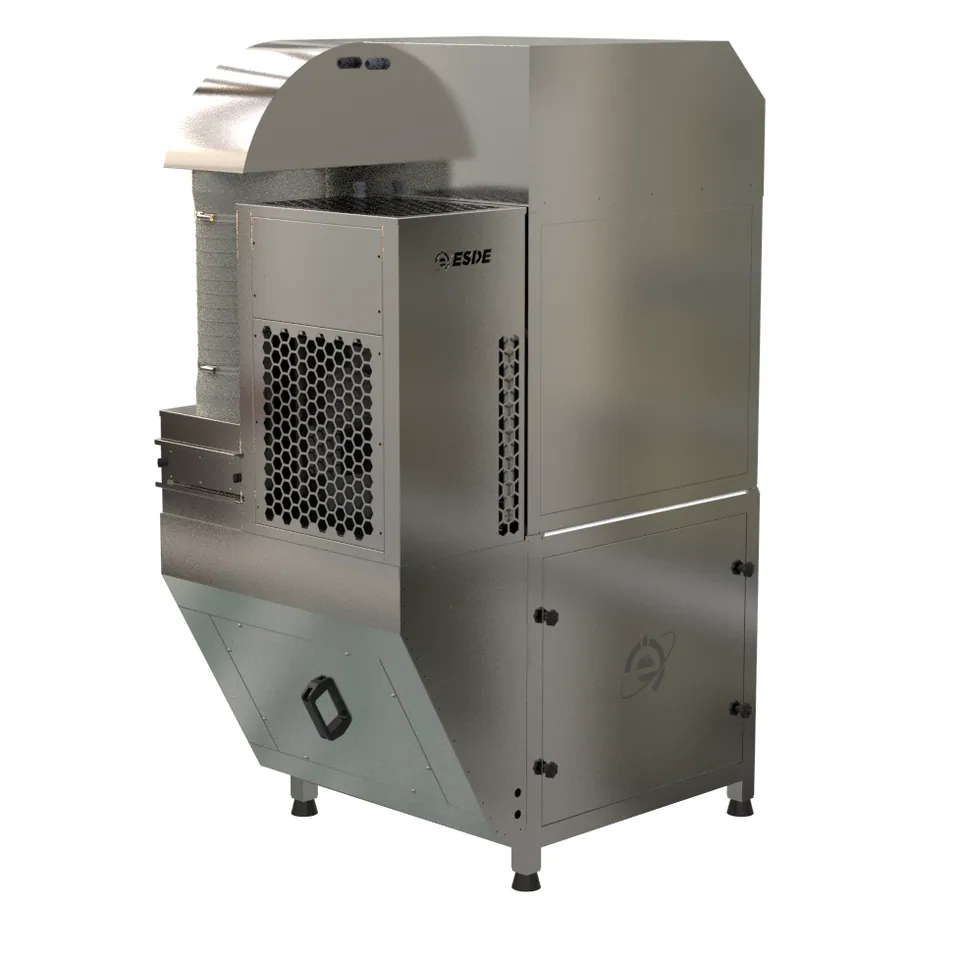

MODEL SD-5110
Seed Drying Mixer
Conditioned drying with mixer combs for perfectly uniform results.
25 kgWet seed per drum
7" HMIPLC control
7 kWMax. power
Drag to turn
Overview
The SD-5110 is engineered for the controlled drying of vegetable seeds in commercial processing plants. Its innovative design and user-friendly interface solve the challenge of uniform seed drying, with a substantial drying capacity. Stainless-steel mixers and the seed basket are easy to install and remove.
Key Features
- Purpose-designed seed dryer
- Ergonomic, detachable antistatic plastic basket
- Mixer combs for homogeneous drying
- Energy-saving closed-circuit air circulation
- Precise drying independent of ambient climate
- Dehumidification and air conditioning
- 7-inch HMI operator panel with PLC control
- Adjustable mixer speed
Technical Specifications | SD-5110
| Parameter | Specification |
|---|---|
| Capacity | Max. 25 kg wet seed in drum (varies by crop) |
| Dimensions (L x W x H) | 910 x 1295 x 1960 mm; process height 2360 mm |
| Electrical connection | 380 - 415 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 7 kW / 20 A |
| Compressed air | min. 4 bar / max. 8 bar |
| Drain connection | 32 mm |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Stainless steel 304 and plastics |
| Weight net / packed | approx. 190 / 220 kg |
| Included | 1 antistatic plastic basket |
| Certification | CE |

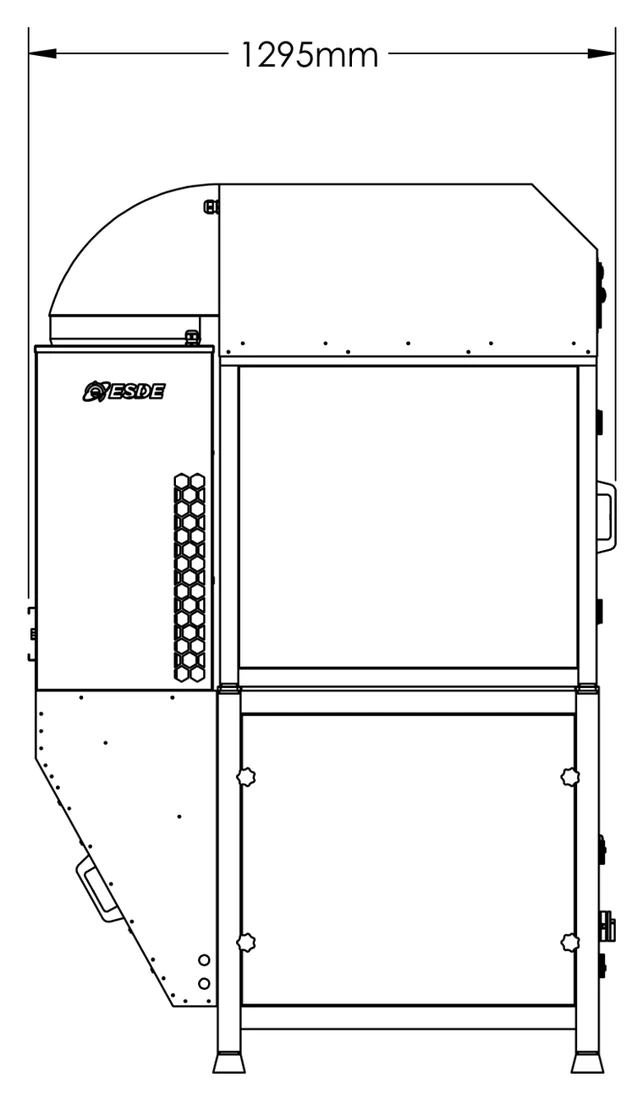

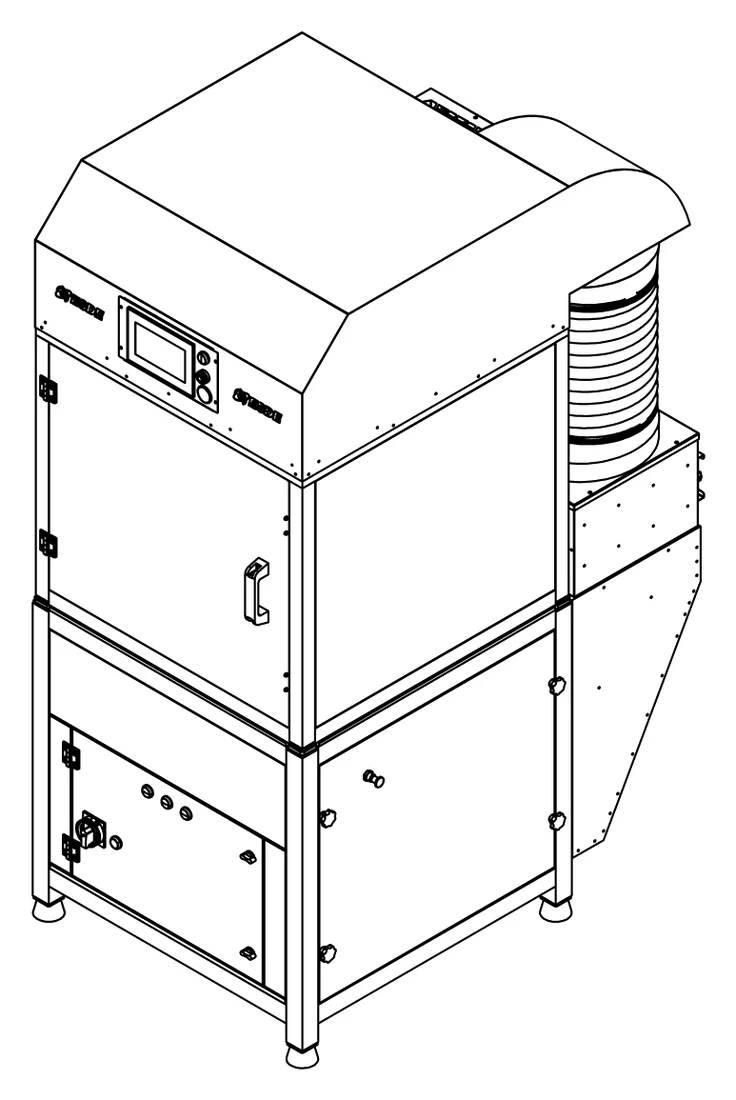

Technical Drawings
CEAll machines CE marked
