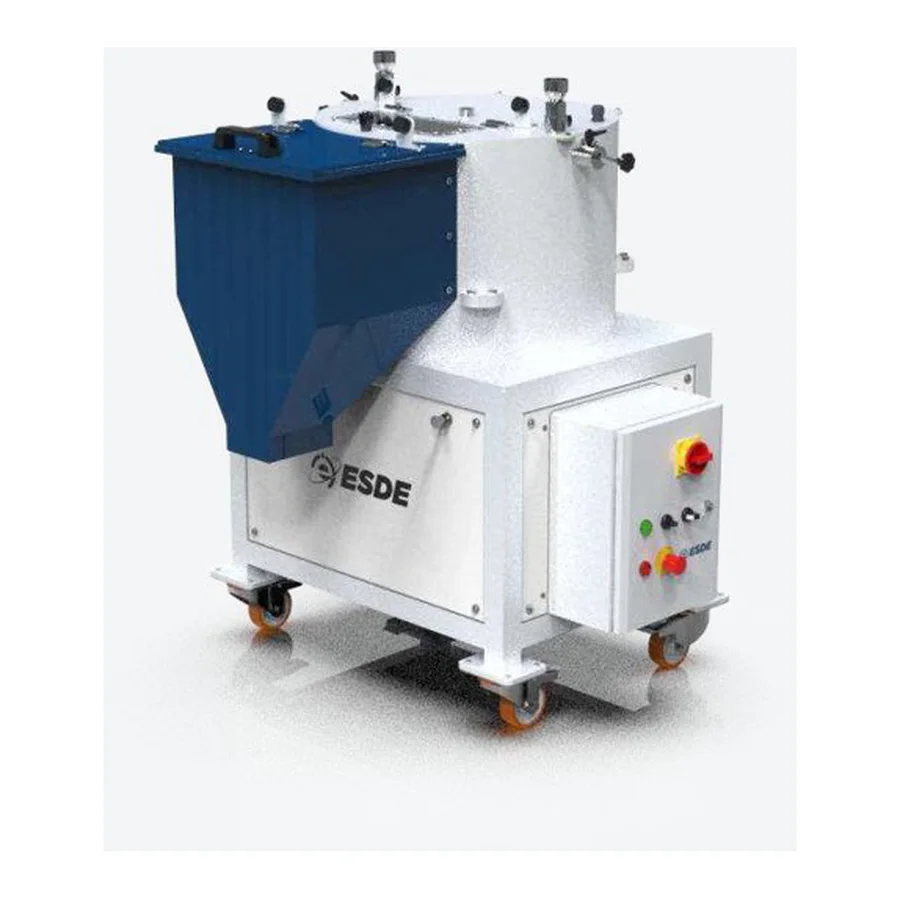

MODEL SD-8107
Semi-Automatic Seed Coating Machine
Industrial-grade rotary coating for 1 - 10 kg batches at a smart price.
600 mmTambour
1-10 kgPer batch
3 kWMax. power
Overview
The SD-8107 offers the convenience of semi-automatic batch coating. It comes with a 600 mm tambour and an electrical panel with semi-automatic control. This design saves cost by eliminating the automatic scale, while the mixing drum and dosing lines operate semi-automatically for the automatic coating of individual batches. A high-speed distribution disc and rotor ensure optimal dispersion of pesticides and other plant protection products onto every seed.
Key Features
- Rotary tambour with counter-rotating distribution disc
- Rubber (latex) lined rotor for better grip
- Air sealing below the rotor
- Wear-resistant PE-coated steel interior
- Adjustable rotor speed
- Adjustable scraper blades and pipe-type paddles
- Semi-automatic batch control
- Mobile frame on lockable castors
Technical Specifications | SD-8107
| Parameter | Specification |
|---|---|
| Capacity | approx. 1 - 10 kg per batch |
| Dimensions (L x W x H) | 1040 x 950 x 1235 mm; tambour 600 mm, coater diameter 575 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 3 kW / 16 A |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Electrostatic paint on steel |
| Weight net / packed | approx. 260 / 300 kg |
| Optional | Liquid dosing unit; inner body wall in Teflon (PTFE); control arm with touchscreen and software |
| Certification | CE |

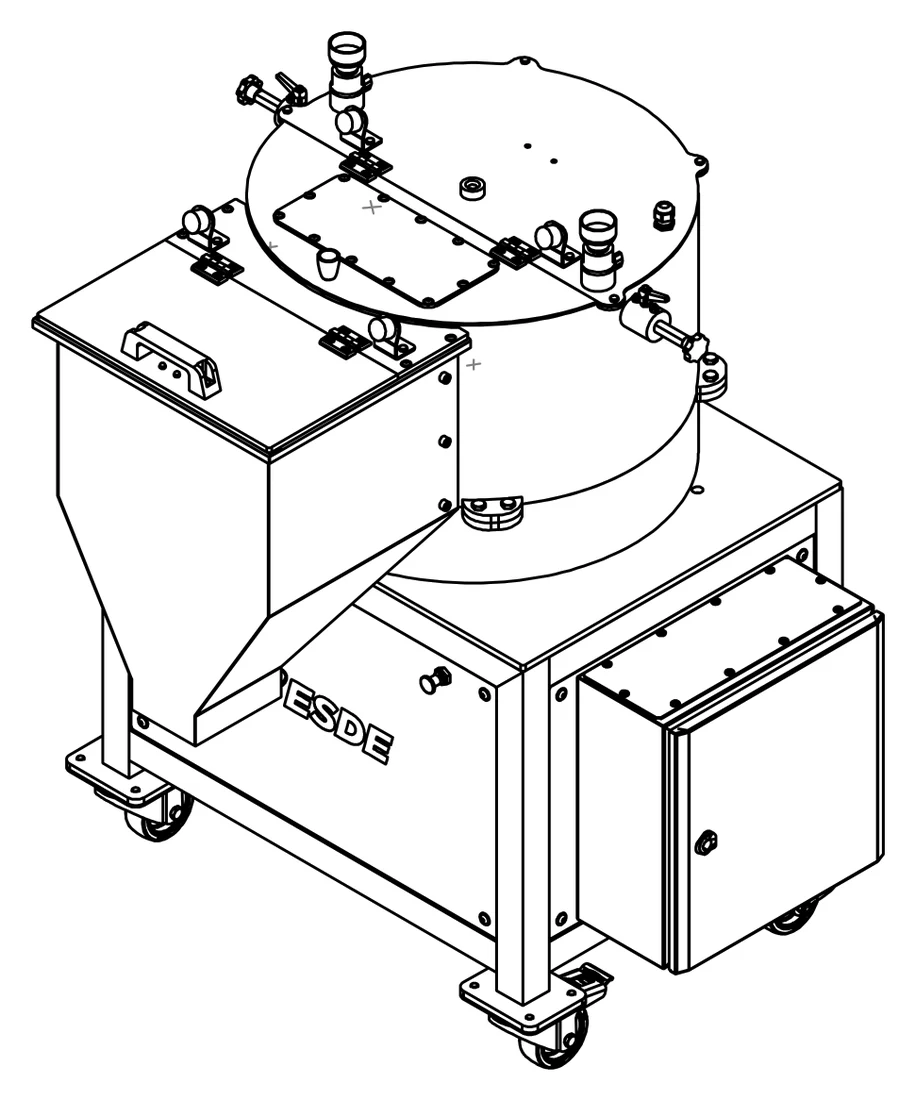

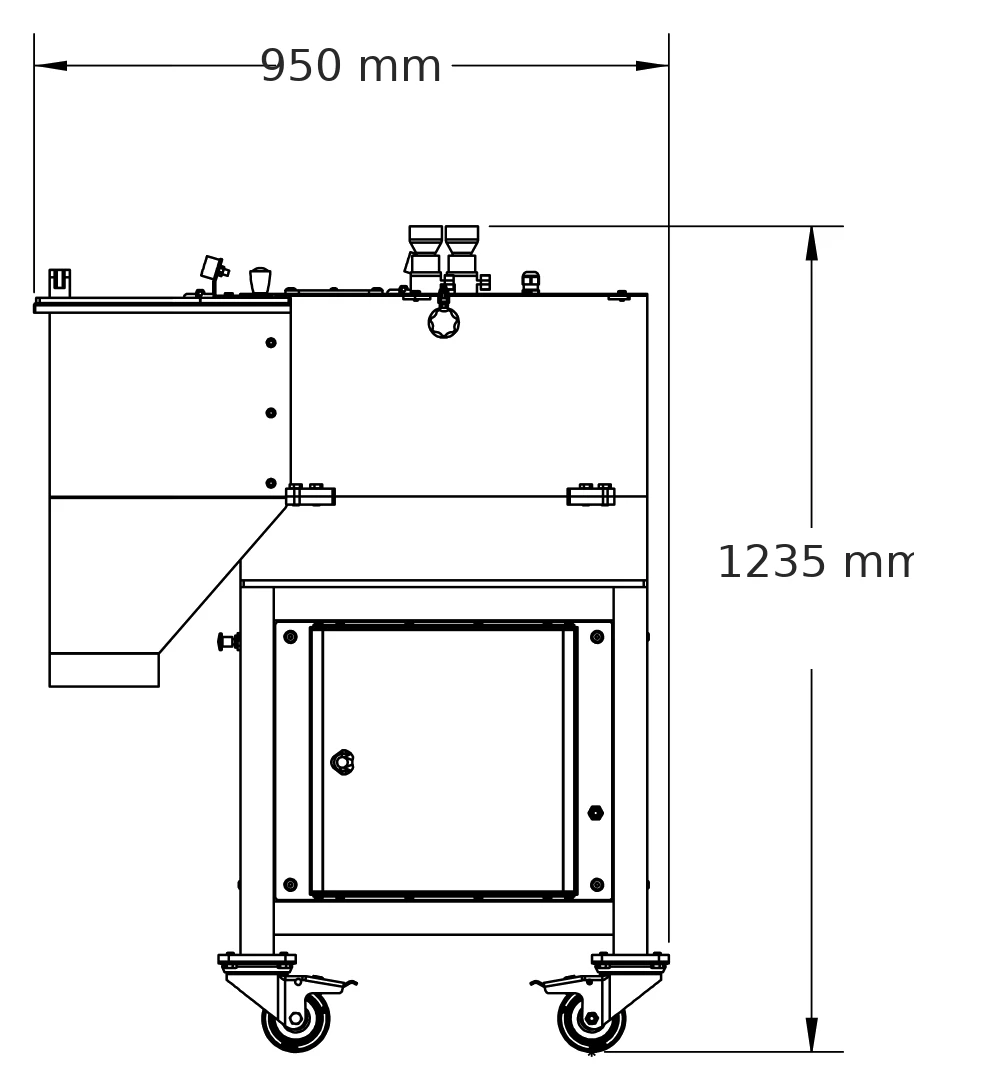

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
