MODEL SD-8110
Full Automatic Coating Machine
Every coating step automated - batch after batch, without intervention.
1-10 kgPer batch
575 mmCoater diameter
3 kWMax. power
Drag to turn
Overview
The SD-8110 automates every step of seed coating: filling the mixing chamber, precise pesticide dosing, mixing and complete discharge of coated seed. Once a batch is finished, it moves to the next without manual intervention. Purpose-built for automatic, simultaneous coating and drying of vegetable and field crop seeds in commercial processing plants.
Key Features
- Automatic seed coating for production and growing stations
- Extracts the required seed quantity from the silo
- Precise measuring of coating liquid
- Autonomous discharge of fully coated seed
- Repeats the cycle for any number of batches
- Integrated drying concept
Technical Specifications | SD-8110
| Parameter | Specification |
|---|---|
| Capacity | approx. 1 - 10 kg per batch |
| Dimensions (L x W x H) | 980 x 975 x 2335 mm; coater diameter 575 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 3 kW / 16 A |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Electrostatic paint on steel |
| Weight net / packed | approx. 320 / 350 kg |
| Optional | Liquid dosing unit |
| Certification | CE |

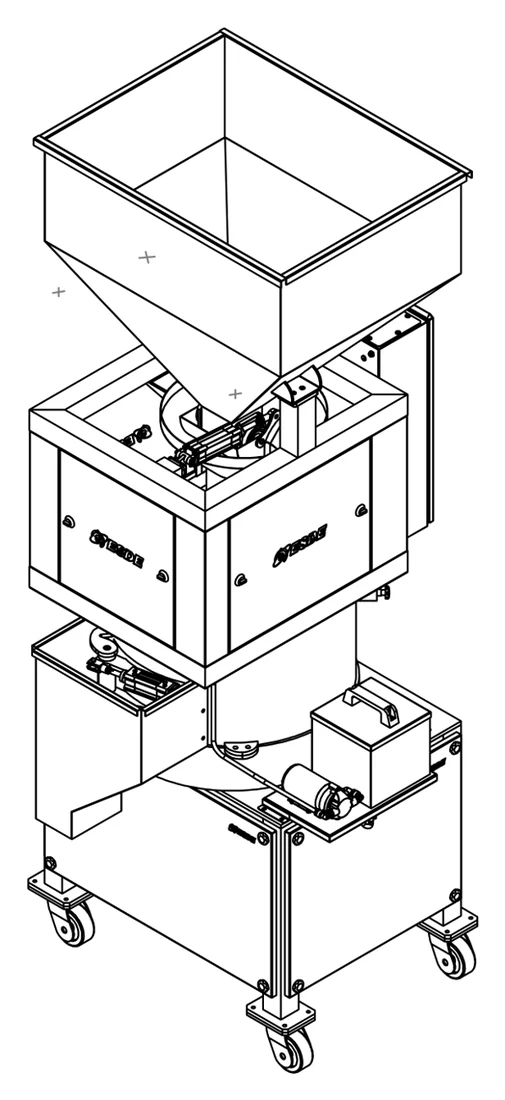

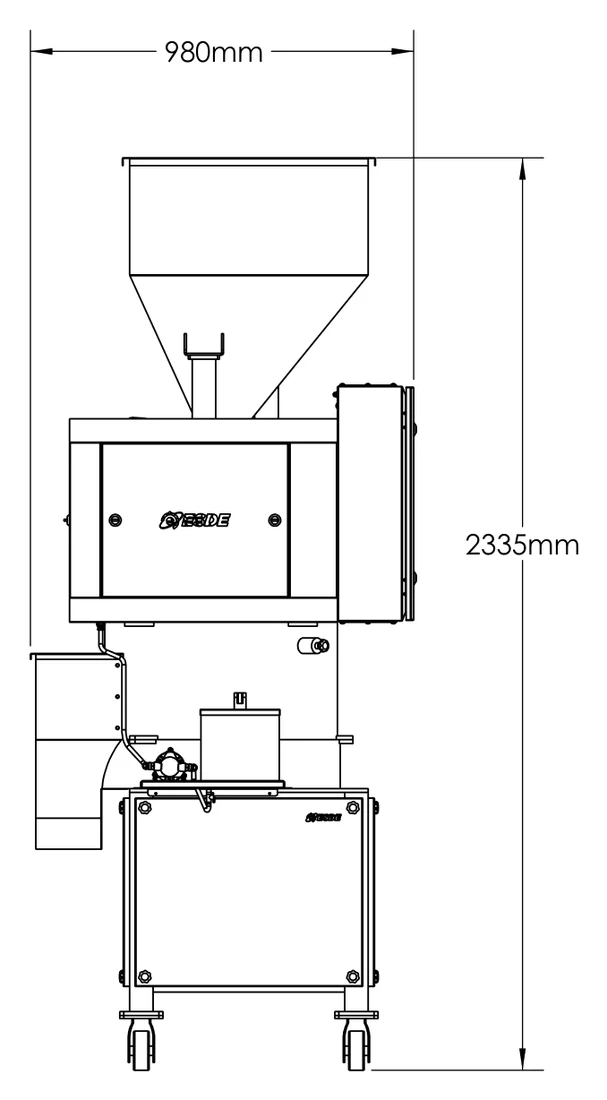

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
