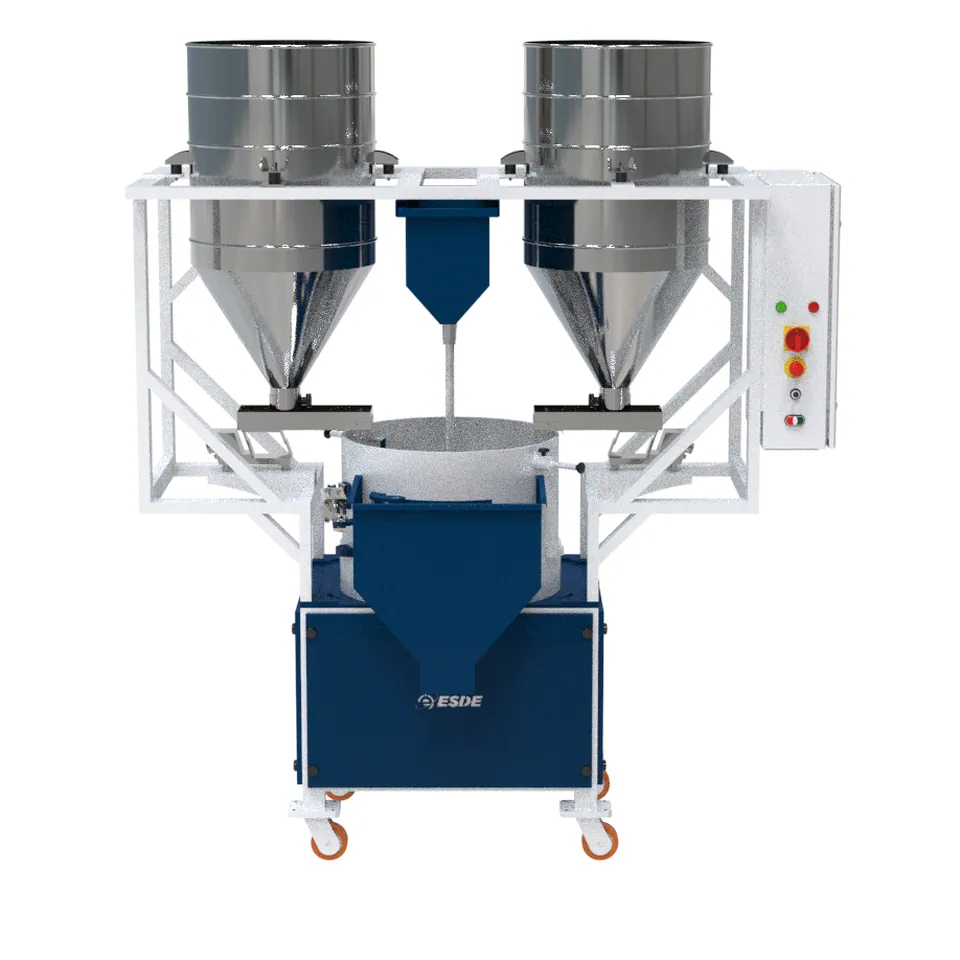

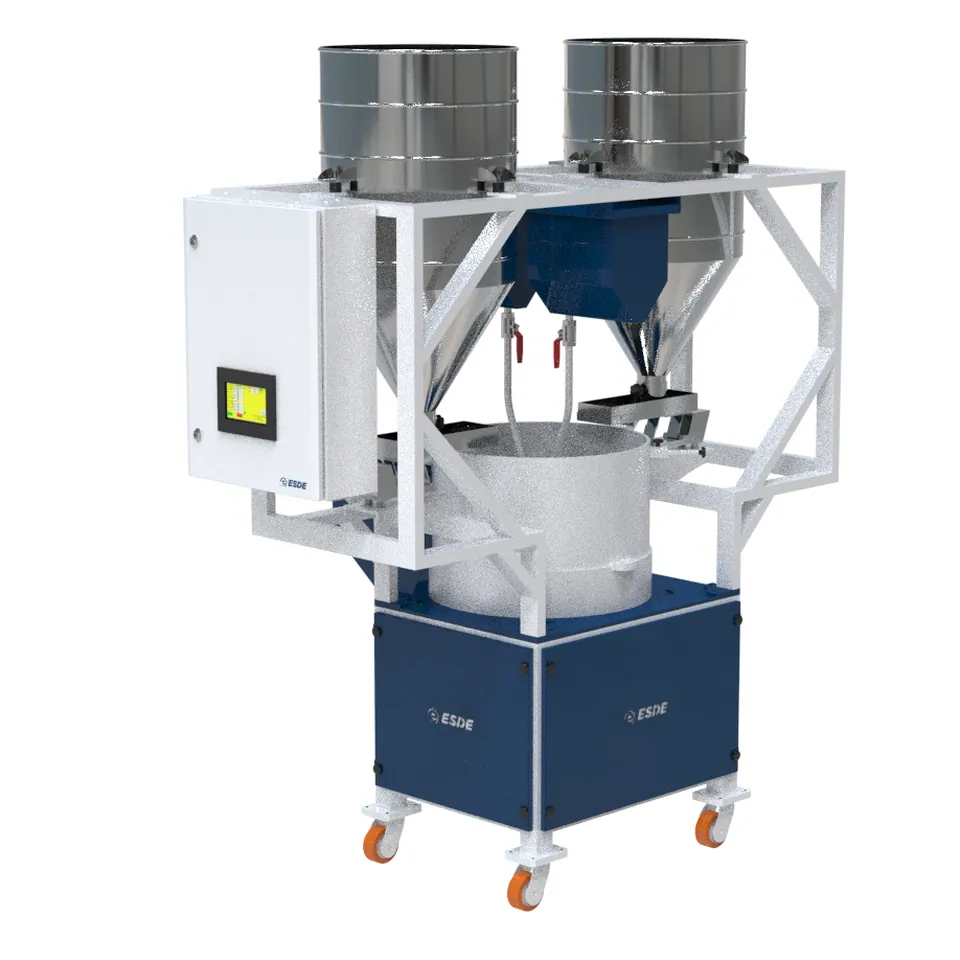

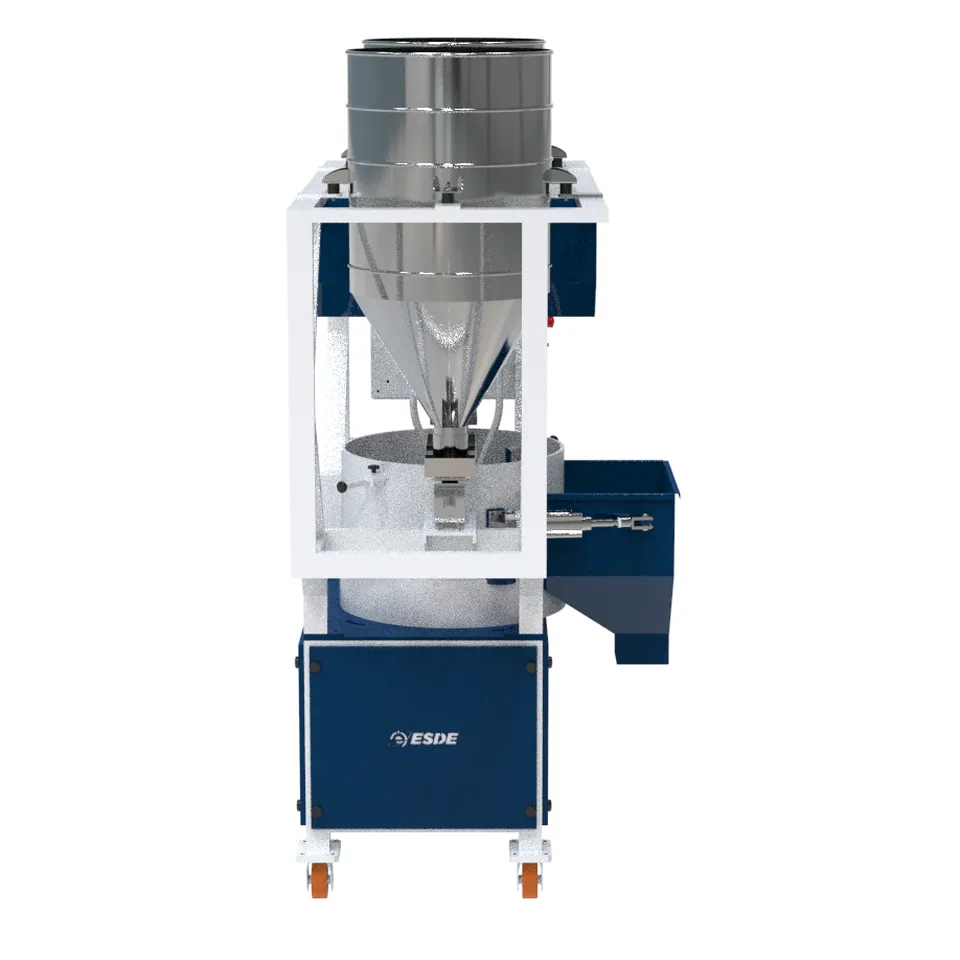

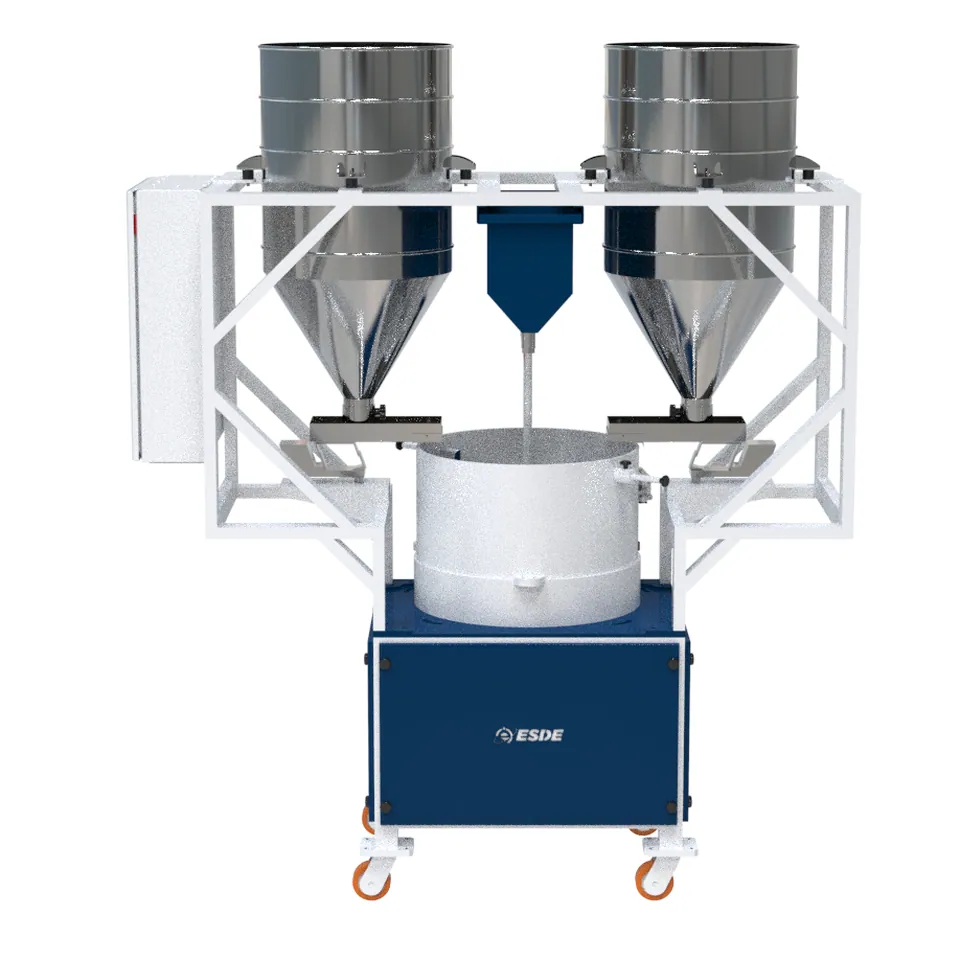

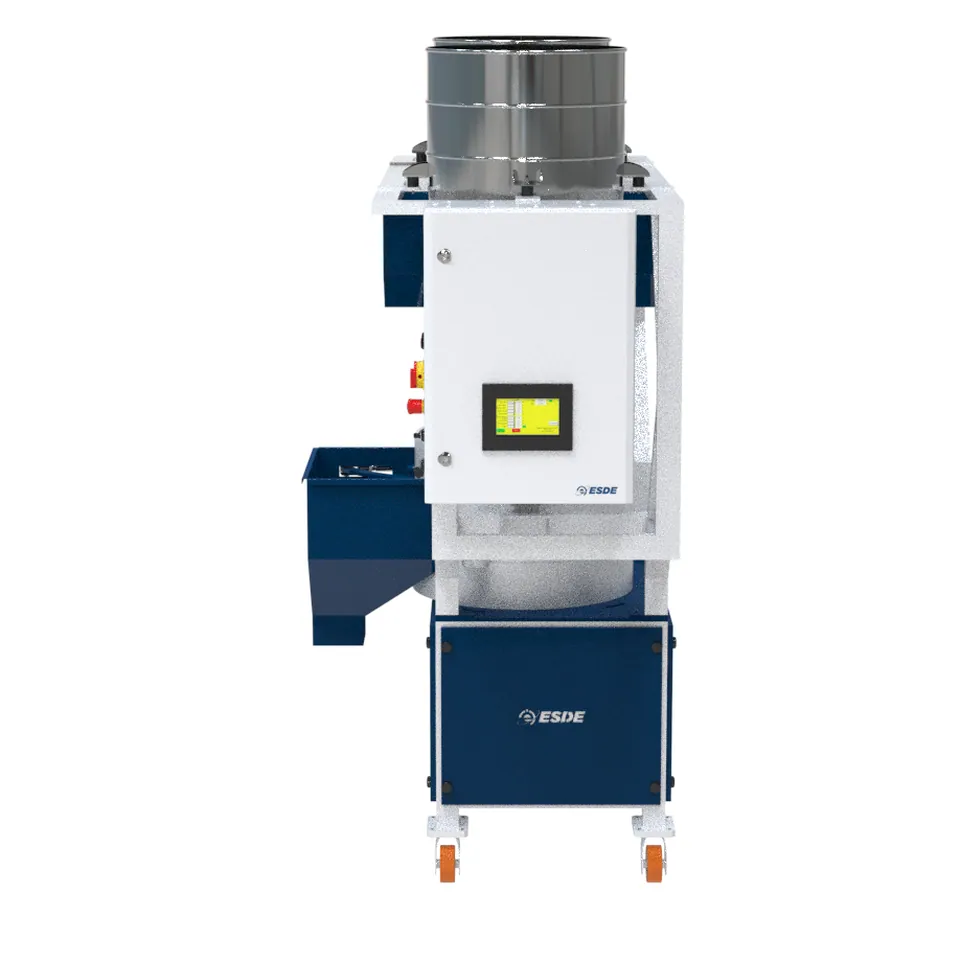

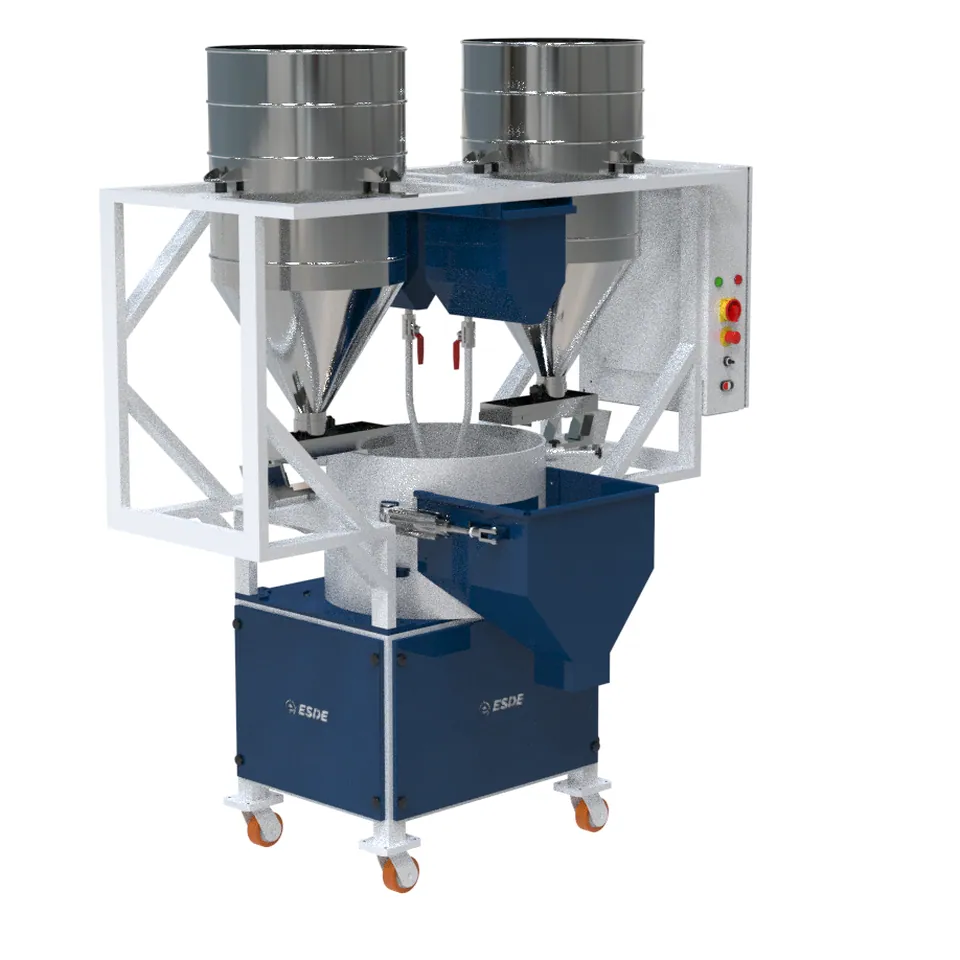

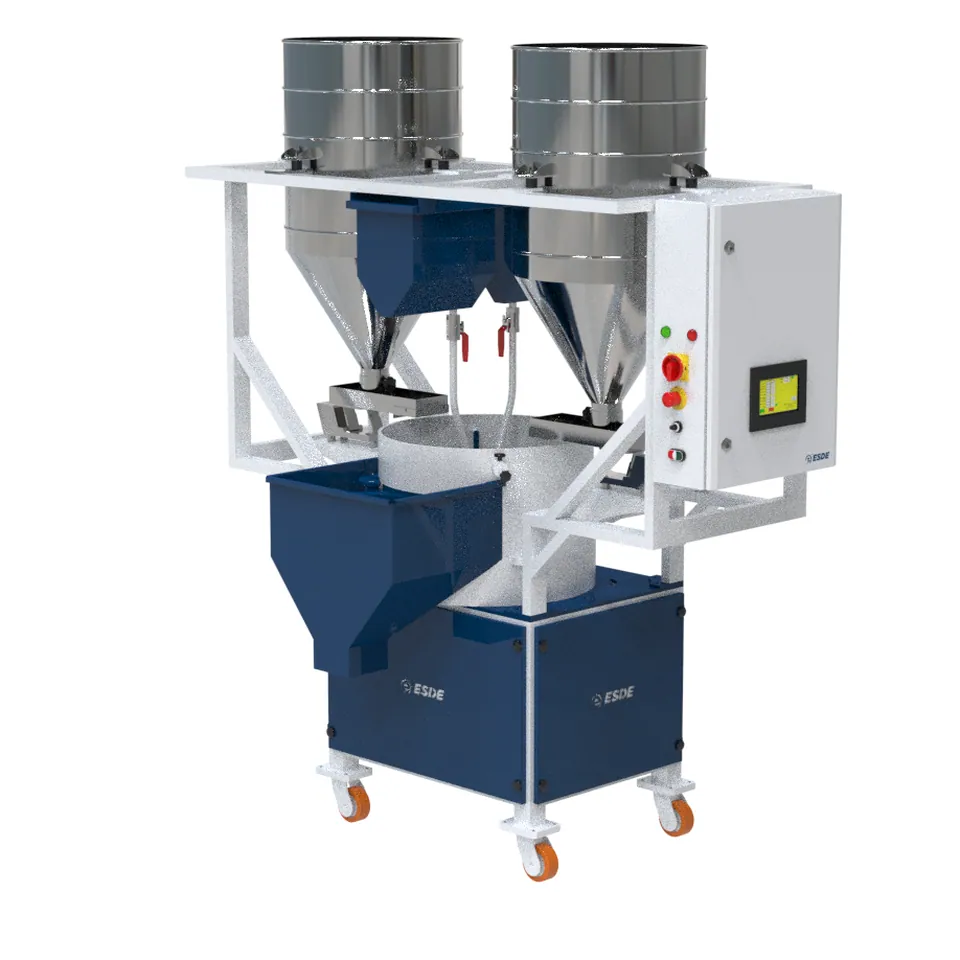

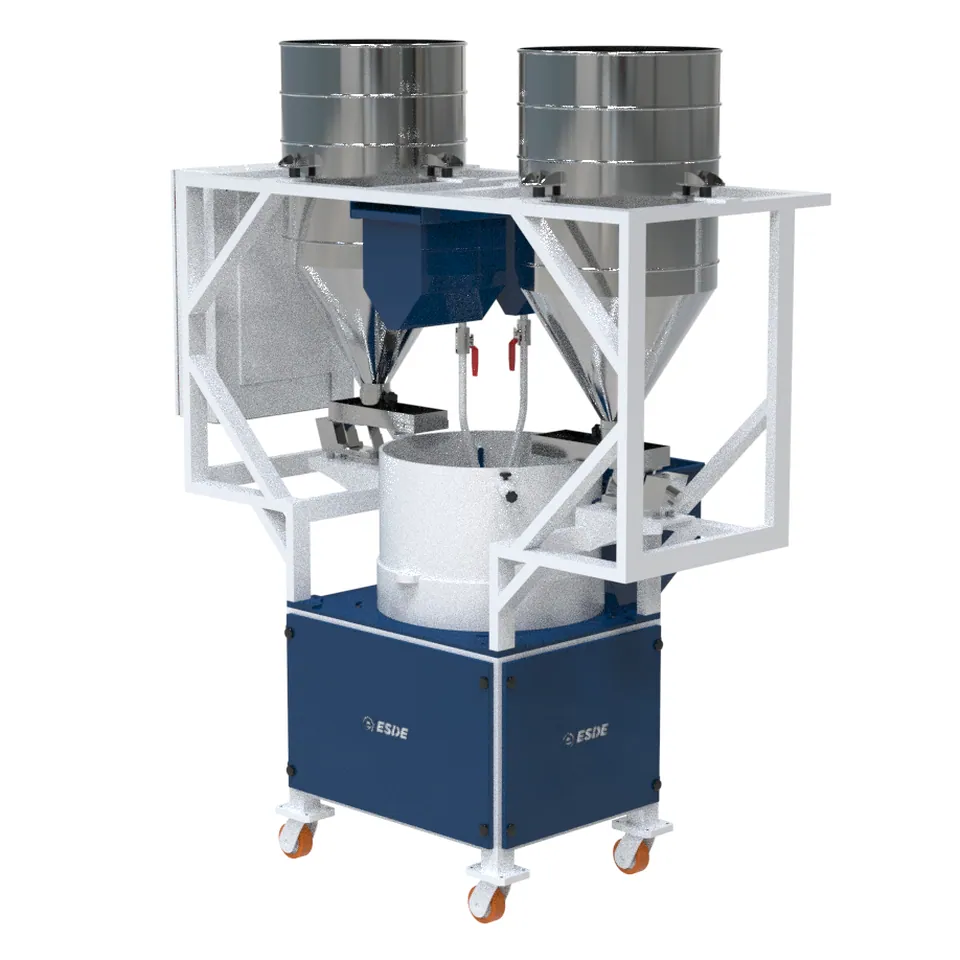

MODEL SD-9010 | SD-9110
Full Automatic Pelleting Machine
Turns small, irregular seed into round pellets for precision planting.
10-15 kgPer batch
0.5-1.5 MPellets per batch
TouchScreen control
Drag to turn
Overview
In pelleting, a substantial quantity of powder is added during coating, changing the shape and size of raw seed into round pills or pellets - also called weighting. Depending on binder and powder, a cycle takes 5 - 10 minutes or more. Pelleting prepares small seed for use in automatic planters in the field. The SD-9110 offers a larger capacity.
Key Features
- Up to 10 - 15 kg shelled seed per batch
- Electronic seed scale for calibrated capacity
- High-precision dosing of dressing
- Intuitive touch screen with network integration
- Formulation management and remote diagnostics
- Modular, expandable structure with easy maintenance access
Technical Specifications | SD-9010 | SD-9110
| Parameter | Specification |
|---|---|
| Capacity | Max. 10 - 15 kg encrusted seed (depending on density) |
| Pellet options | 3.0 - 3.5 mm: approx. 0.5 - 0.7 million pellets/batch; 2.0 - 2.5 mm: approx. 1.0 - 1.5 million pellets/batch |
| Dimensions (L x W x H) | 1850 x 995 x 2210 mm; coater diameter 600 mm |
| Electrical connection | 220 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 4 kW / 16 A |
| Water connection | 20 mm |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Electrostatic paint on steel |
| Weight net / packed | approx. 440 / 490 kg |
| Included | Liquid dosing unit, powder dosing unit |
| Optional | Dryer; SD-9110 for larger capacity |
| Certification | CE |

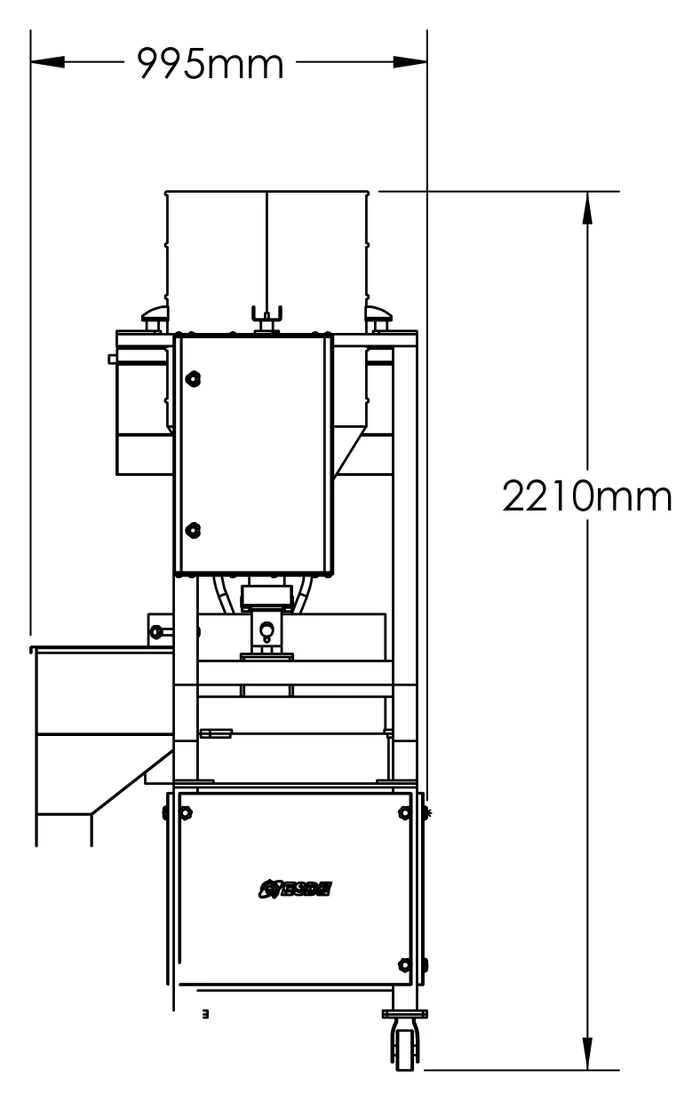

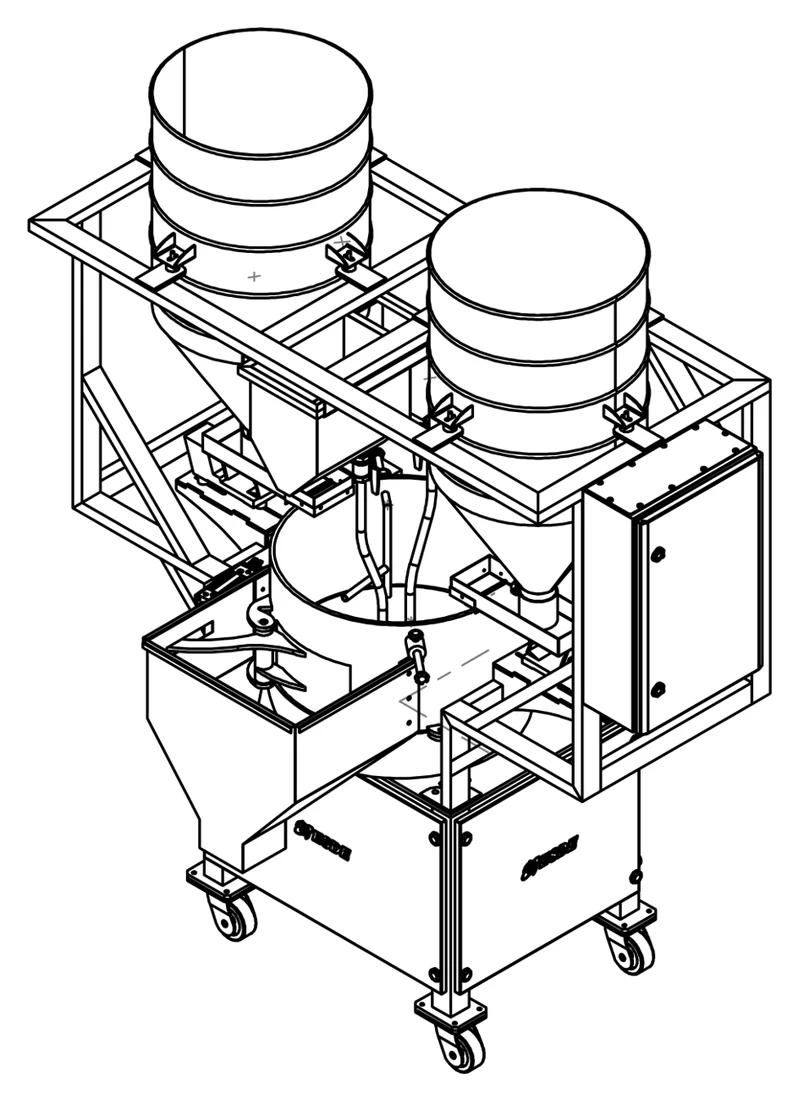

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
