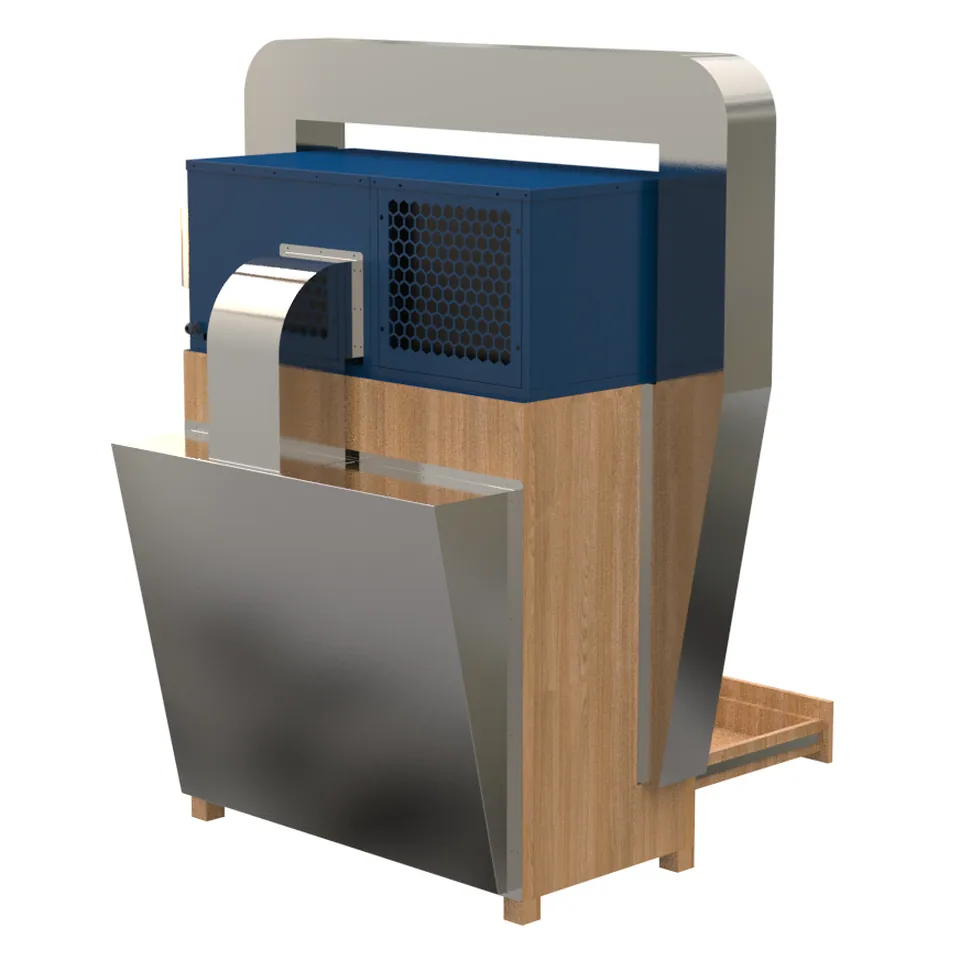

MODEL SD-5210 | SD-5310
UniDry ProSeed Drying System
Independent drawers, separated airflow - uniform drying for every lot.
30 kgWet seed total
350 m³Min. airflow
7.1"Touch panel

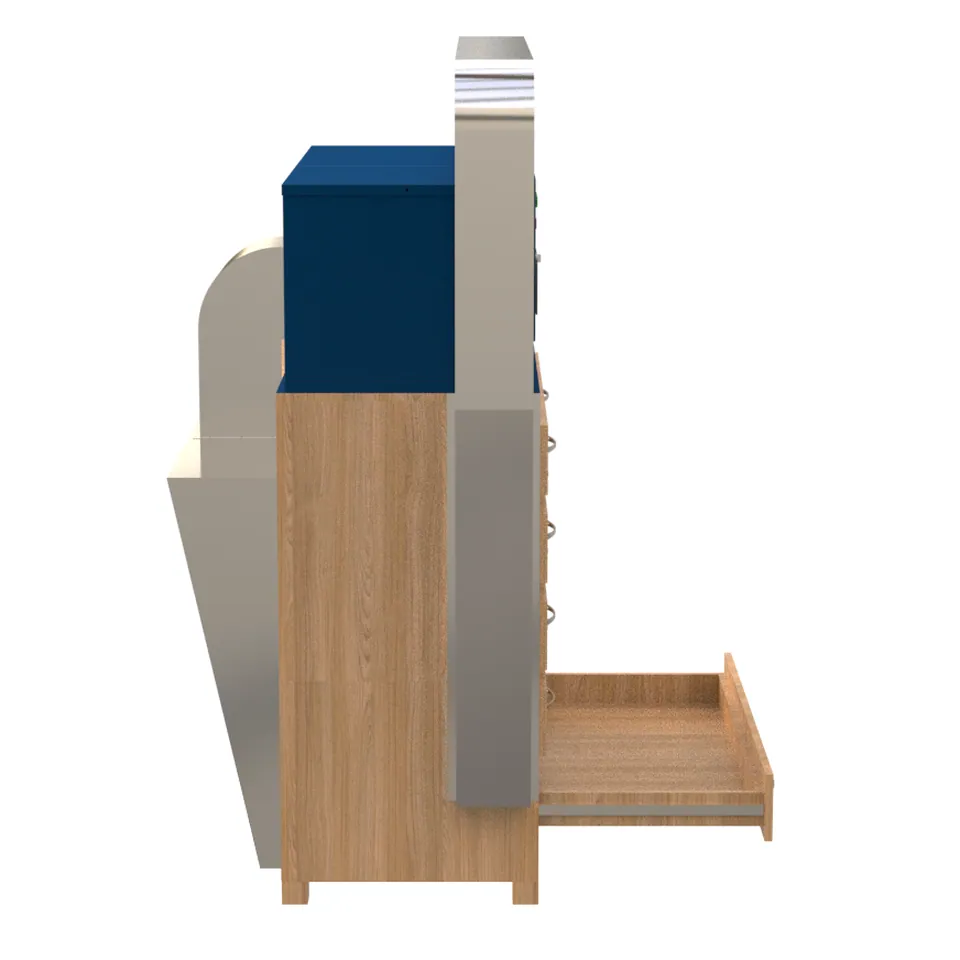

Drag to turn
Overview

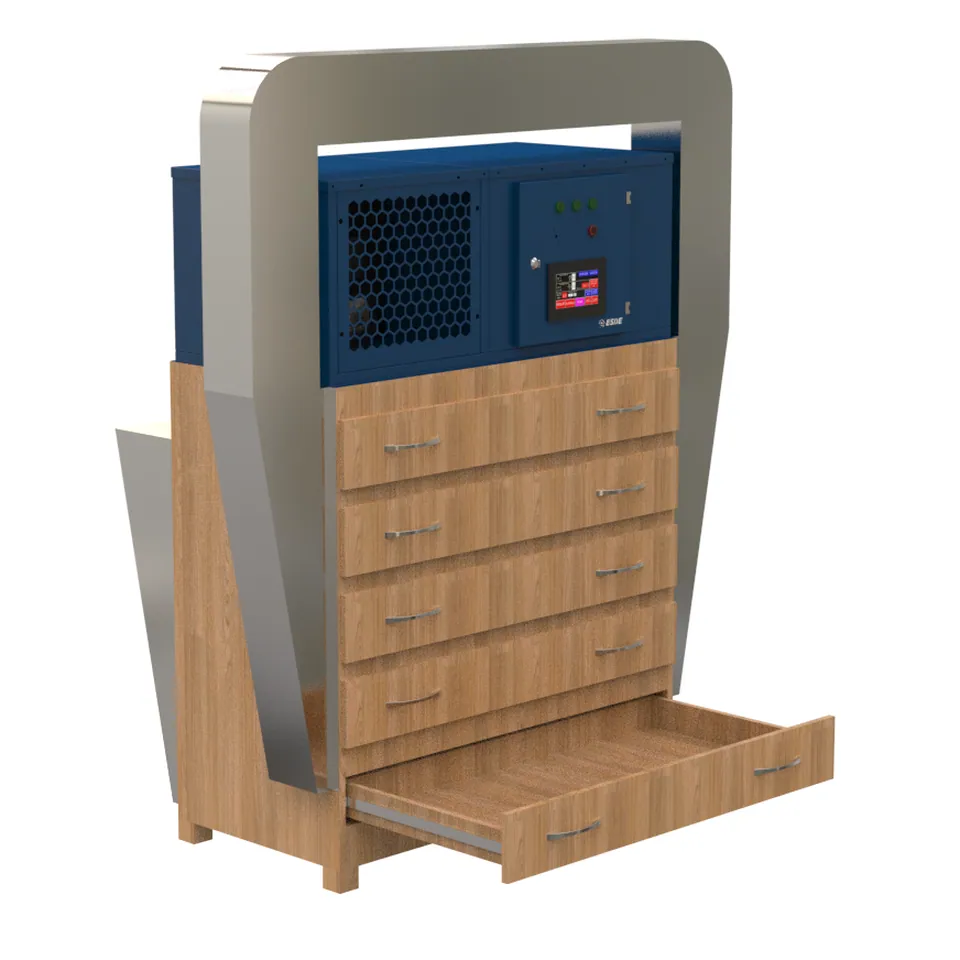

UniDry ensures a uniform seed drying process. It is built from a 5-layer material that is both antistatic and moisture resistant. Each drawer operates independently with separate air inlets and outlets, preventing air mixing and providing a minimum of 350 m³ of airflow. The SD-5310 Breeding System offers six drawers with 50 boxes each.
Key Features
- Moist and dry air kept strictly separated
- Dehumidification unit supplies dry air to each drawer
- Heating, cooling and dehumidification in one unit
- Independently operable drawers
- 5-layer antistatic, moisture-resistant material
- 7.1-inch PLC touch-screen control panel
Technical Specifications | SD-5210 | SD-5310
| Parameter | Specification |
|---|---|
| Capacity SD-5210 (drying) | Max. 6 kg wet seed per drawer; 30 kg in 5 drawers |
| Capacity SD-5310 (breeding) | Max. 100 g per box; 50 boxes = 5 kg per drawer; 30 kg in 6 drawers |
| Dimensions (L x W x H) | 1655 x 890 x 1955 mm |
| Electrical connection | 380 - 400 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 7 kW / 20 A |
| Drain connection | 25 mm |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Marine chipboard and electrostatic paint |
| Weight net / packed | approx. 280 / 320 kg |
| Included | 5 drawers (SD-5210) / 6 drawers (SD-5310) |
| Optional | Tulle bags |
| Certification | CE |

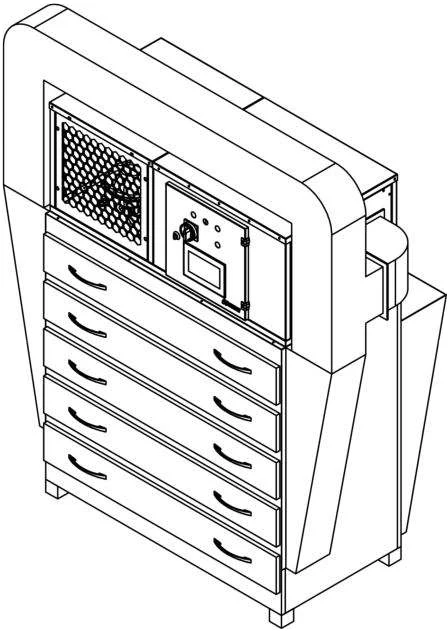

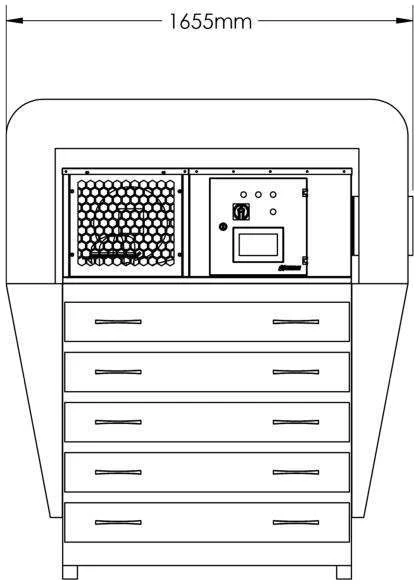

Technical Drawings
