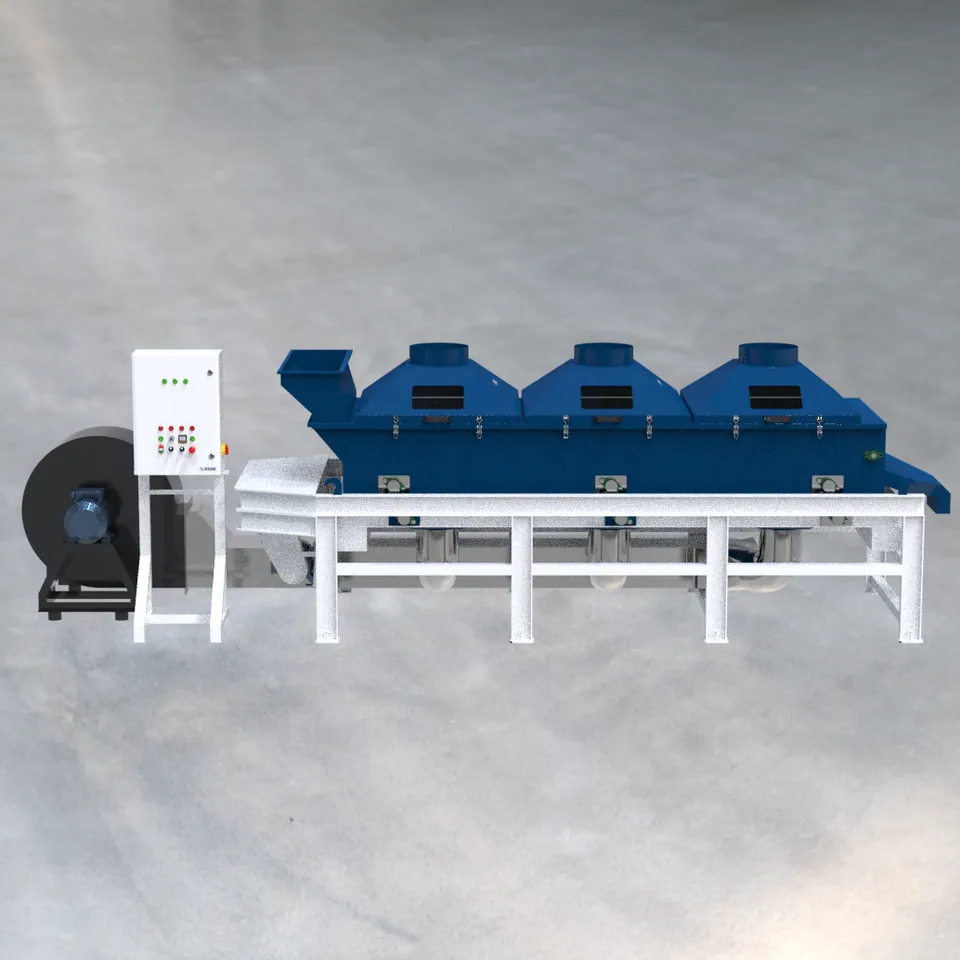

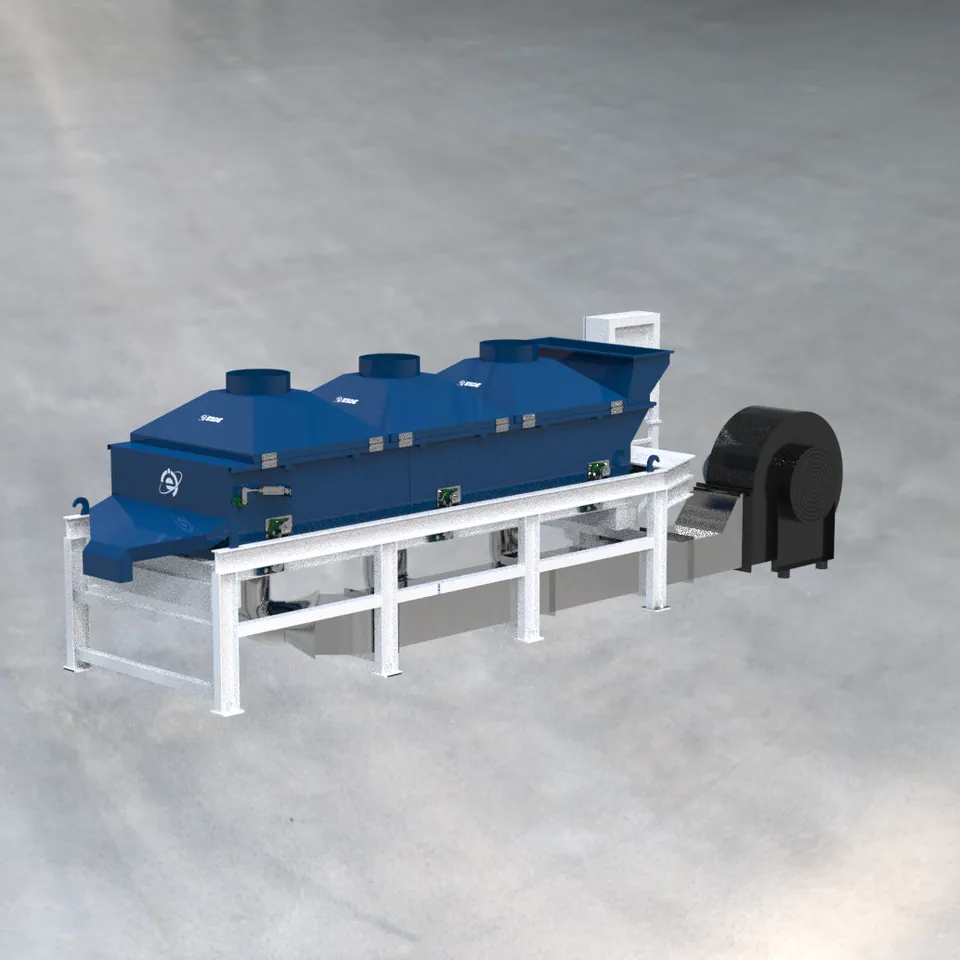

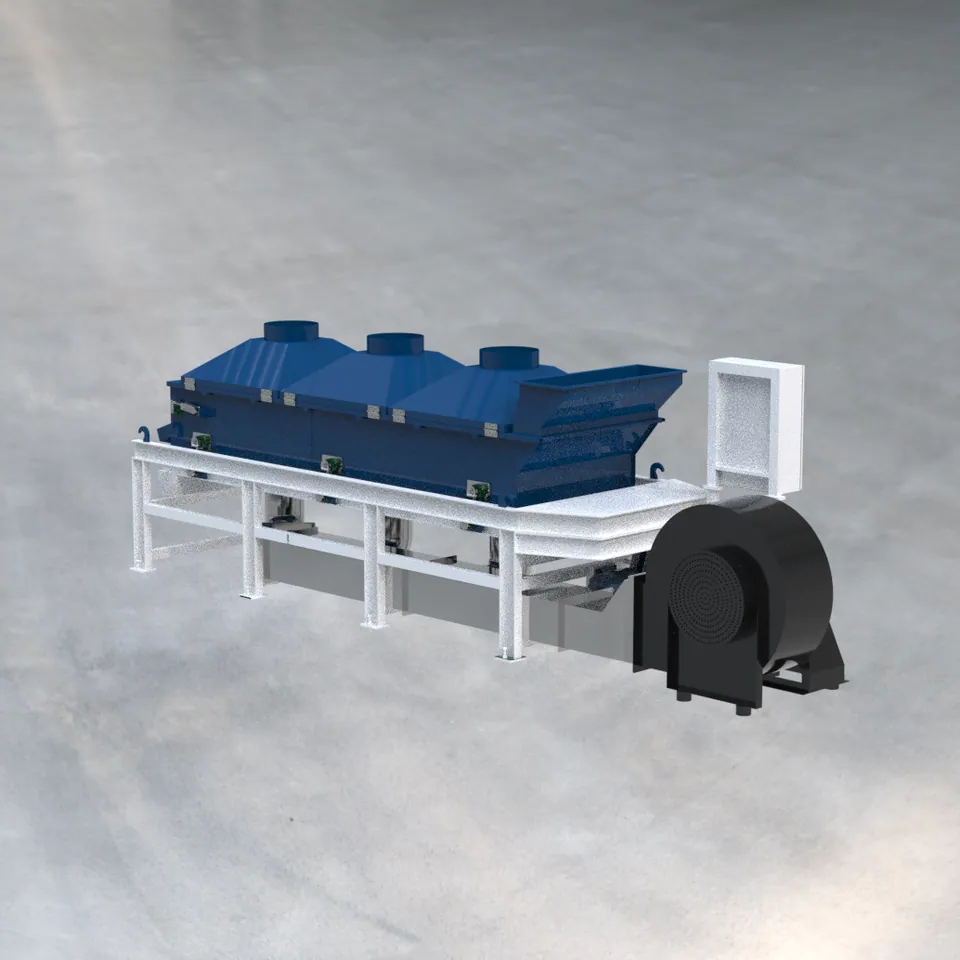

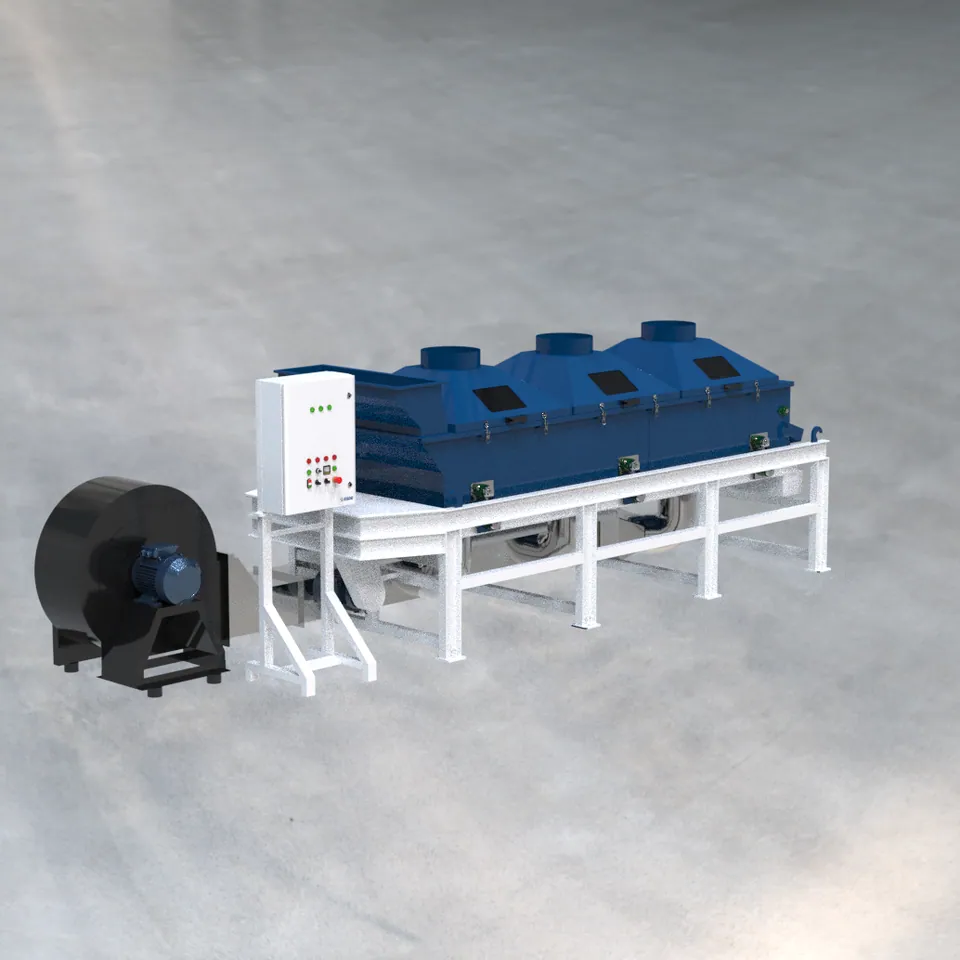

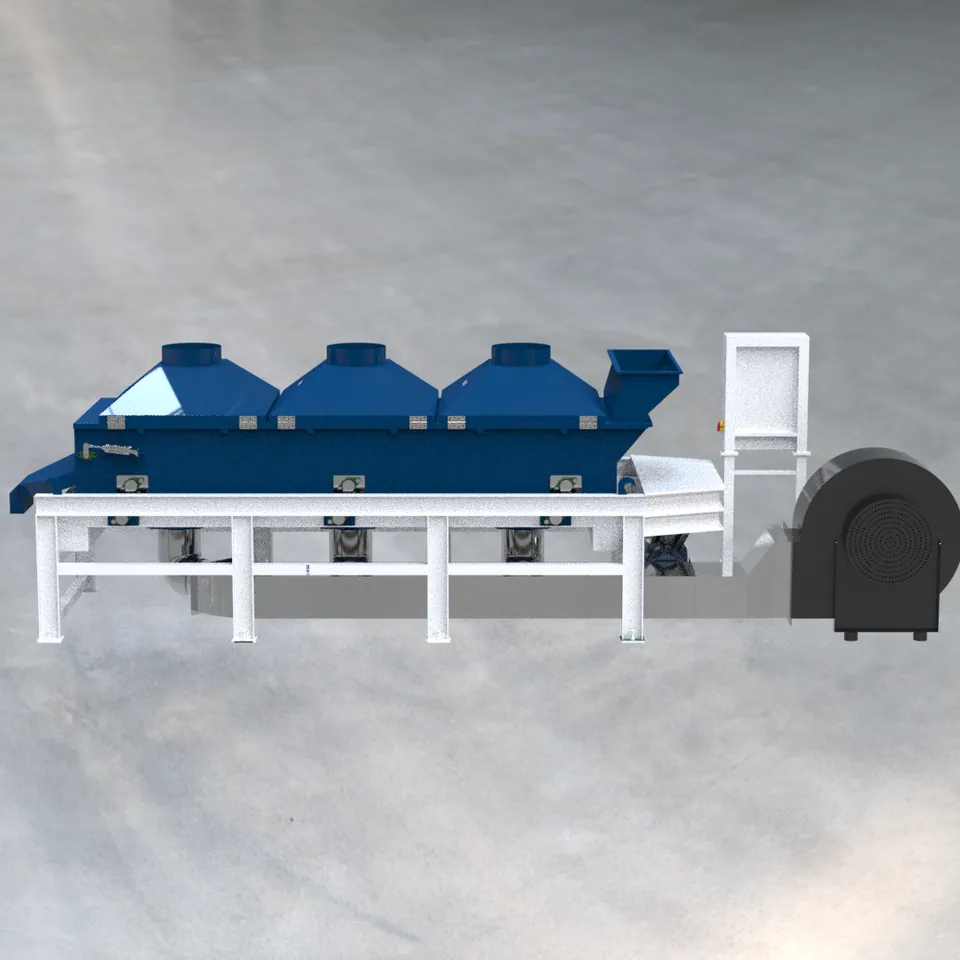

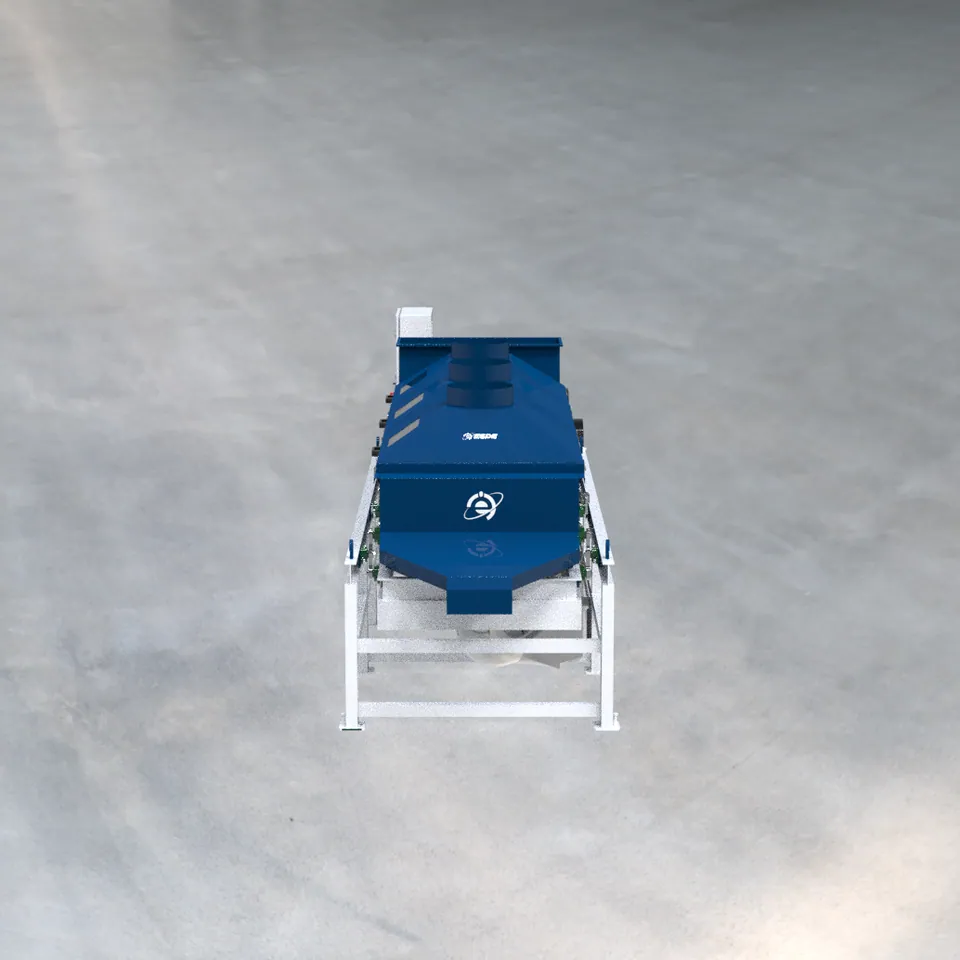

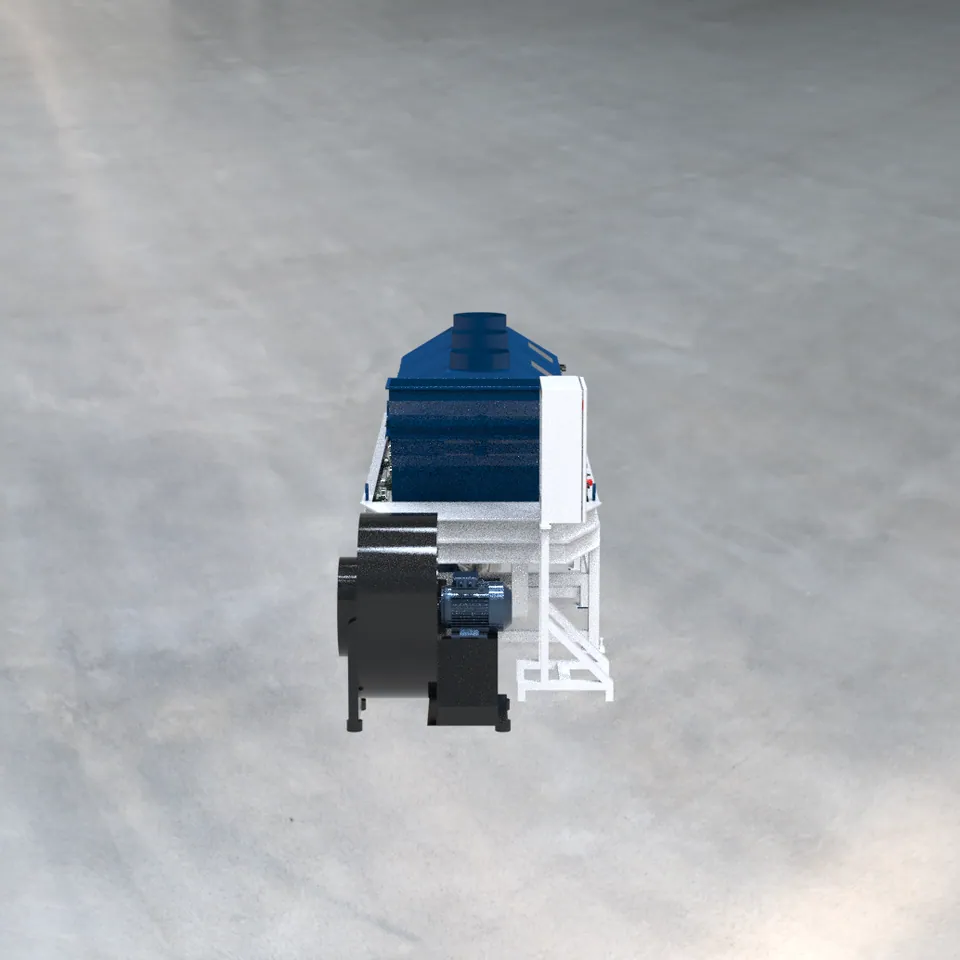

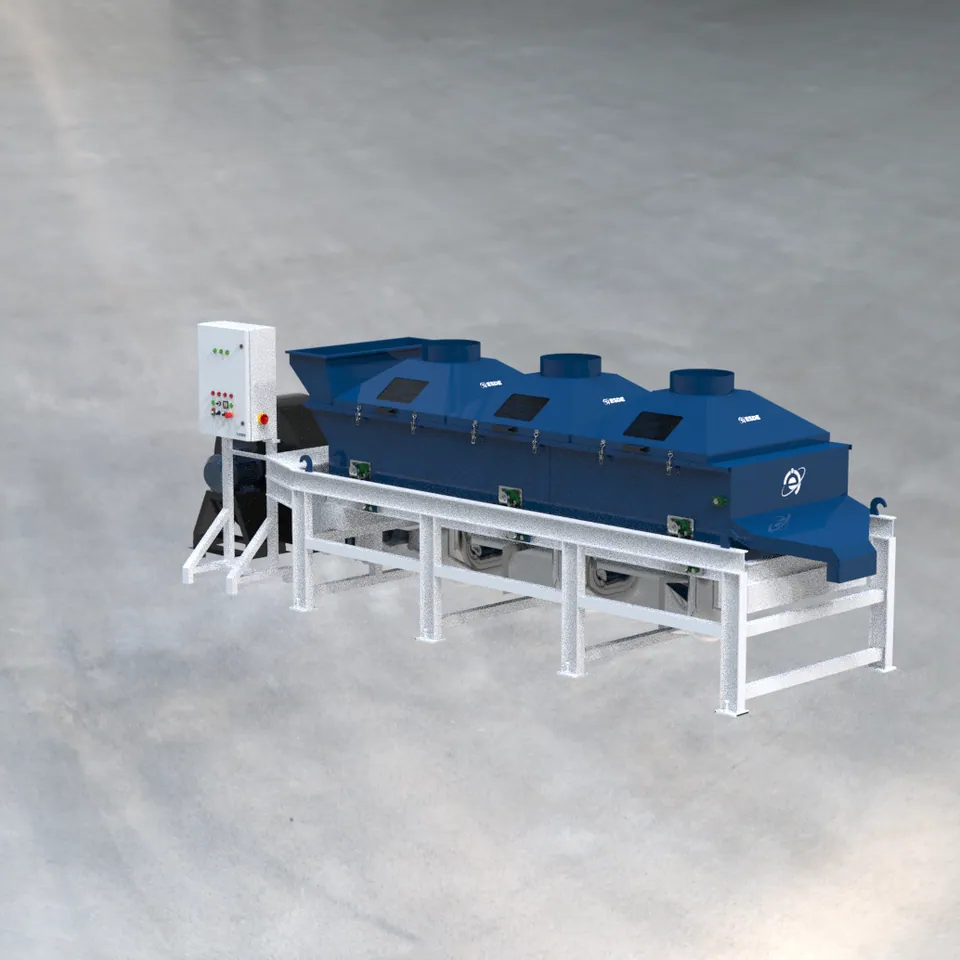

MODEL SD-5410
Horizontal Seed Drying System
Continuous conveying, cleaning and drying in one modular line.
50-170 kg/hContinuous
5.6 mLine length
7 kWMax. power
Drag to turn
Overview
The HSDS has a modular construction for conveying, cleaning and drying various seeds - including coated or dressed materials - and similar products. An eccentric shaft moves the conveyor back and forth via connecting rods, transporting material over coiled suspension units. Each heating section receives independent warm air from heaters and blowers below the deck.
Key Features
- Modular construction for conveying, cleaning and drying
- Suitable for coated and dressed seed
- Screen system with heating and screening sections
- Independent warm air per heating section
- Adjustable feeding gate controls layer thickness
- 2.2 kW main drive (frequency inverter not included)
- Heating by electricity, natural gas, LPG, solid fuel or ambient air
Technical Specifications | SD-5410
| Parameter | Specification |
|---|---|
| Capacity | Min. 50 - max. 170 kg seed per hour, continuous |
| Dimensions (L x W x H) | 5580 x 1550 x 1650 mm |
| Electrical connection | 380 - 400 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 7 kW / 20 A |
| Connections | Air ducts |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Electrostatic oven-painted steel; stainless 304 Cr-Ni sieve wire |
| Weight net | approx. 750 kg |
| Included | Fan |
| Optional | Heating system, adjustable speed control |
| Certification | CE |

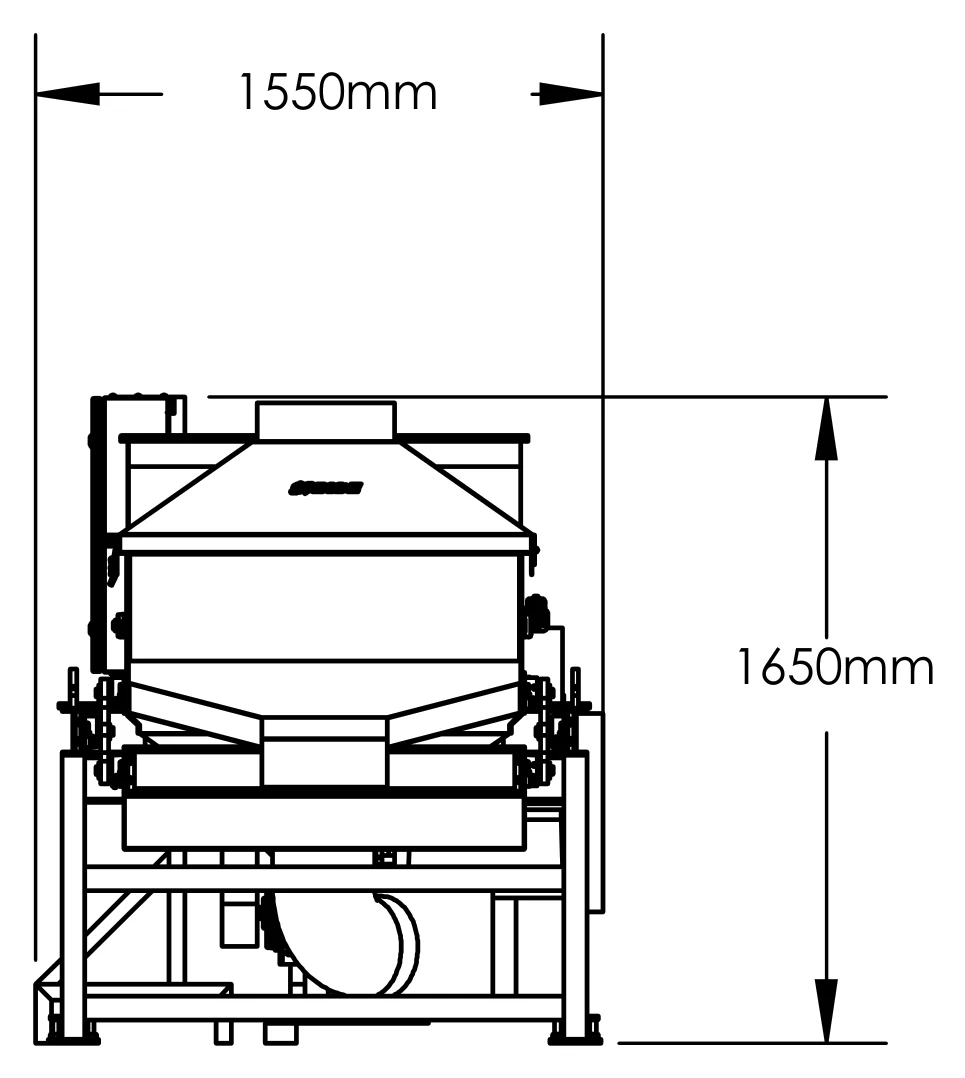

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
