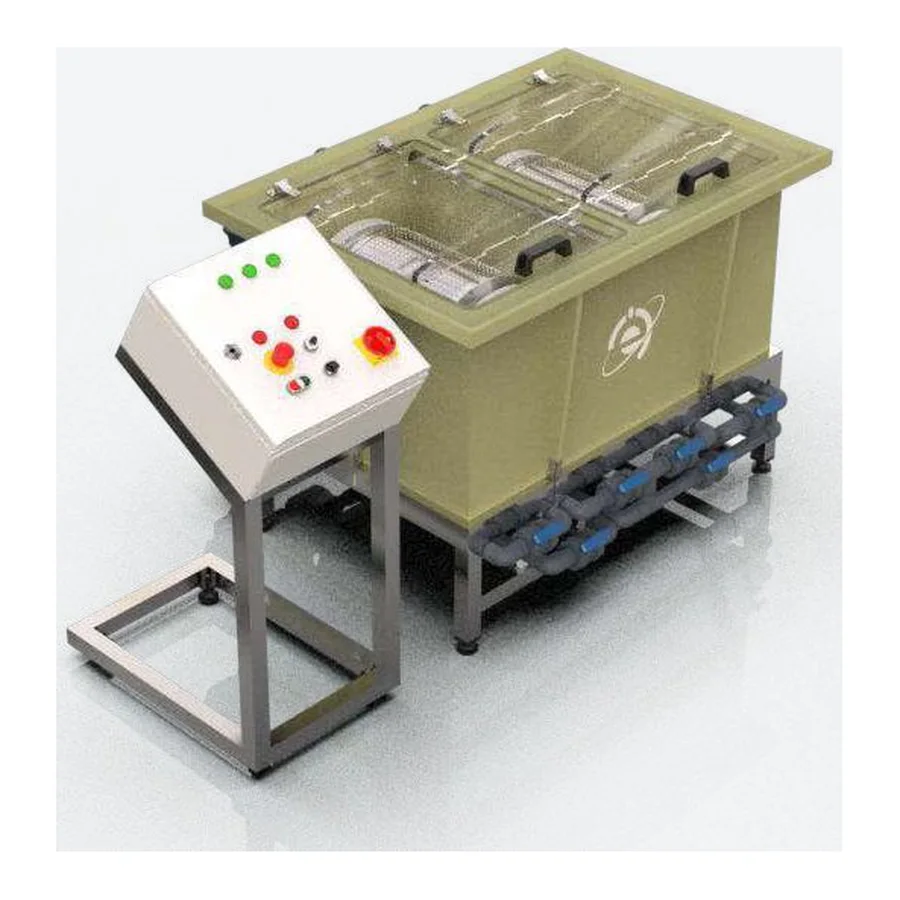

MODEL SD-10010
Disinfection Unit
Chemical-resistant liquid disinfection in two splash-free compartments.
2 x 41 LBaskets
2.2 kWMax. power
SS 304and plastics
Overview
Treat seeds with various liquid solutions to protect them from bacterial infections and seed-borne diseases. Built predominantly from synthetic materials, the unit resists a wide range of chemicals for a long service life. Two separate compartments, each with its own lid, prevent splashing during operation. For higher capacity see the SD-10030 with three baskets.
Key Features
- Spring-assisted cover for easy operation
- Consistent, reproducible, uniform results
- 2 drums of 41 L each
- Seed drums move to the next step without direct seed contact
- High chemical resistance
- Separate control stand
Technical Specifications | SD-10010
| Parameter | Specification |
|---|---|
| Capacity | 2 baskets of 41 L each |
| Dimensions (L x W x H) | 1190 x 1015 x 875 mm |
| Electrical connection | 220 - 240 V, 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 2.2 kW / 16 A |
| Connections | Water 22 mm; drain 50 mm |
| Noise emission | approx. 65 dB(A), without product |
| Materials | Stainless steel 304 and plastics |
| Weight net / packed | approx. 330 / 380 kg |
| Included | 2 x basket |
| Certification | CE |

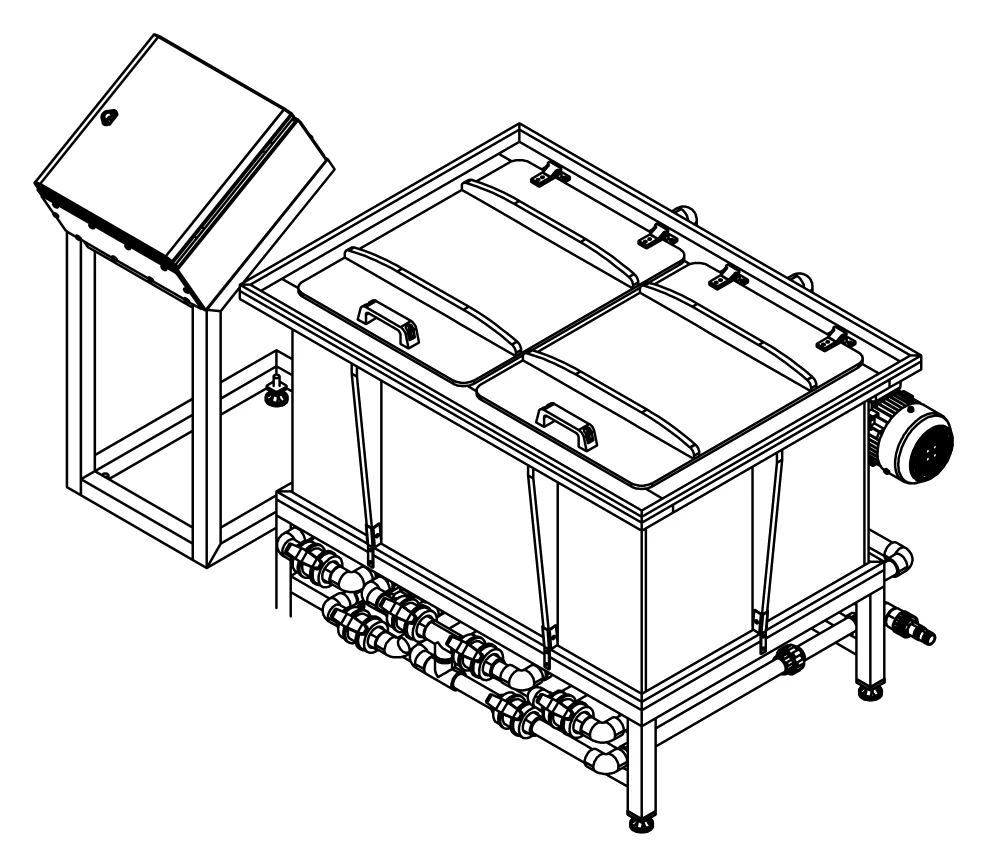

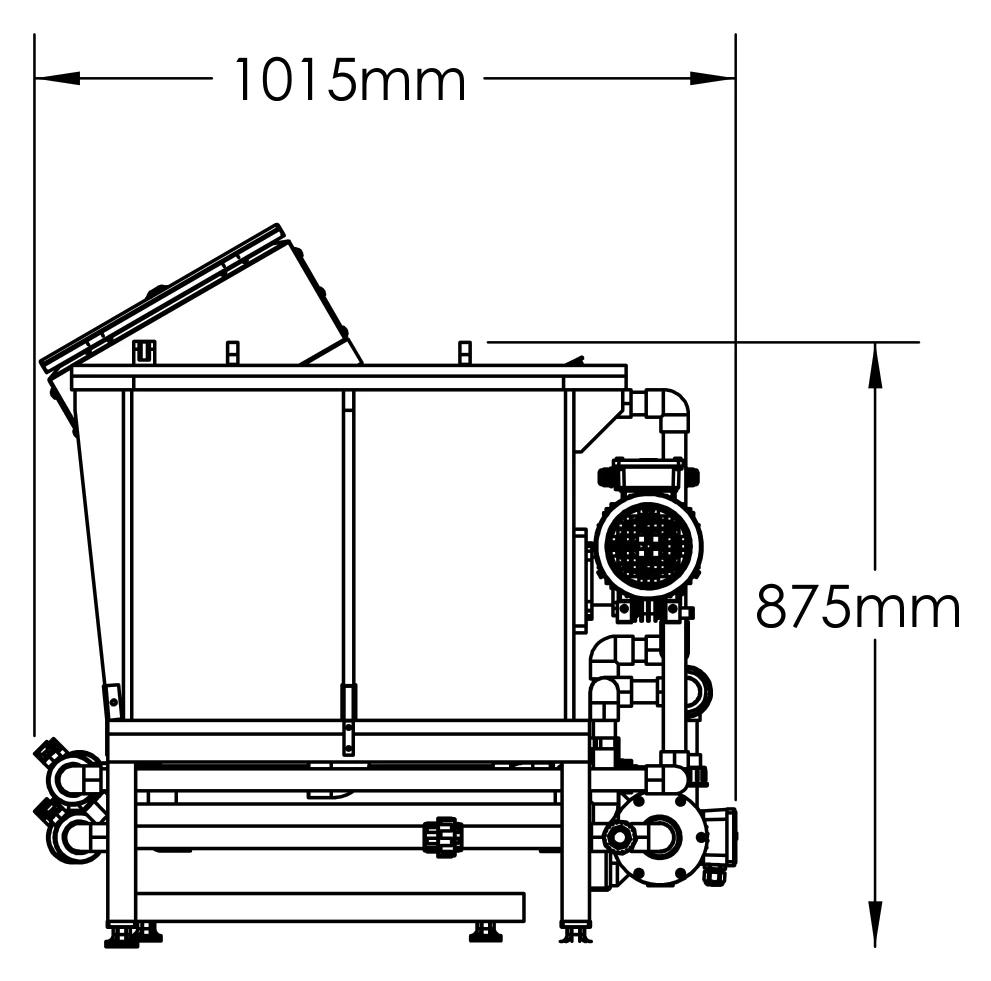

Technical Drawings
