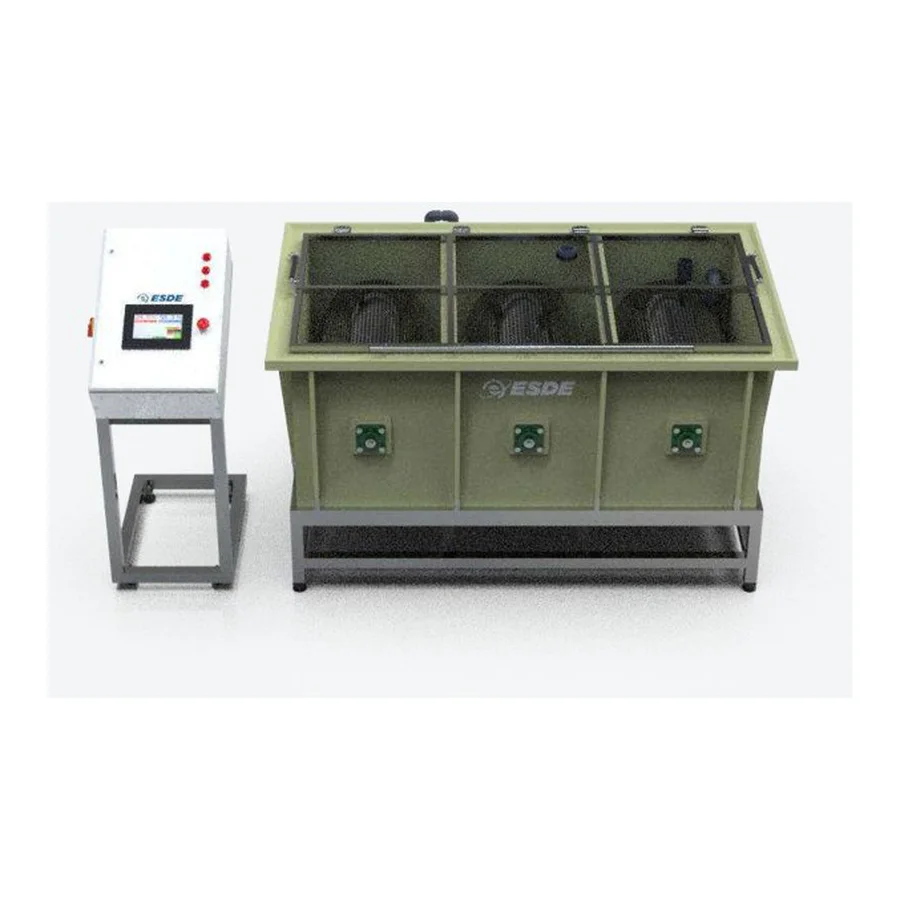

MODEL SD-10030
Max Disinfection Unit
Three 74 L drums with air-bubble mixing for large disinfection lots.
3 x 74 LBaskets
AirBubble mixing
0.75 kWMax. power
Overview
The SD-10030 applies liquid solutions to seeds to protect them against bacterial infections and seed-borne diseases. Built mainly from synthetic materials, it withstands a broad range of chemicals. Three compartments with individual lids prevent splashes, and an air supply introduces bubbles into the basket drums for better mixing and more homogeneous dispersion of seed in the disinfectant. For lower capacity see the SD-10010.
Key Features
- Spring-assisted cover for easy operation
- Consistent, reproducible, uniform results
- 3 drums of 74 L each
- Air bubbles for better mixing
- Seed drums move to the next step without direct seed contact
- Touch-screen control stand
Technical Specifications | SD-10030
| Parameter | Specification |
|---|---|
| Capacity | 3 baskets of 74 L each |
| Dimensions (L x W x H) | 1645 x 1225 x 960 mm |
| Electrical connection | 320 - 400 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 0.75 kW / 10 A |
| Connections | Water 35 mm; drain 50 mm |
| Noise emission | approx. 55 dB(A), without product |
| Materials | Stainless steel 304 and plastics |
| Weight net / packed | approx. 330 / 378 kg |
| Included | 3 x basket, blowers |
| Optional | Heating system |
| Certification | CE |

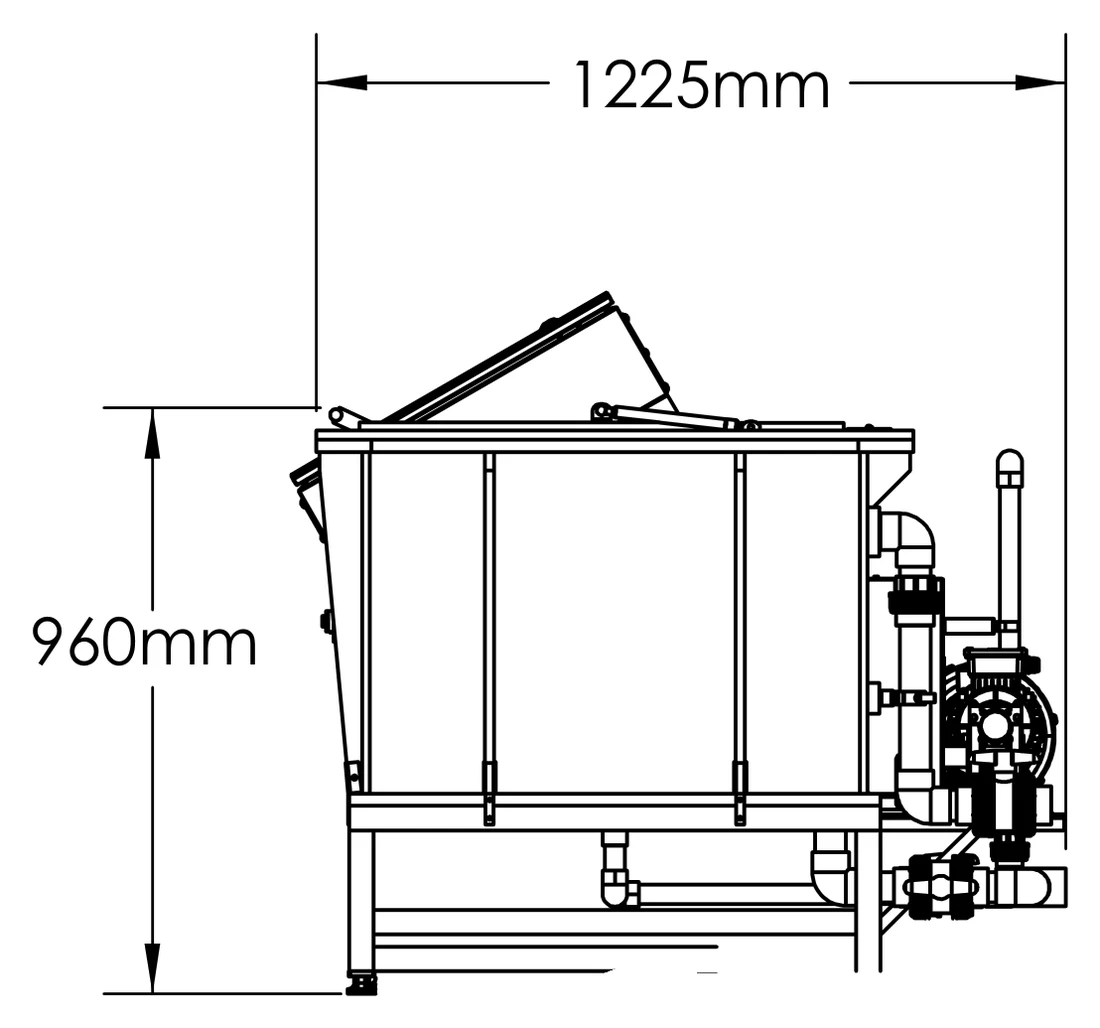

Technical Drawings
