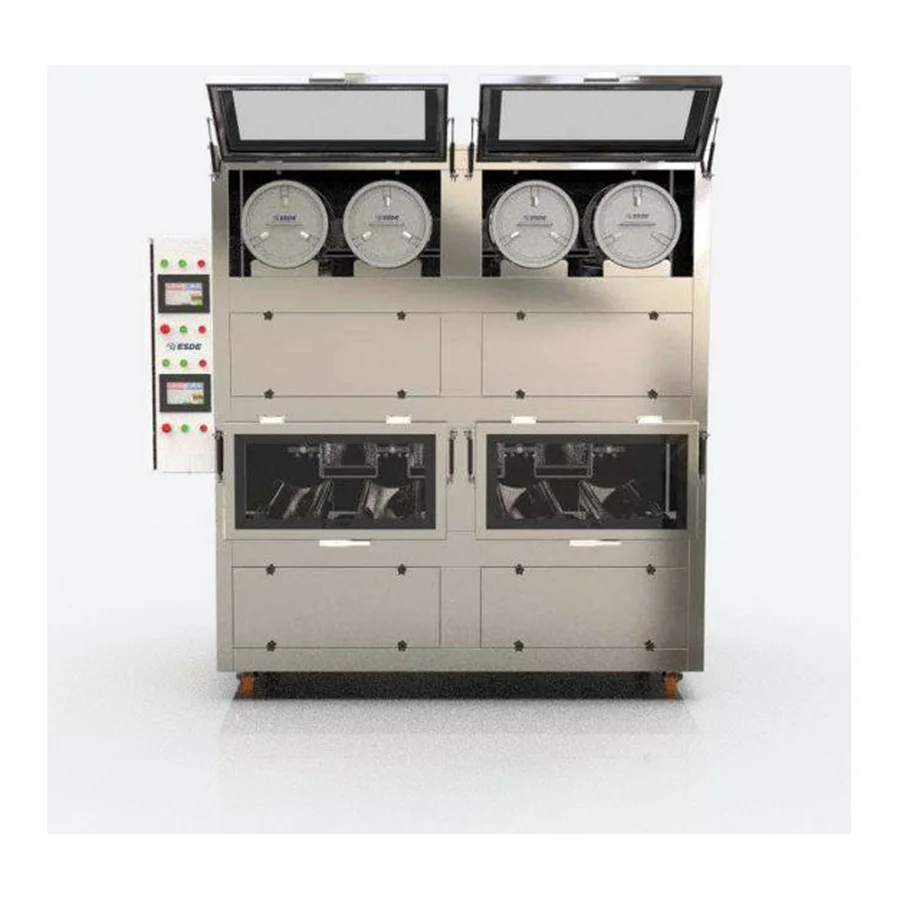

MODEL SD-10116
D16 Hot Air Disinfection
Programmable hot-air sterilisation in two controllable units.
16 x 41 LBaskets
2Controllable units
13 kWMax. power
Overview
Disinfecting seeds eliminates bacterial infections and protects seed during storage and early growth, and can improve germination rates and root development. The SD-10116 sterilises seeds according to pre-programmed time and temperature settings through a user-friendly interface. Each flap can be linked to a separate exhaust system for proper ventilation. Also available with 1, 2 or 4 baskets (SD-10110, SD-10120, SD-10140).
Key Features
- Pre-programmed time and temperature cycles
- User-friendly automation interface
- Two separately controllable units
- Exhaust connection per flap
- Stainless steel 304 Cr-Ni construction
- Also available with 1, 2 or 4 baskets
Technical Specifications | SD-10116
| Parameter | Specification |
|---|---|
| Capacity | 16 baskets of 41 L each |
| Dimensions (L x W x H) | 2080 x 1330 x 2340 mm |
| Electrical connection | 380 - 400 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 13 kW / 32 A (slow blow) |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Stainless steel 304 Cr-Ni |
| Weight net / packed | approx. 800 / 920 kg |
| Included | 16 x basket |
| Optional | Ozone, UV |
| Certification | CE |

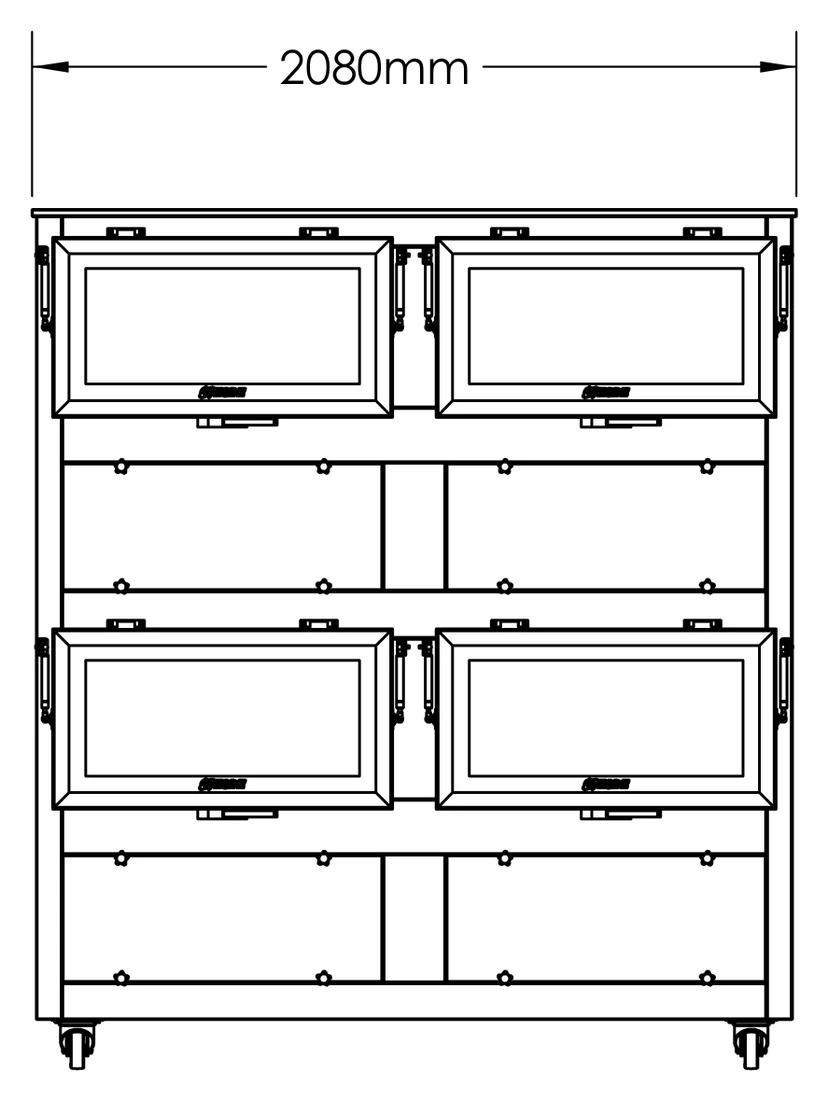

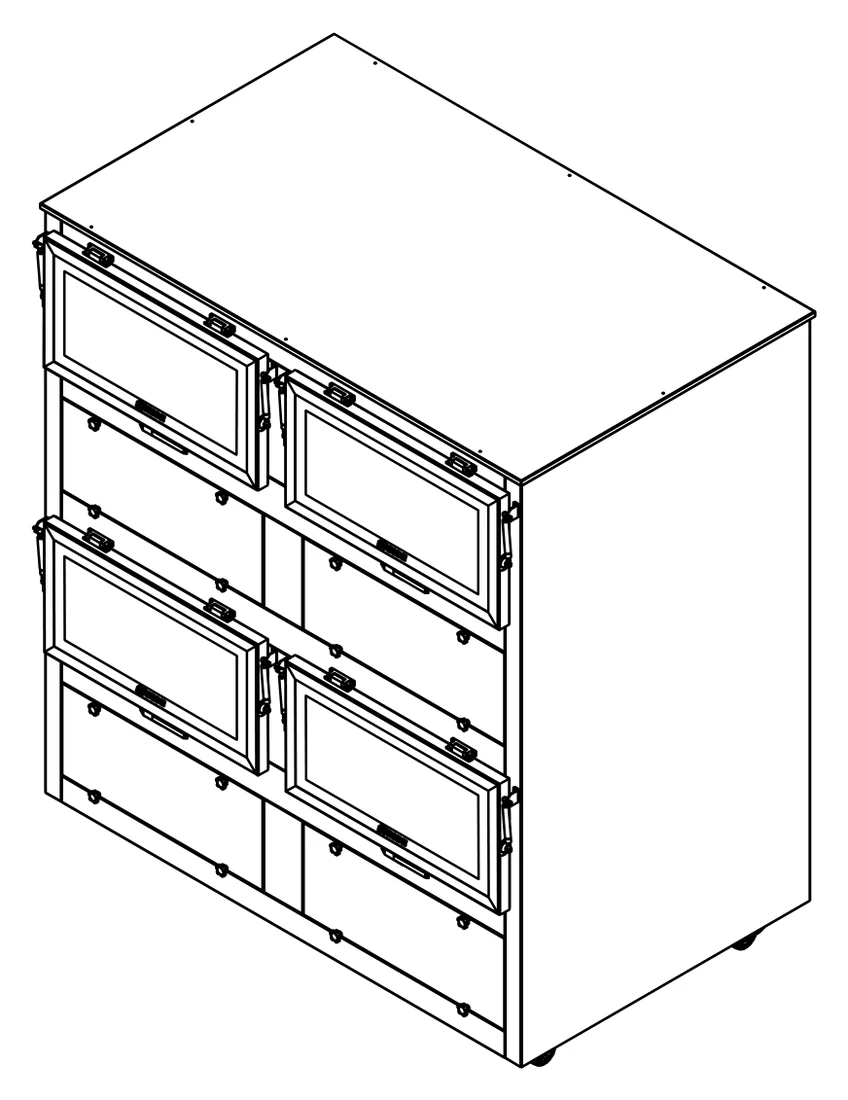

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
