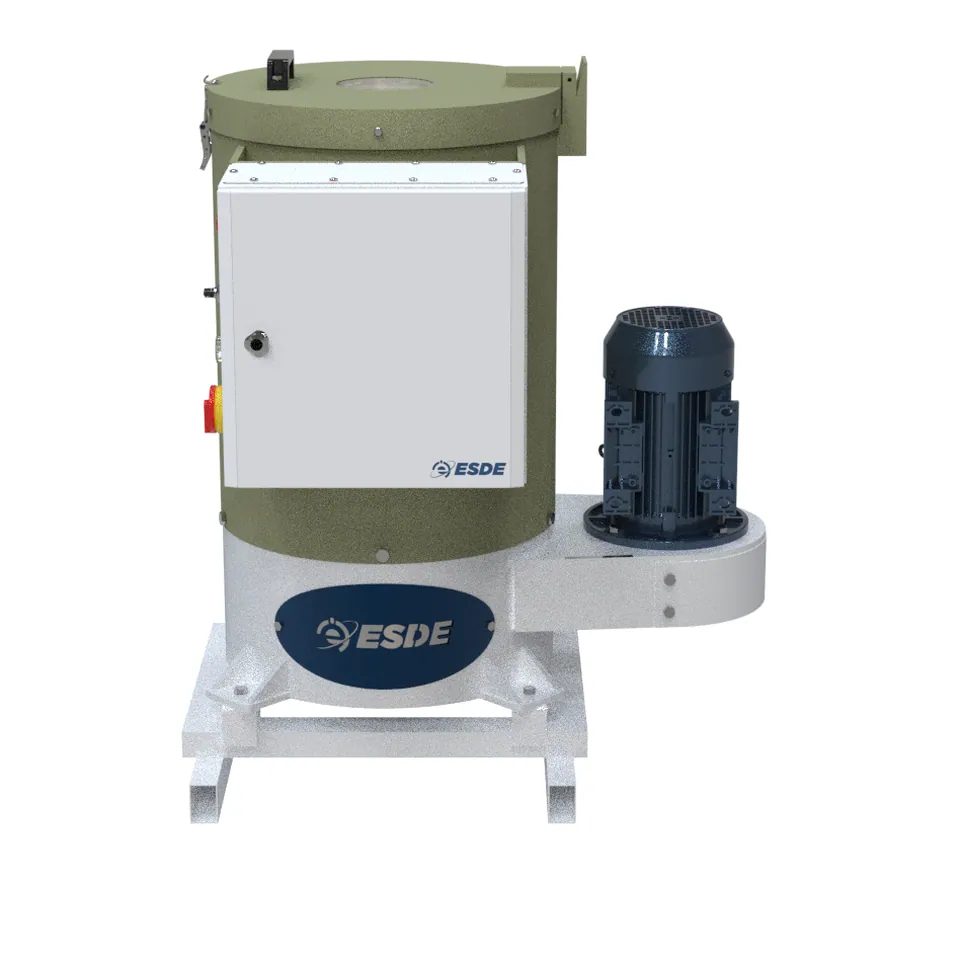

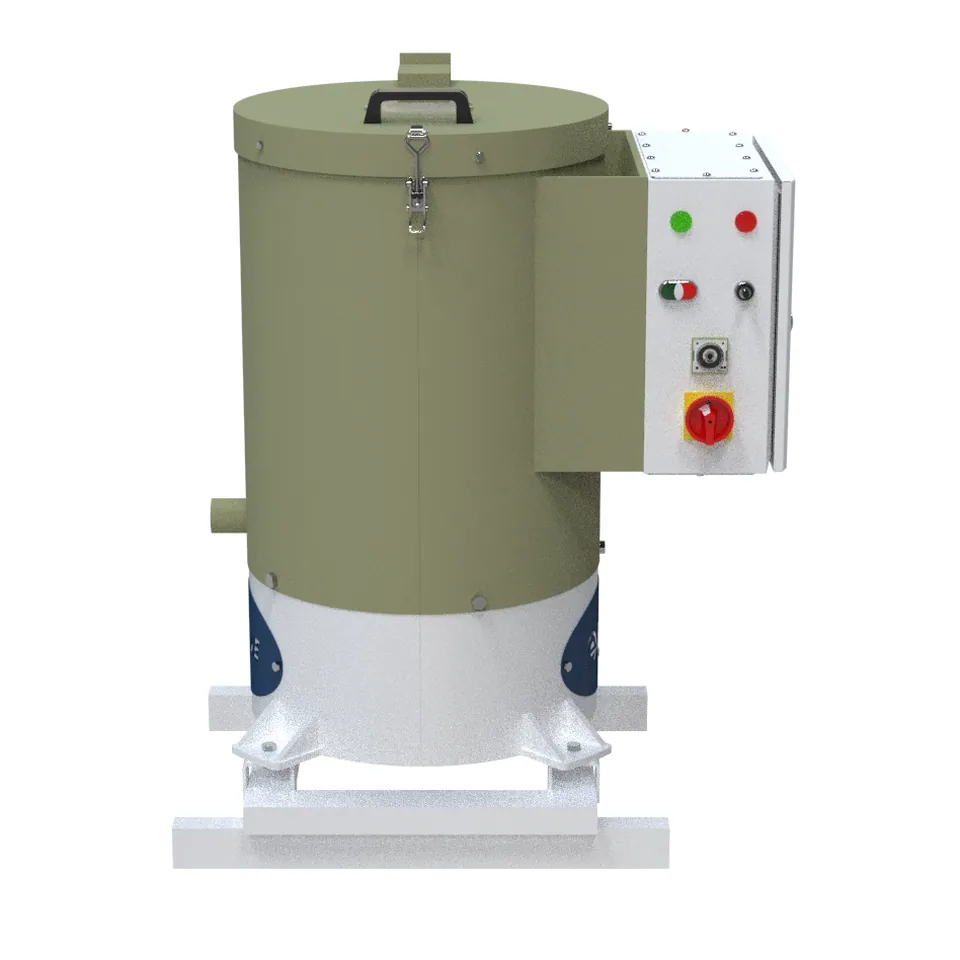

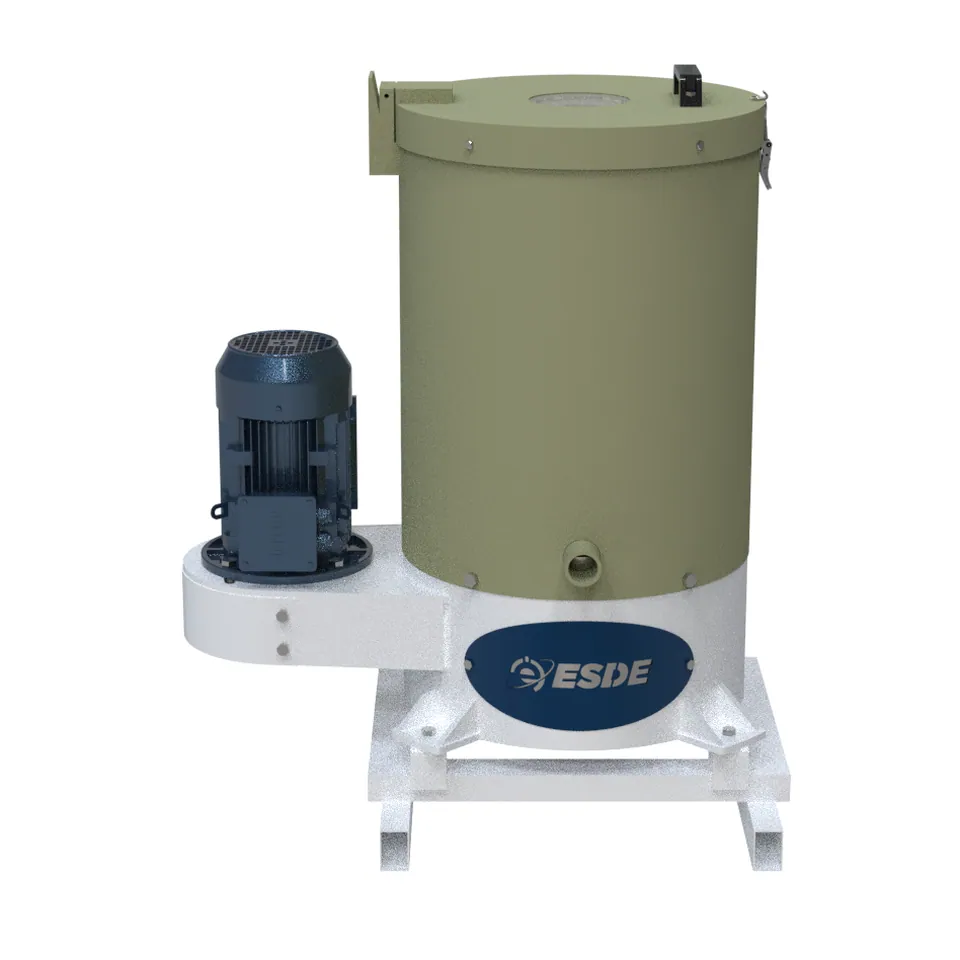

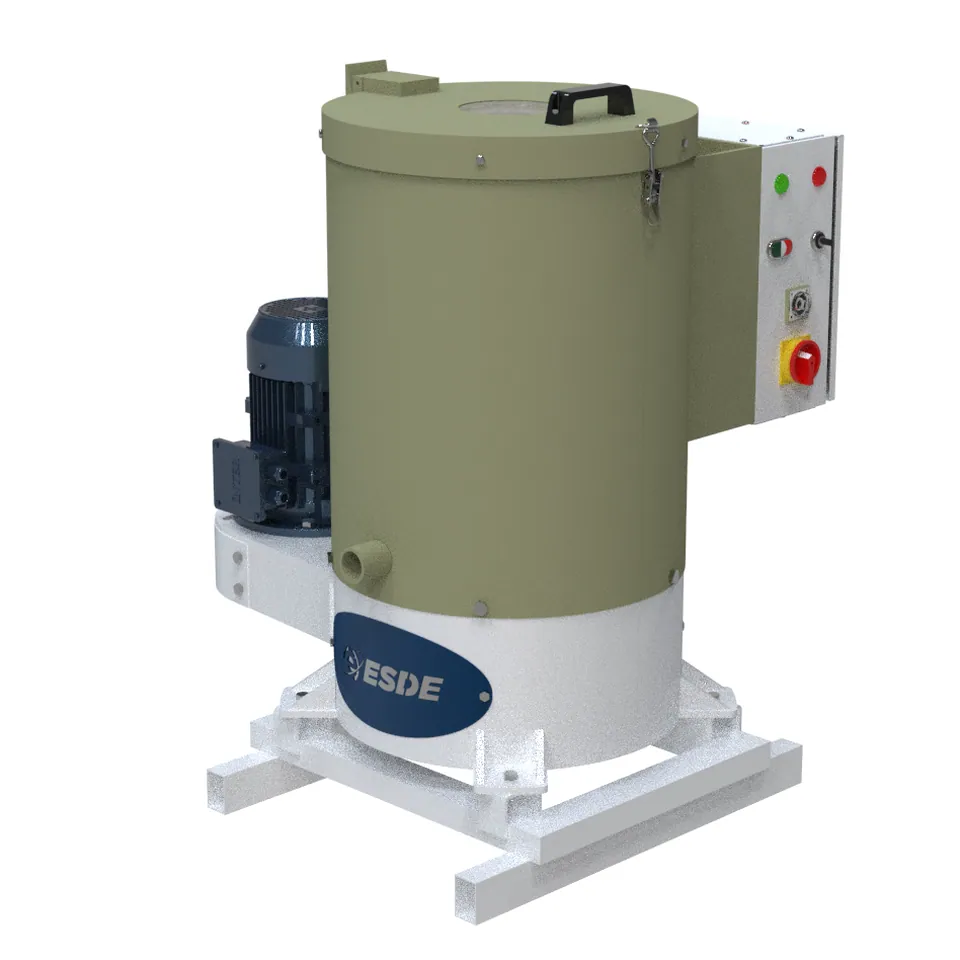

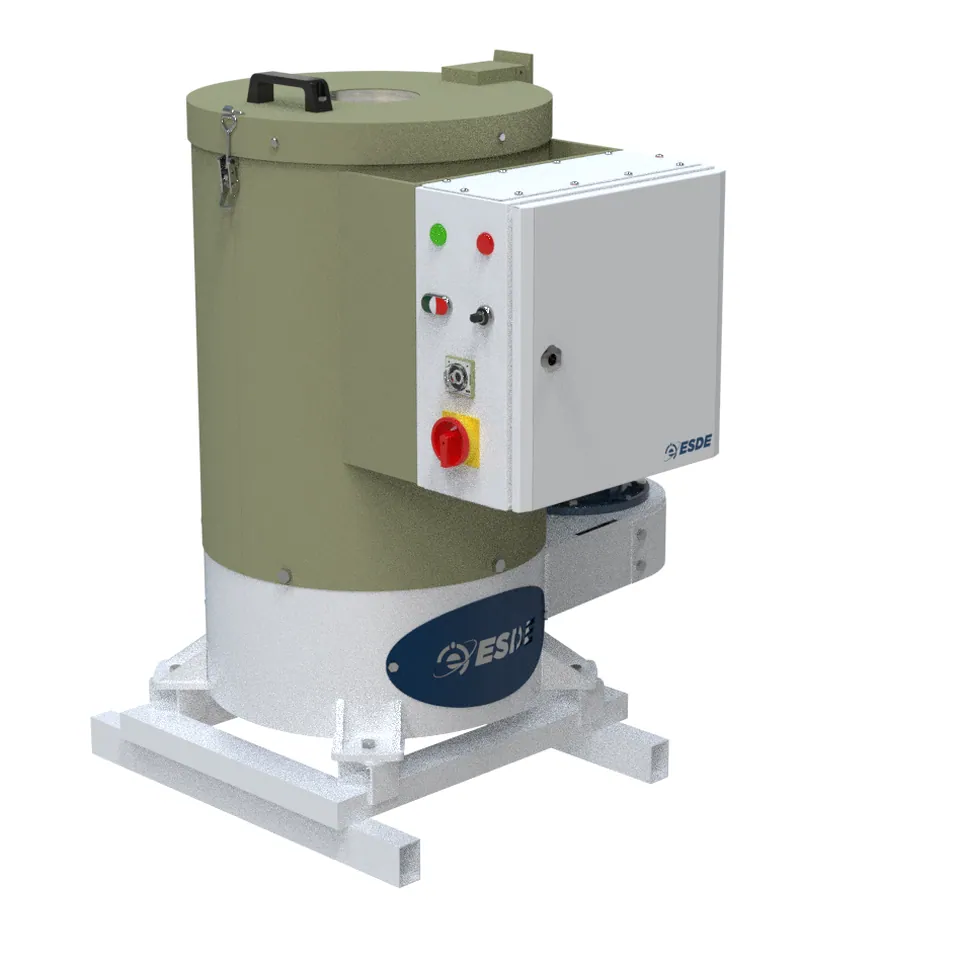

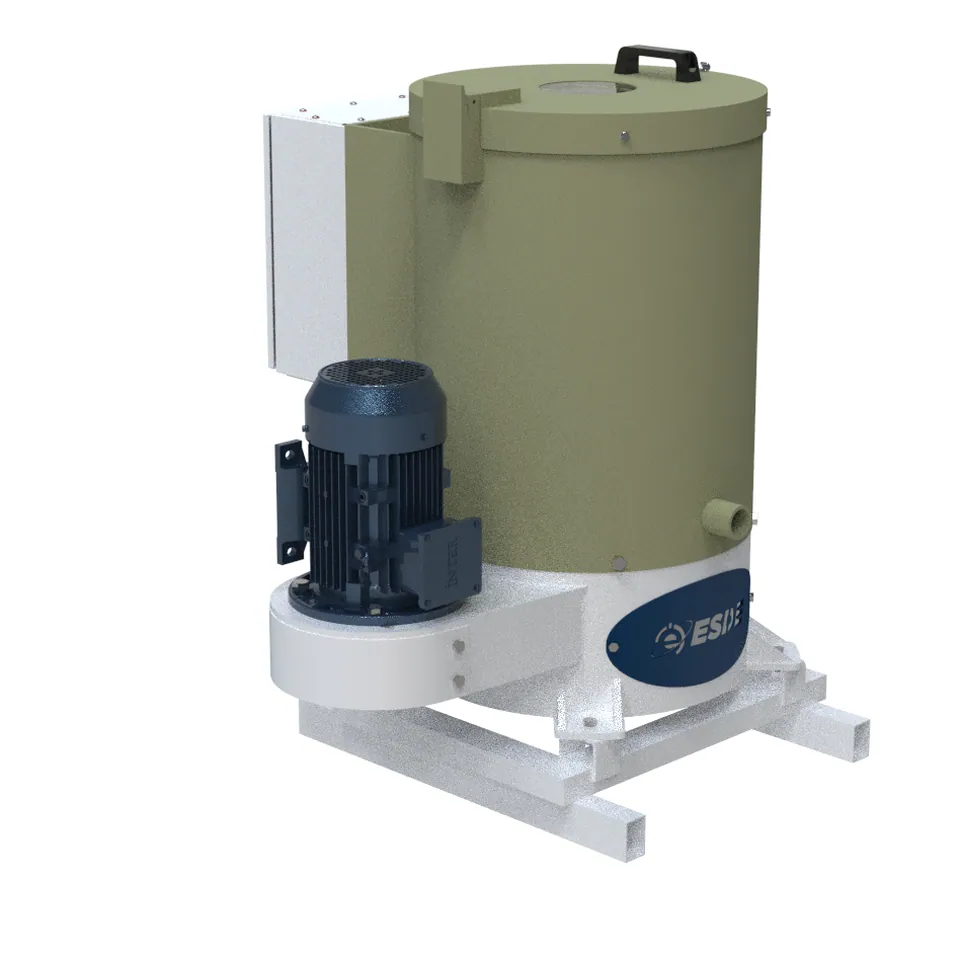

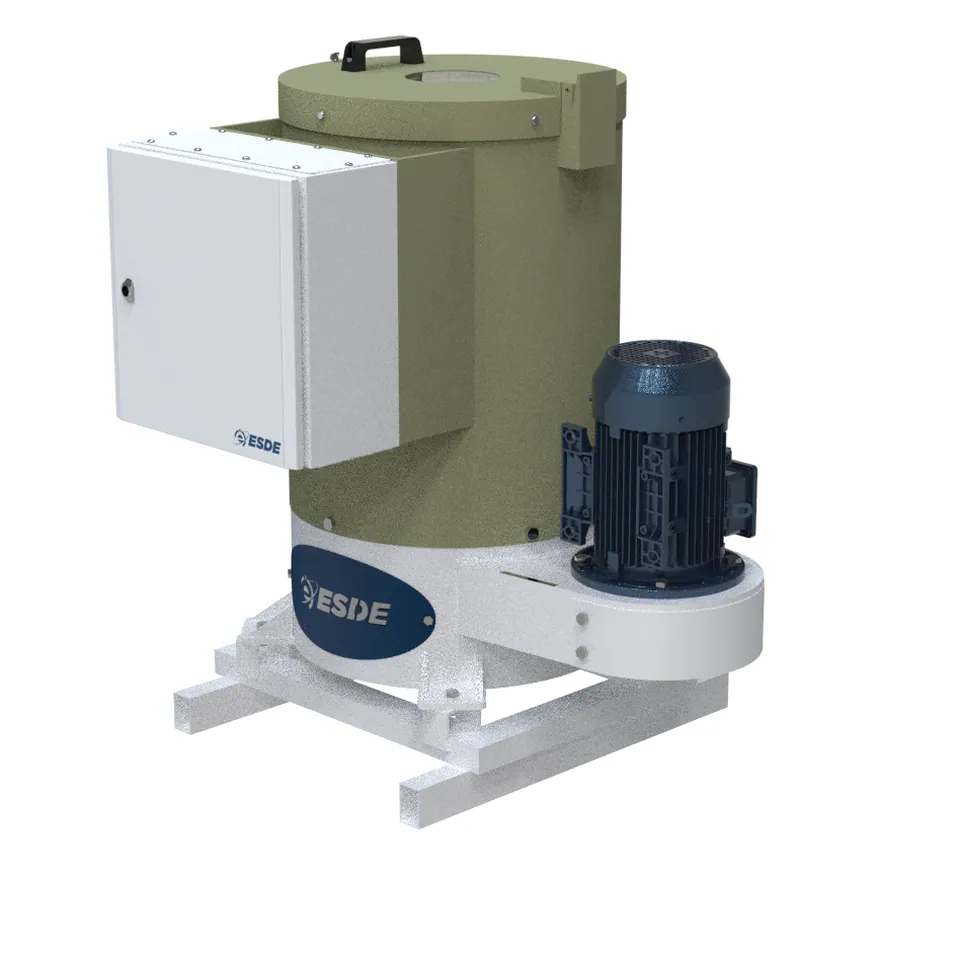

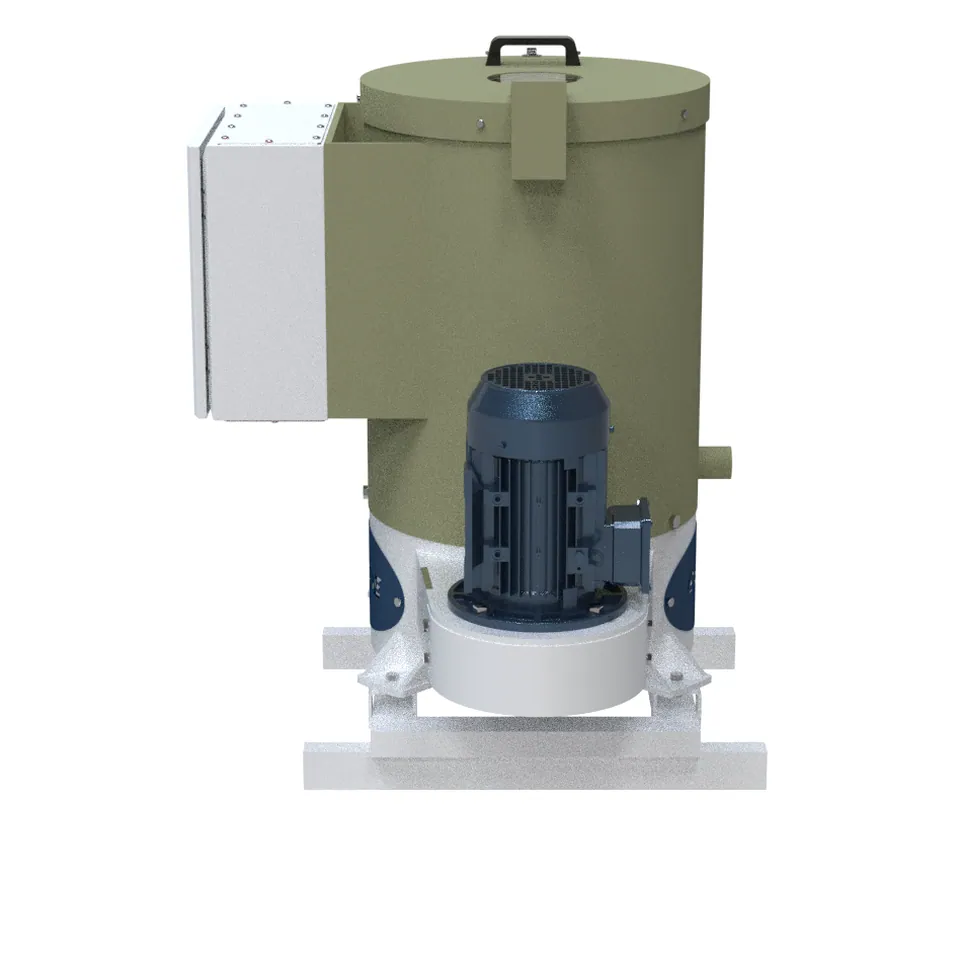

MODEL SD-4510
Seed Centrifuge
Commercial spin drying and rinsing of moist seed.
20 kgWet seed per basket
200-700rpm, variable
10 s-10 minTimer
Drag to turn
Overview
The SD-4510 centrifuges (spin dries) and rinses moist seeds, including extracted, disinfected, imbibed or primed seed. Its capacity and robust construction make it highly suitable for commercial processing plants.
Key Features
- Water-contact surfaces in polypropylene
- Inner basket in Cr-Ni 304 stainless steel
- Adjustable speed
- Safety switch in the cover - runs only when closed
- Timer 10 seconds to 10 minutes with automatic stop
- Sturdy base frame against vibration
Technical Specifications | SD-4510
| Parameter | Specification |
|---|---|
| Capacity | Max. 20 kg wet seed per basket; 200 - 700 rpm variable |
| Dimensions (L x W x H) | 870 x 835 x 1060 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 2.2 kW / 16 A |
| Drain connection | 63 mm |
| Noise emission | approx. 65 dB(A), without product |
| Materials | Electrostatic paint and plastic |
| Weight net / packed | approx. 160 / 200 kg |
| Included | 1 basket |
| Certification | CE |

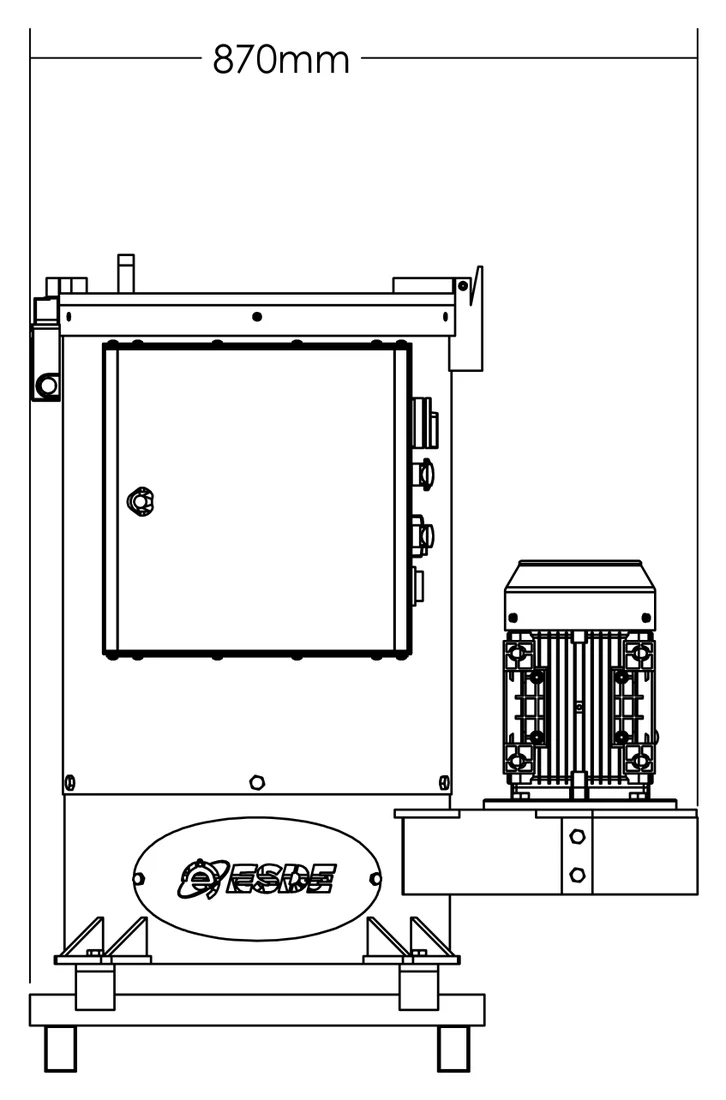

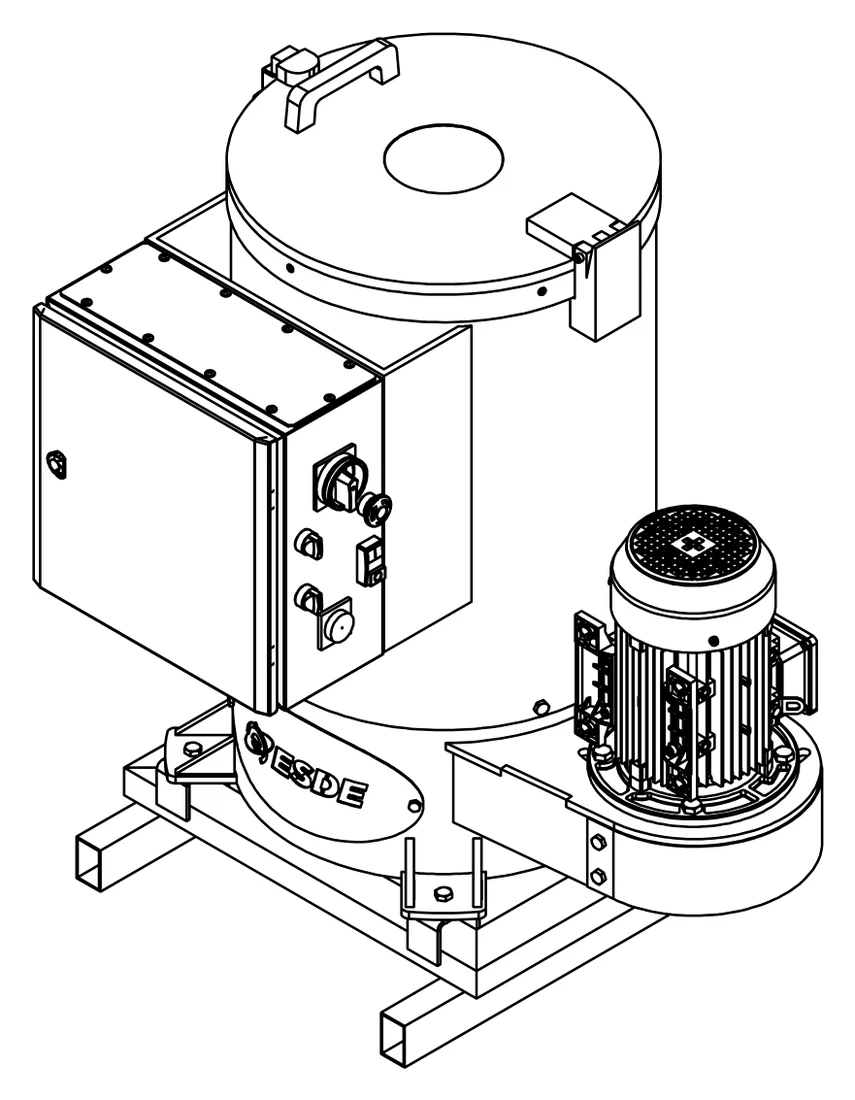

Technical Drawings
