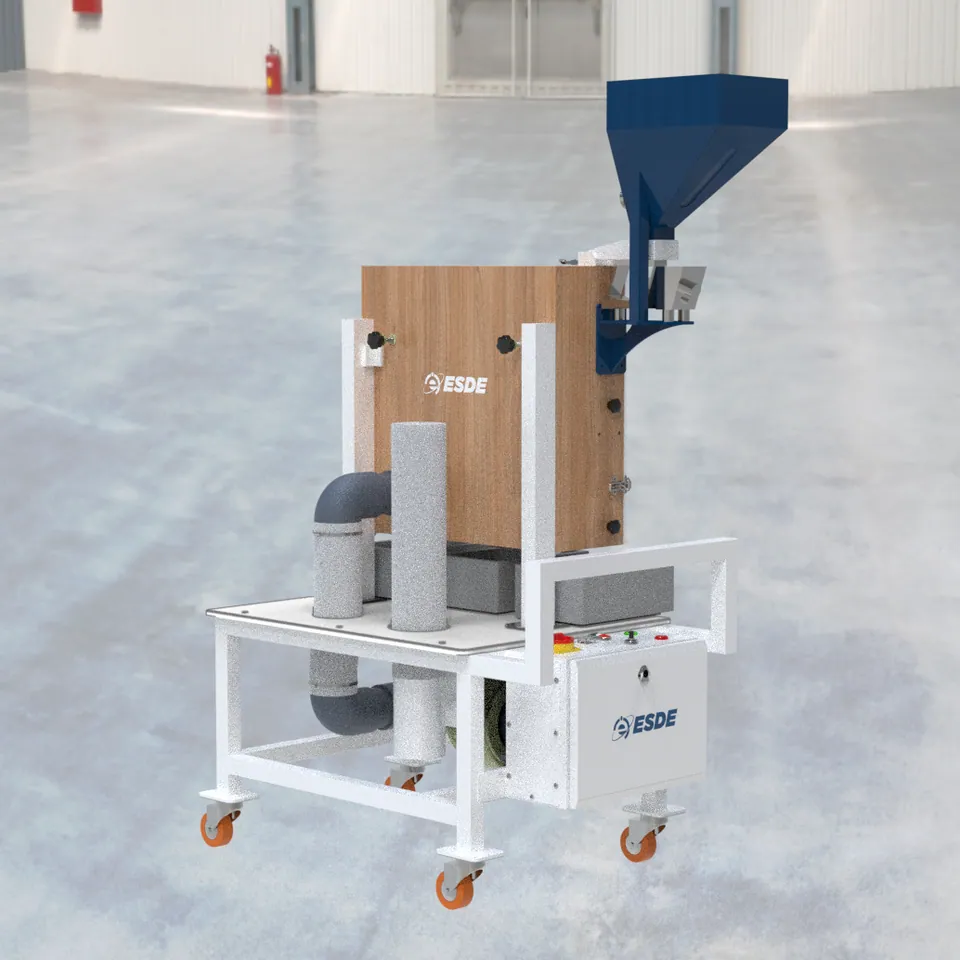

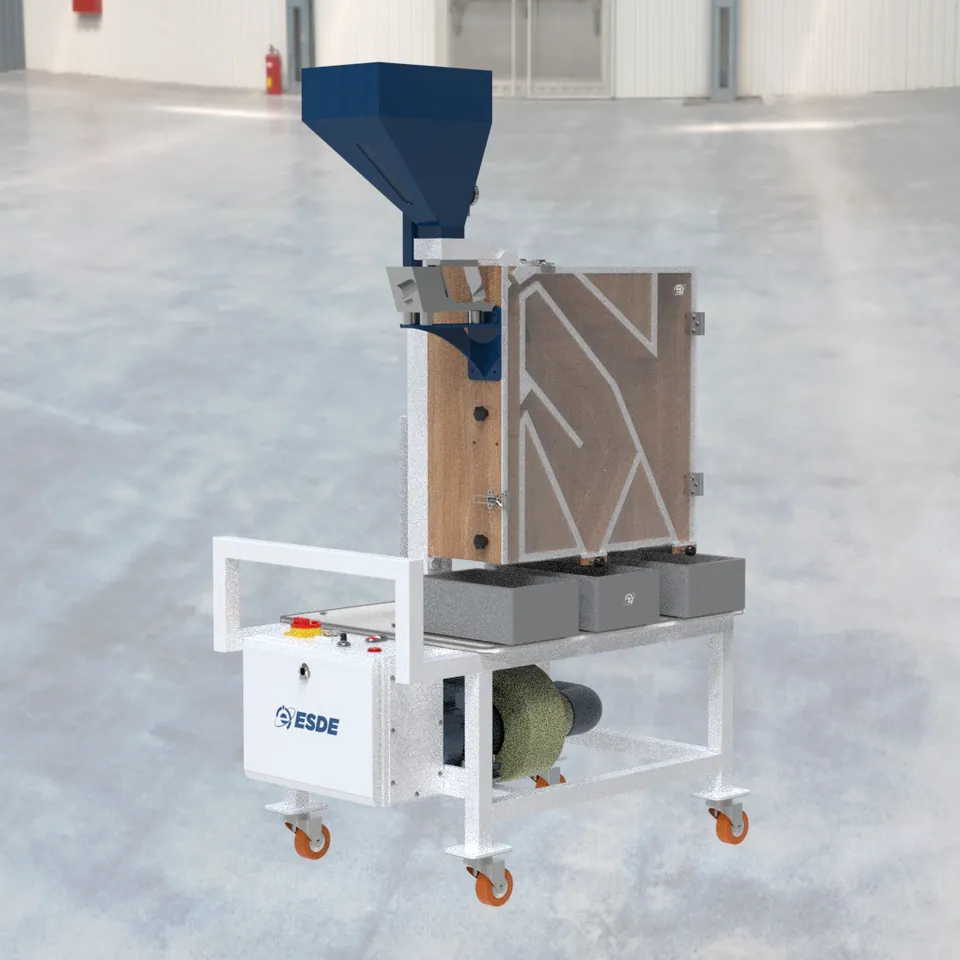

MODEL SD-6110
Seed Air Separator
Separates heavy, good seed from light and empty seed by specific gravity.
0.1-4 kgHopper content
3 x 5 LAntistatic bins
1.1 kWMax. power
Drag to turn
Overview
Pre-cleaned vegetable and field crop seeds are separated and classified by specific gravity, distinguishing heavy good seed from lighter and empty seed. Ideal for basic seed stations and breeding facilities - from fine seeds such as celery and spinach to large seeds such as squash and corn.
Key Features
- Raises the quality of valuable seed lots
- Precise adjustment of vibrating trough and ventilator
- Hinged door for fast inspection and cleaning of the air chamber
- Quiet operation with frequency-controlled ventilator
- Fine seeds (celery to spinach) and large seeds (squash to corn)
- Suited to breeding and foundation seed stations
Technical Specifications | SD-6110
| Parameter | Specification |
|---|---|
| Capacity | approx. 100 g - 4 kg seed; inlet hopper 4 L; bin approx. 5 L |
| Dimensions (L x W x H) | 1130 x 690 x 1670 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 1.1 kW / 16 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet metal and marine hardboard |
| Weight net / packed | approx. 120 / 150 kg |
| Included | 3 x antistatic bin (5 L) |
| Optional | Seed transfer pipes |
| Certification | CE |

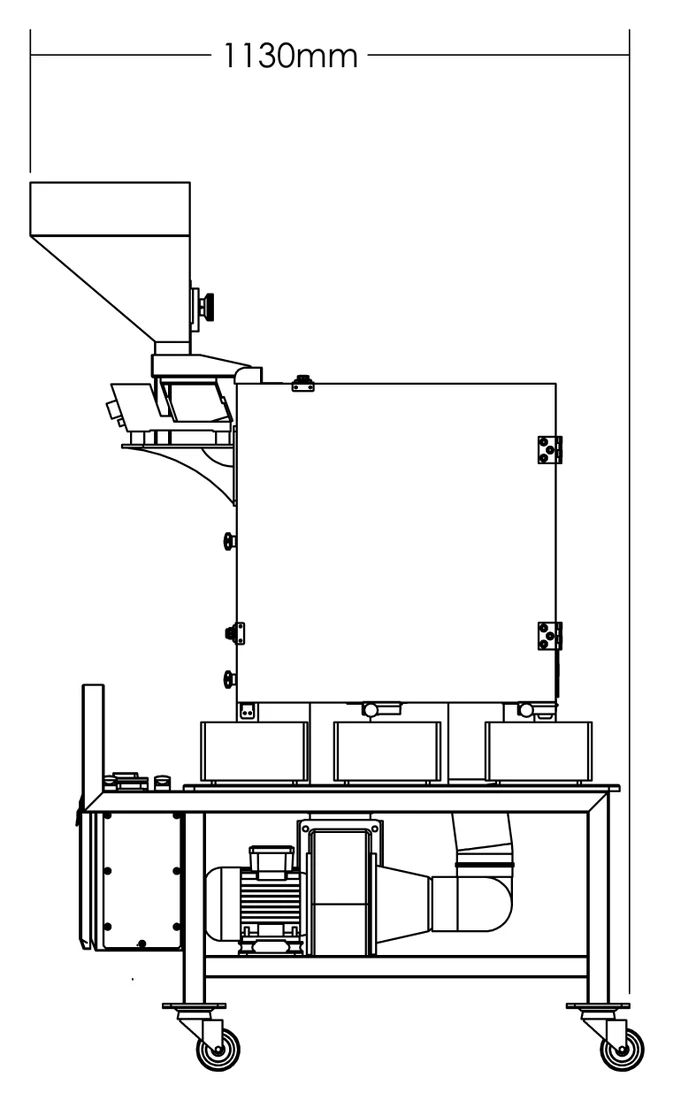

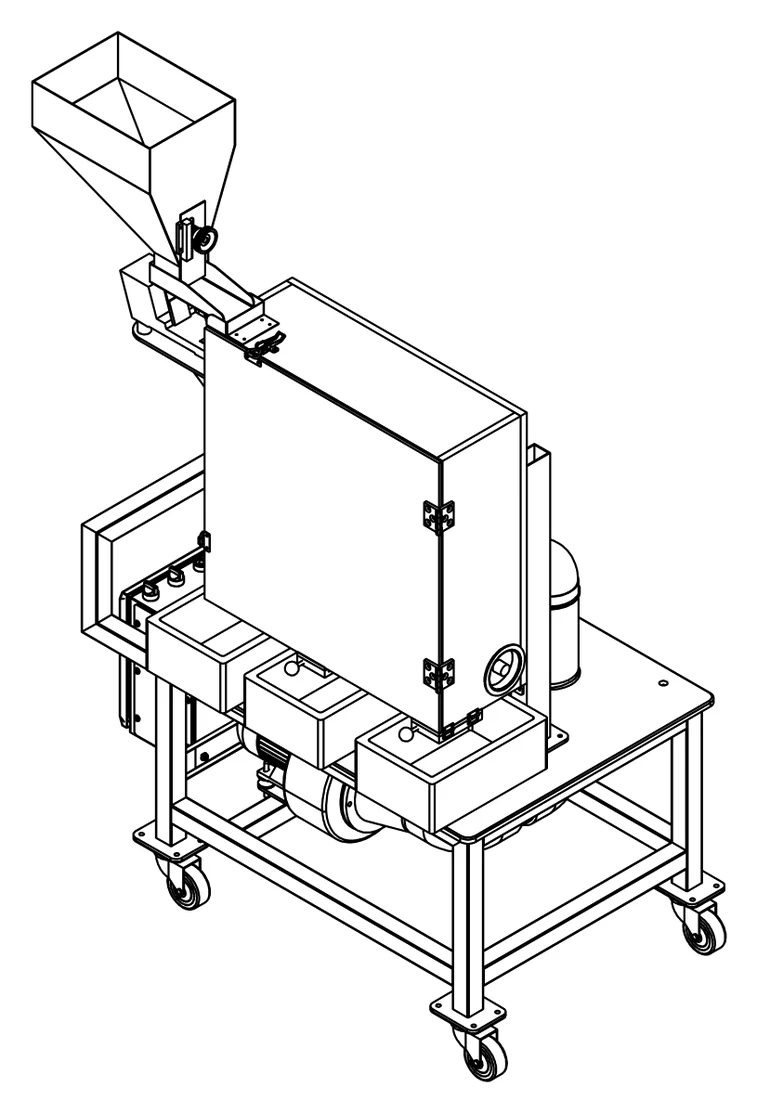

Technical Drawings
