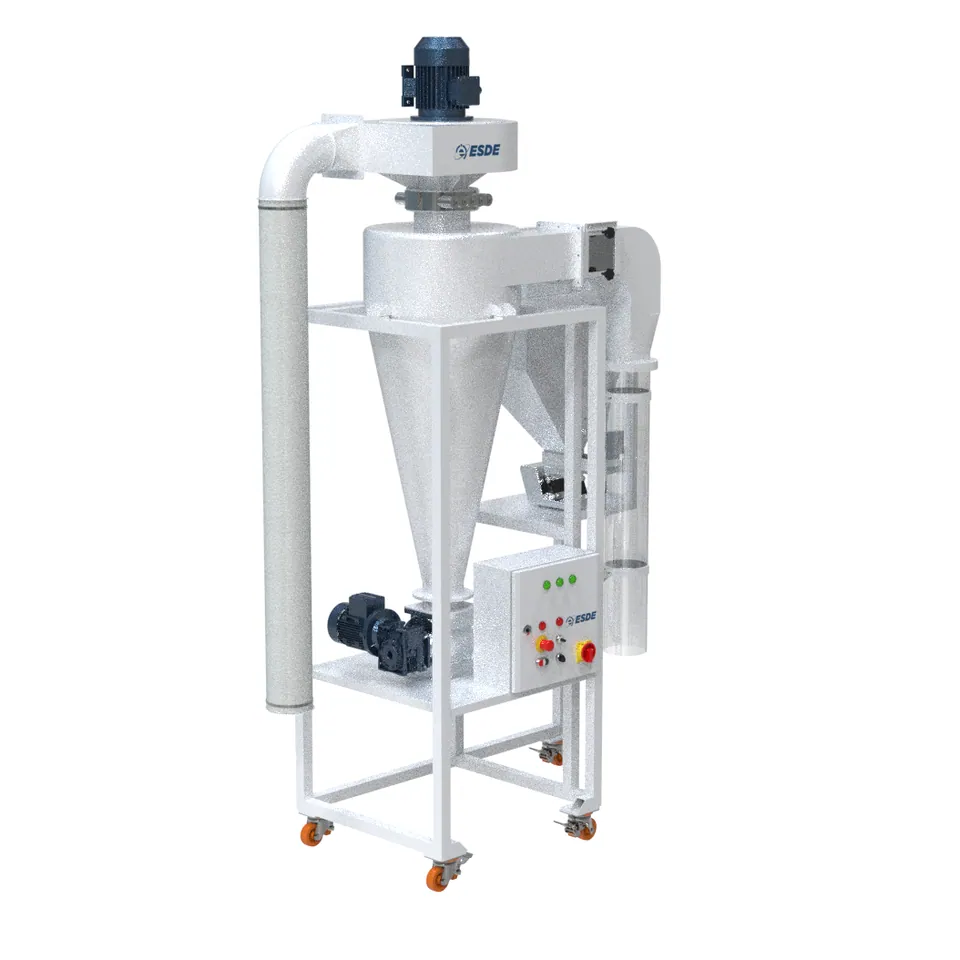

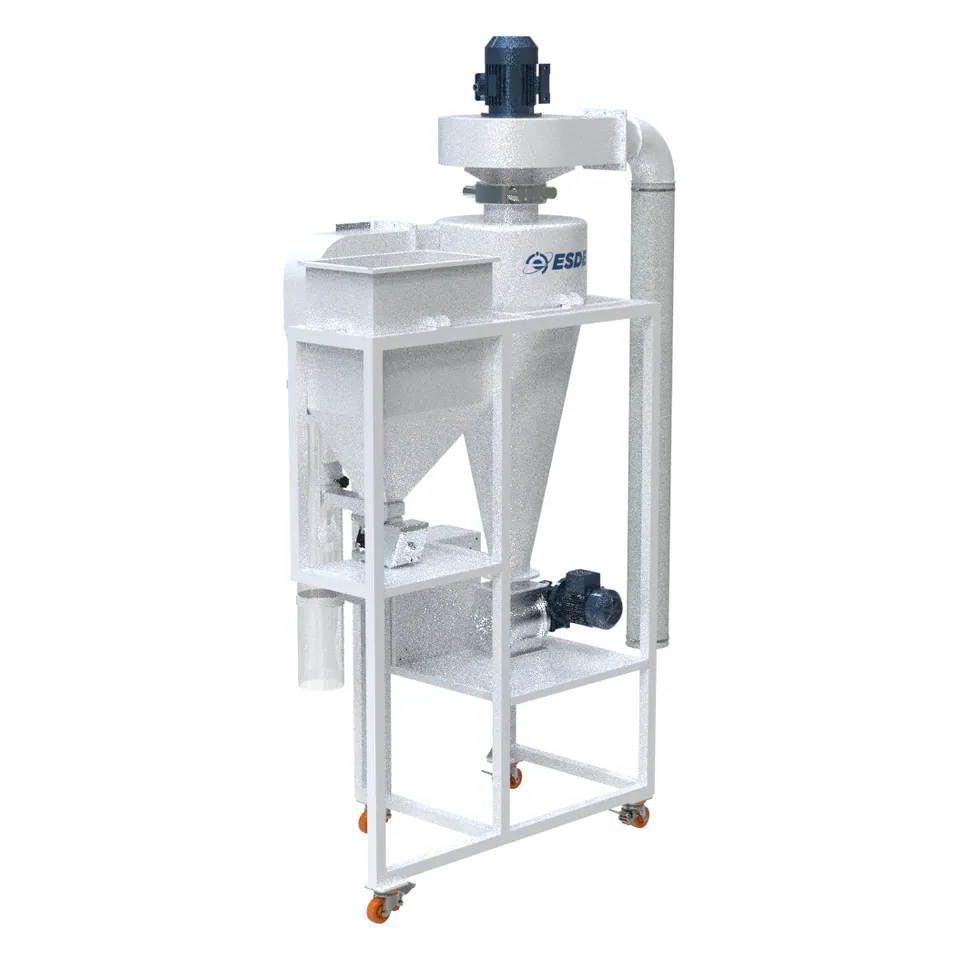

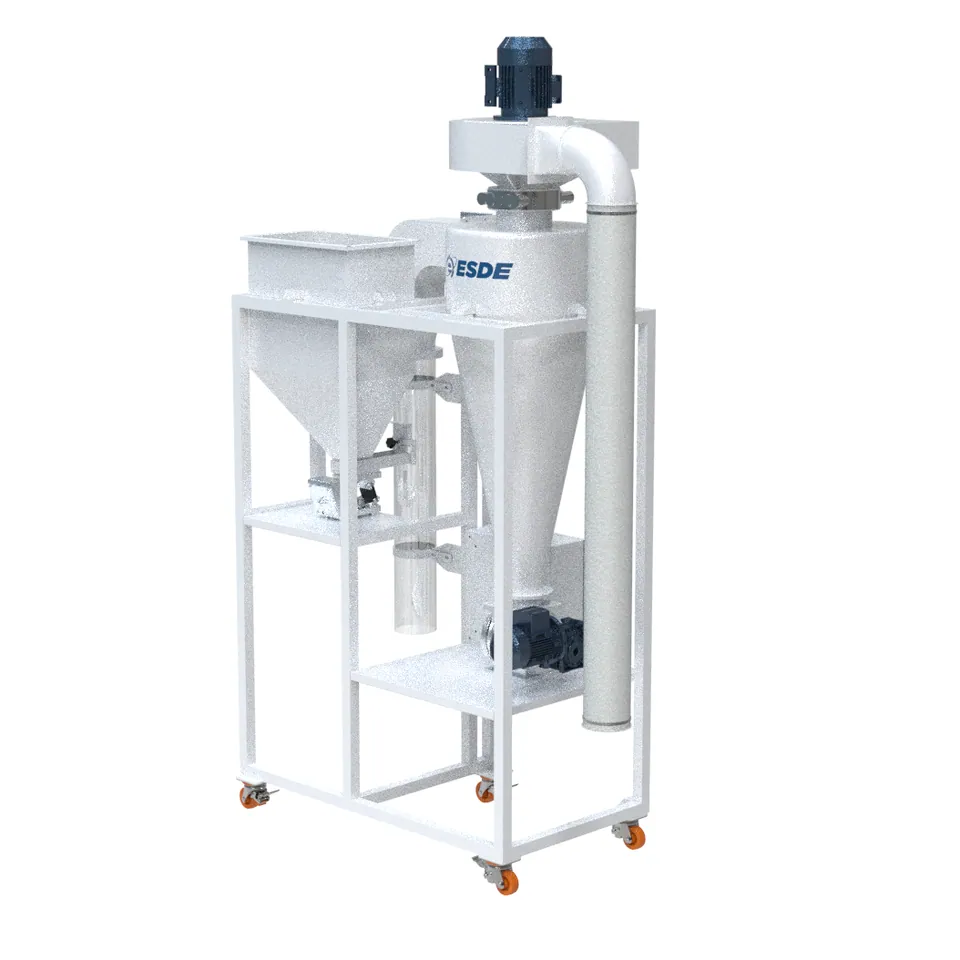

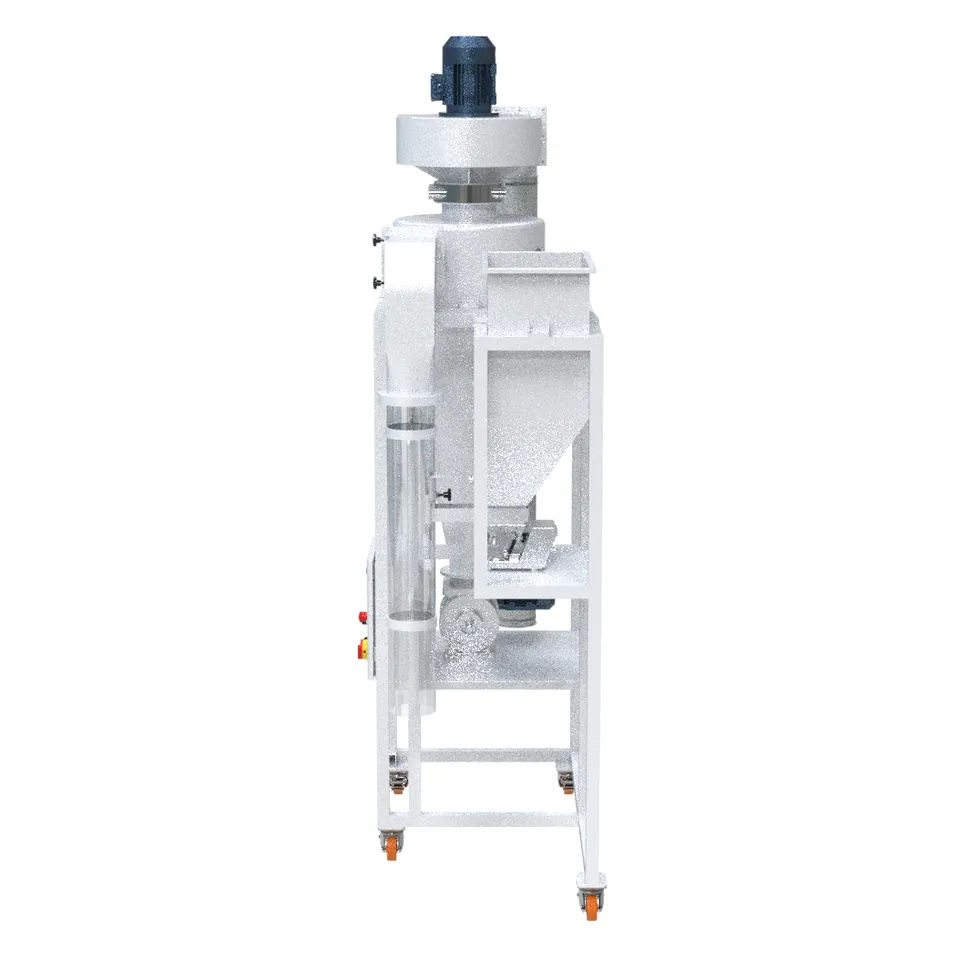

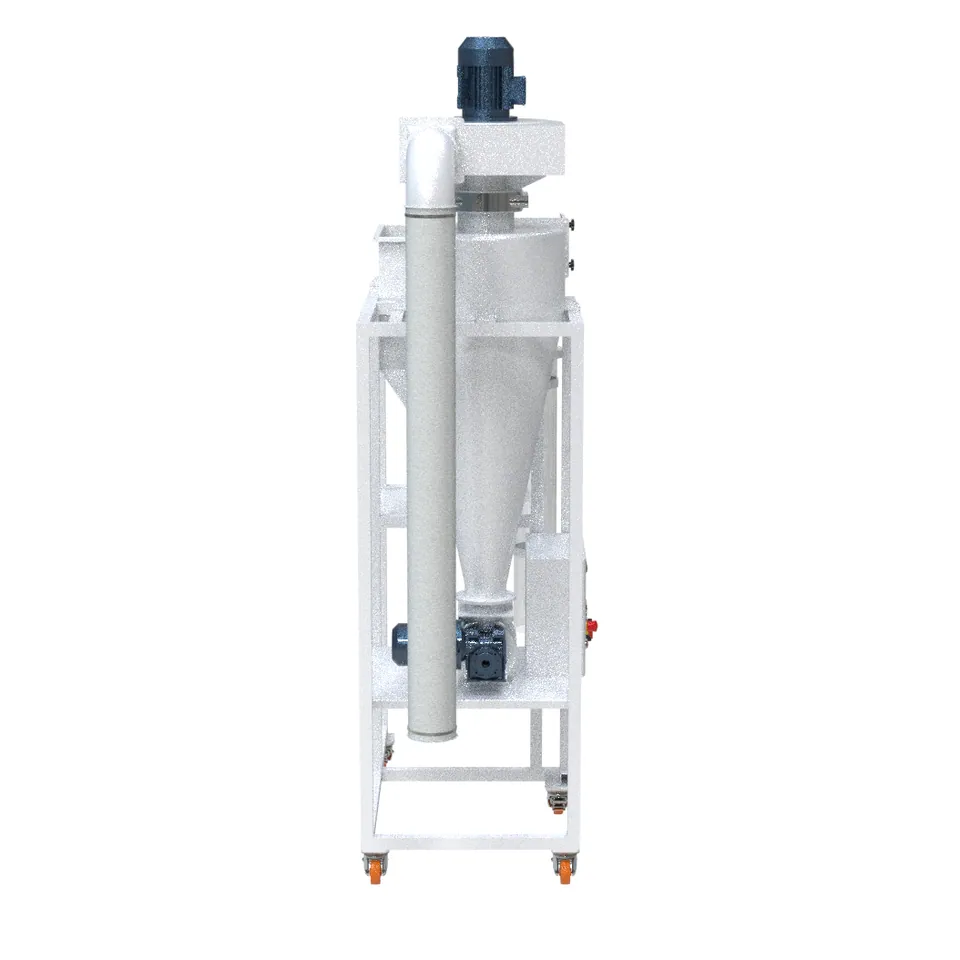

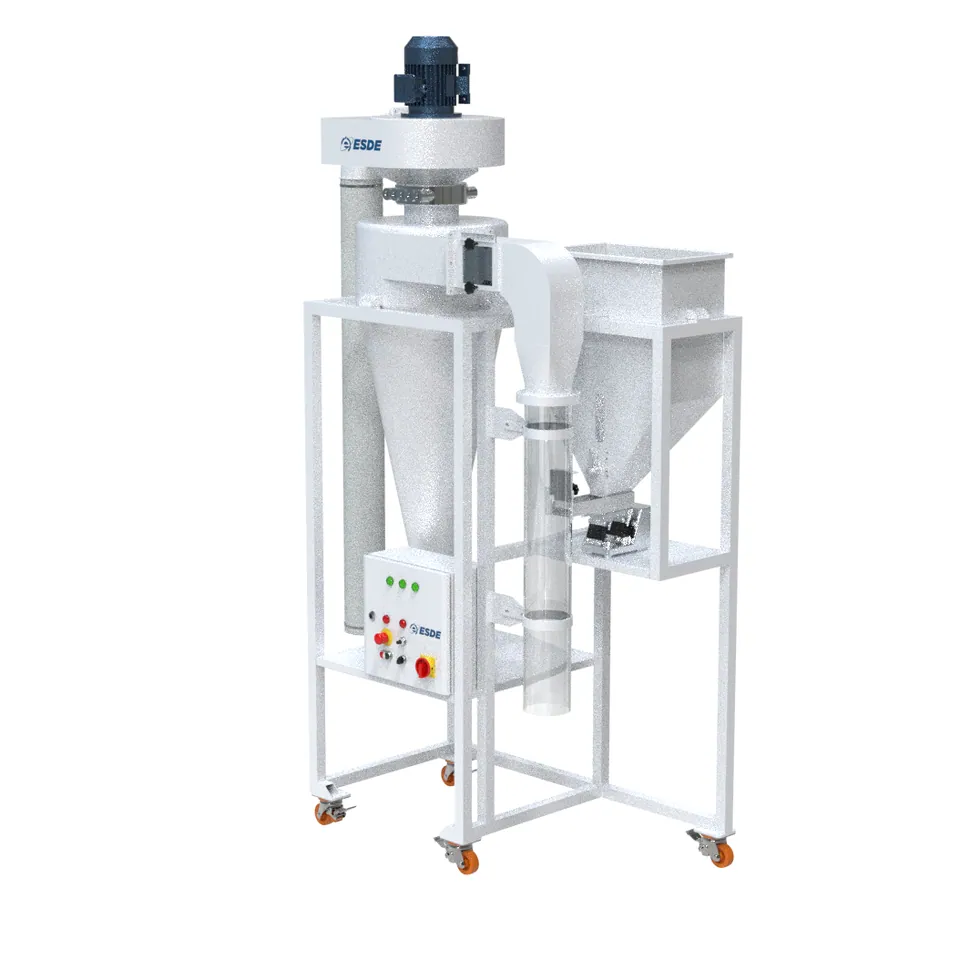

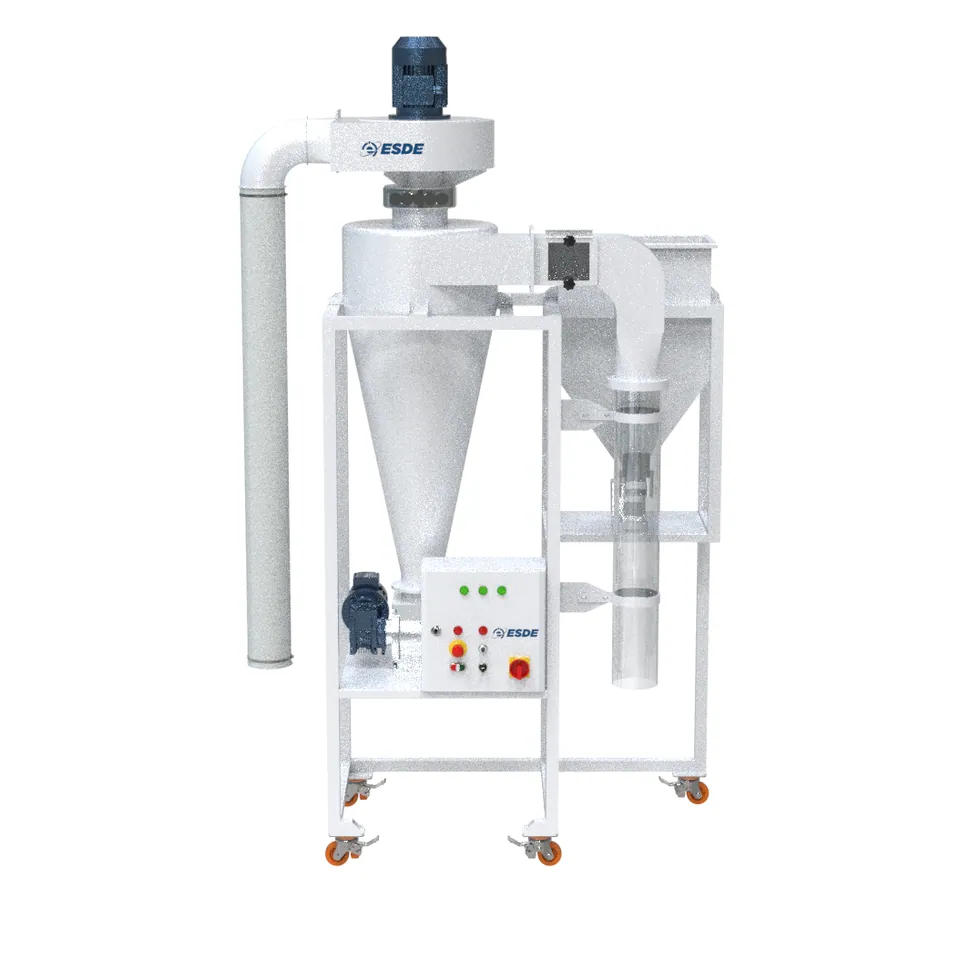

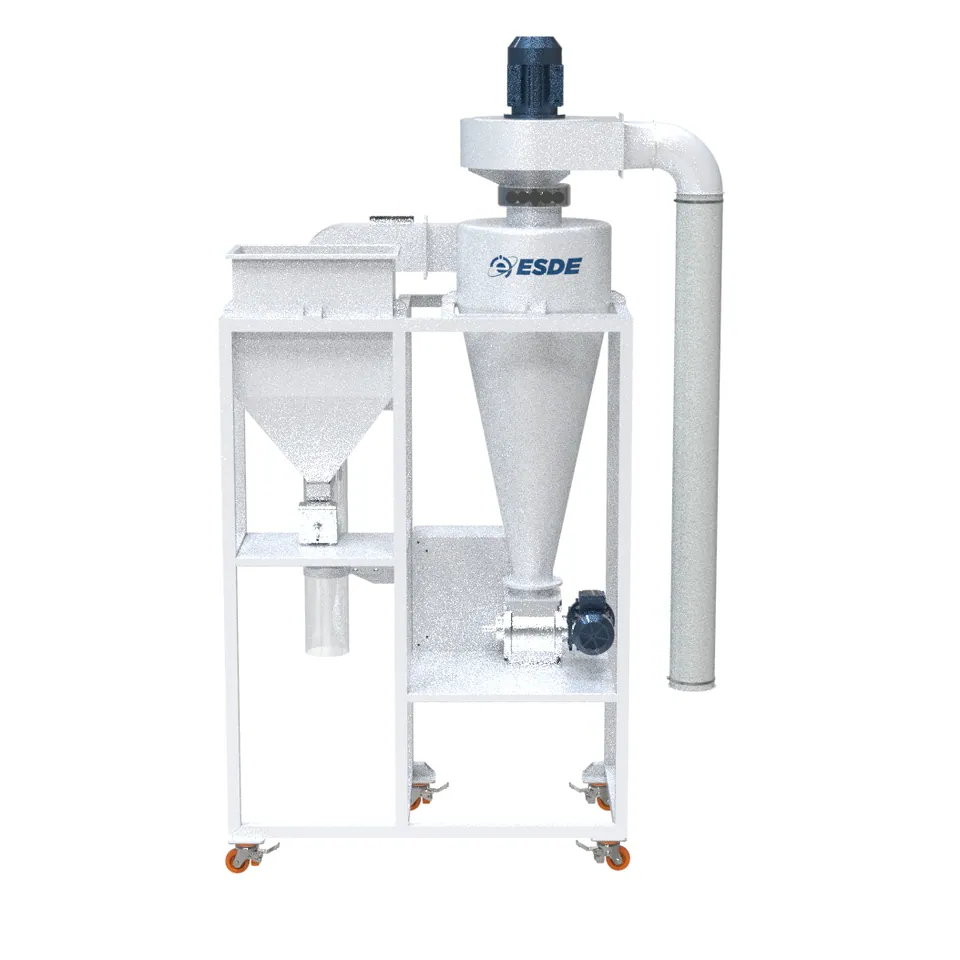

MODEL SD-6020
PrecisionMax Seed Blower
Continuous, accurate and repeatable density separation.
100 kg/hContinuous
0.5-18 m/sAir velocity
2.2 kWMax. power
Drag to turn
Overview
Achieve accurate, repeatable separations and maximise productivity with the continuous seed blower - easier to set up than a gravity table. It effectively separates seeds and grains of different densities, seeds from cavities and straw, and soil particles from grass seed, across a wide variety of species from large to small.
Key Features
- Crack-resistant polycarbonate tubing - no broken acrylic tubes
- Stepless electronic fan speed control
- Air velocity adjustable from 0.5 to 18 m/s
- Vibrating feeder for continuous operation
- Keeps denser, more viable seed for reproduction
- Batches up to 100 kg for vegetable and flower seed
Technical Specifications | SD-6020
| Parameter | Specification |
|---|---|
| Capacity | 100 kg per hour |
| Dimensions (L x W x H) | 1595 x 755 x 2680 mm |
| Electrical connection | 380 - 400 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 2.2 kW / 10 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet and profile, aluminium |
| Weight net / packed | approx. 140 / 170 kg |
| Included | 2 bowls |
| Certification | CE |

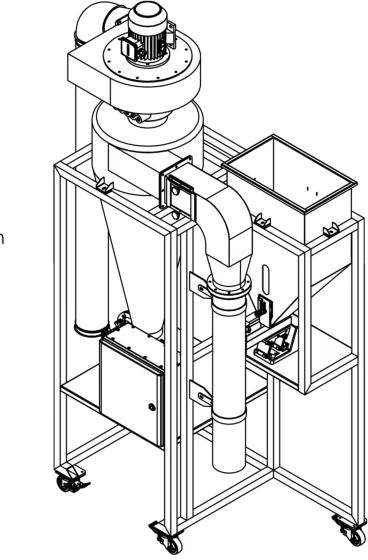

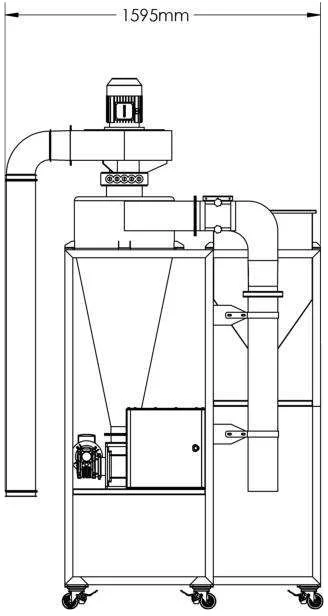

Technical Drawings
