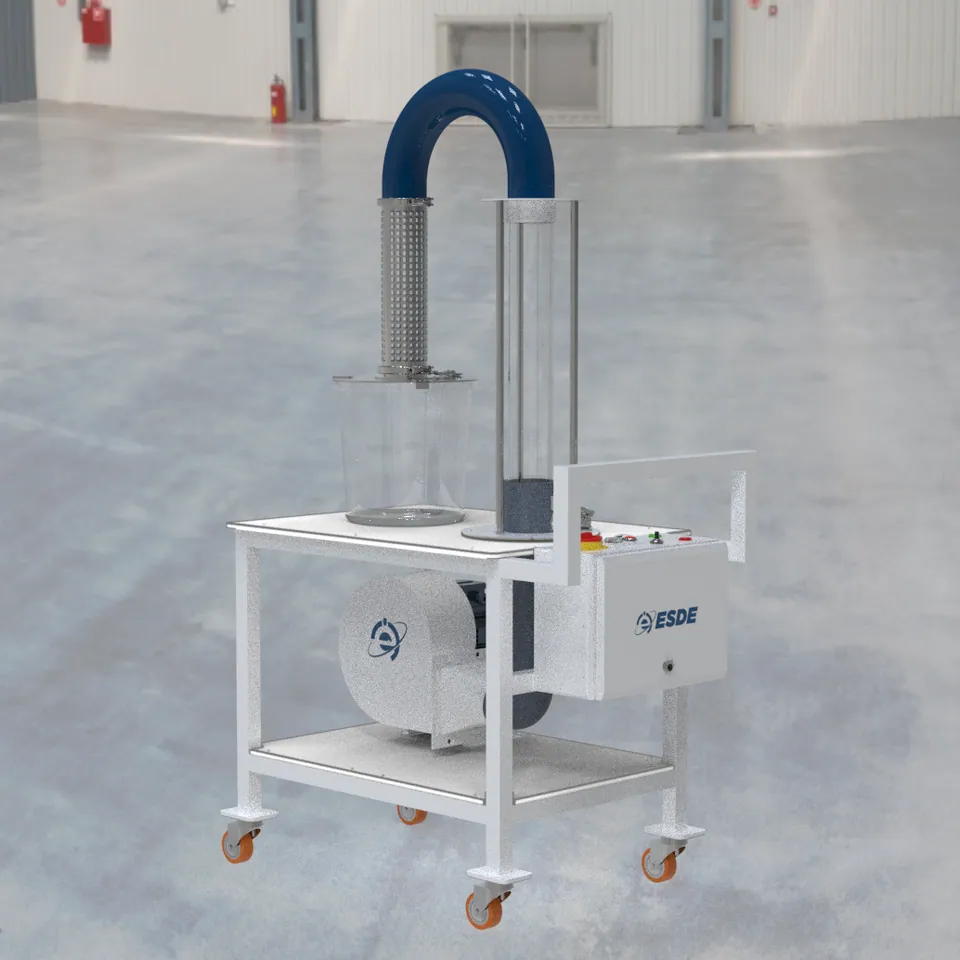

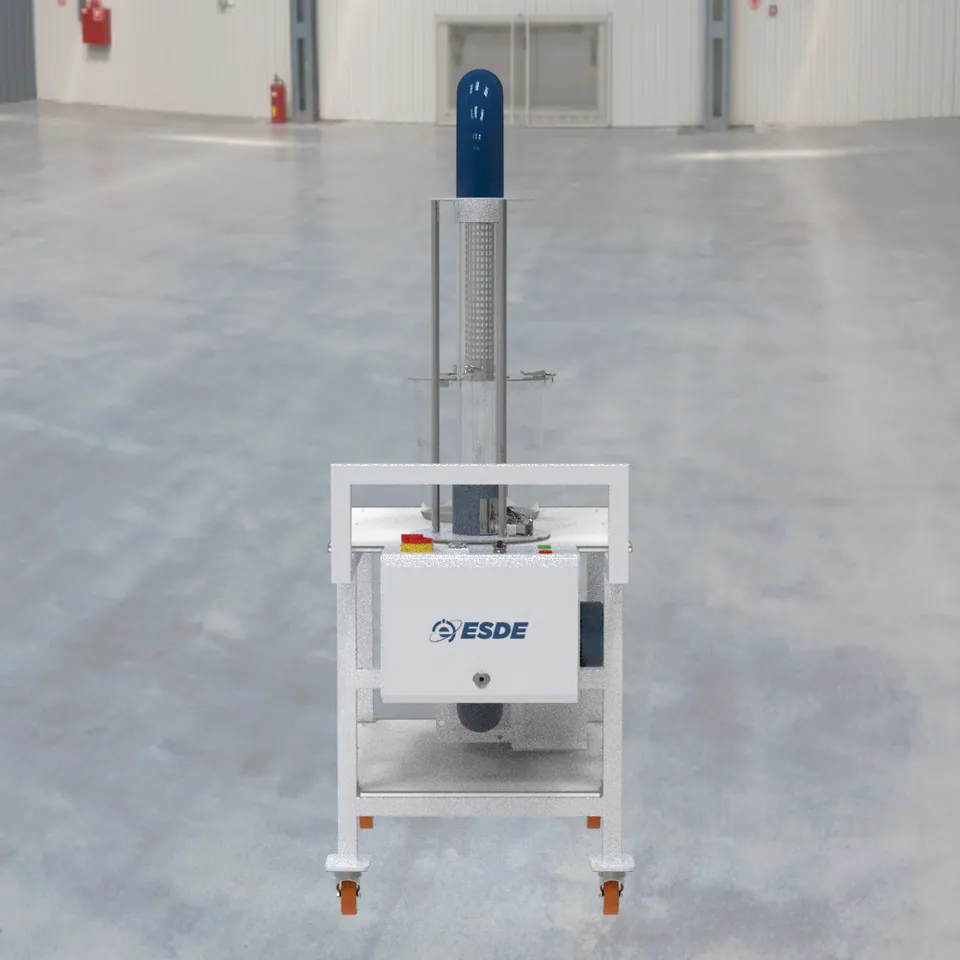

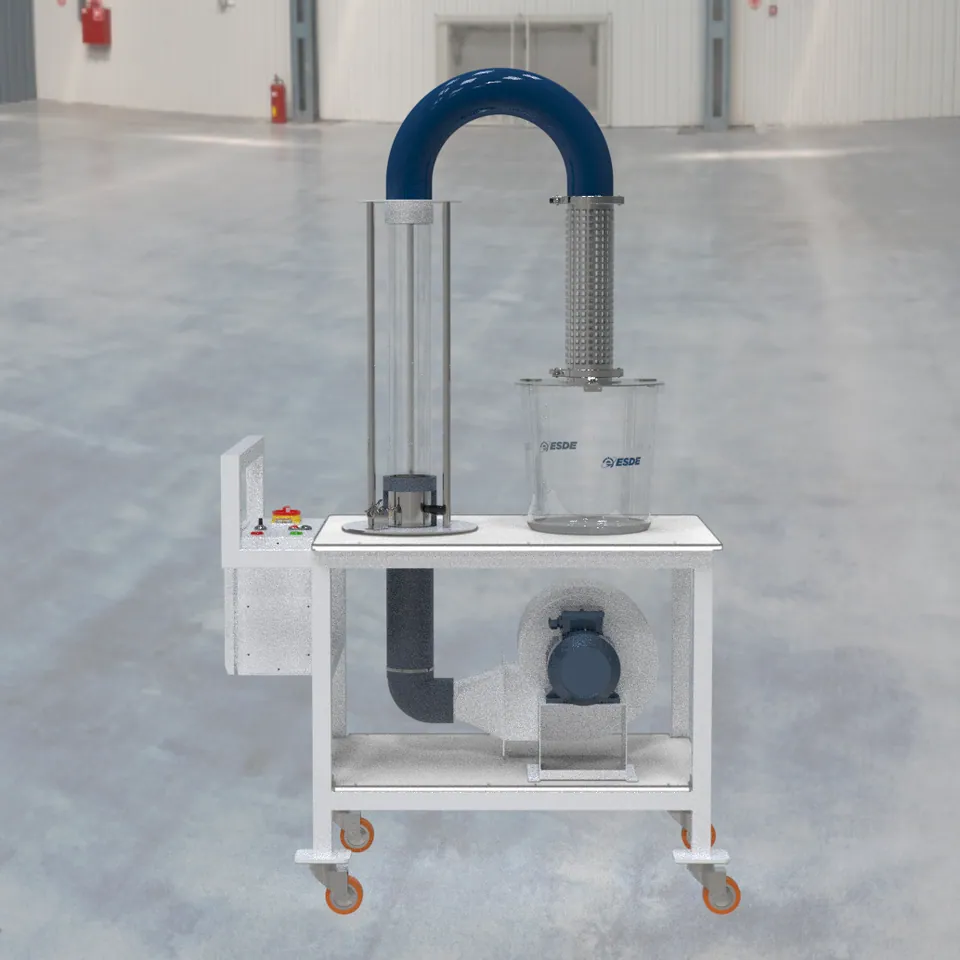

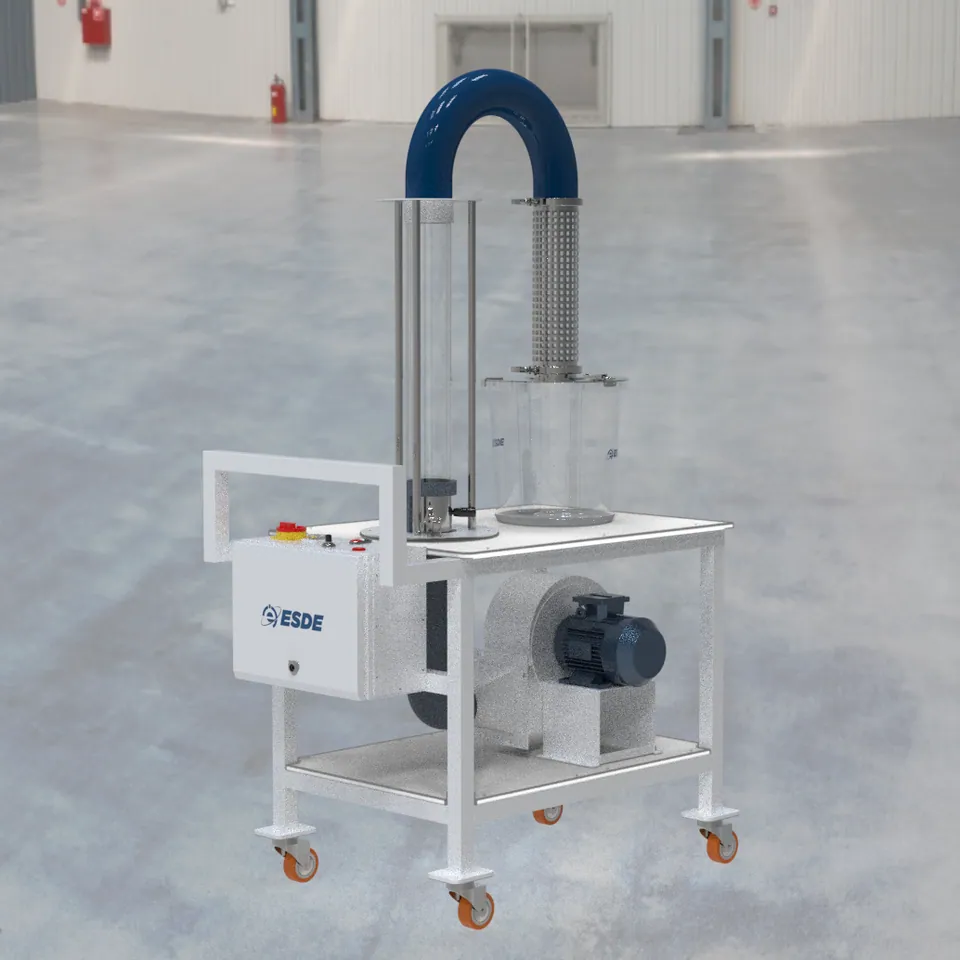

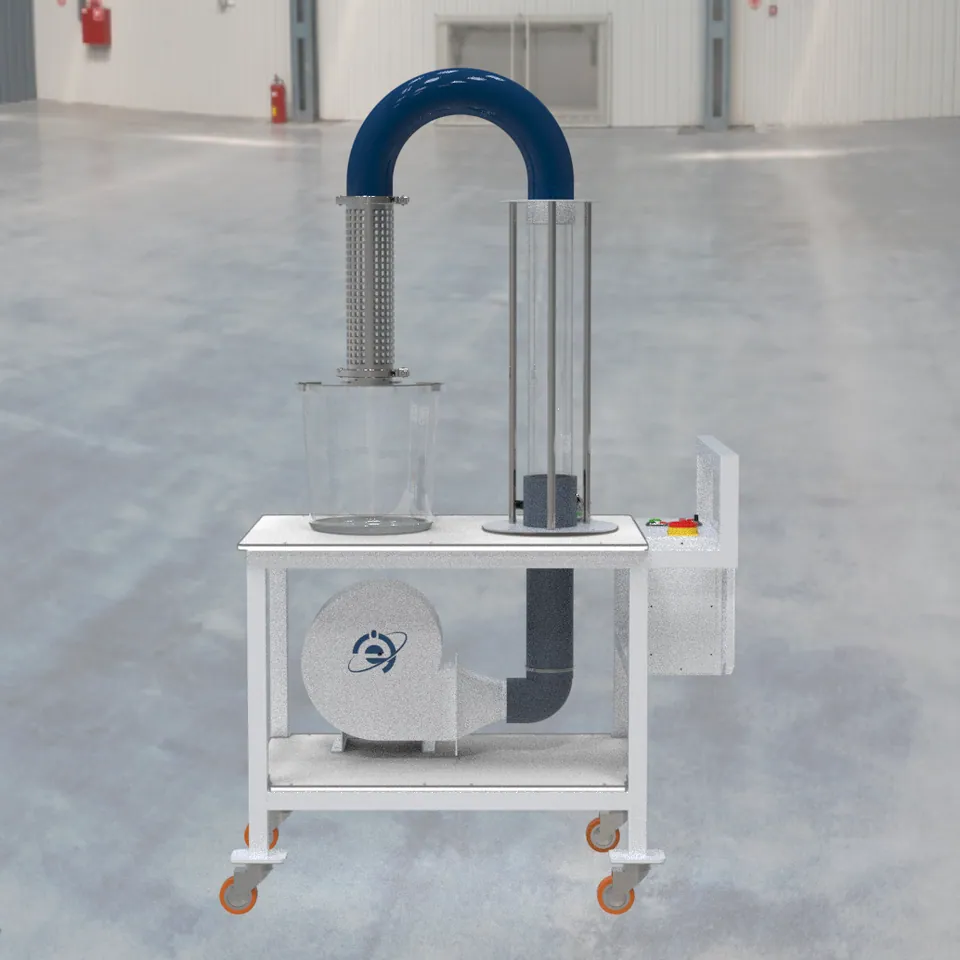

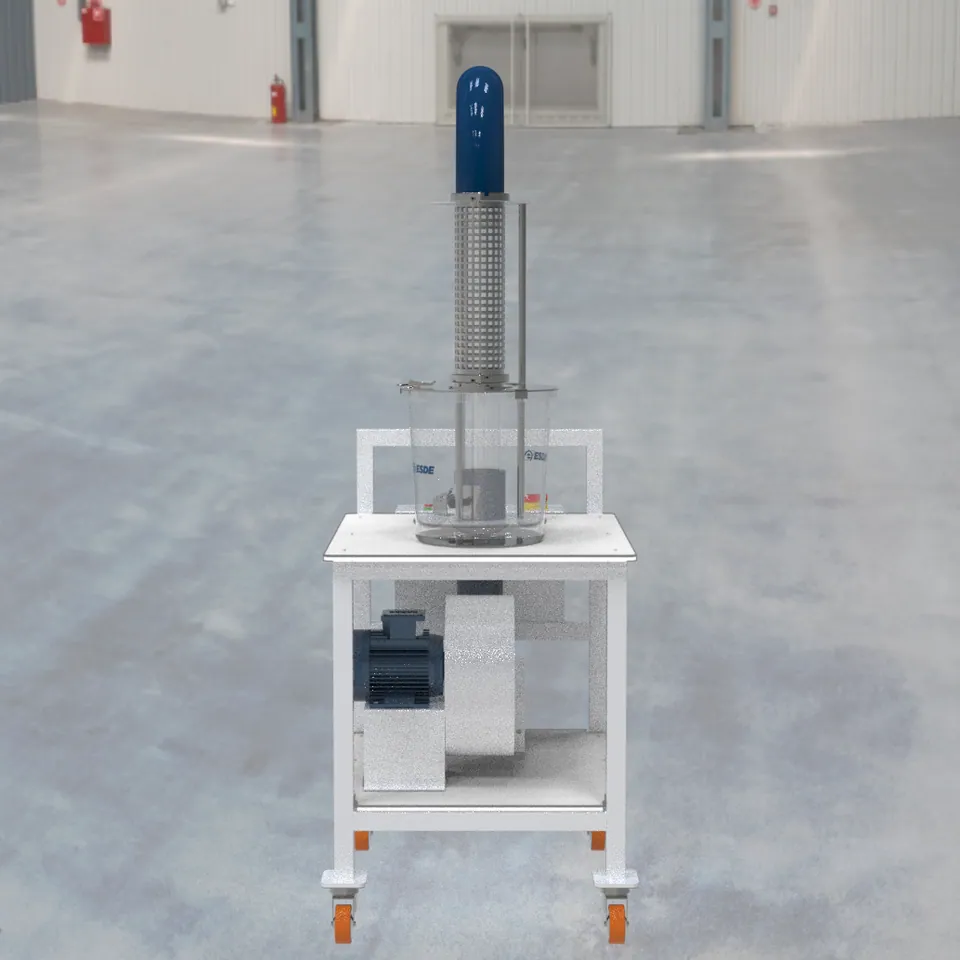

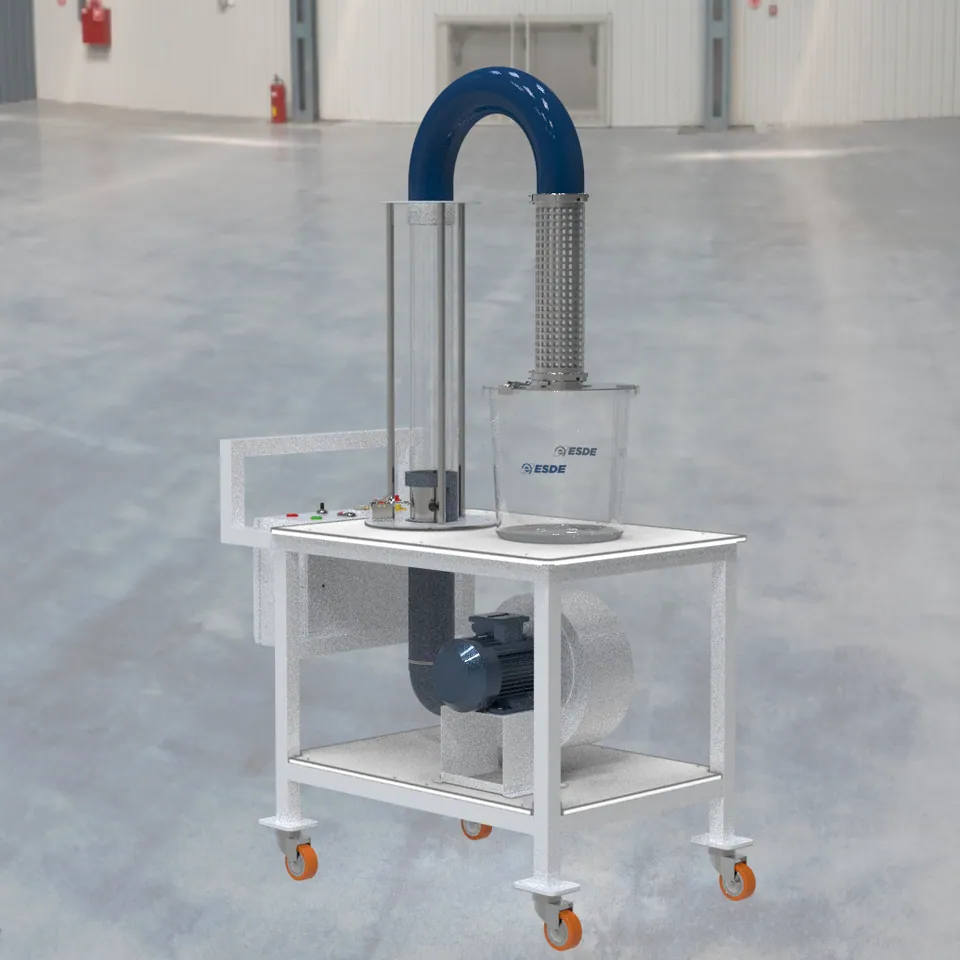

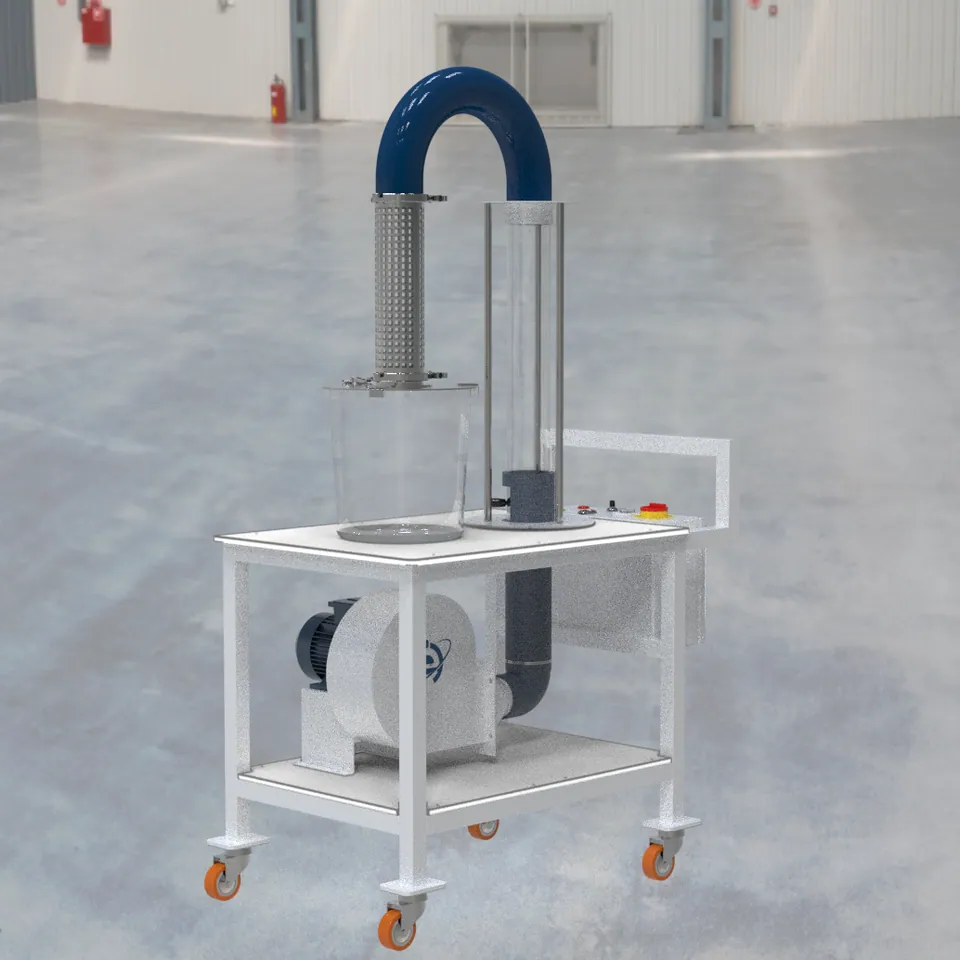

MODEL SD-6010
Lab Seed Blower
Air-flow separation of empty seed and impurities - ideal for cucurbits.
5-10 gPer sample
1.1 kWMax. power
2Bowls included
Drag to turn
Overview
A highly effective tool to separate empty seeds and impurities from dried seed, particularly in cucurbit species, using air flow. Contaminated seed is placed in the special funnel and inserted into the tube; unwanted particles such as straw and dried fruit fragments are collected in the transparent container at the side. Particularly suited to breeding work.
Key Features
- Air-regulating gate with handwheel for precise adjustment
- Calibrated dial for repeatable settings
- Stainless-steel perforated baffle for even air distribution
- Converging cone beneath the seed-cup screen
- Seed cup machined from solid aluminium
- Removable stainless-steel wire mesh screen
Technical Specifications | SD-6010
| Parameter | Specification |
|---|---|
| Capacity | Max. 5 - 10 g per sample |
| Dimensions (L x W x H) | 1085 x 655 x 1815 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 1.1 kW / 10 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet and profile, aluminium |
| Weight net / packed | approx. 100 / 130 kg |
| Included | 2 bowls |
| Certification | CE |

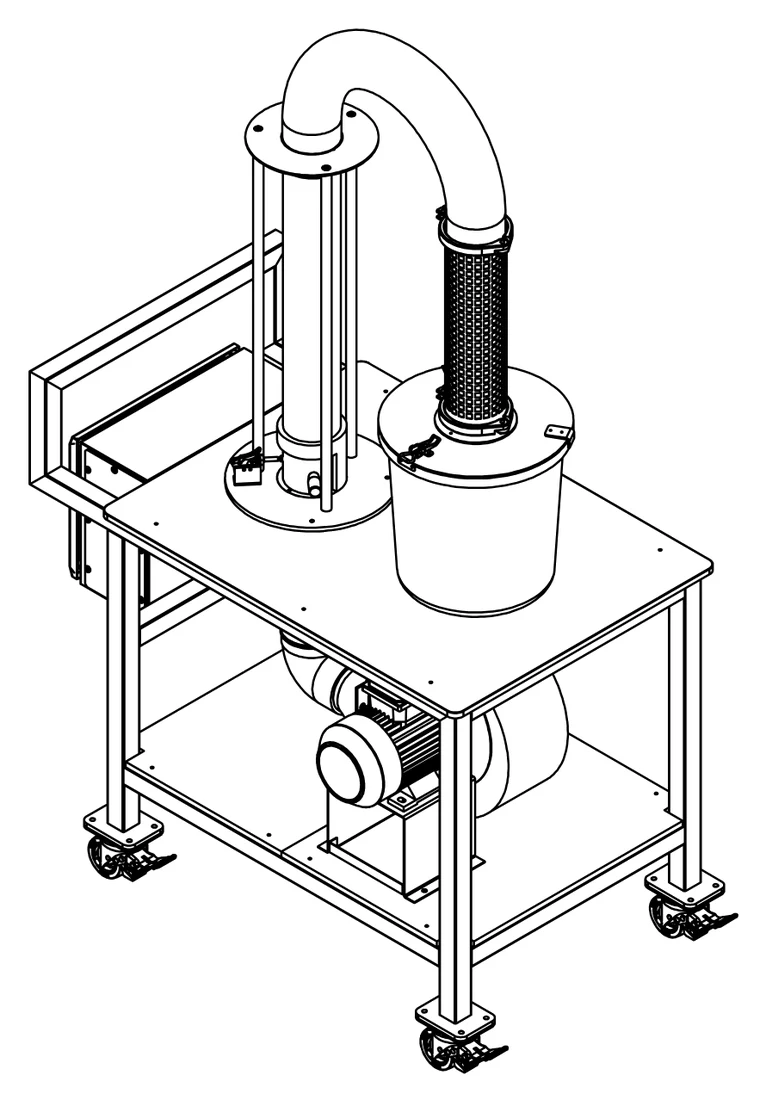

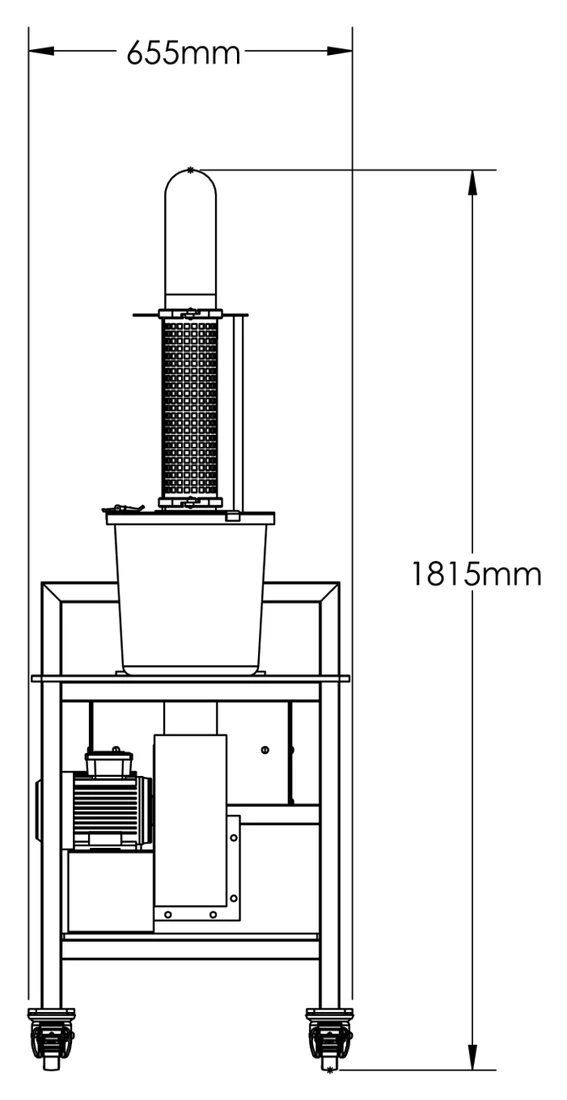

Technical Drawings
