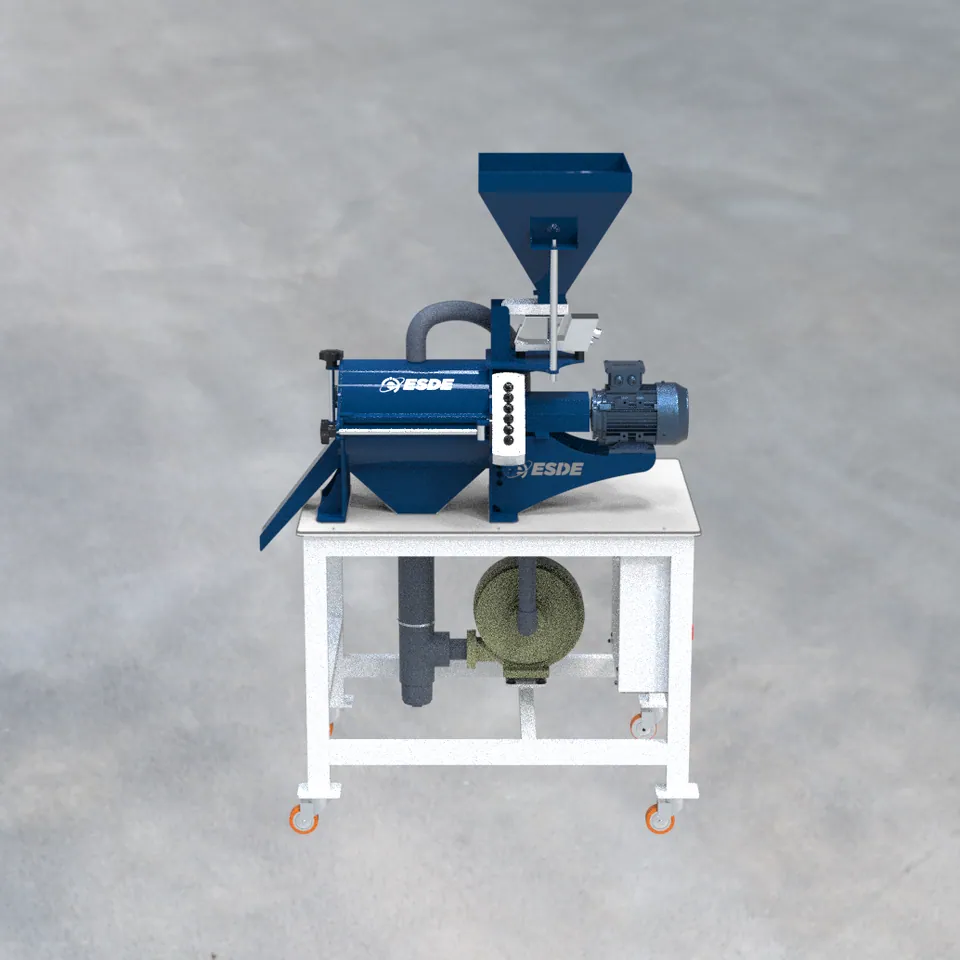

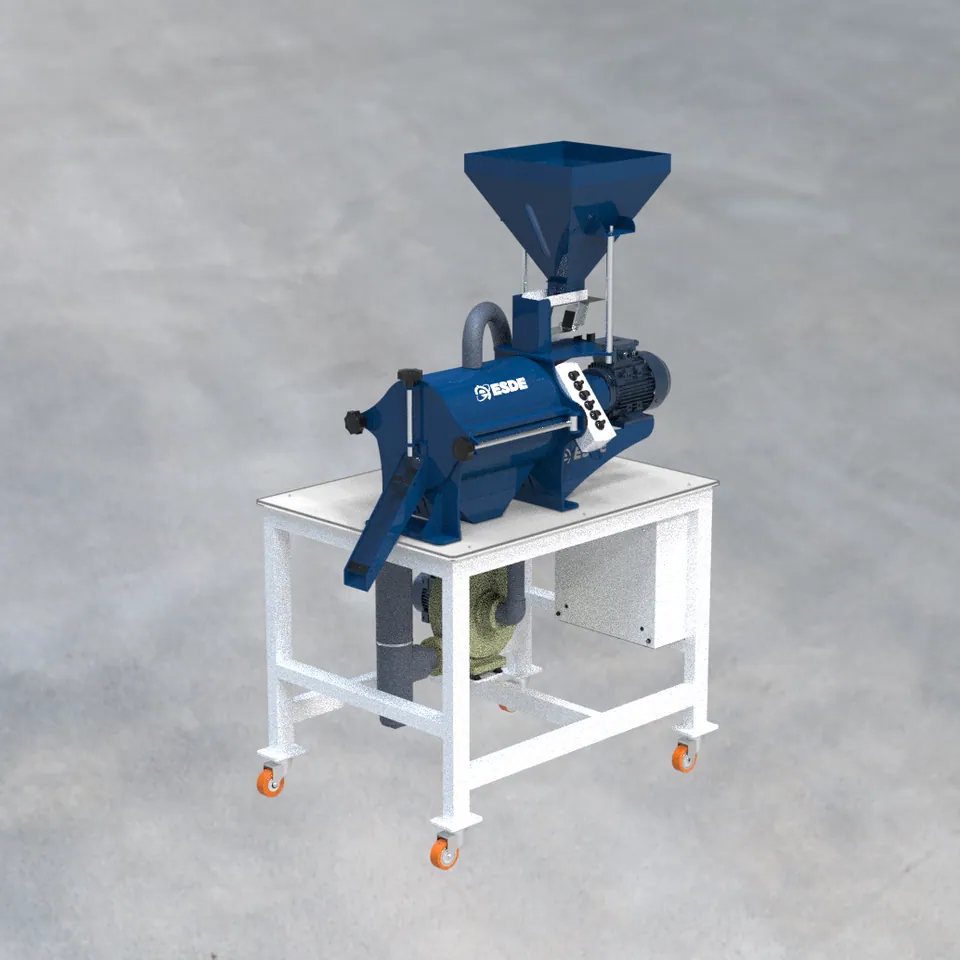

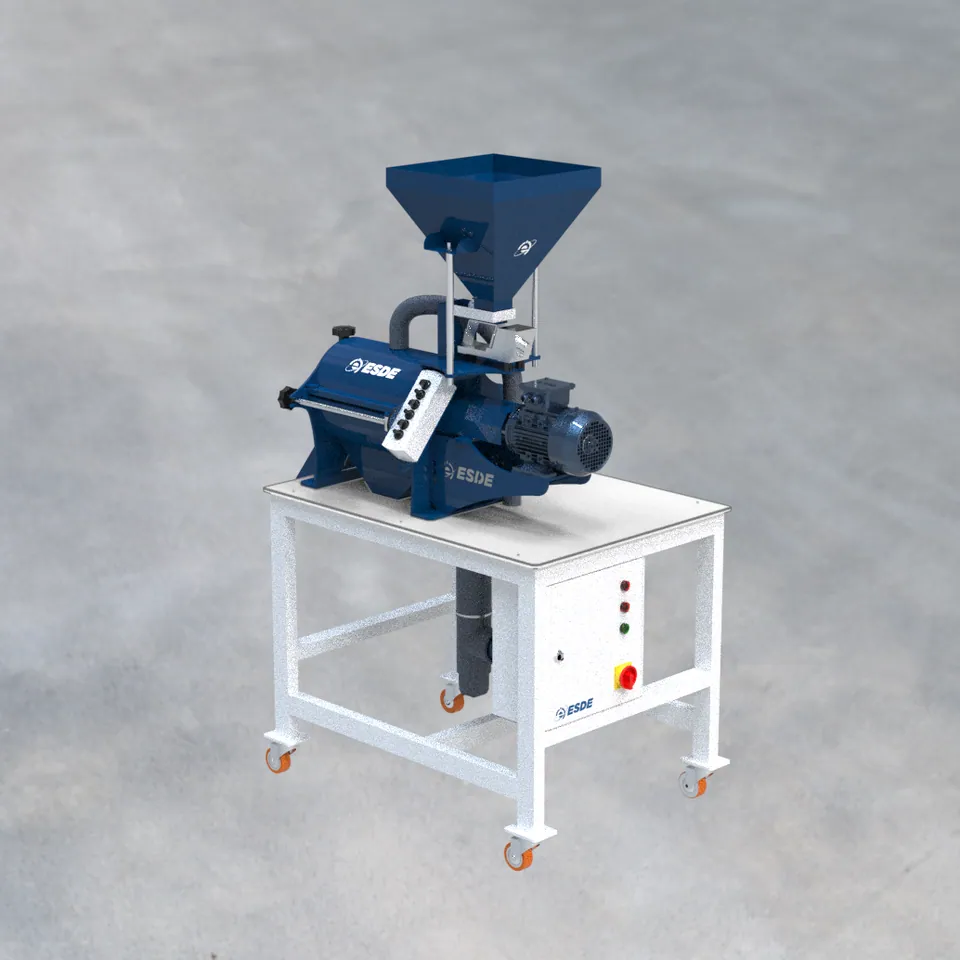

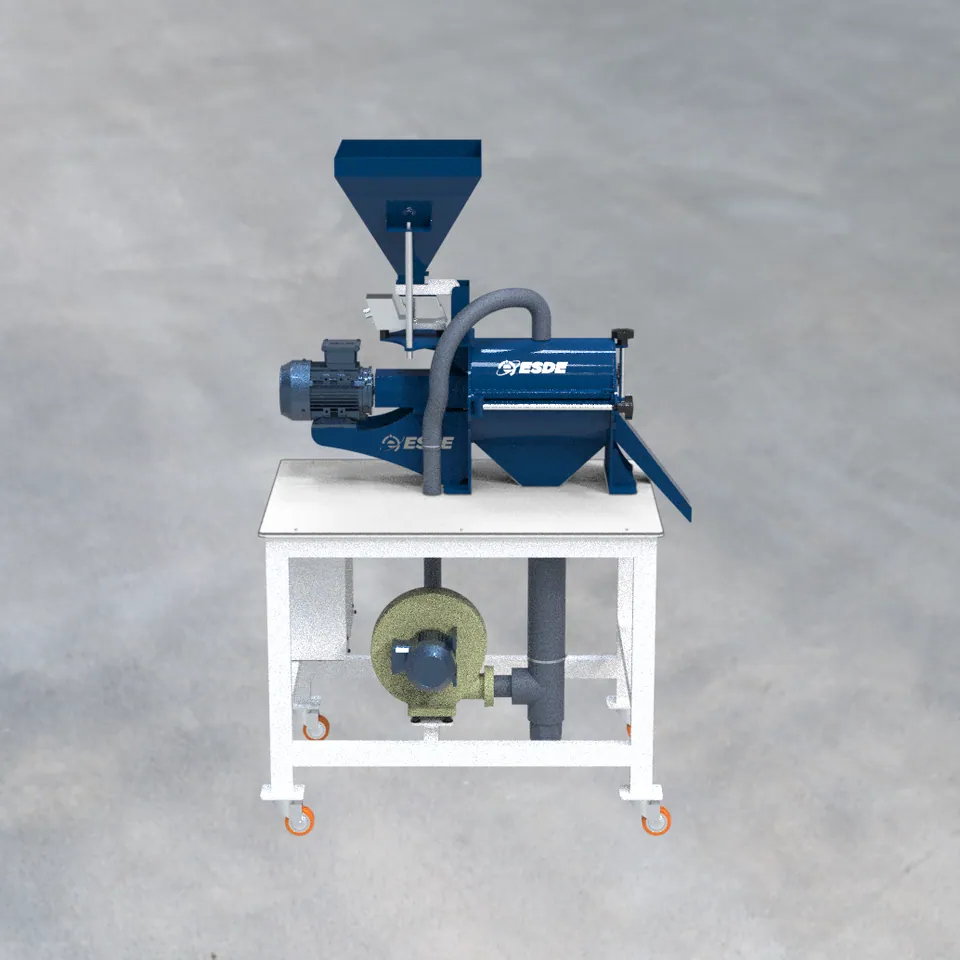

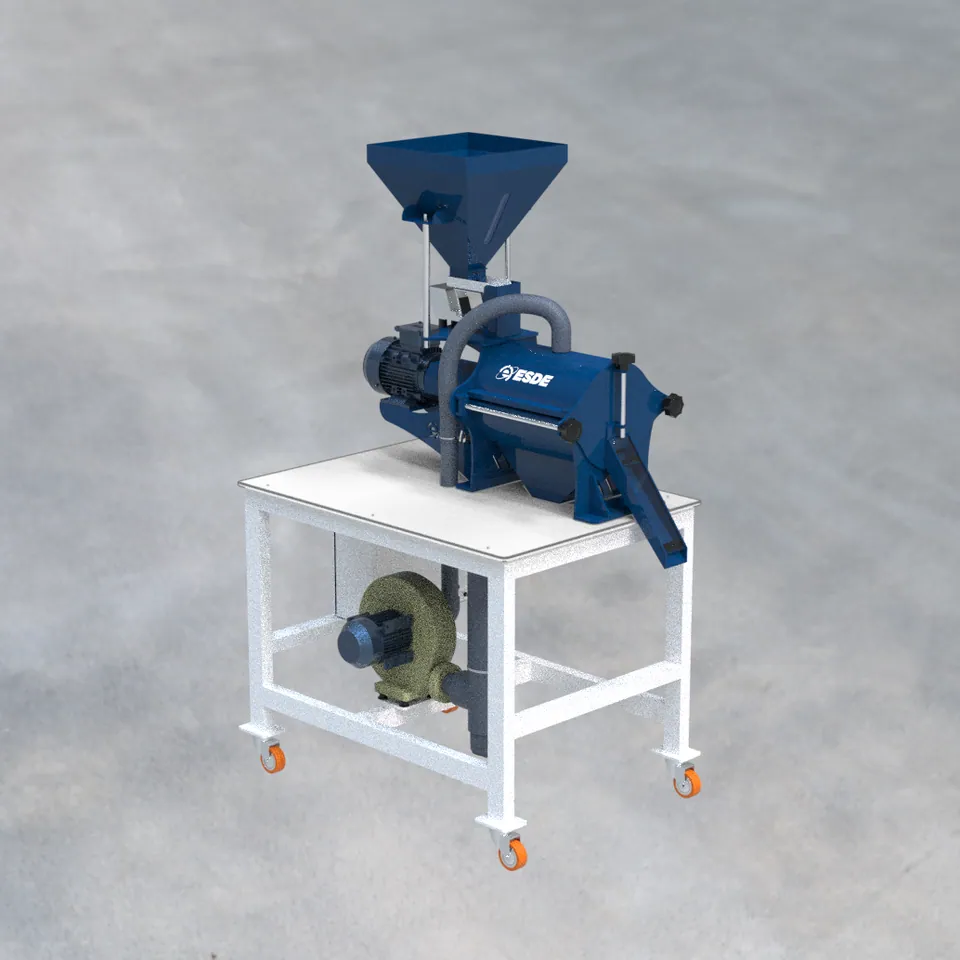

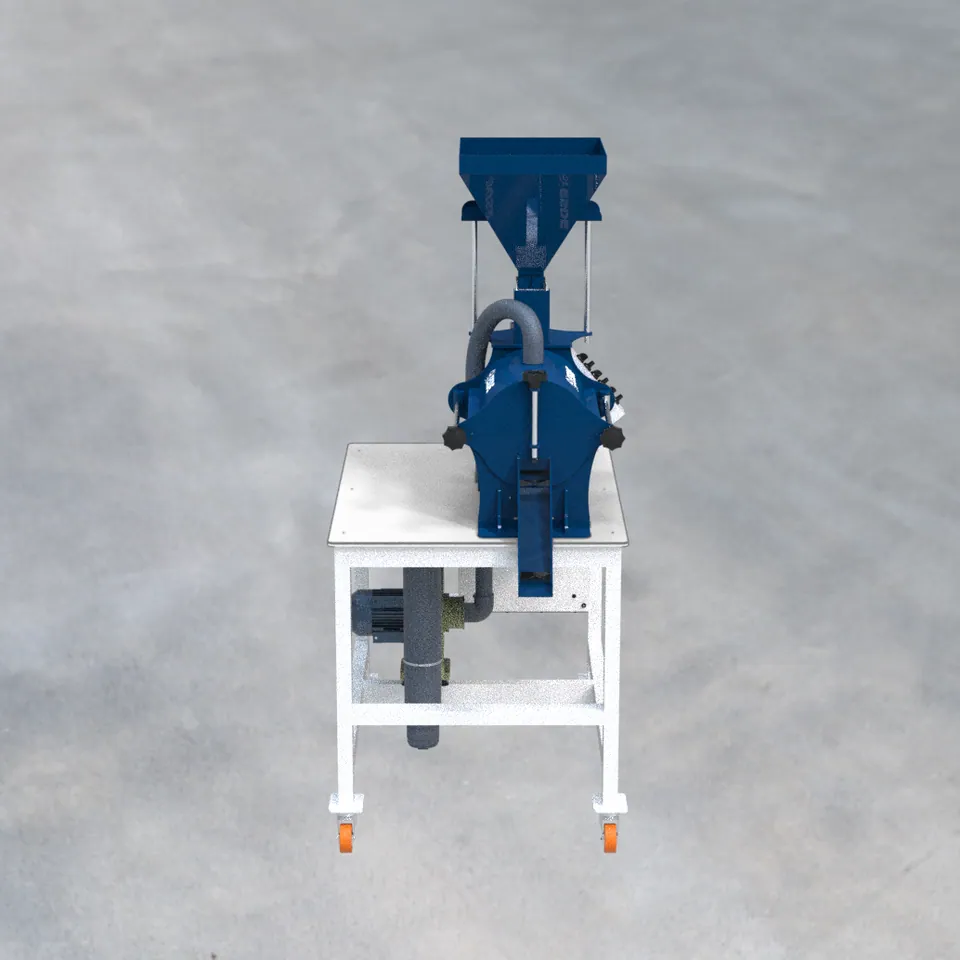

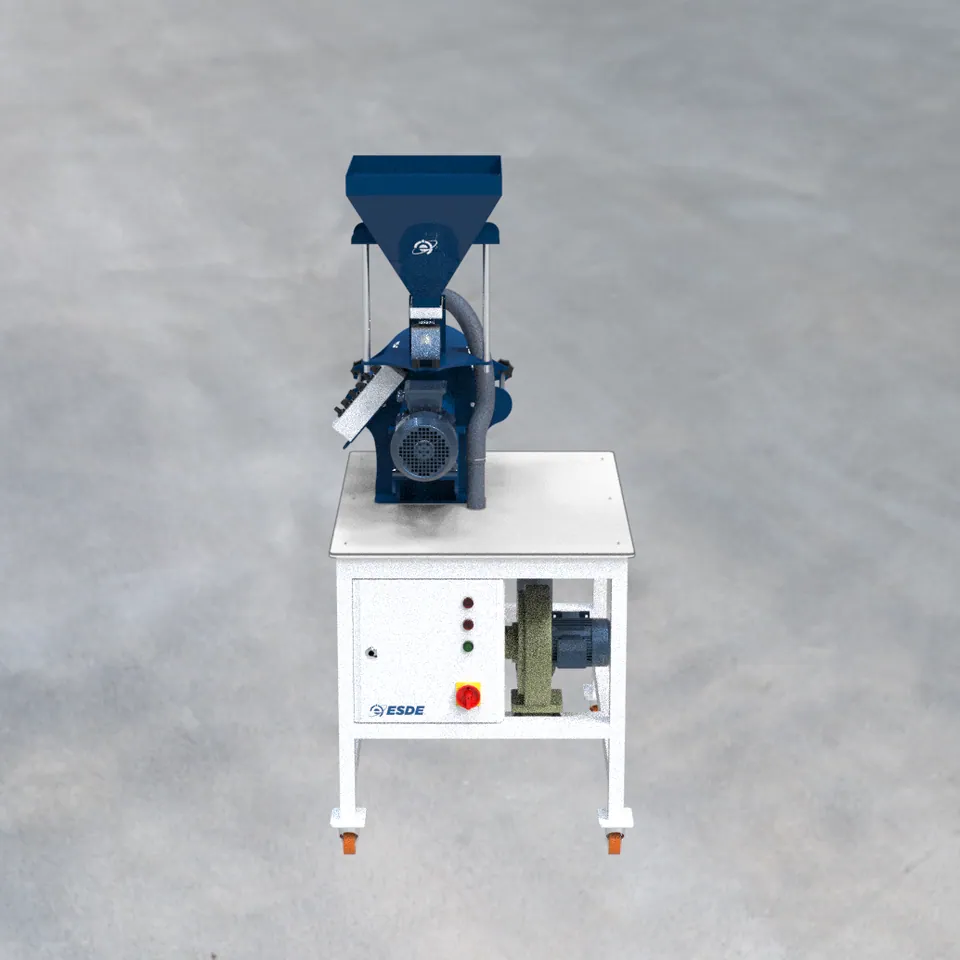

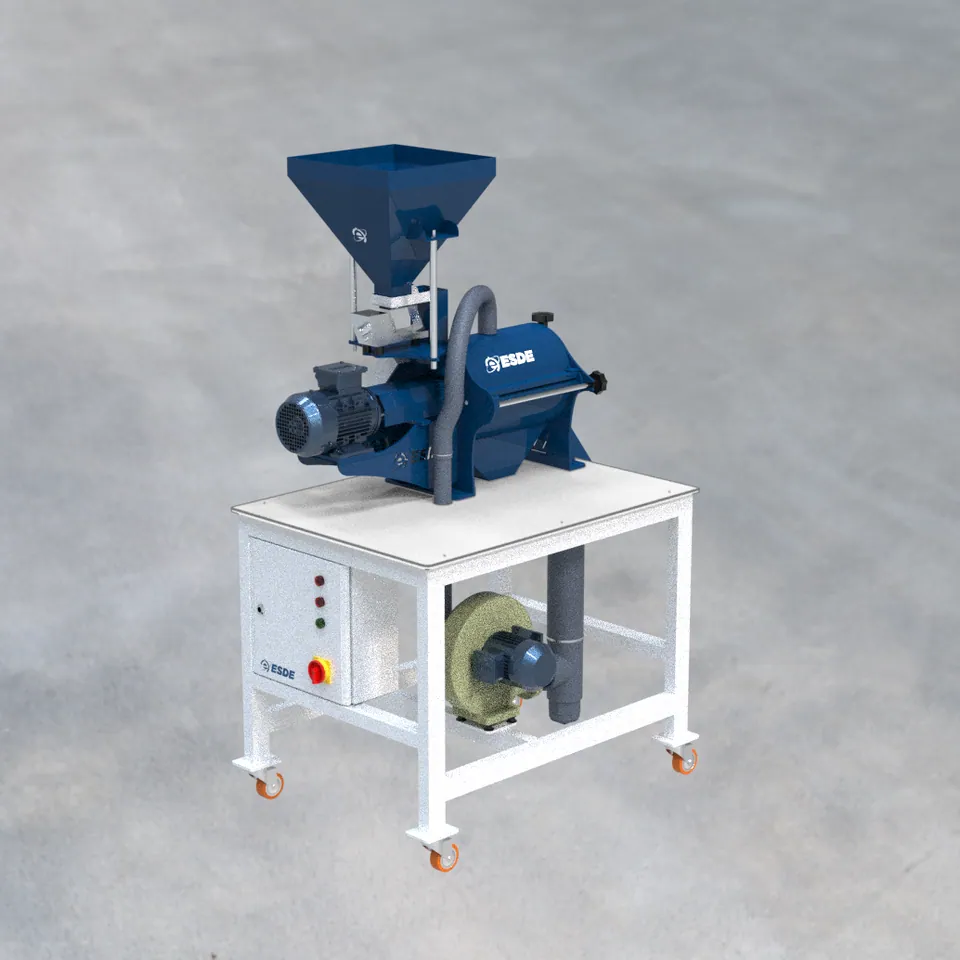

MODEL SD-7010
Seed Brushing Machine
Polishing and threshing of small batches of vegetable and field crop seed.
0.1-50 kg/hCapacity*
3 kWMax. power
2Collecting bins
Drag to turn
Overview
The SD-7010 polishes or threshes small batches of vegetable and field (row) crop seeds. Both breeding facilities and industrial processing plants benefit from its precise, efficient cleaning of small quantities.
Key Features
- Threshing of discrete plant materials
- Easy to operate, compact and low maintenance
- Suitable for continuous processes
- Removes husks and impurities from tomato and carrot seed
- Detects double seeds
- Removes husks, cuticles, soil and dust
- Polishes quinoa
Technical Specifications | SD-7010
| Parameter | Specification |
|---|---|
| Capacity | approx. 100 g - 50 kg per hour (*indicative, depending on crop and settings) |
| Dimensions (L x W x H) | 1260 x 755 x 1660 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 3 kW / 25 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet and profile, aluminium |
| Weight net / packed | approx. 100 / 130 kg |
| Included | Spare brushes, 2 collecting bins |
| Optional | Spare brushes, dust collector |
| Certification | CE |

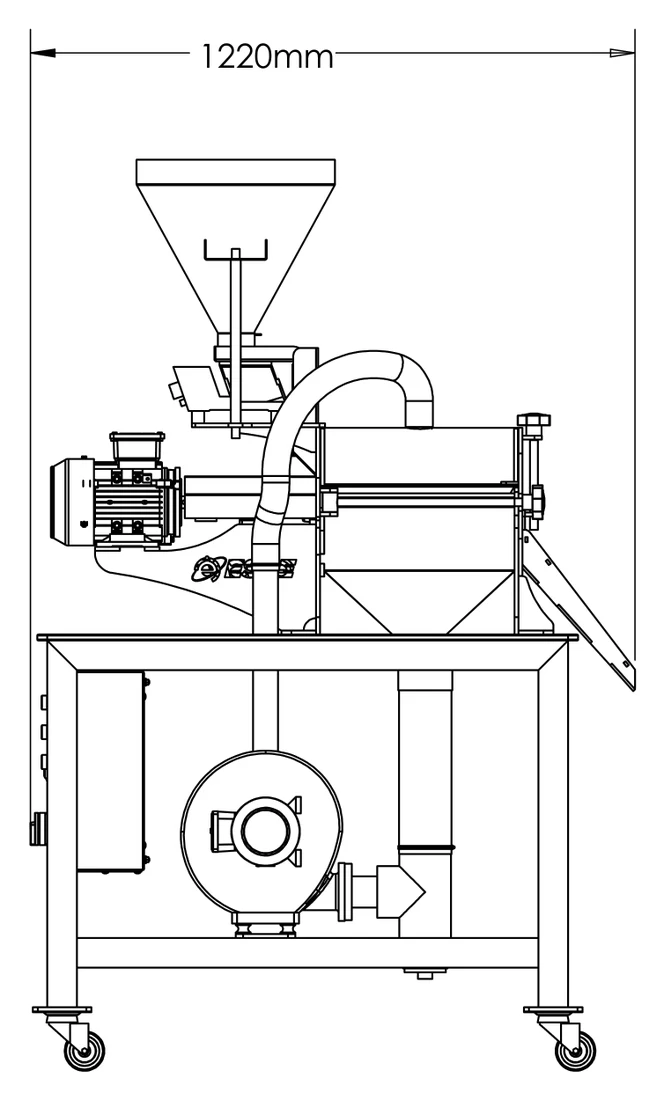

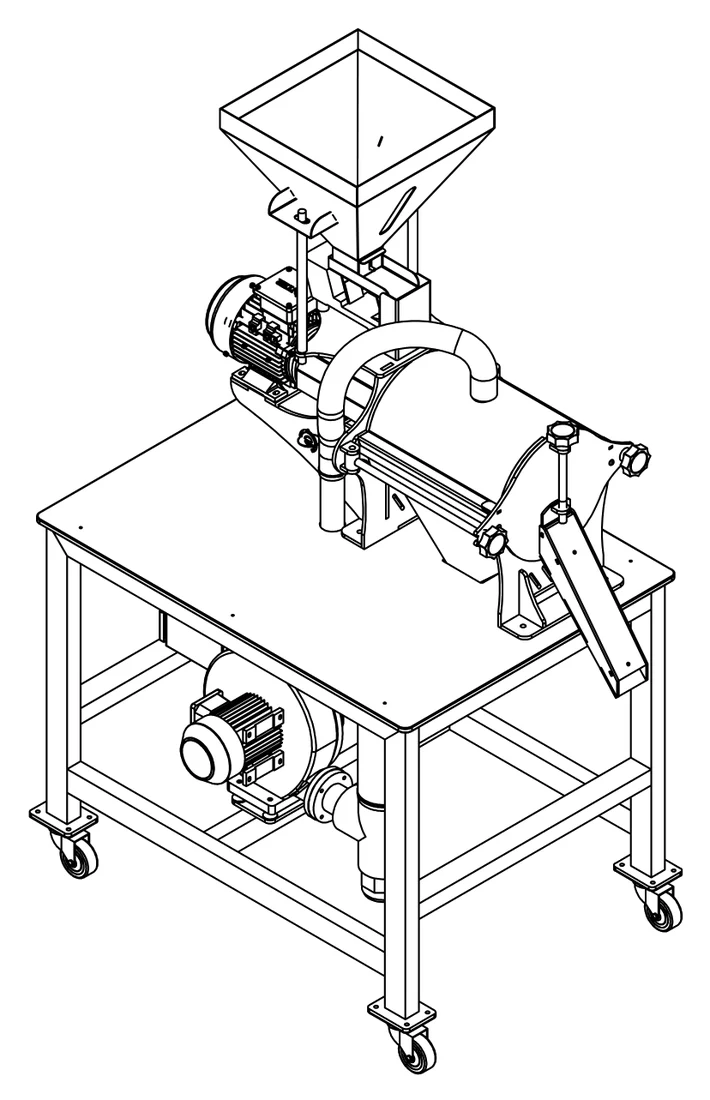

Technical Drawings
