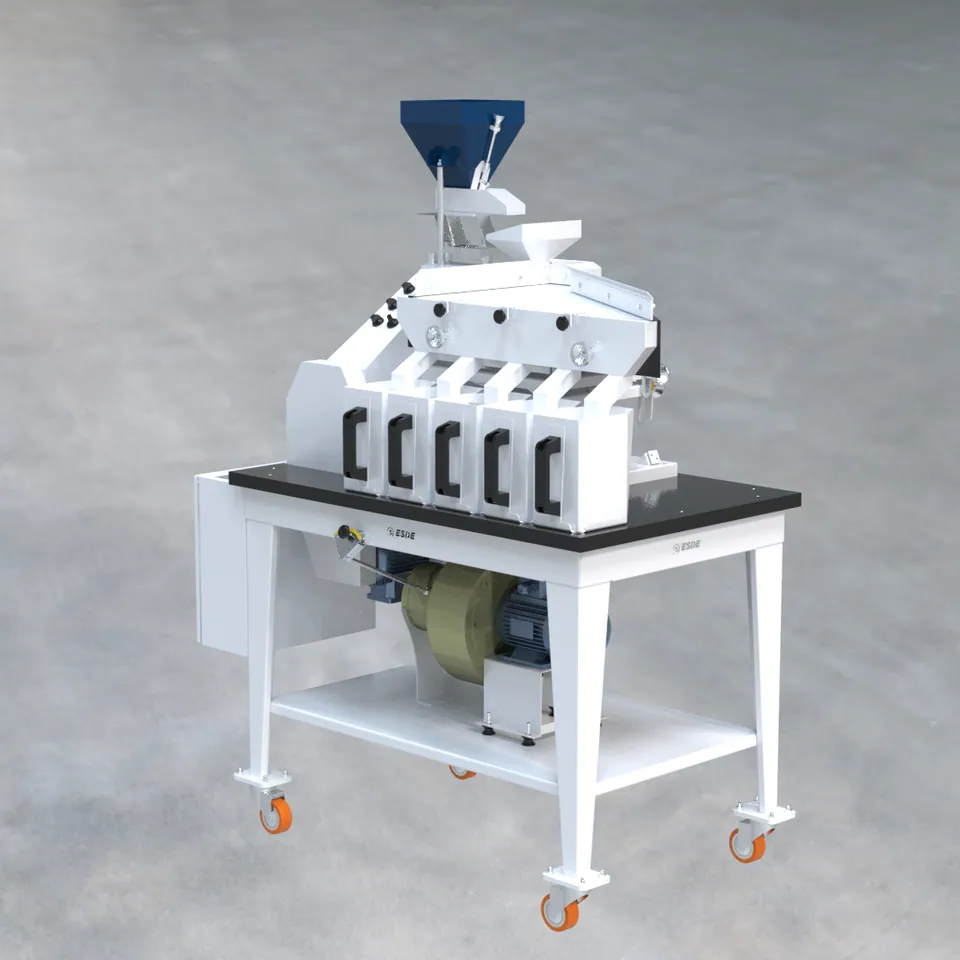

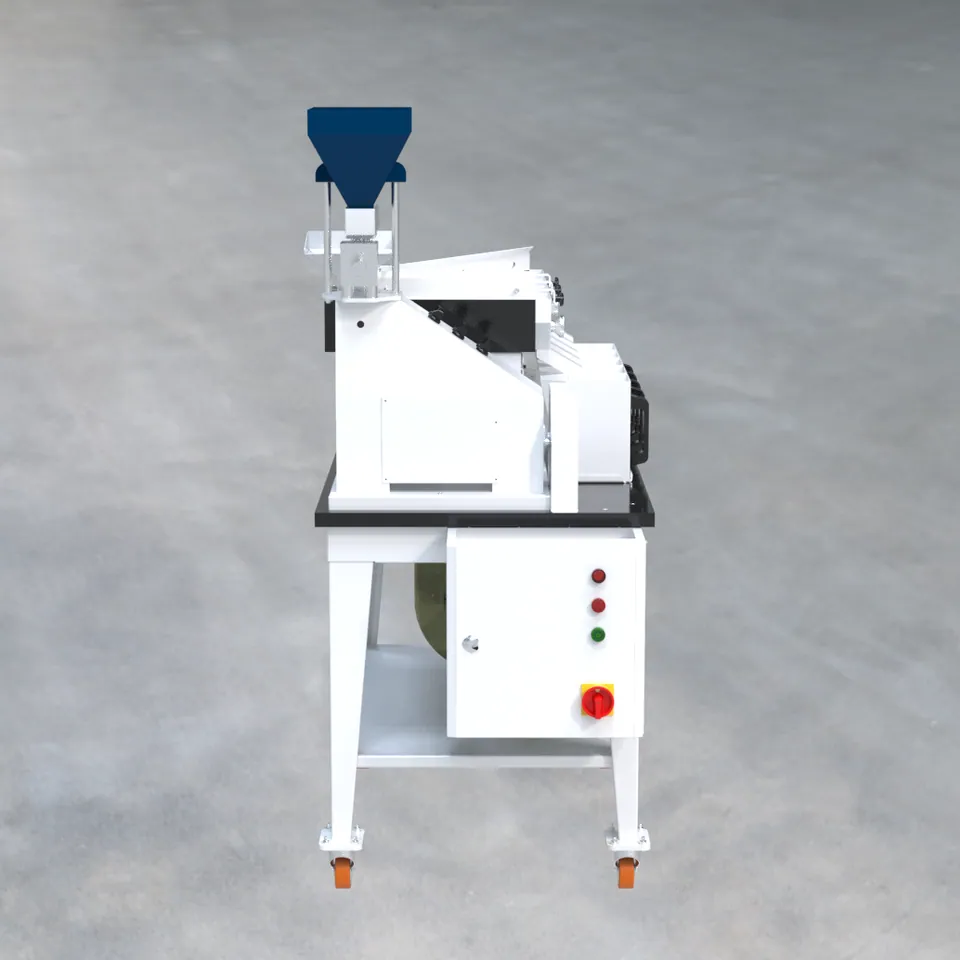

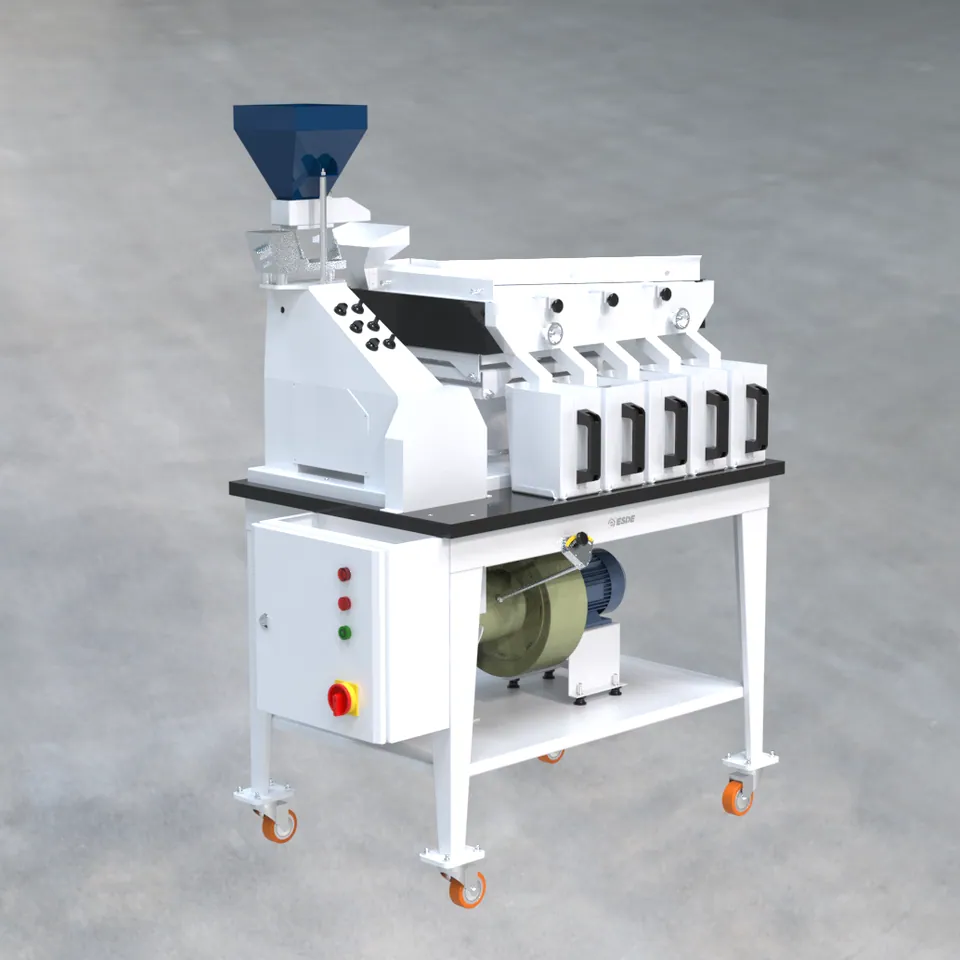

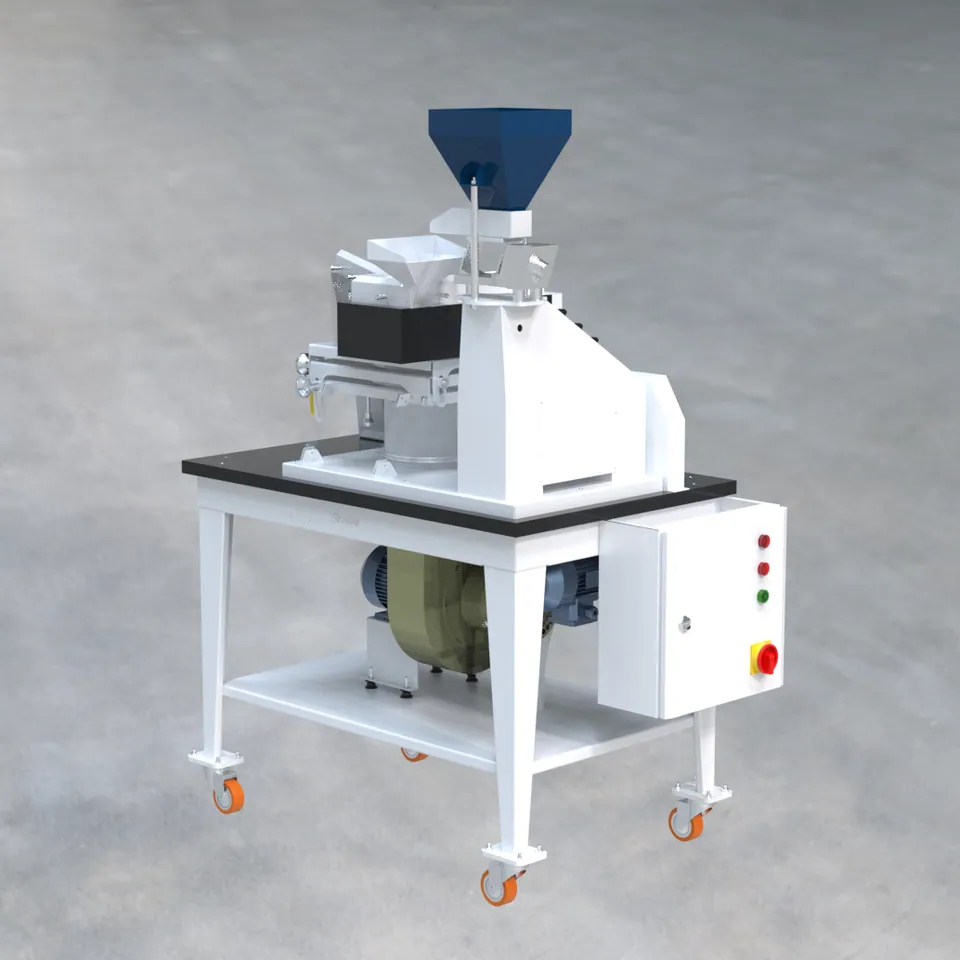

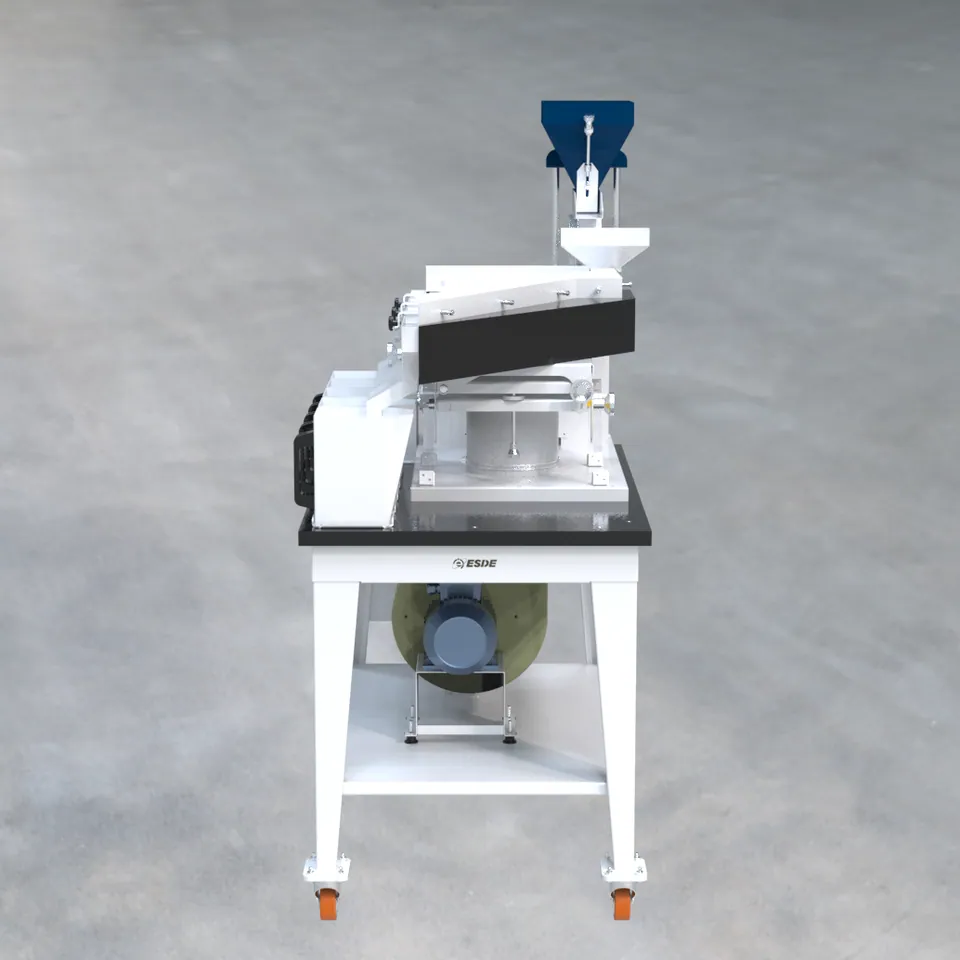

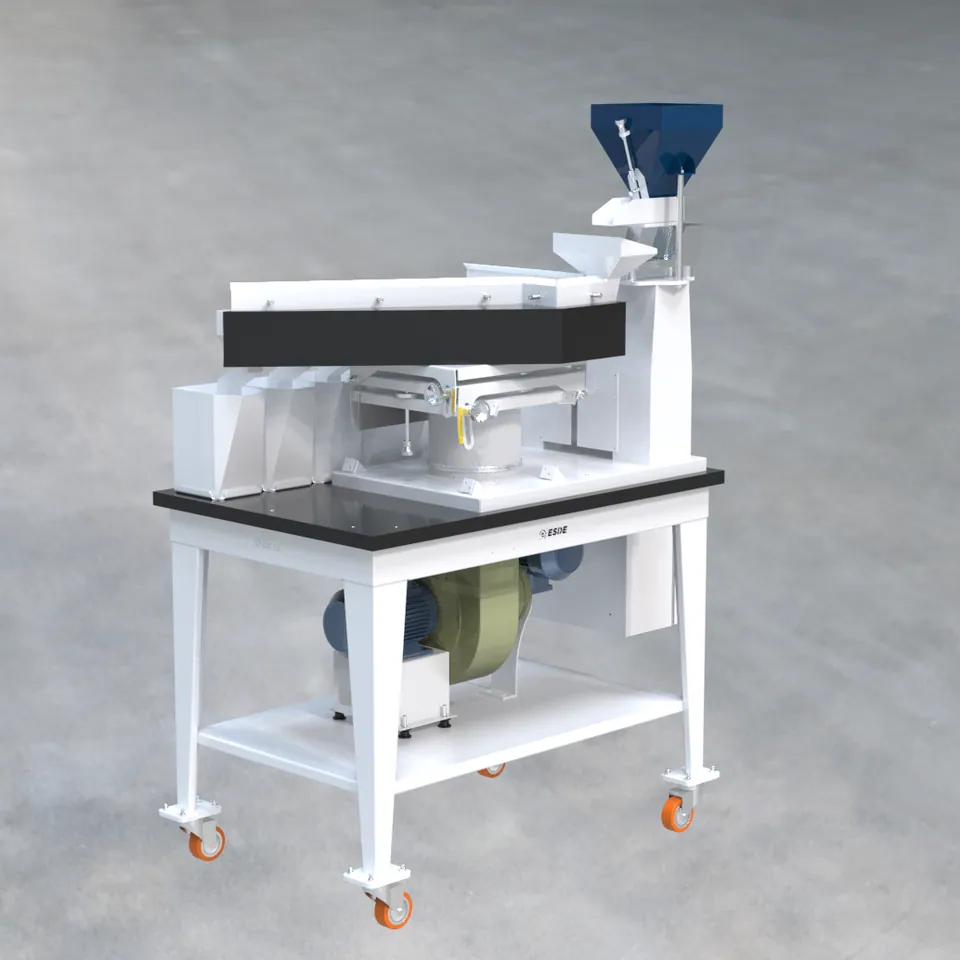

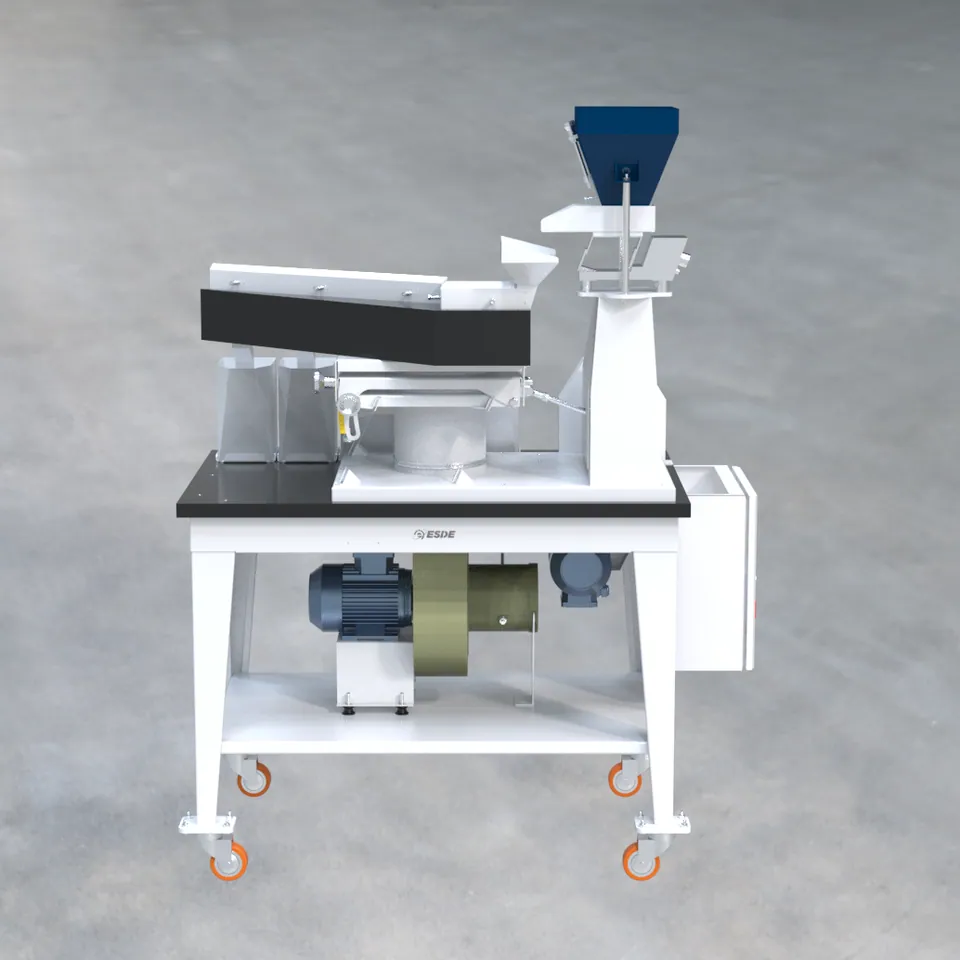

MODEL SD-6410
Seed Gravity Separator
Industrial-standard gravity separation for laboratory and sample rooms.
5-50 kg/hCapacity
2Sieves included
1.5 kWMax. power
Drag to turn
Overview
Part of the ESDE lab-scale range, the gravity separator meets industrial standards while being perfectly suited to small-batch cleaning in laboratories and sample rooms. It handles vegetable seeds, flower seeds and more, enabling efficient, precise cleaning and separation tailored to specific needs.
Key Features
- Robust steel body
- Grading deck in top-quality laminated wood
- Deck covering selected per product
- Ergonomic worktable with hard-plastic laminate
- Aluminium collecting bins
- Quick clean-up between products
Technical Specifications | SD-6410
| Parameter | Specification |
|---|---|
| Capacity | 5 - 50 kg per hour |
| Dimensions (L x W x H) | 1260 x 755 x 1660 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 1.5 kW / 16 A |
| Noise emission | approx. 85 dB(A), without product |
| Materials | Electrostatic painted sheet and profile, aluminium |
| Weight net / packed | approx. 220 / 260 kg |
| Included | 2 x sieves |
| Certification | CE |

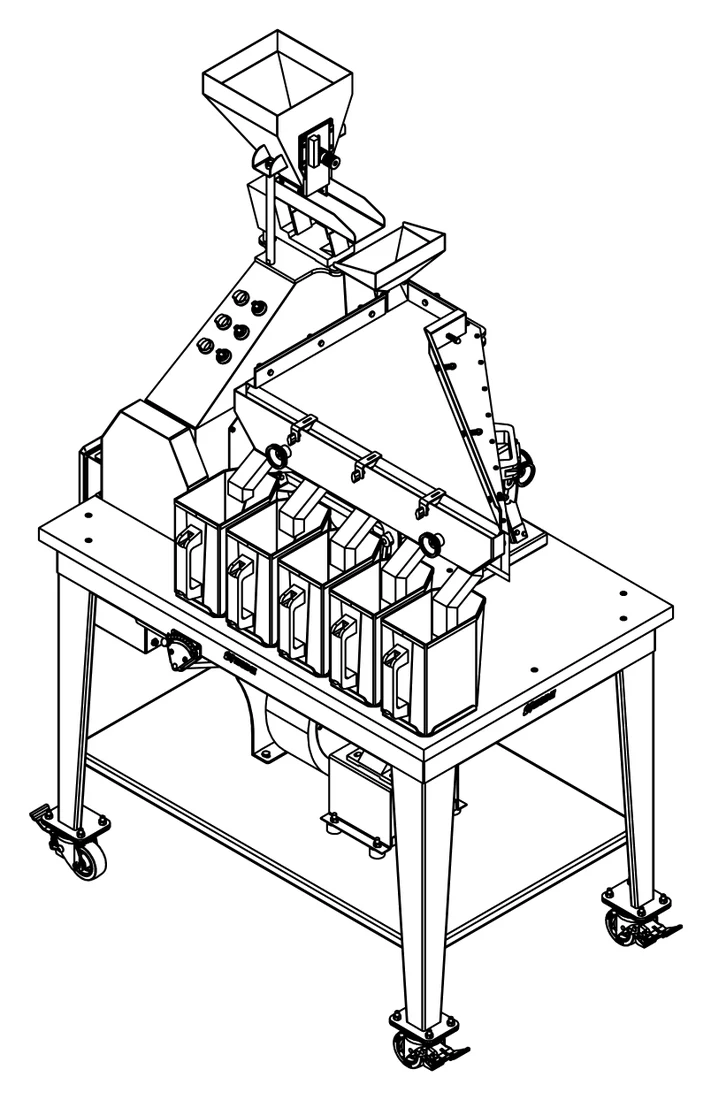

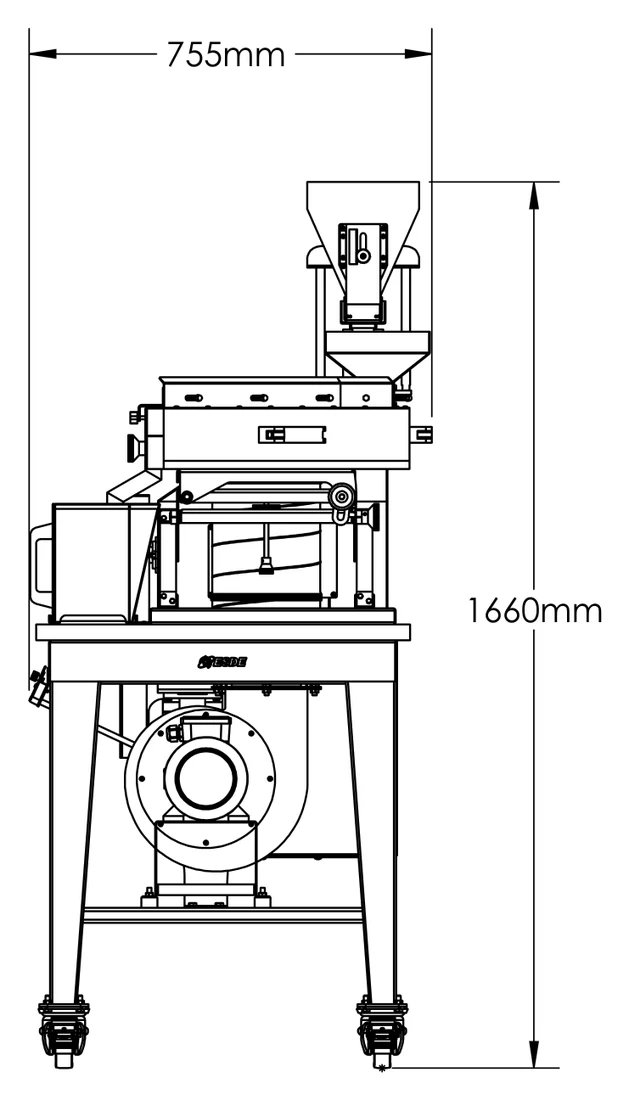

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
