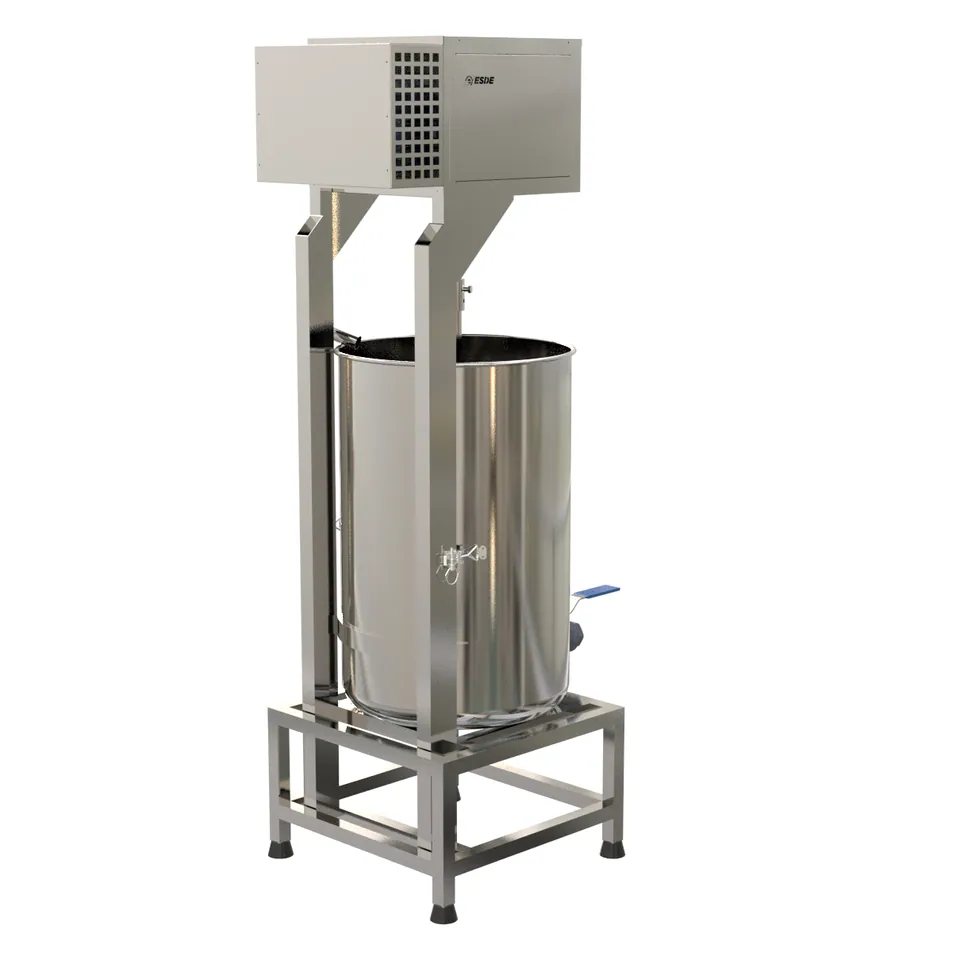

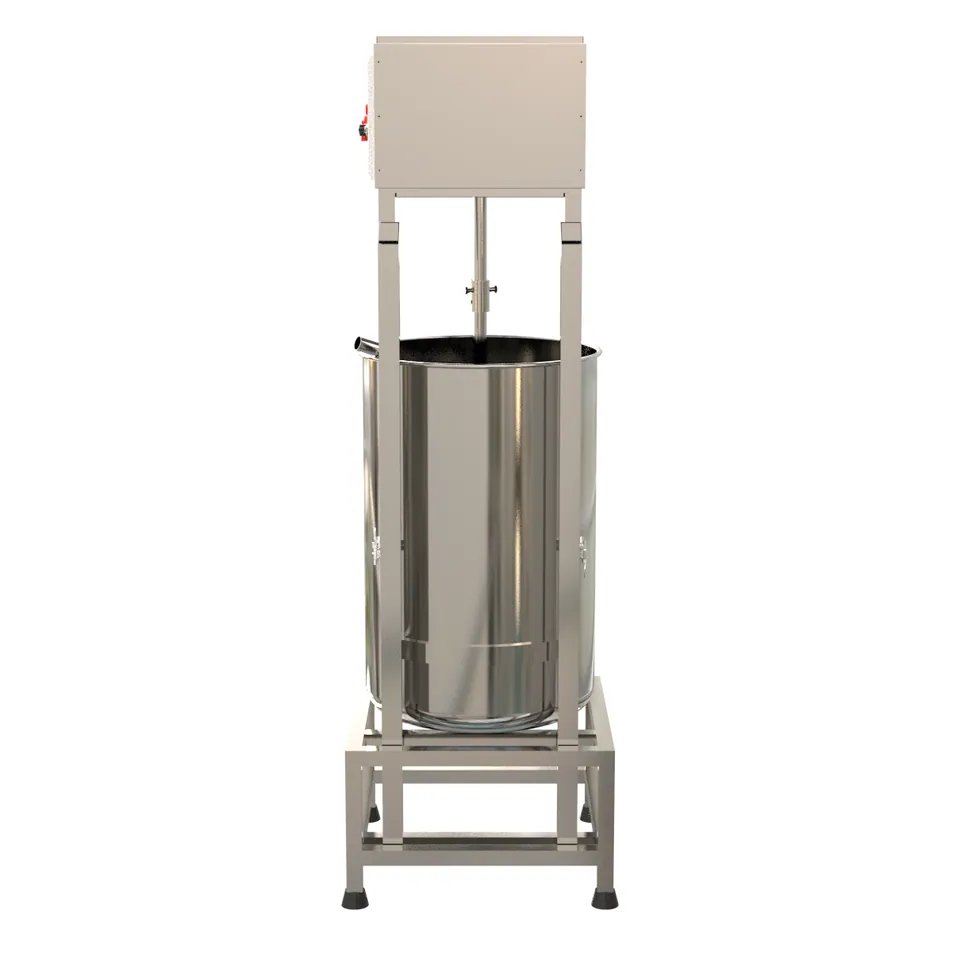

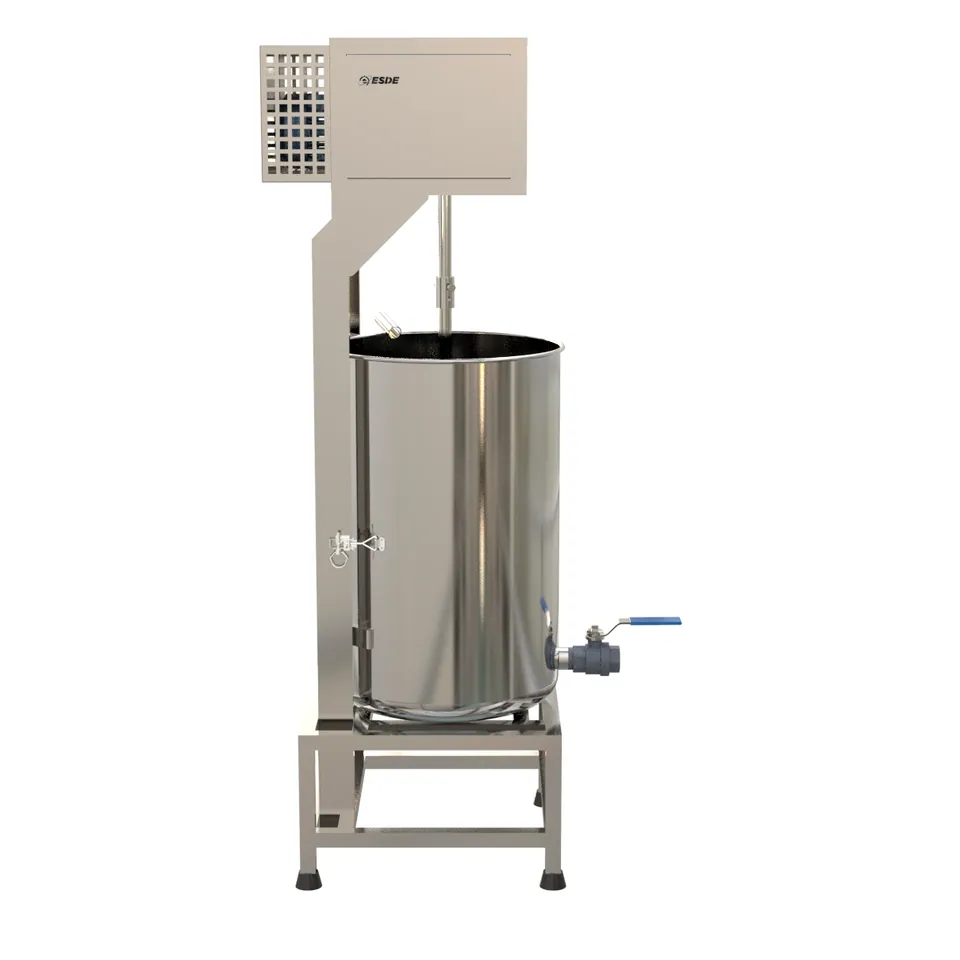

MODEL SD-3010
Seed Incubation & Disinfection
Homogeneous incubation of wet seed after extraction or disinfection.
250 LTank capacity
2.2 kWMax. power
SS 304Construction
Drag to turn
Overview
Effective separation of wet seed significantly improves purity after extraction. The SD-3010 is used for incubation with chemicals (acid and/or alkali) or enzymes (e.g. soaking in fruit juice) to separate seed from fruit pulp, and for incubating seeds after disinfection. Its corrosion-resistant structure and mechanical mixing ensure homogeneous processing without mechanical damage, with mixing speed adjustable to the seed type.
Key Features
- Prepares seed for faster, more uniform washing
- Mechanical mixing without seed damage
- Speed control for each seed type
- Easy seed filling and unloading
- Corrosion-resistant stainless-steel tank
- Suitable for chemical and enzymatic incubation
Technical Specifications | SD-3010
| Parameter | Specification |
|---|---|
| Capacity | 250 L |
| Dimensions (L x W x H) | 900 x 820 x 2155 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 2.2 kW / 16 A |
| Drain connection | 63 mm |
| Noise emission | approx. 50 dB(A), without product |
| Materials | Stainless steel 304 |
| Weight net / packed | approx. 180 / 220 kg |
| Certification | CE |

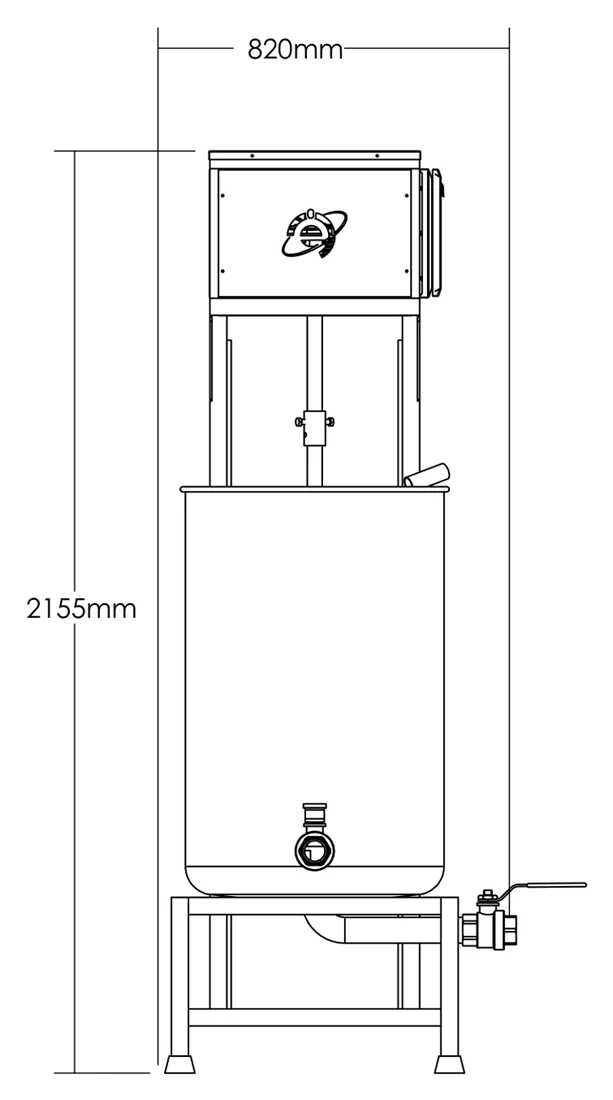

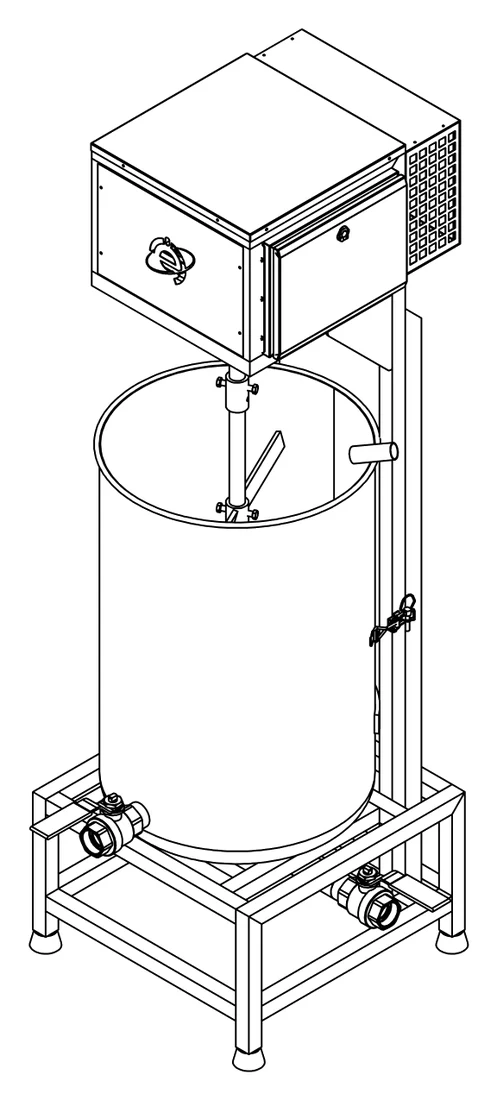

Technical Drawings
