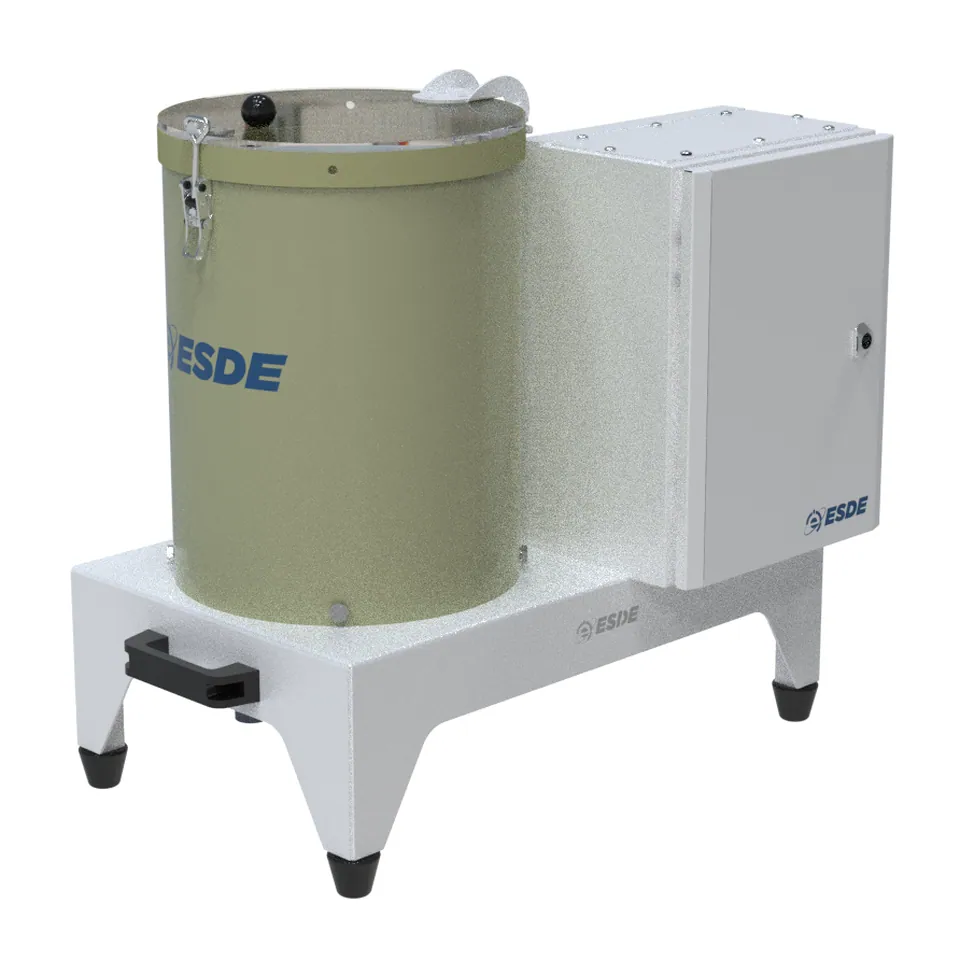

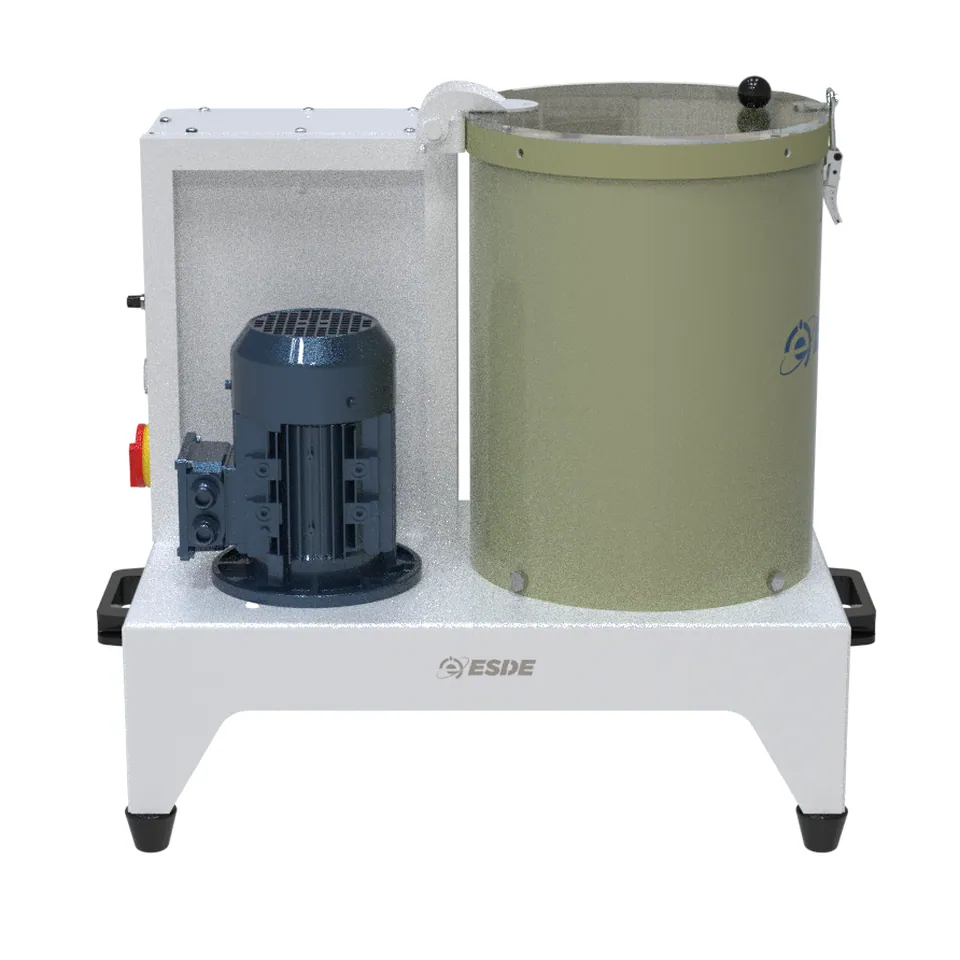

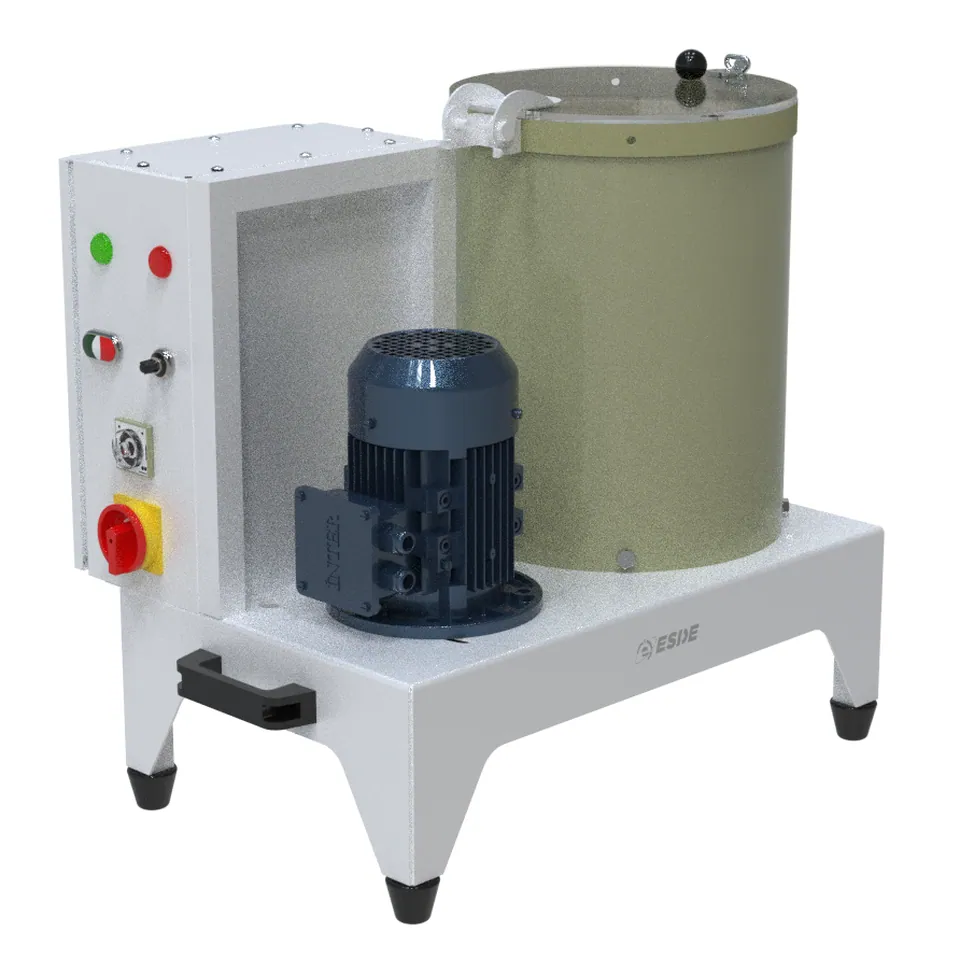

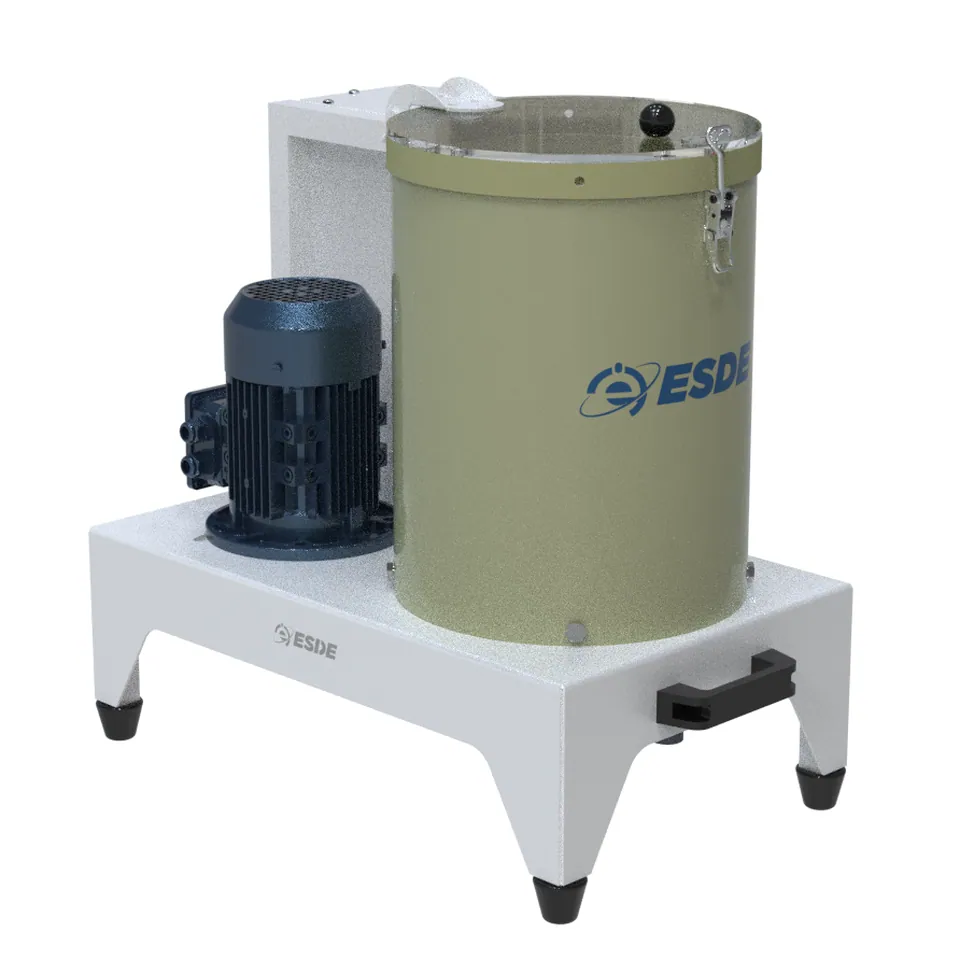

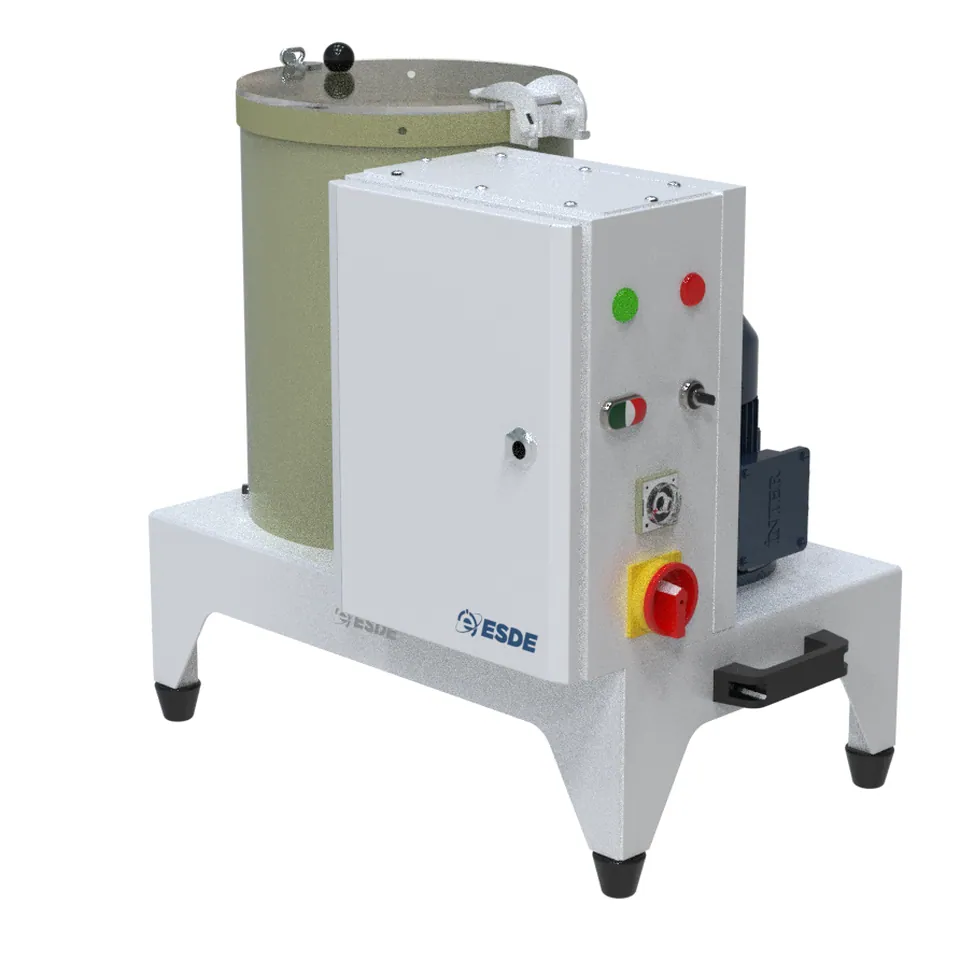

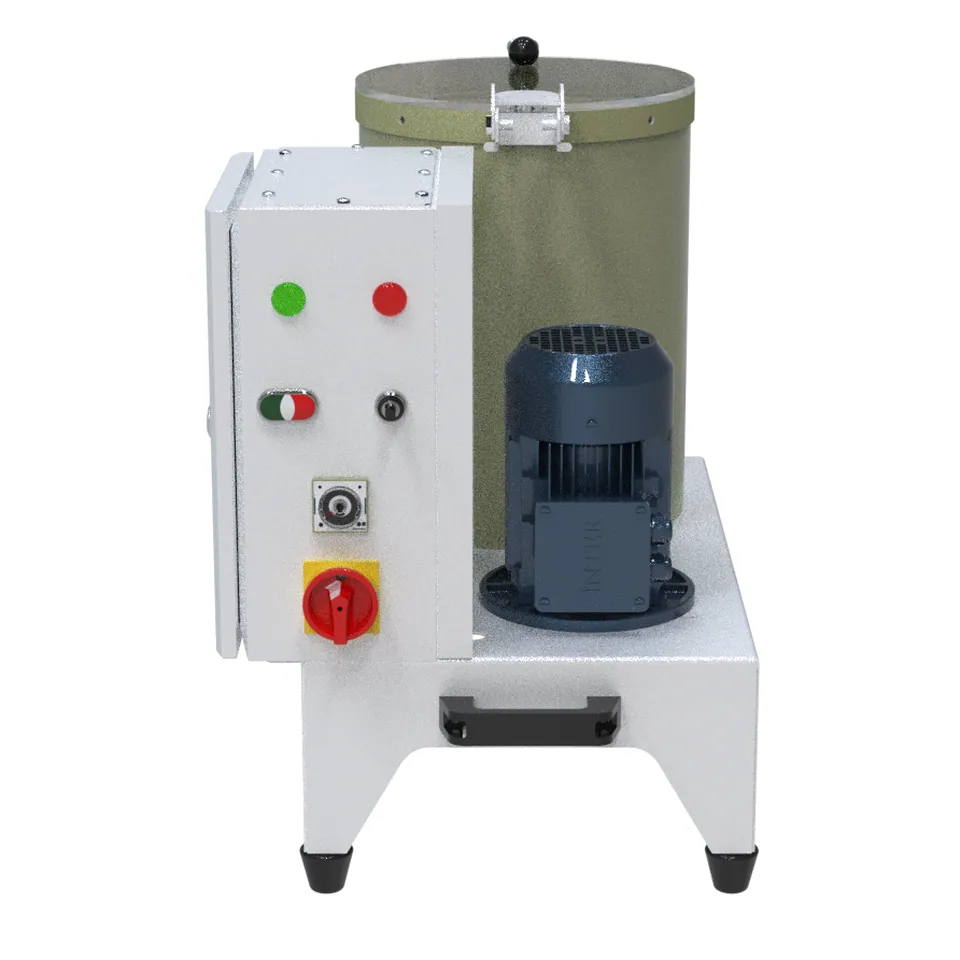

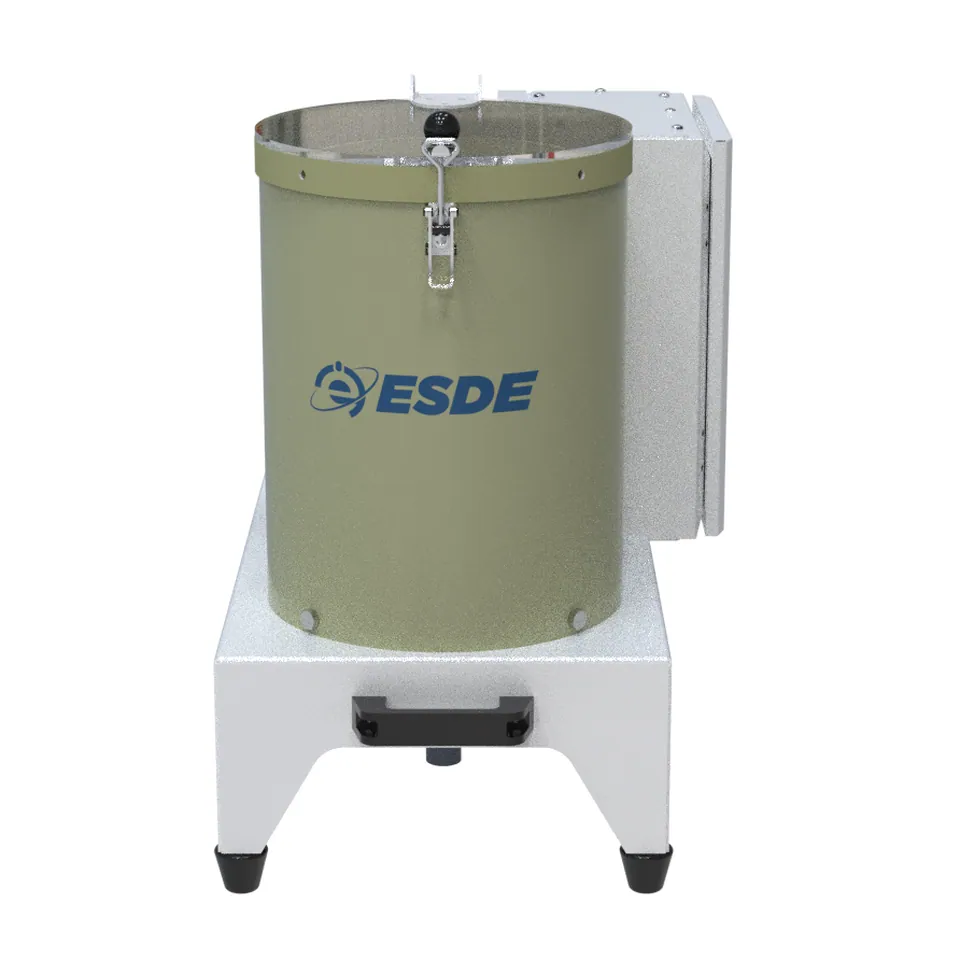

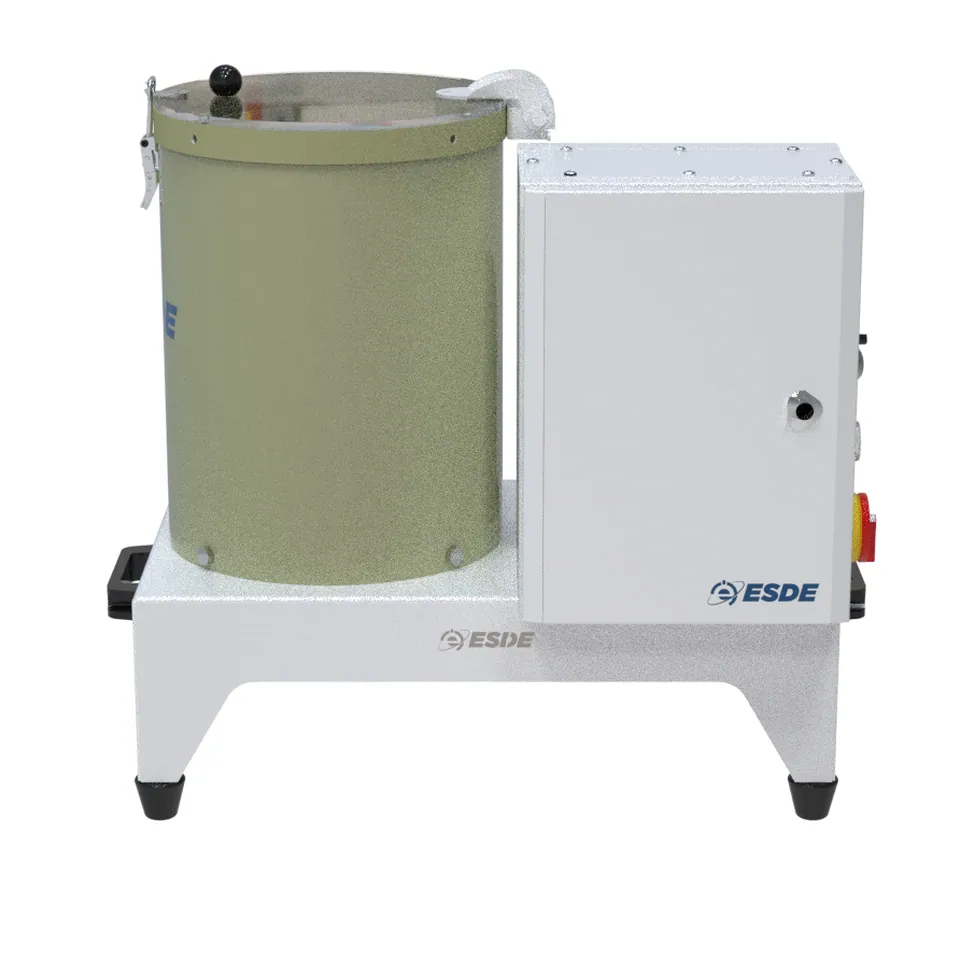

MODEL SD-4010
Lab Scale Seed Centrifuge
Countertop spin drying and rinsing for breeding and R&D; batches.
2 kgWet seed per drum
200-700rpm, variable
10 s-10 minTimer
Drag to turn
Overview
Designed for small seed batches in breeding and testing, the SD-4010 accommodates nearly all seed types and treatment processes. It is used for centrifuging (spin drying) and rinsing moist seeds - extracted, disinfected, impregnated or primed - making it ideal for research and development facilities.
Key Features
- Water-contact surfaces in polypropylene
- Inner drum in Cr-Ni 304 stainless steel
- Adjustable speed
- Safety switch in the cover - runs only when closed
- Timer 10 seconds to 10 minutes with automatic stop
- Vibration-free base with rubber feet for countertop use
Technical Specifications | SD-4010
| Parameter | Specification |
|---|---|
| Capacity | Max. 2 kg wet seed per drum; 200 - 700 rpm variable |
| Dimensions (L x W x H) | 745 x 480 x 485 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 2.2 kW / 16 A |
| Drain connection | 32 mm |
| Noise emission | approx. 55 dB(A), without product |
| Materials | Electrostatic paint and plastic |
| Weight net / packed | approx. 50 / 60 kg |
| Certification | CE |

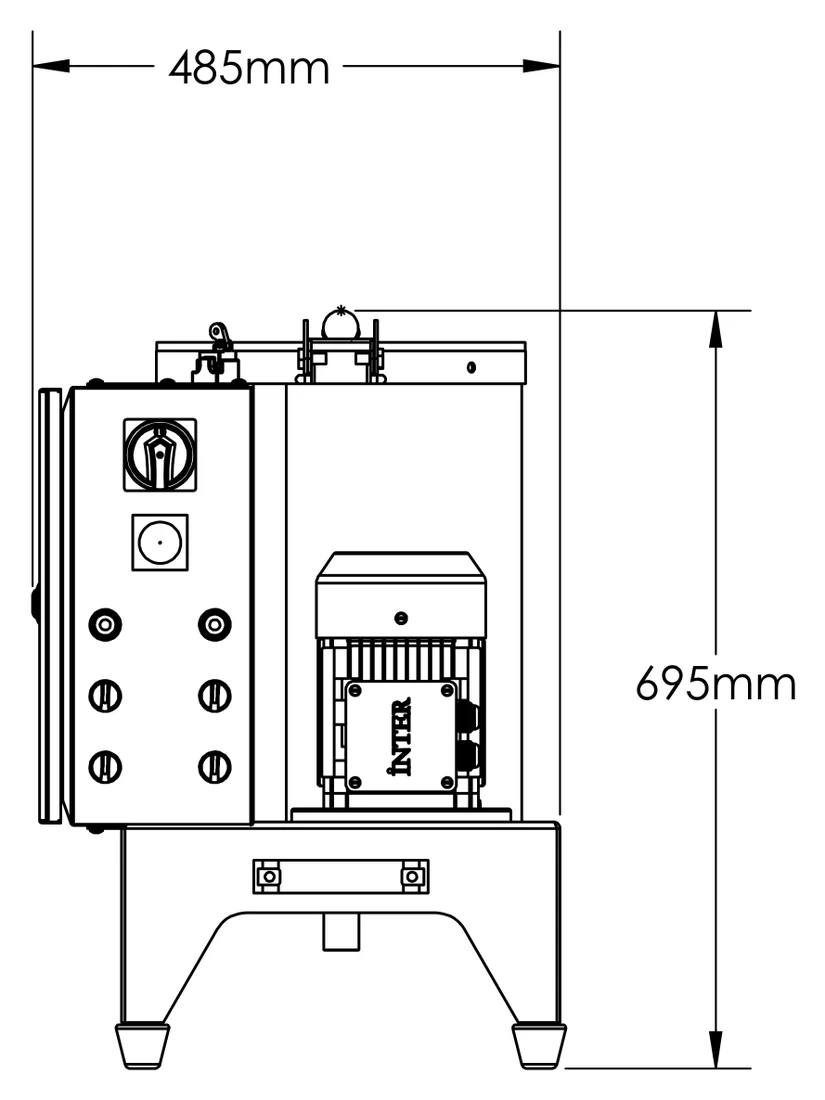

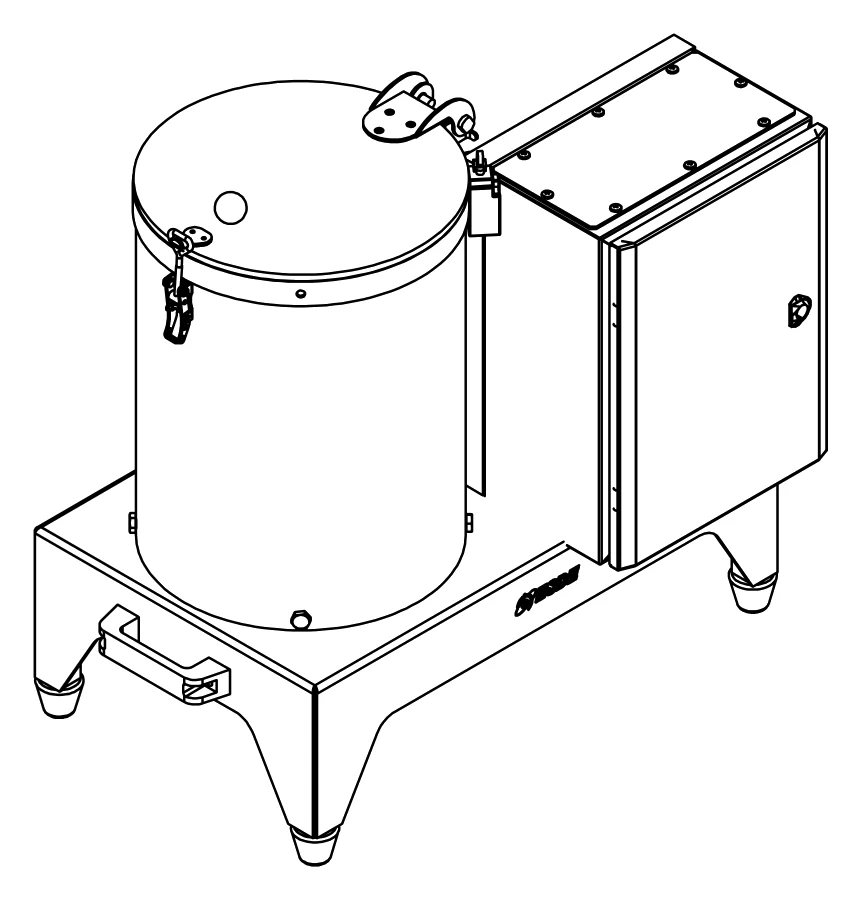

Technical Drawings
