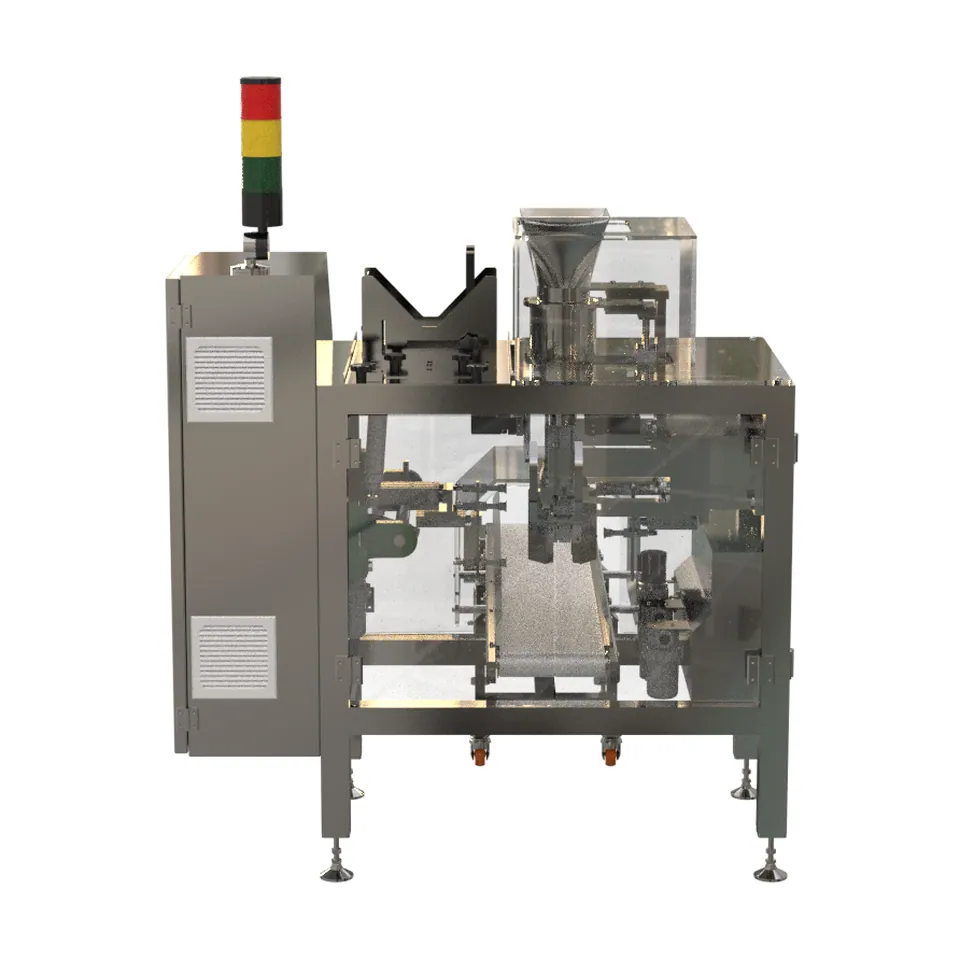

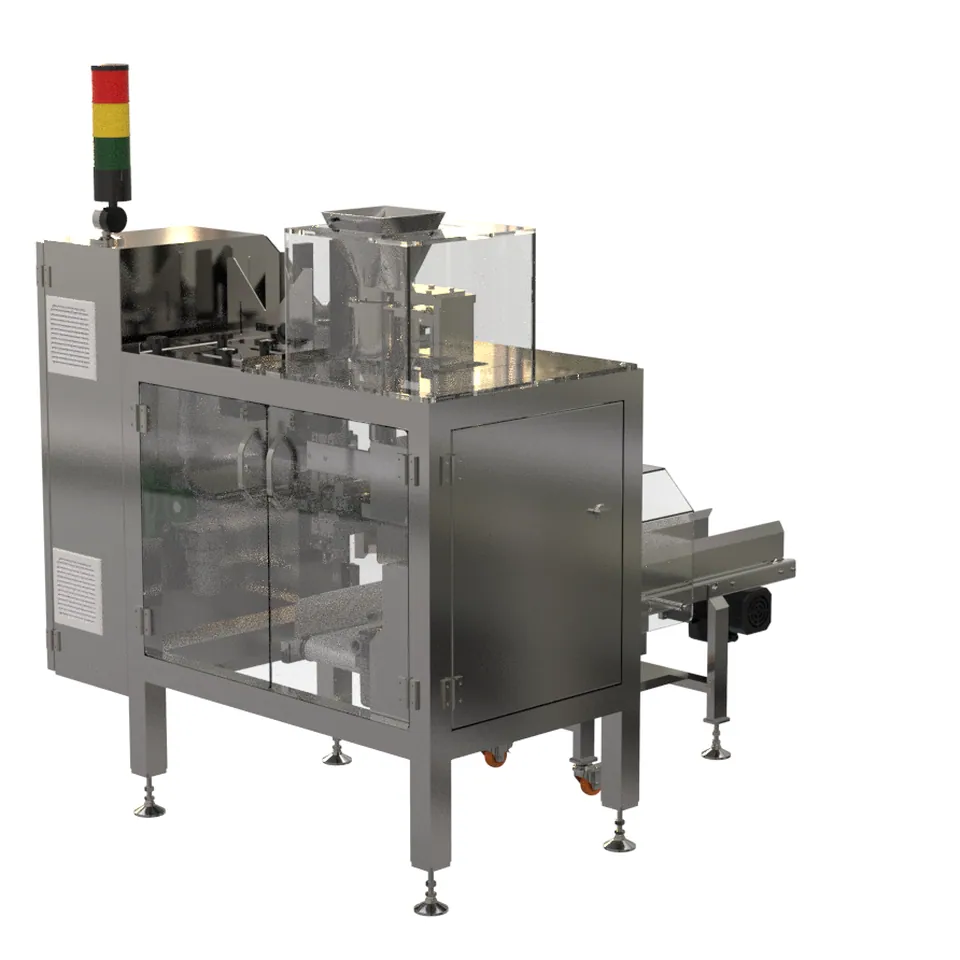

MODEL SD-15110
Full Automatic Envelope Seed Pack Machine
Counts and packs 30 to 3000+ seeds per bag - automatically.
6-12Bags per minute
30-3000+Seeds per bag
0-3 pcsAccuracy
Drag to turn
Overview
The SD-15110 handles stand-up and side-sealed bags from 80 to 150 mm wide and 80 to 200 mm high, counting from 30 to over 3000 seeds per bag with an accuracy of 0 - 3 pieces. It uses a Delta control system and HMI, AirTAC pneumatics (SMC optional), a Festo vacuum generator (vacuum pump optional) and electrical components from brands such as Schneider, Eaton, Omron and Panasonic. Frame and contact parts are SS304.
Key Features
- 6 - 12 bags per minute
- Stand-up and side-sealed bags
- Bag width 80 - 150 mm, height 80 - 200 mm
- 30 - 3000+ seeds (special design below 30)
- Delta PLC and HMI, AirTAC or SMC pneumatics
- Options: auto feeder, incline bucket/belt conveyor, Z-type conveyor, mini bag adapter
Technical Specifications | SD-15110
| Parameter | Specification |
|---|---|
| Capacity | 12 packs per minute |
| Dimensions (L x W x H) | 1310 x 1470 x 1830 mm |
| Electrical connection | 200 - 220 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 0.22 kW / 10 A |
| Connections | Compressed air 8 bar; PLC control |
| Noise emission | approx. 75 dB(A), without product |
| Materials | Stainless steel 304 and plastics |
| Weight net / packed | approx. 185 / 215 kg |
| Included | Packet conveyor belt |
| Optional | Air compressor |
| Certification | CE |

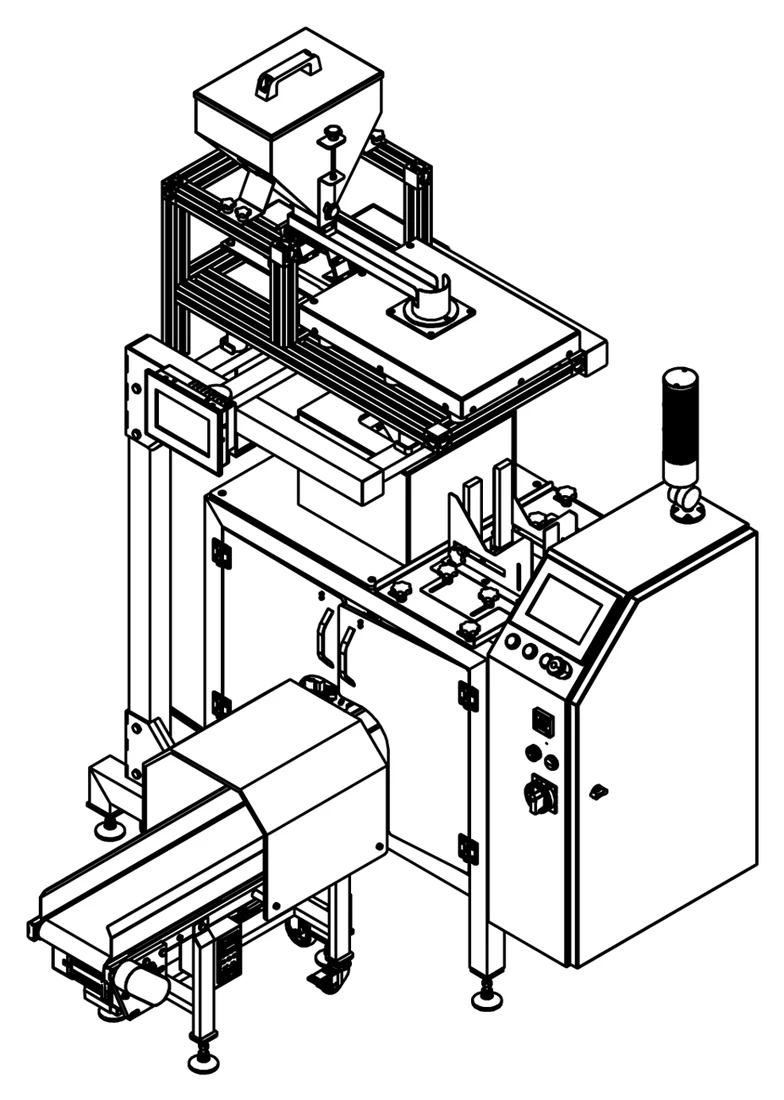

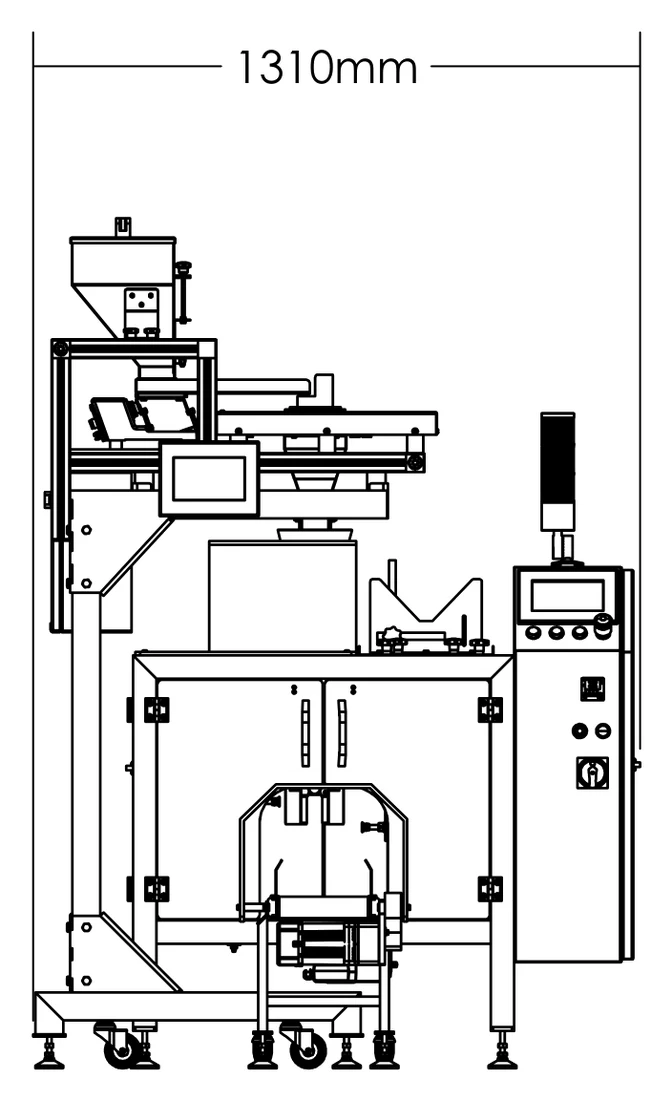

Technical Drawings
