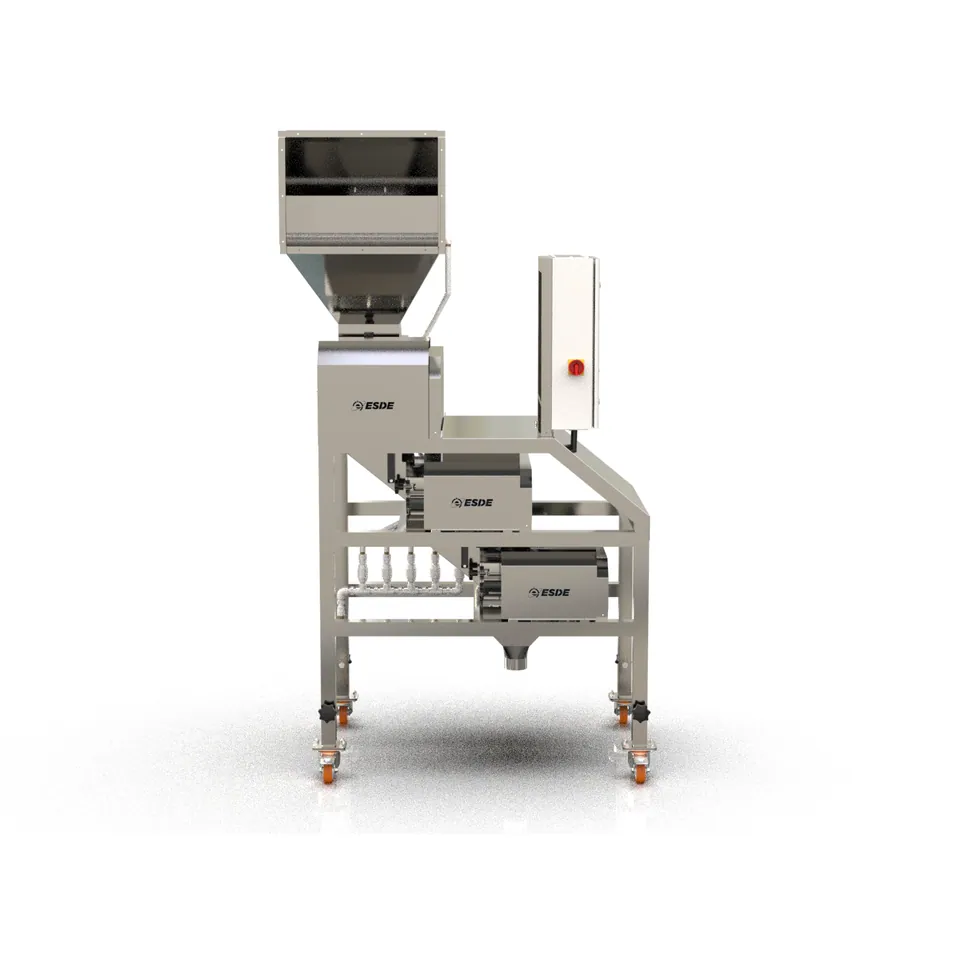

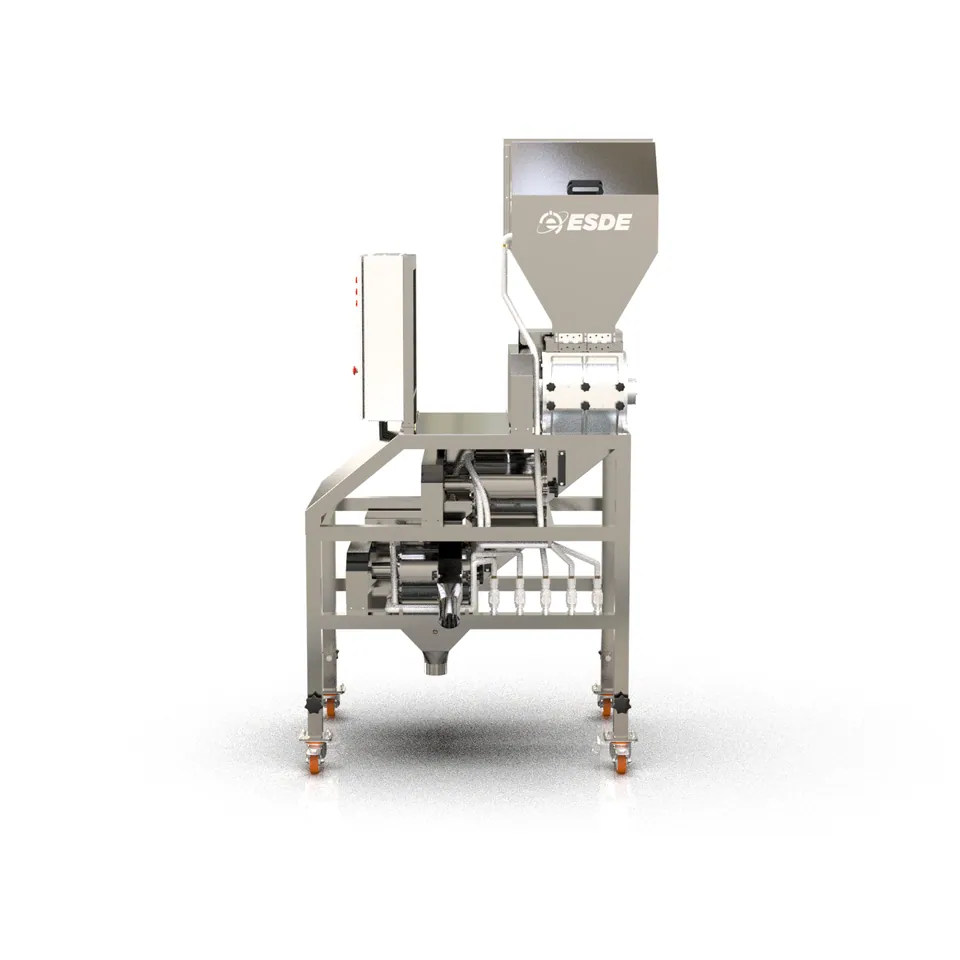

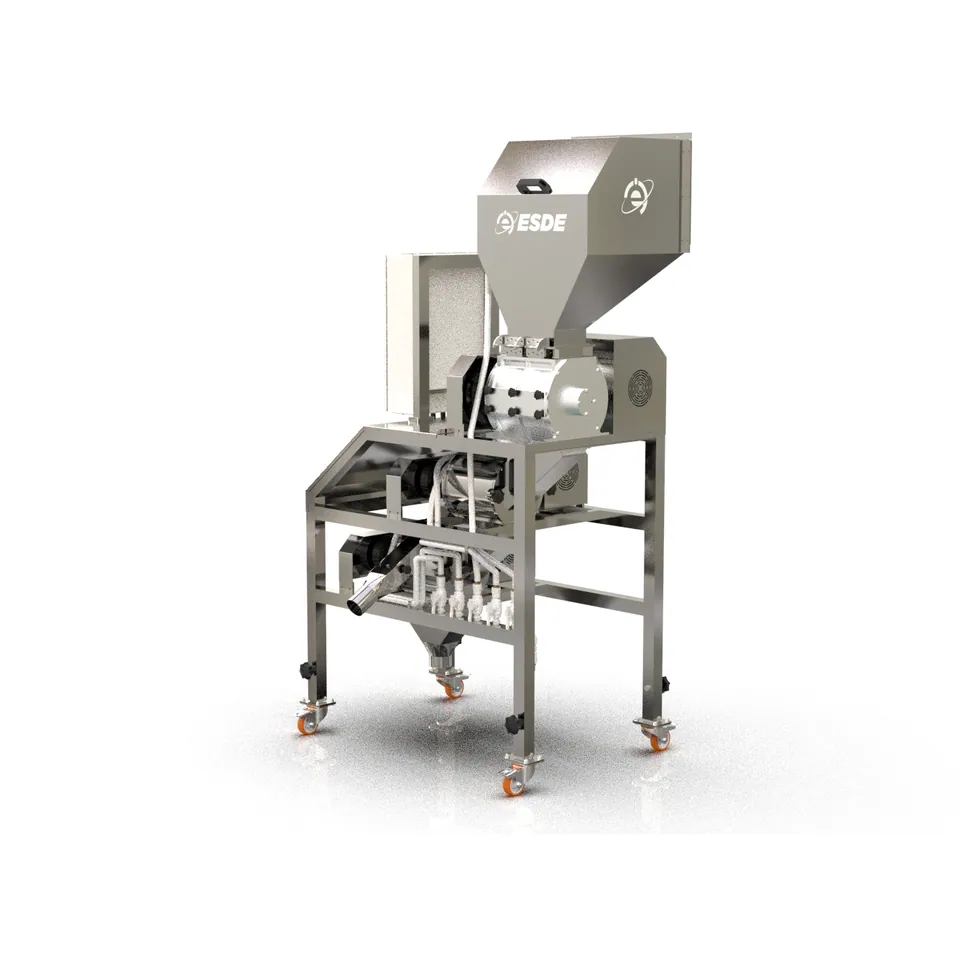

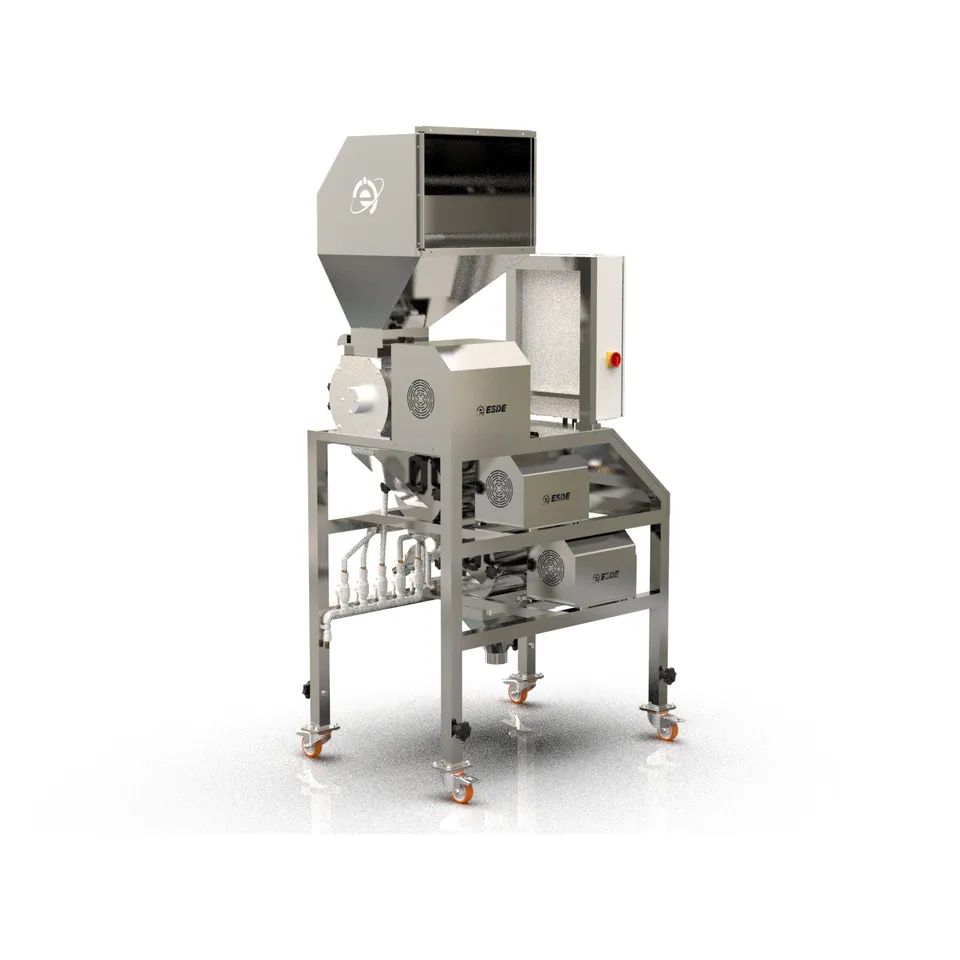

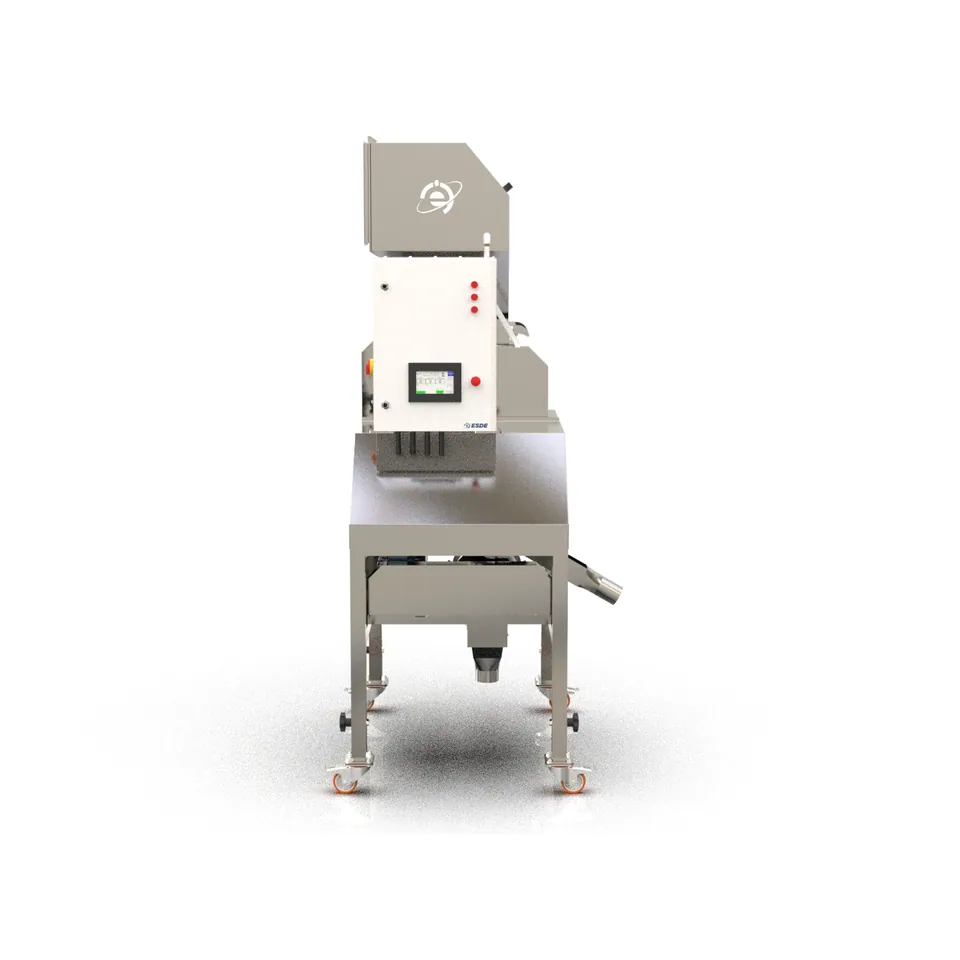

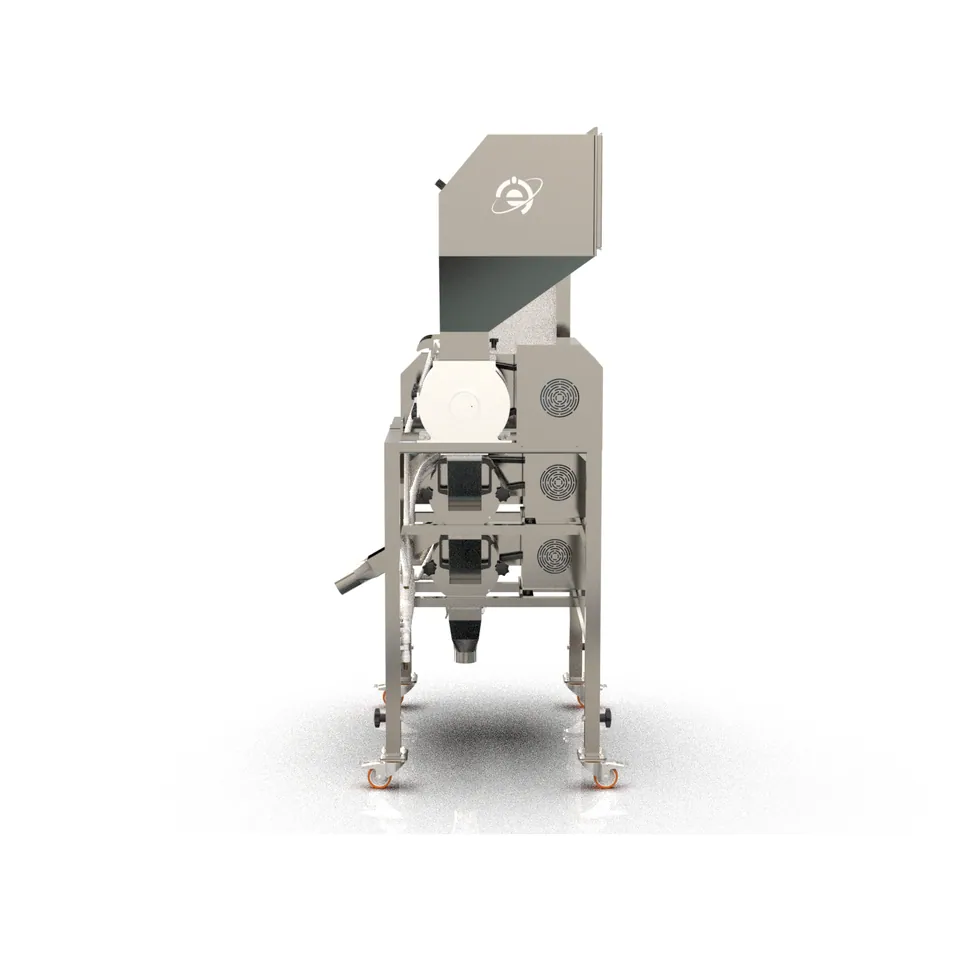

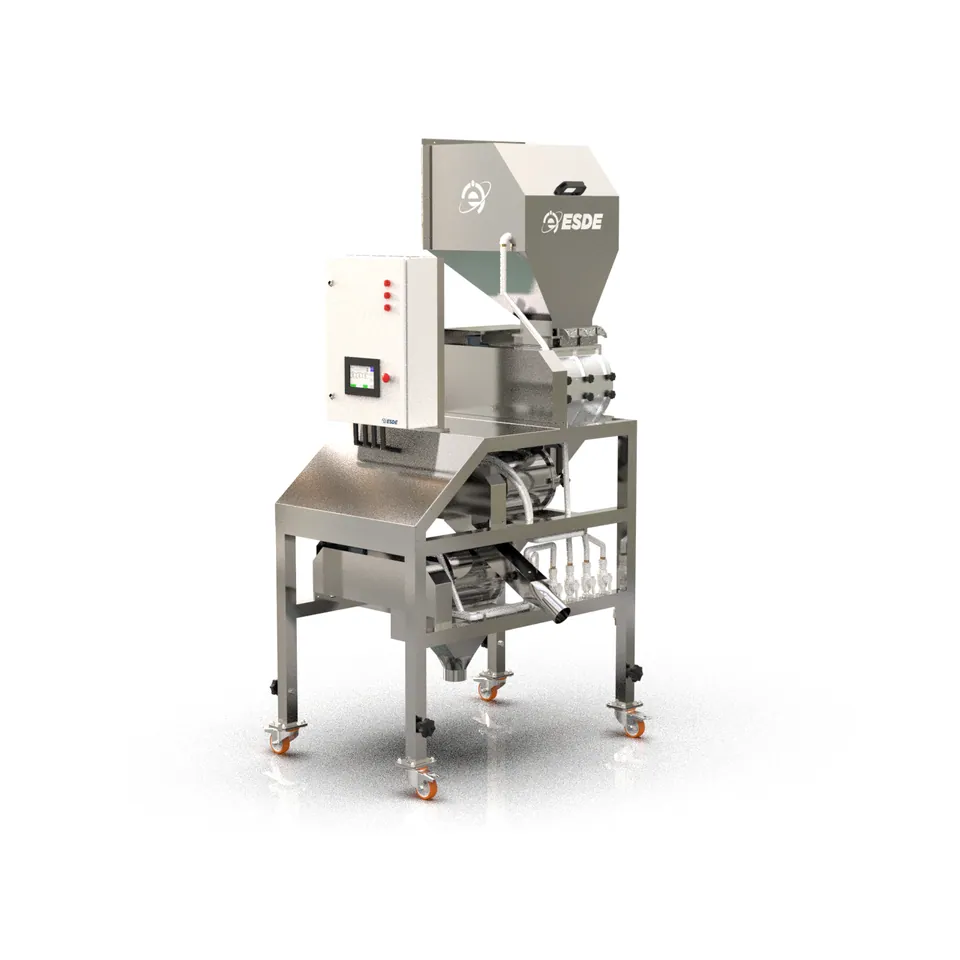

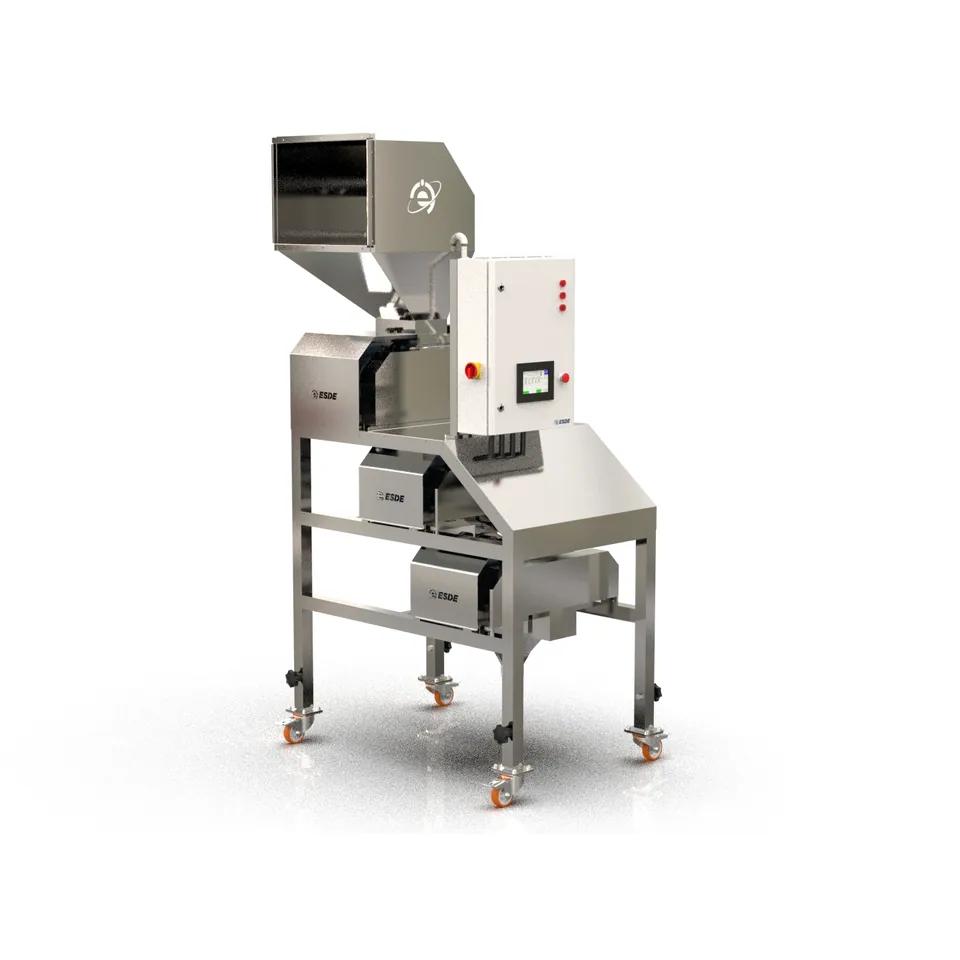

MODEL SD-1050
Seed Extraction Machine
Automated, large-volume seed extraction that protects seed integrity.
2-5 t/hAverage capacity
7" HMIPLC control
20Recipe memory
Drag to turn
Overview
The SD-1050 automatically removes seeds from tomatoes, peppers, eggplants and cucumbers in substantial quantities while preserving the integrity of the seeds. Varying sieve sizes and adjustable motor speeds deliver optimal extraction for each crop and a clean separation of pulp and seed. The easy-to-maintain design simplifies cleaning, and construction from high-quality Cr-Ni 316 stainless steel and industrial aluminium ensures a long operational life.
Key Features
- 7-inch human-machine interface operator panel
- PLC control units
- Recipe memory for up to 20 different products
- Adjustable crushing mechanism with speed control
- Adjustable speed for upper basket separation
- Safety switches for added safety
- Gentle seed handling to prevent damage
- Mobile design on castors
- Fully constructed from chrome-nickel stainless steel
- Water connections with regulating valves
- Easy-to-clean design
- Average capacity of 2 to 5 tons per hour
Technical Specifications | SD-1050
| Parameter | Specification |
|---|---|
| Capacity | approx. 50 kg - 5 t vegetables per hour |
| Dimensions (L x W x H) | 1545 x 1190 x 2670 mm; height incl. inlet hopper 2625 mm |
| Electrical connection | 380 - 415 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 9 kW / 32 A (slow blow) |
| Water supply | approx. 1000 L/h (excl. provisions for fruit parts and juice drainage) |
| Noise emission | approx. 80 dB(A), without product |
| Materials | Stainless steel 316 and aluminium |
| Weight net / packed | approx. 460 / 520 kg |
| Included | 2 x basket (2 - 5 mm), 2 x beater, inlet hopper (standard or Z-shape) |
| Optional | Basket sizes 1.5 - 14 mm, conveyor (fruit feed inlet), pulp transporter (3, 4 or 5 m) |
| Certification | CE |

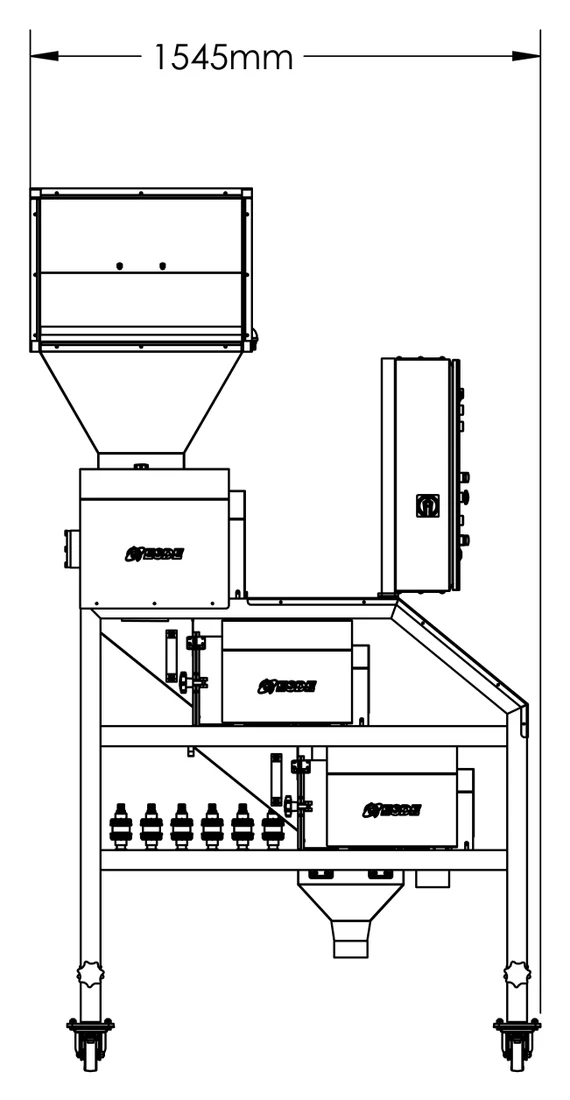

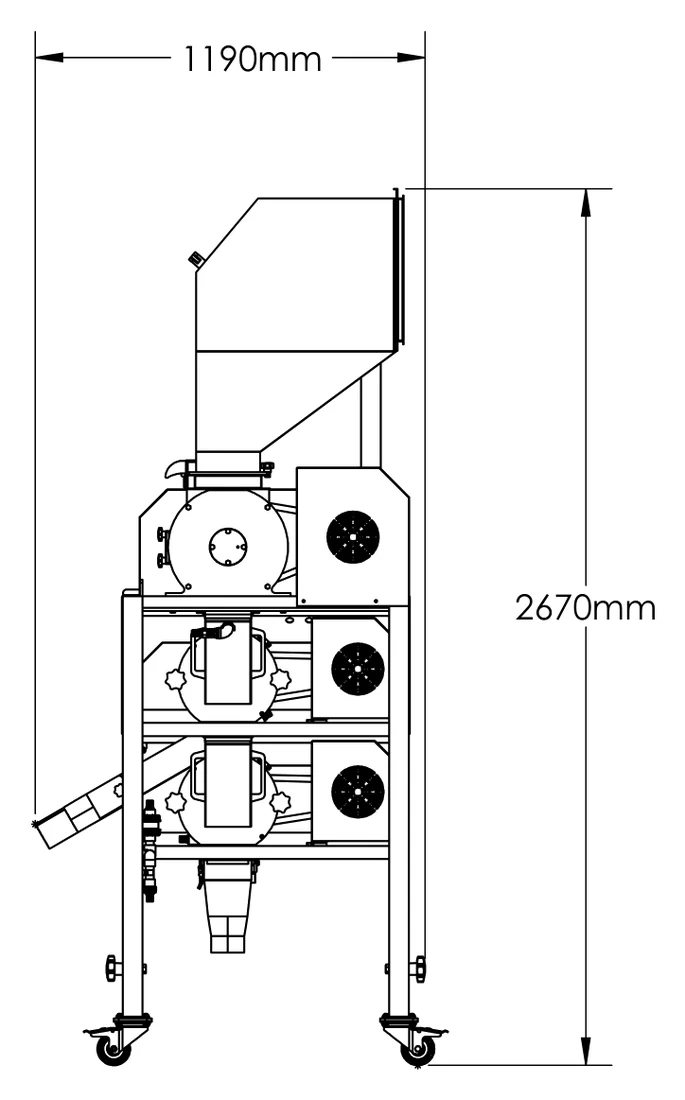

Technical Drawings
