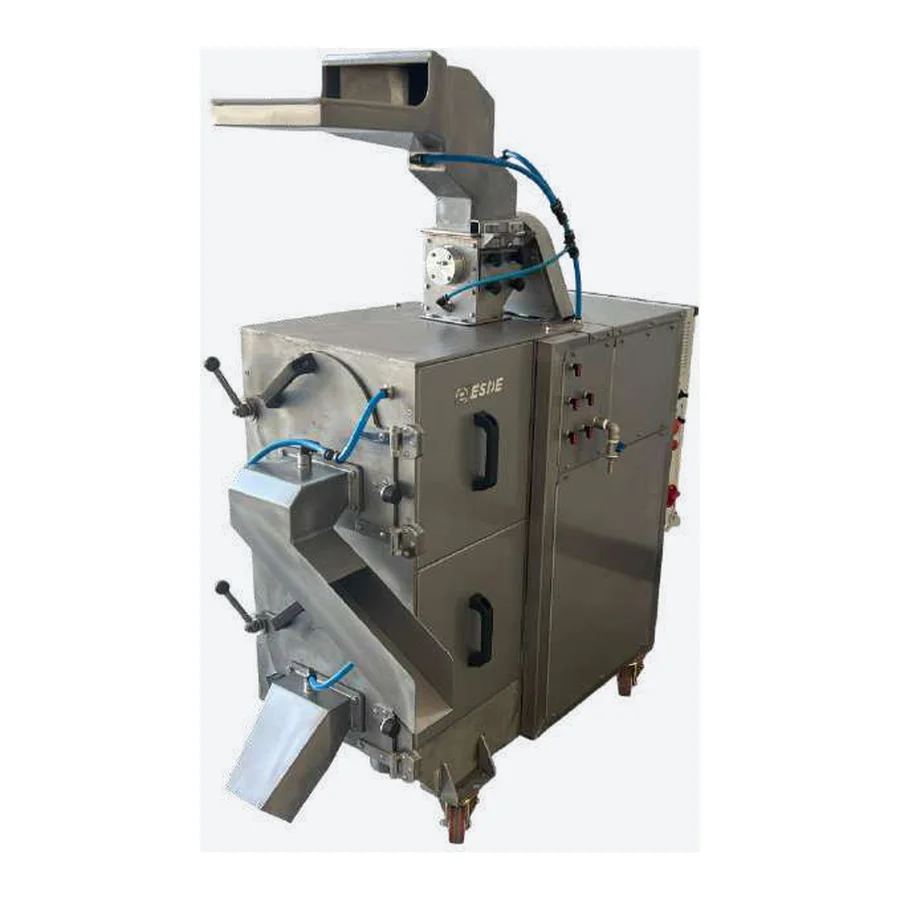

MODEL SD-1010
Lab-Scale Seed Extractor
Professional-grade extraction for breeders and small producers.
5-500 kg/hVegetables
4 kWMax. power
SS 316Construction
Overview
The SD-1010 offers the same advanced extraction technology as the SD-1050 in a compact size, ideal for breeding and small-scale production. It is designed for extracting tomato, cucumber and pepper seeds efficiently and thoroughly in smaller batches. Its fast, practical cleaning system is engineered so that no seeds are left behind - maximum yield, minimal waste and no mixing between lots.
Key Features
- Same advanced features as the SD-1050 in a compact footprint
- Designed for tomato, cucumber and pepper seed
- Exceptionally fast and practical cleaning
- No seeds left behind between batches
- Built entirely from Cr-Ni 316 stainless steel
- Corrosion resistant and built for longevity
Technical Specifications | SD-1010
| Parameter | Specification |
|---|---|
| Capacity | approx. 5 - 500 kg vegetables per hour |
| Dimensions (L x W x H) | 1400 x 645 x 1525 mm (incl. inlet hopper) |
| Electrical connection | 220 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 4 kW / 32 A (slow blow) |
| Water supply | approx. 400 L/h (excl. provisions for fruit parts and juice drainage) |
| Noise emission | approx. 60 dB(A), without product |
| Materials | Stainless steel 316 |
| Weight net / packed | approx. 285 / 330 kg |
| Included | 2 x basket (2 - 5 mm), 2 x beater, 2 x containers with holes, standard inlet hopper |
| Optional | Basket sizes 1.5 - 8 mm |
| Certification | CE |

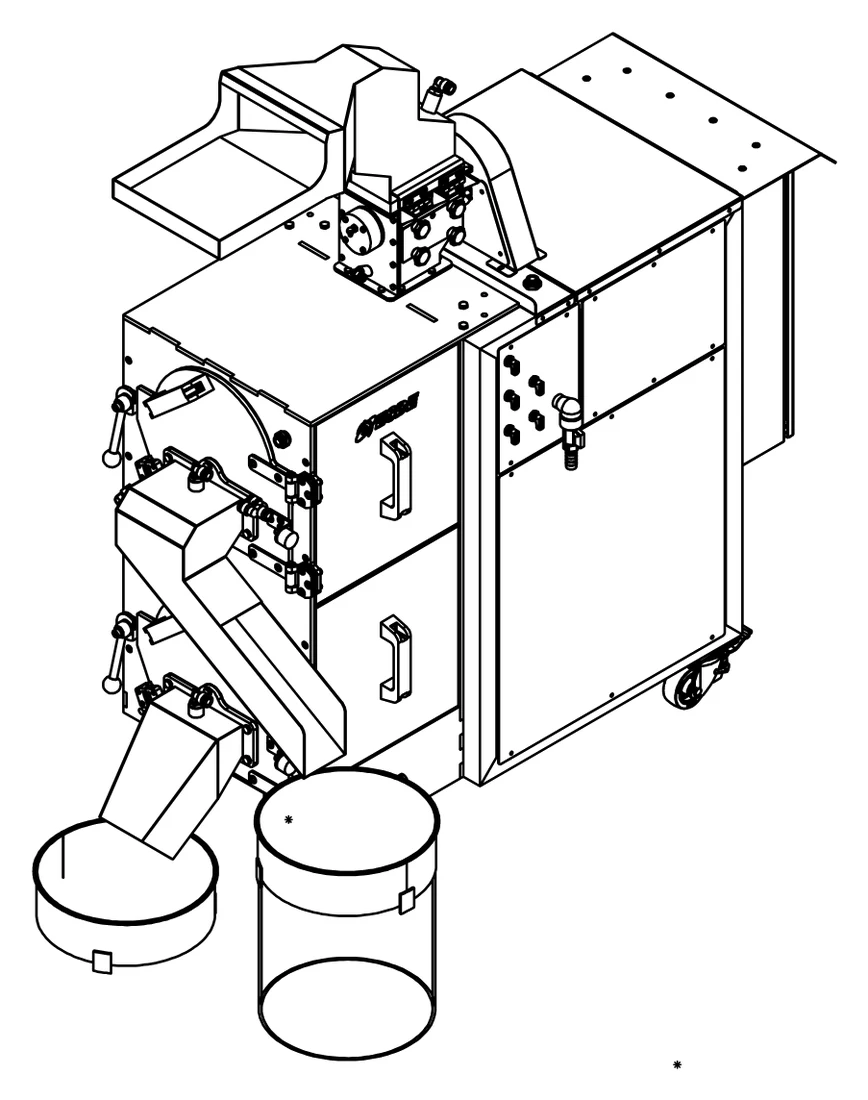

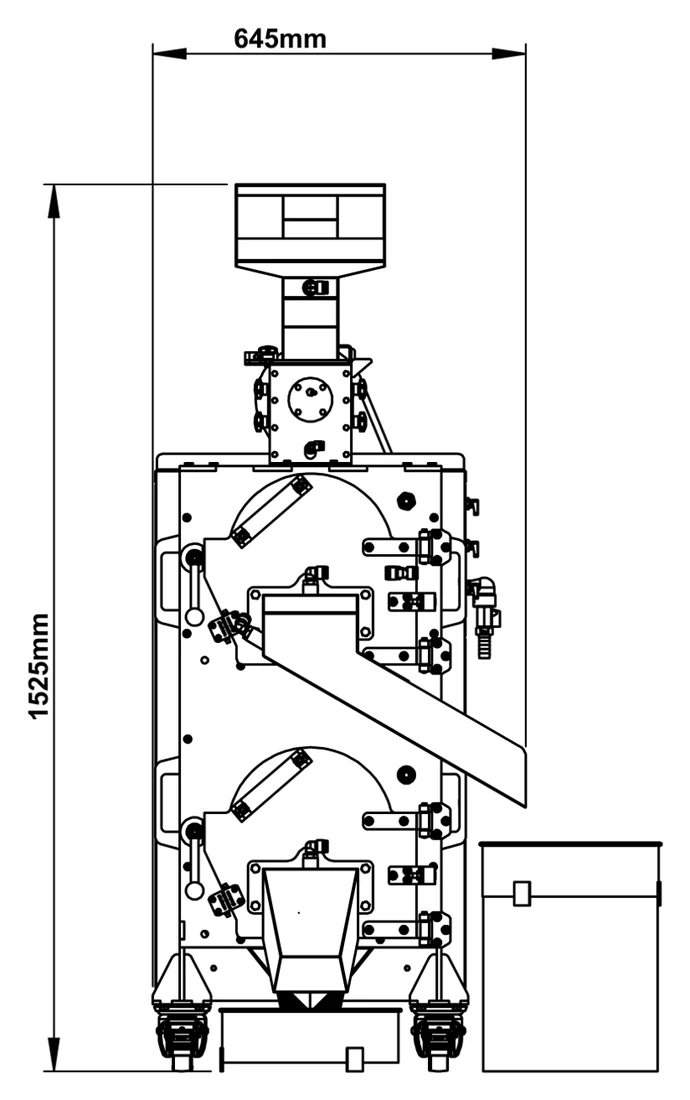

Technical Drawings
