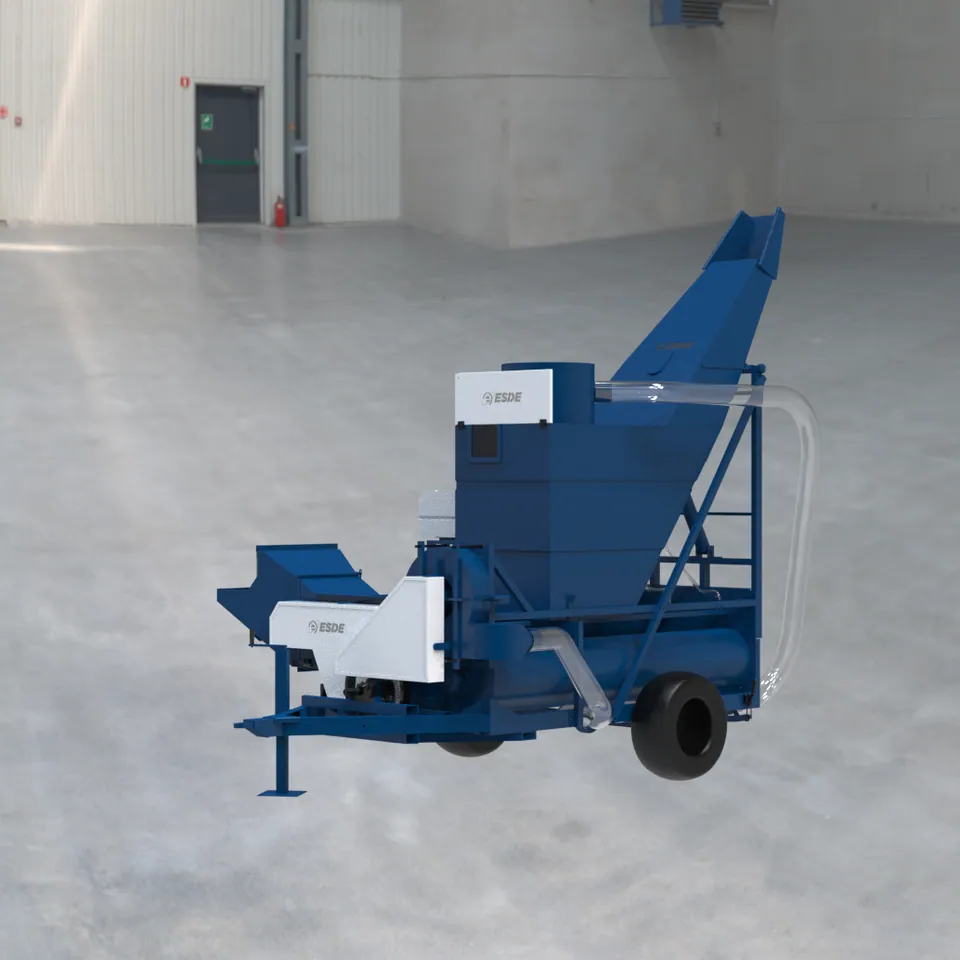

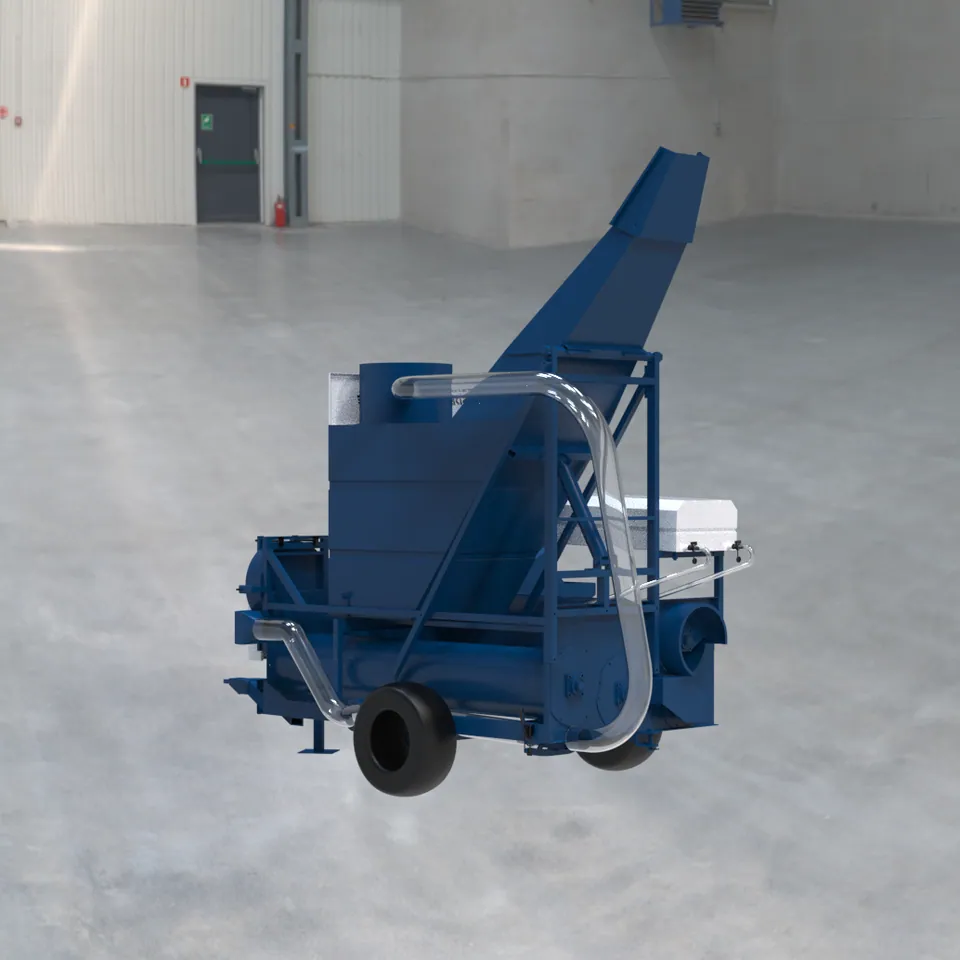

MODEL SD-1175
Manual Seed Extractor
Field-going extractor for pumpkin, watermelon and melon seed.
600-700 kgSeed per hour
30-40,000 m²Field per day
1320 kgEmpty weight

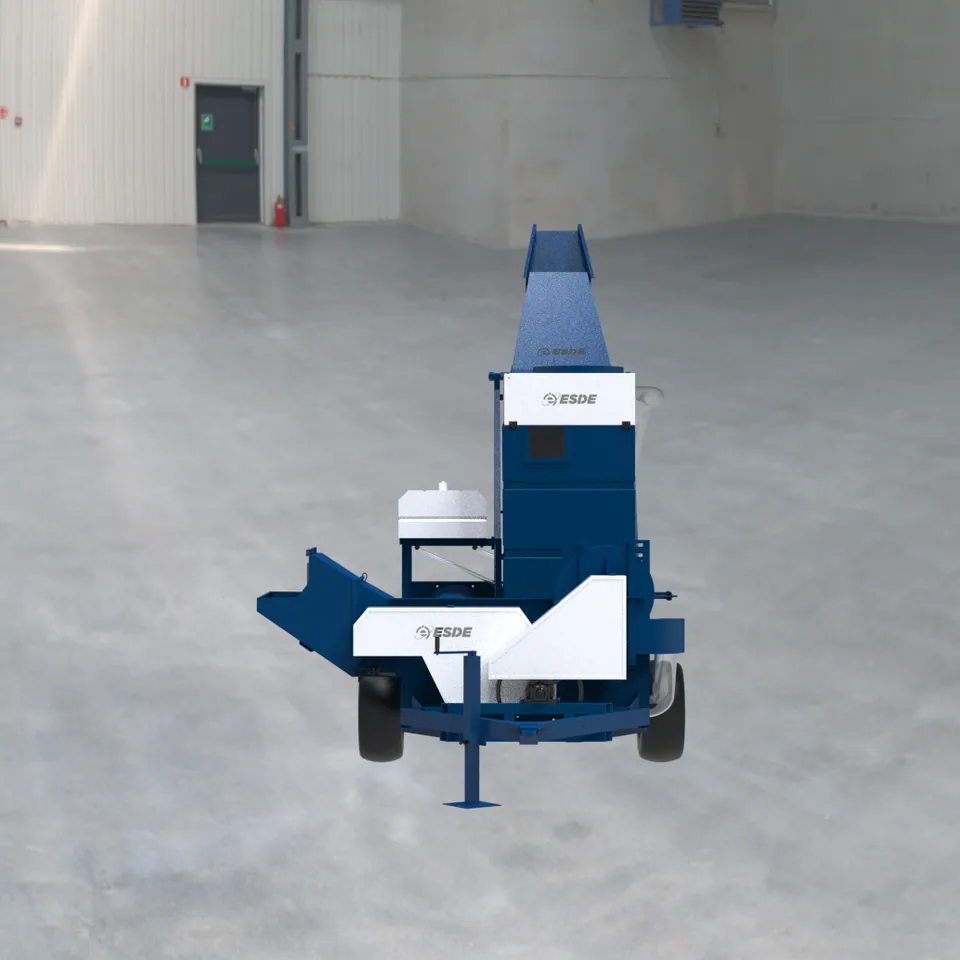

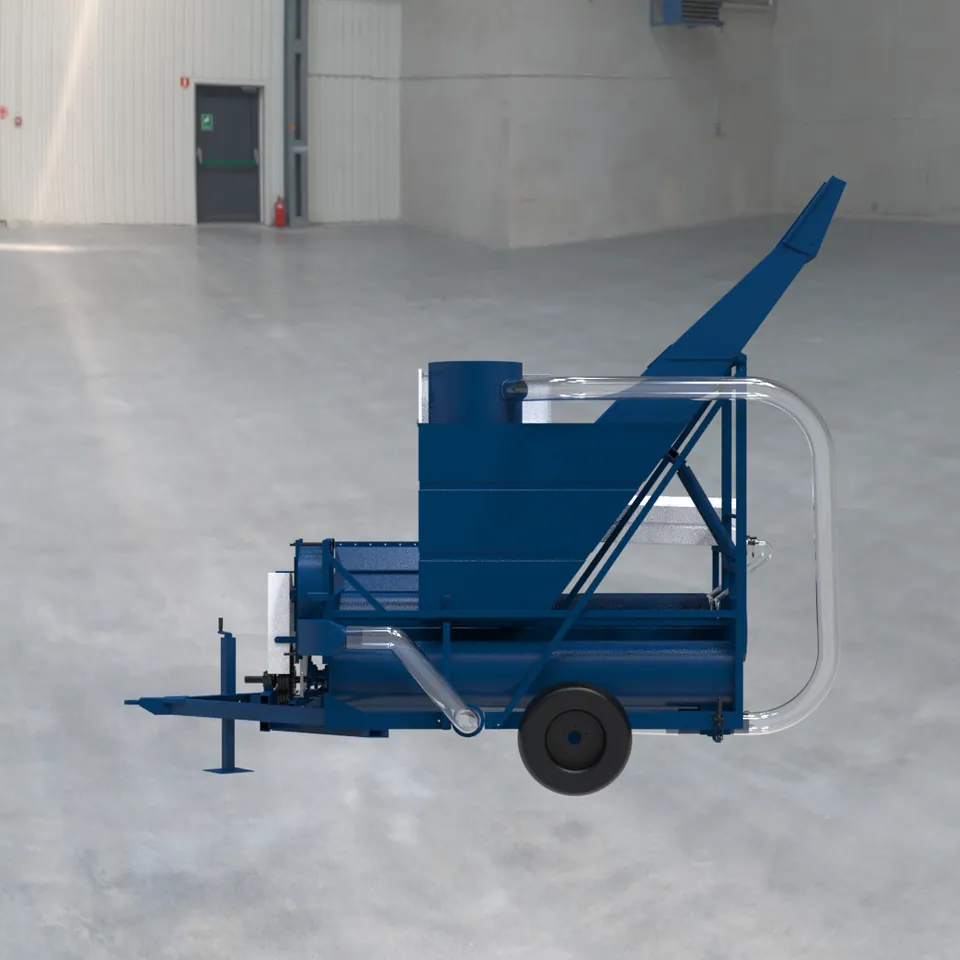

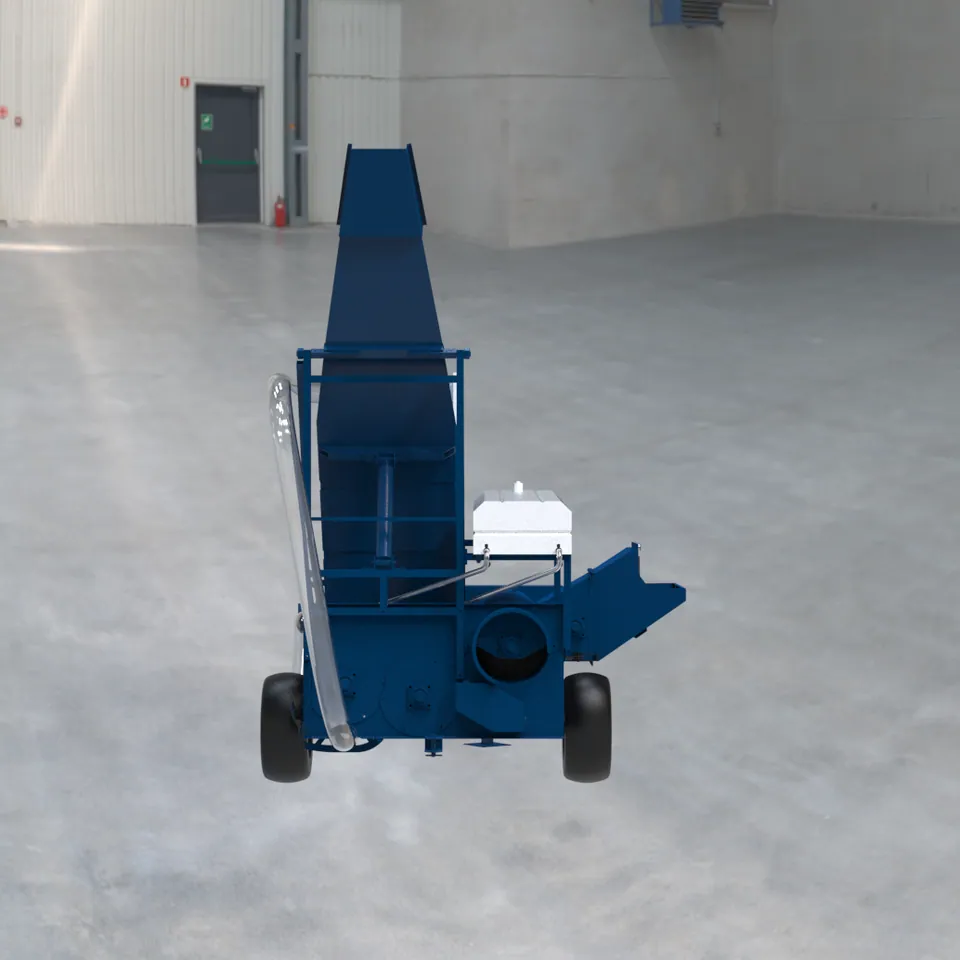

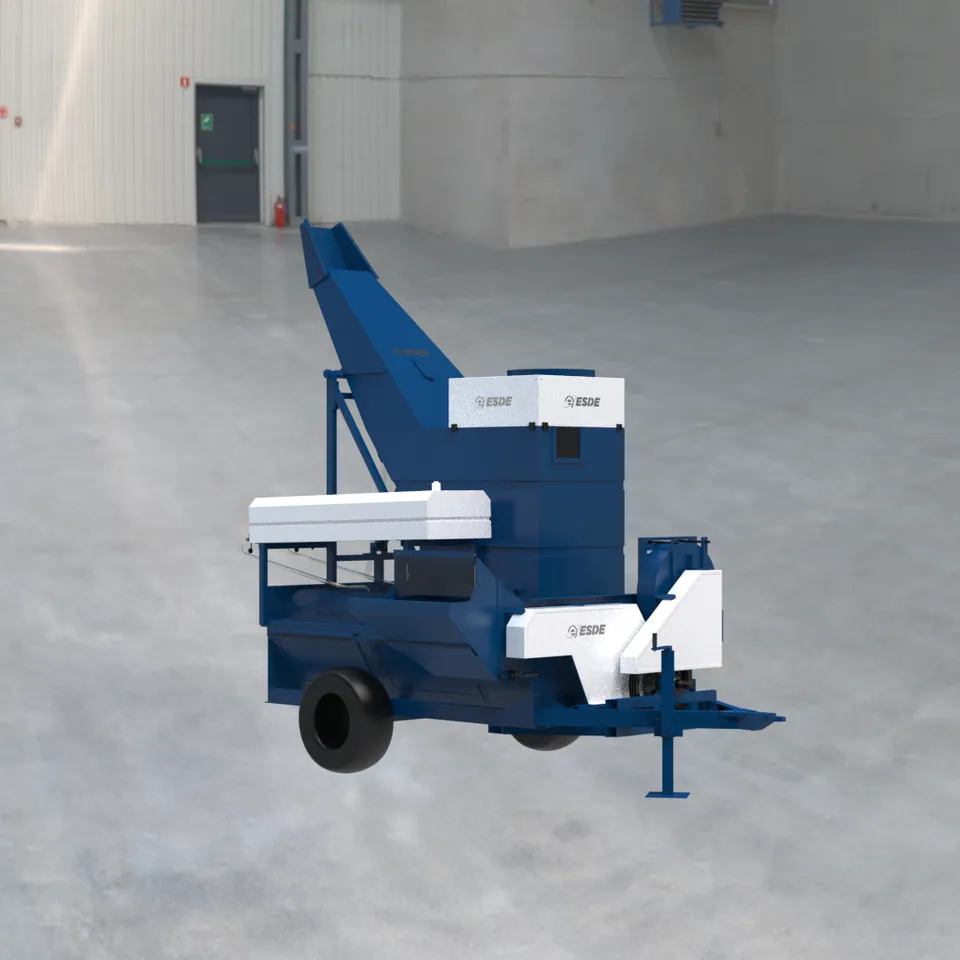

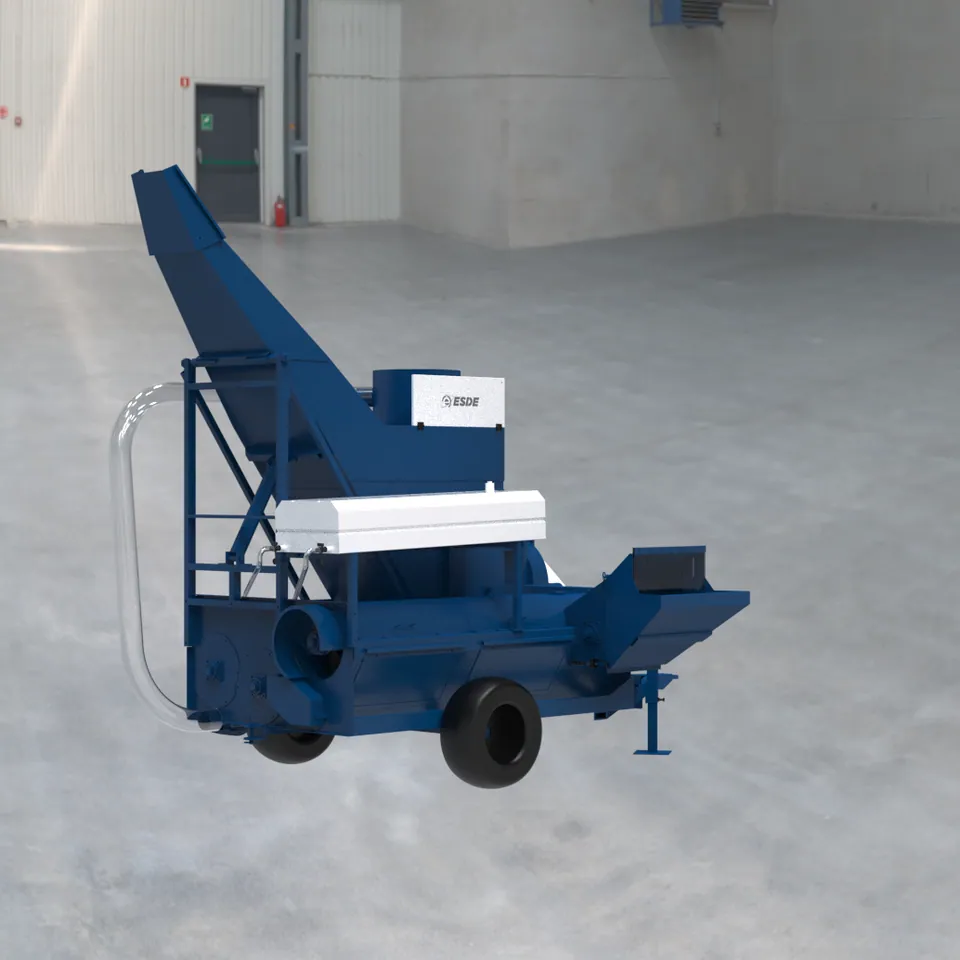

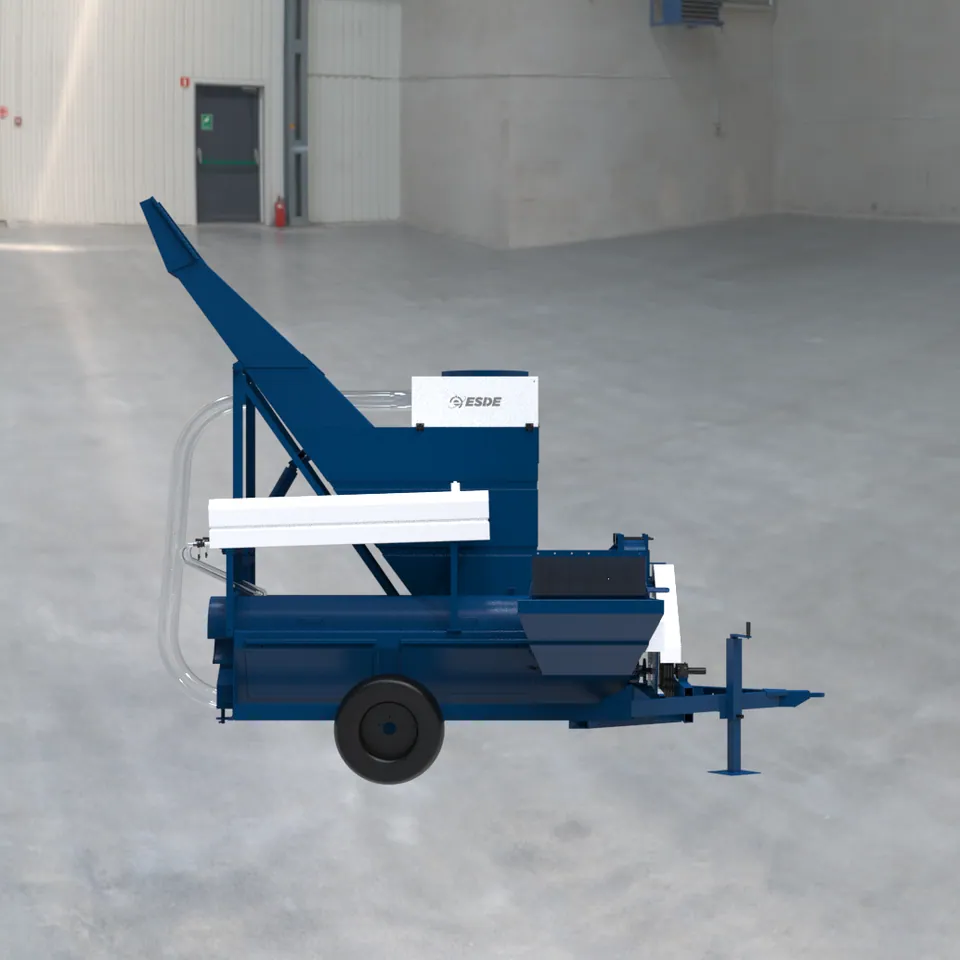

Drag to turn
Overview
The SD-1175 uses compressed air to move seeds into storage, reducing grain moisture by 20% and removing dirt for a cleaner product, with a 40% shorter drying time. Strengthened pivots make the machine more durable and prevent breaks and failures, while a larger reservoir diameter boosts capacity. The first and second cleaning tambours are bolted rather than welded for easy removal and installation - switching the tambour sifter for watermelons, melons or small-grain pumpkins is effortless.
Key Features
- Compressed-air seed transfer into storage
- Approx. 20% lower grain moisture and cleaner seed
- Approx. 40% shorter drying time
- Strengthened pivots for durability
- Enlarged reservoir diameter for higher capacity
- Bolted tambours for quick changeover between crops
- Tip: store stalk-free pumpkins no longer than 8-10 days
- Self-lubricating with pumpkin material - never run idle
Technical Specifications | SD-1175
| Parameter | Specification |
|---|---|
| Grain process capacity | 600 - 700 kg seed per hour |
| Field capacity | 30,000 - 40,000 m² per day |
| Grain separation drum | Diameter 440 mm, length 2400 mm |
| Track width | 2070 mm |
| Total size | Length 4400 mm; operating width 2630 mm; height 3680 mm |
| Materials | Powder-coated steel |
| Weight (empty) | approx. 1320 kg |
| Optional | Electric motor transmission: 380 - 415 V, 3 ph + N + ground, 50/60 Hz, 9 kW, 32 A (slow blow) |
| Certification | CE |

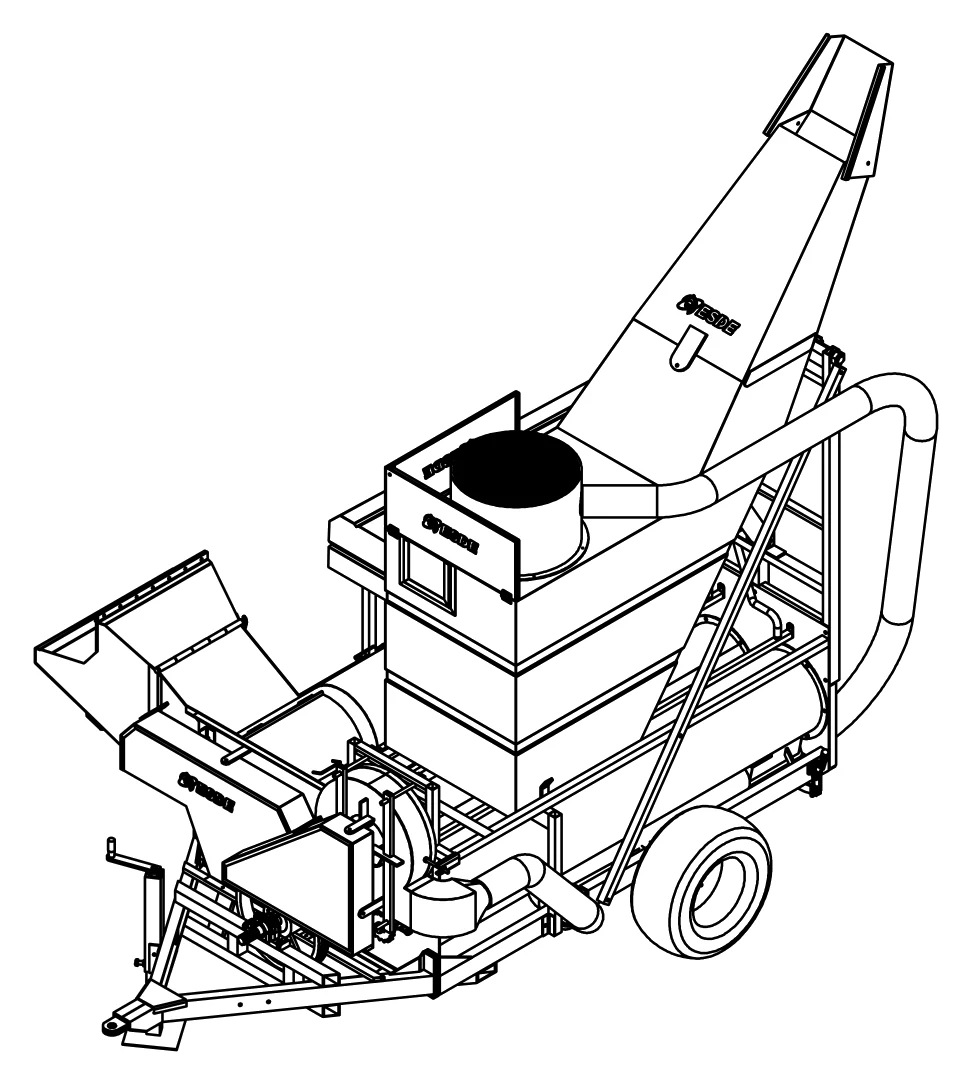

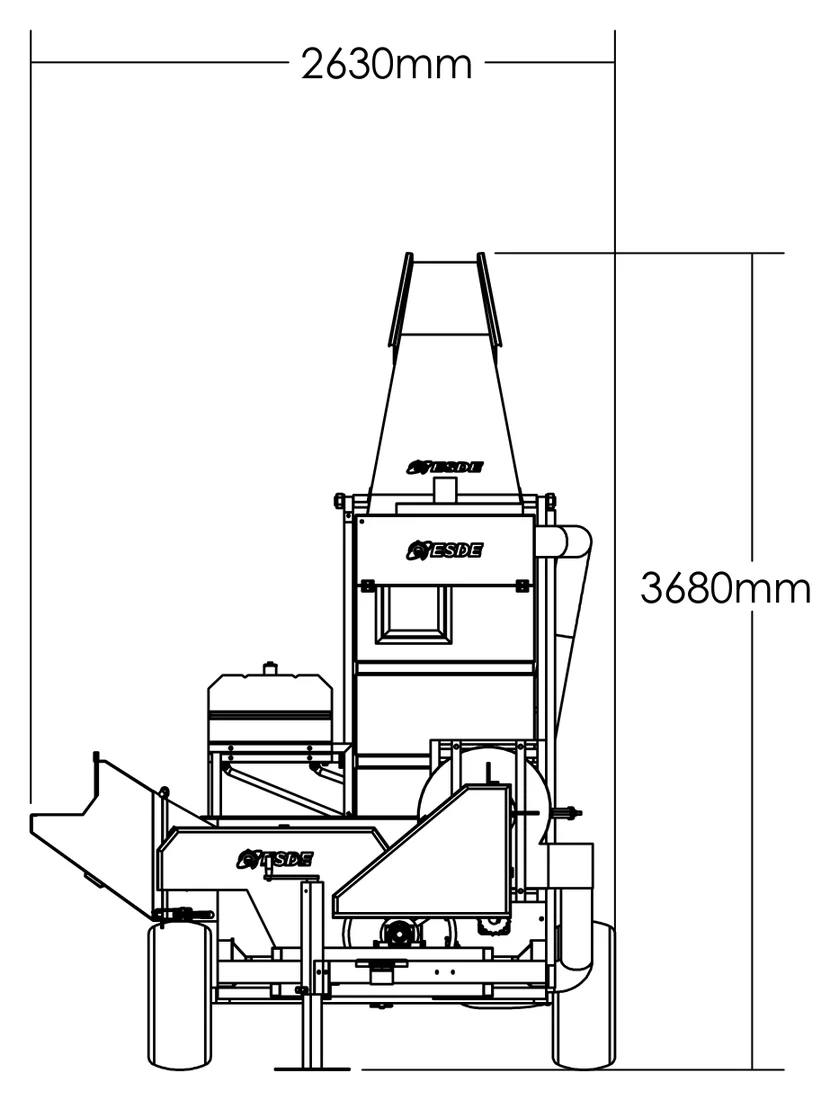

Technical Drawings
