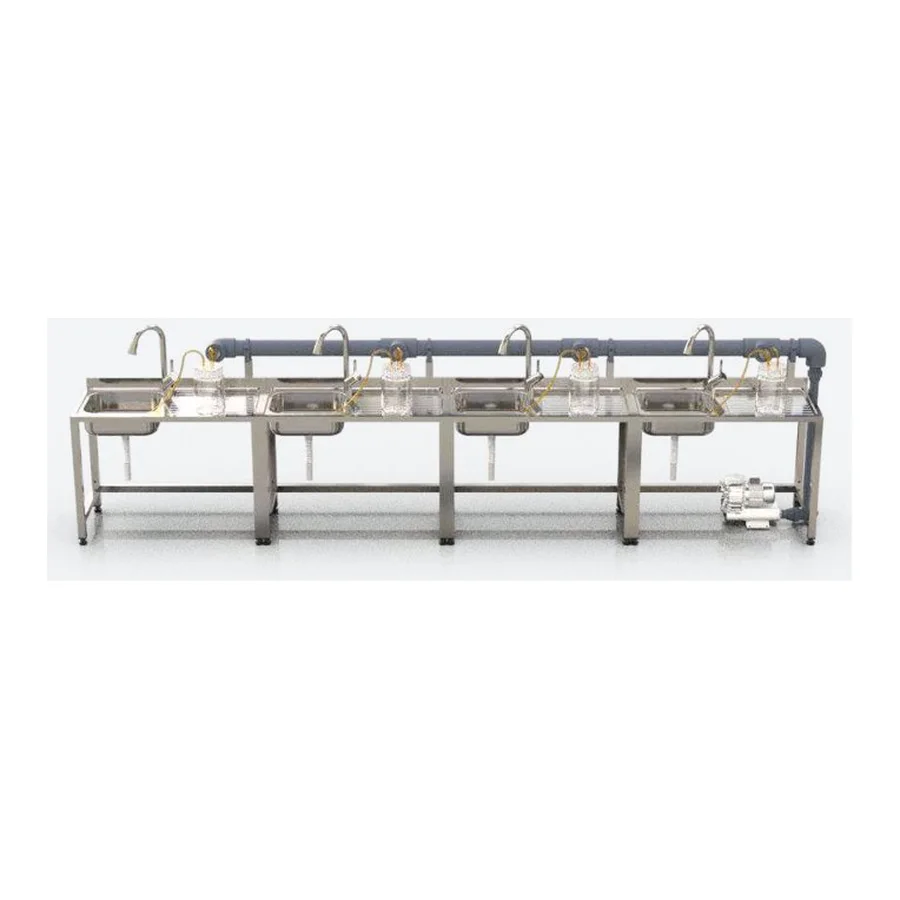

MODEL SD-1510
Vacuum Seed Extractor Desk
Gentle, damage-free extraction for breeding lots.
1 kg/minTomato per operator
4Desks per set
0.75 kWMax. power
Overview
The vacuum seed extractor gently removes seeds from small quantities of tomatoes, peppers and cucumbers without any seed damage. It adapts to various vegetables with three different hose diameters. Built for breeding work, it is produced in sets of four desks and operated by a minimum of four people. Transparent vacuum jars keep the process visible and safe, and extracted seeds can be stored conveniently in special pouches.
Key Features
- Vacuum adjustable to the number of operators
- Disassemblable stainless-steel sink counters
- Individual sink tap for each operator
- Plug-in pneumatic hose connectors, 3 hose diameters
- Four units mount side by side, face to face
- Transparent vacuum jars for safe, observable work
Technical Specifications | SD-1510
| Parameter | Specification |
|---|---|
| Capacity | Tomato: 1 kg per minute per operator |
| Dimensions | 100 x 70 x 70 cm per desk |
| Electrical connection | 180 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 0.75 kW / 10 A |
| Connections | Water supply Ø25 mm; drain 50 mm |
| Materials | Stainless steel 304 and plastics |
| Weight | Depends on the number of desks |
| Certification | CE |

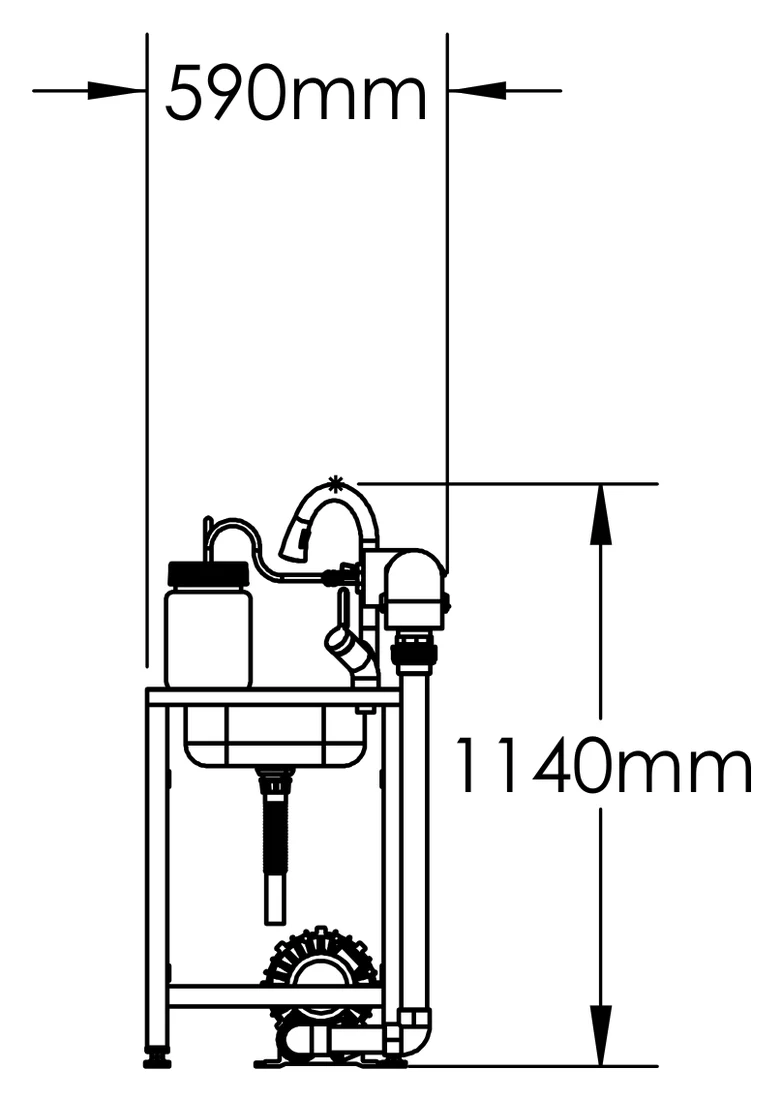

Technical Drawings
CEAll machines CE marked
Made in TürkiyeEngineered and built in Konya
24/7Personal Sales Agent on our website
