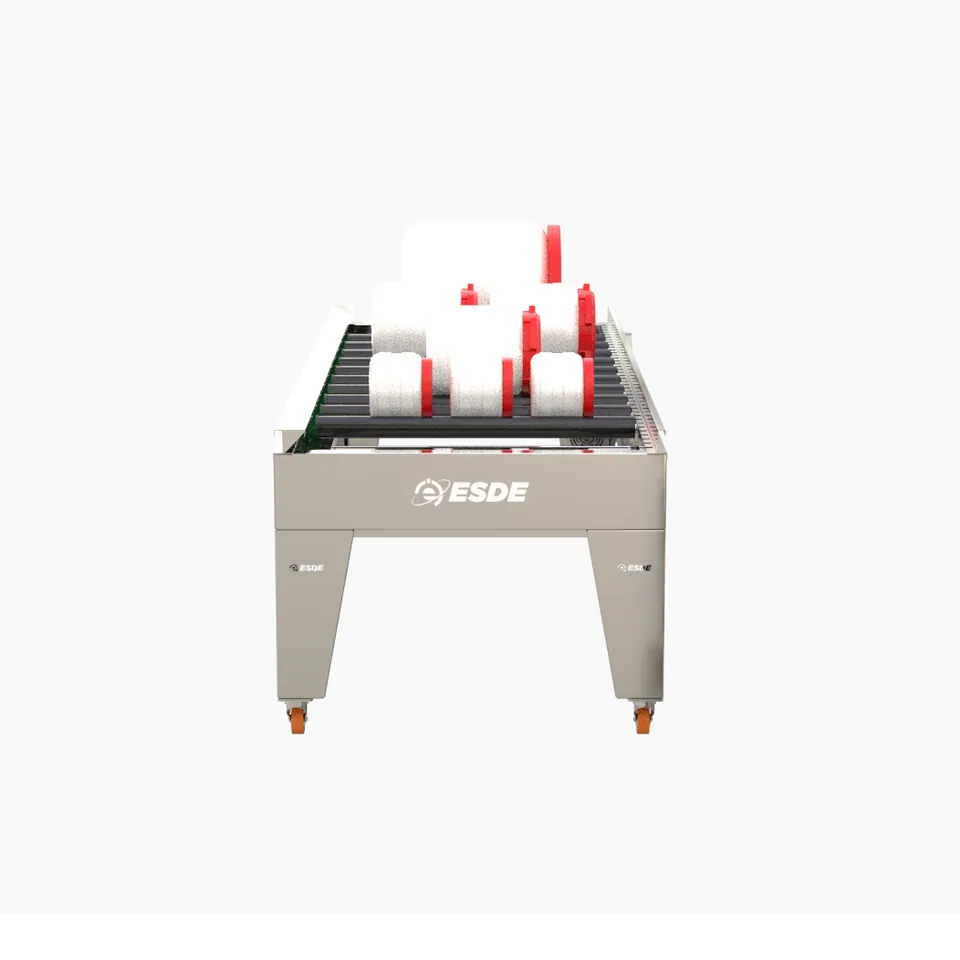

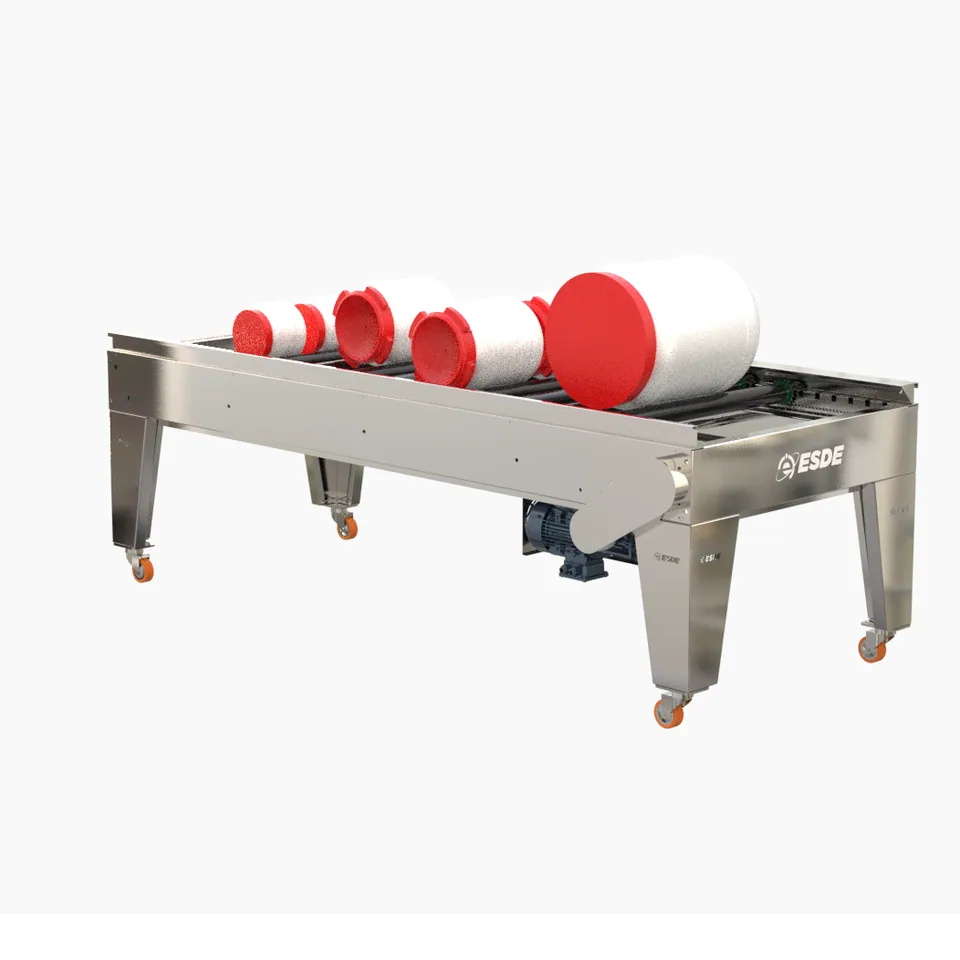

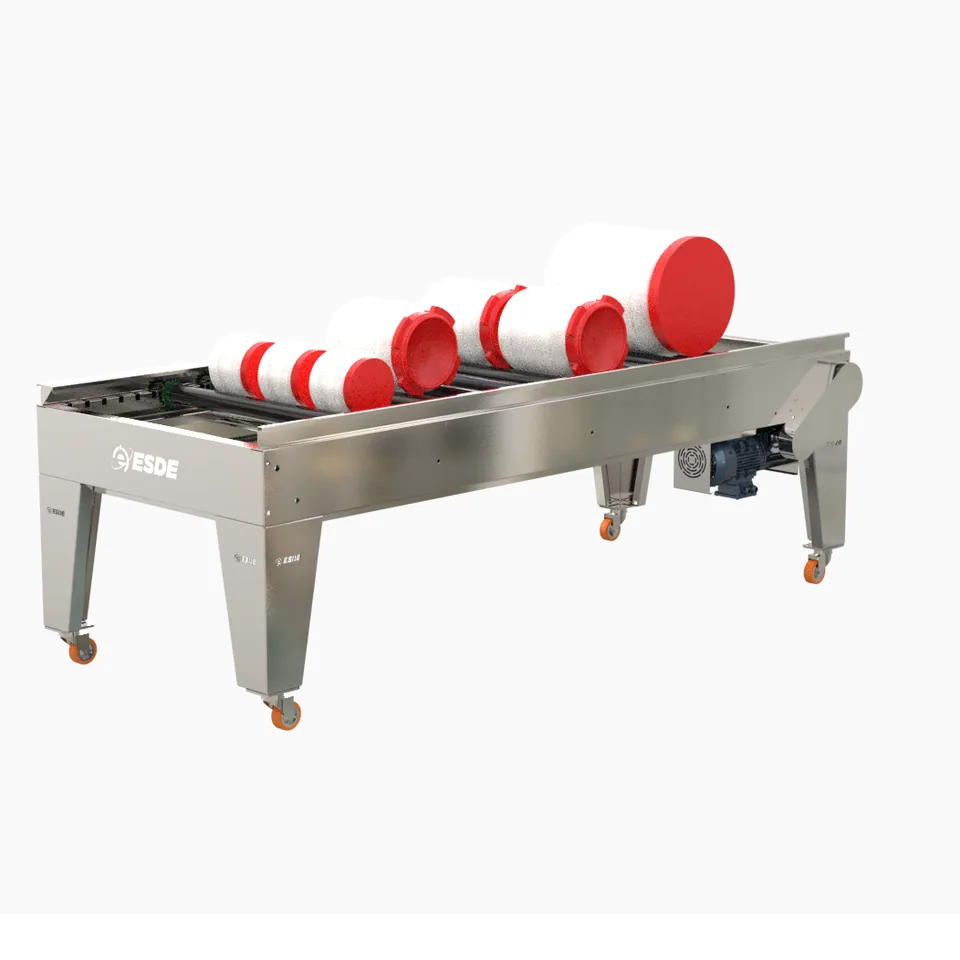

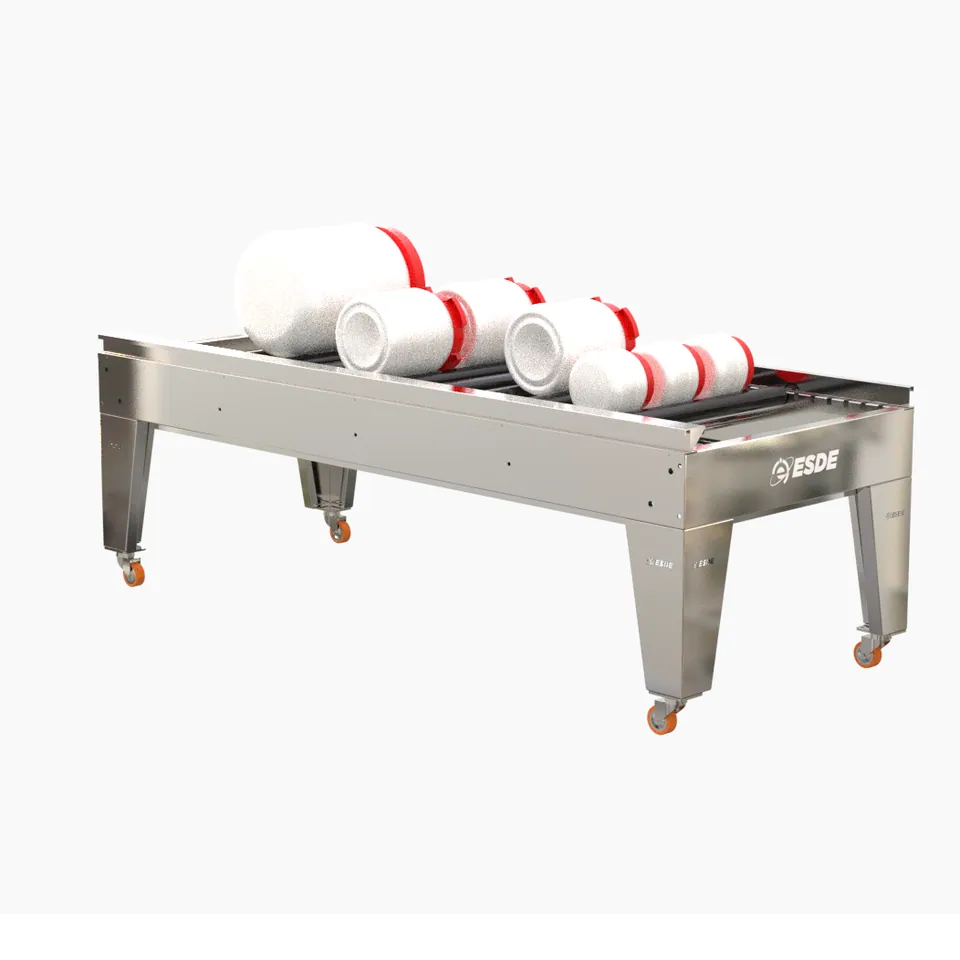

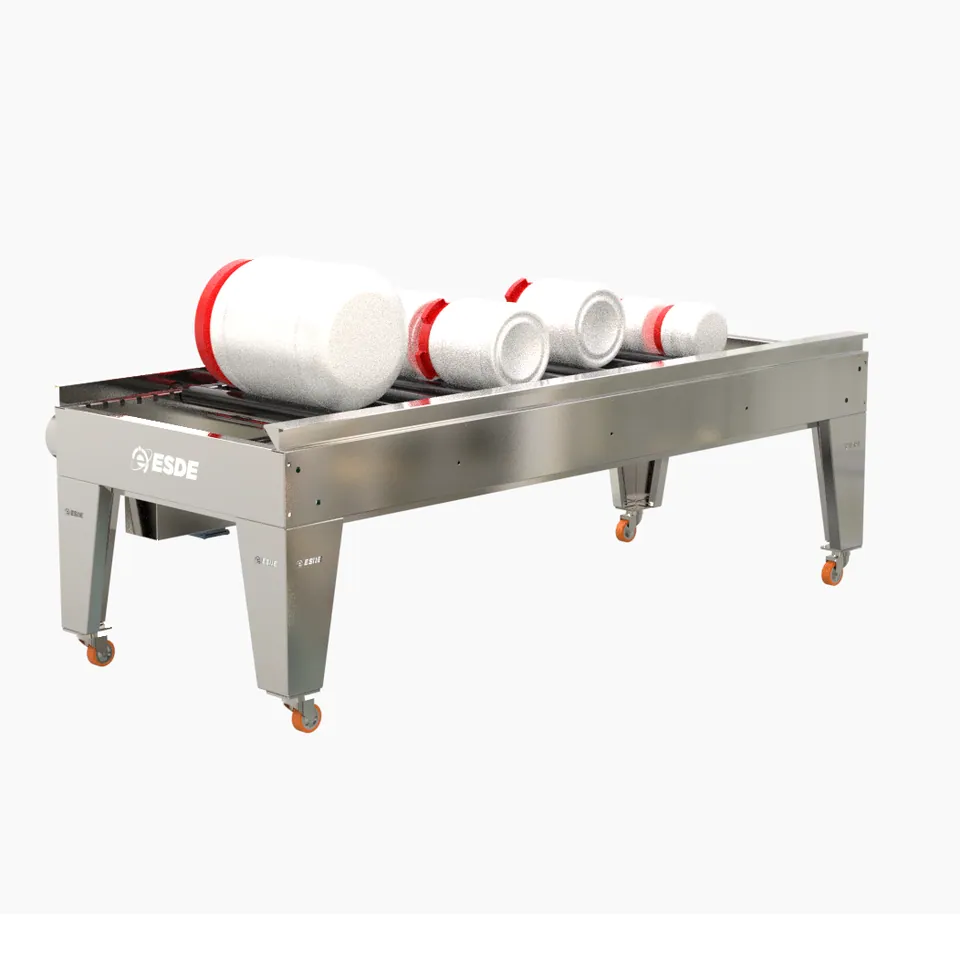

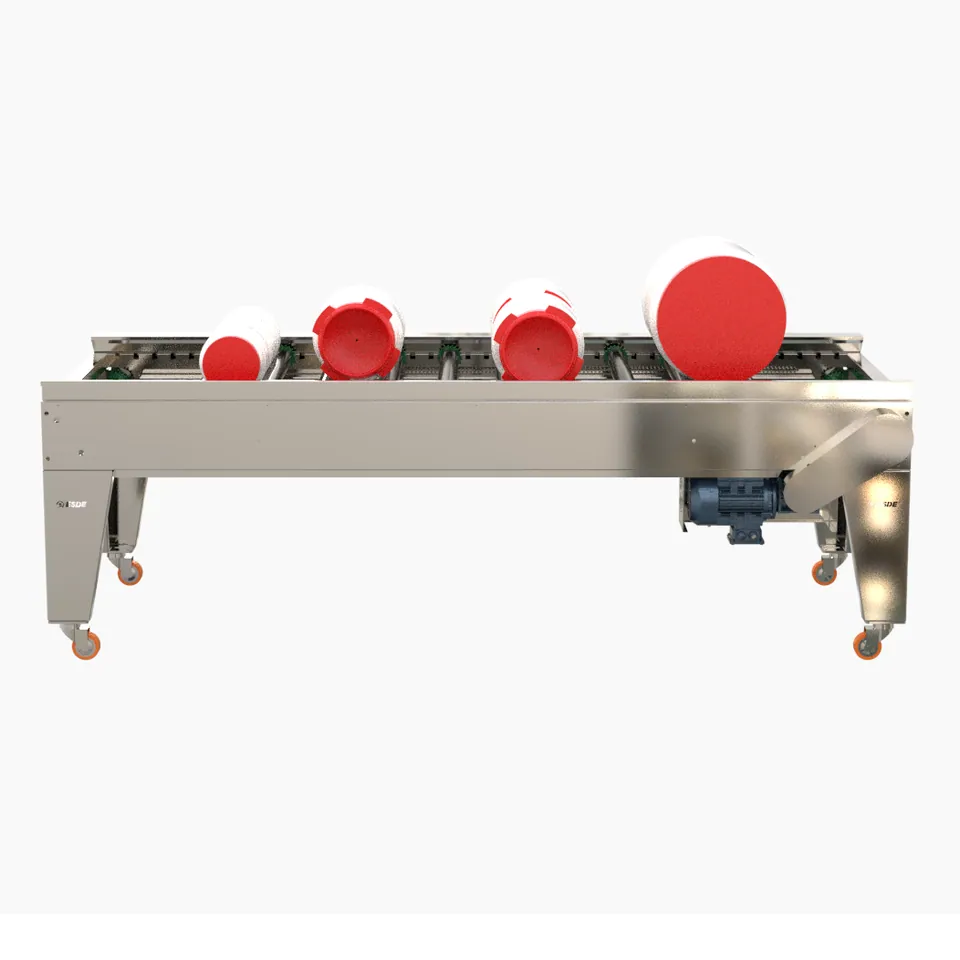

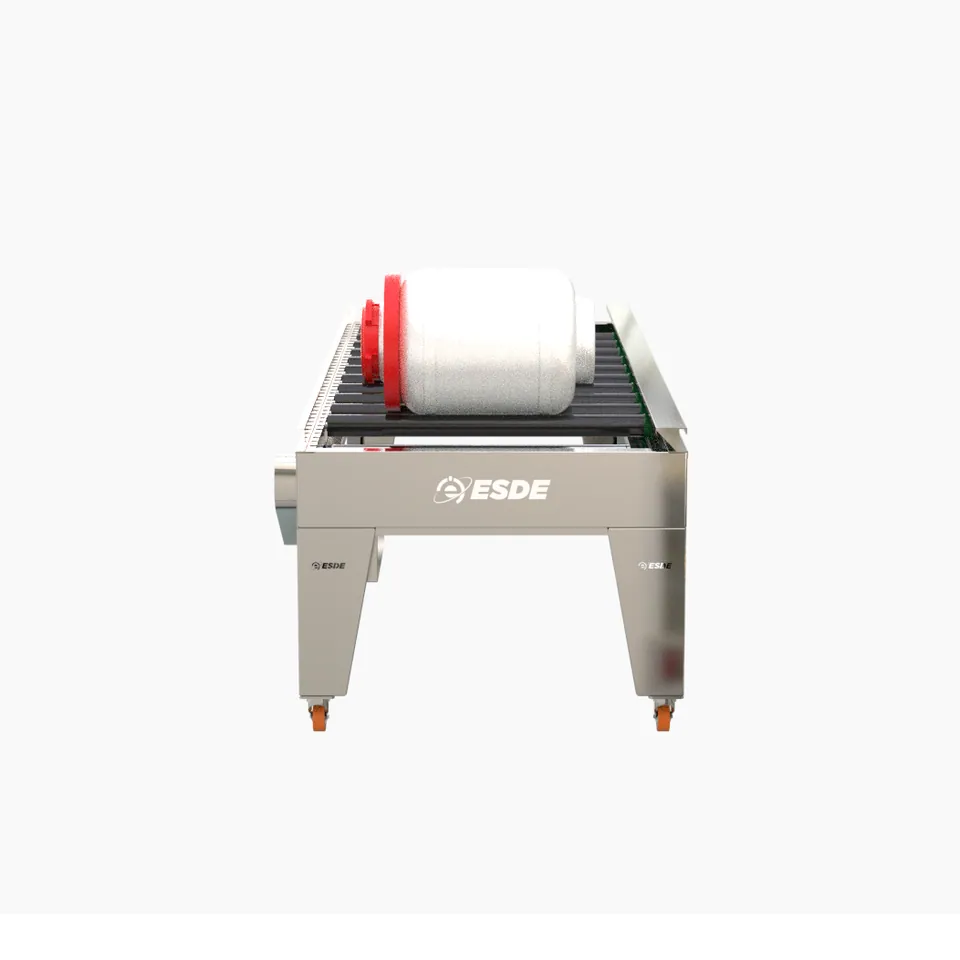

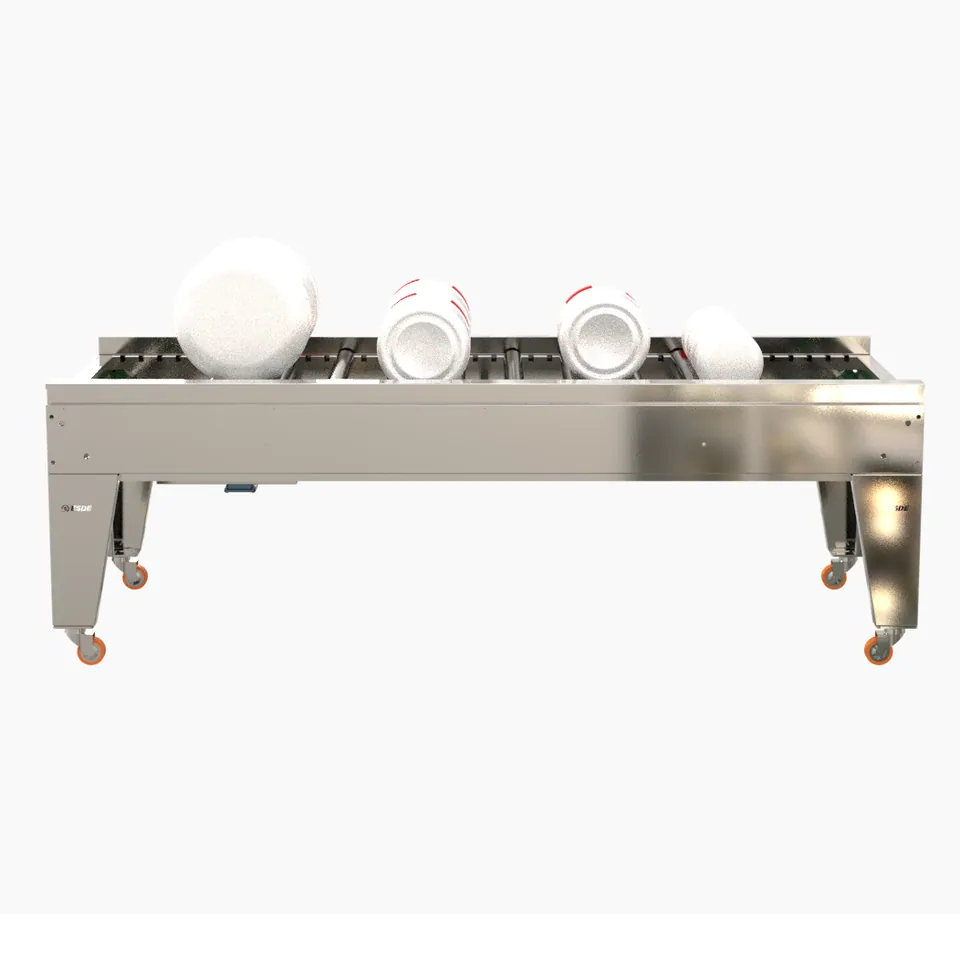

MODEL SD-11010
Drum Priming Unit
Controlled hydration in rotating drums for uniform emergence.
5-100 LDrums
4 x 200 LMax. configuration
1.5 kWMax. power
Drag to turn
Overview
Priming deliberately adjusts a seed's hydration level to improve uniform seedling emergence, mitigate heat-induced dormancy and prepare light-requiring crops to germinate in darkness - lettuce is a classic example. Seeds are moistened to a controlled level at which germination metabolism starts, held until the whole batch is equal, and stopped before root emergence so the seed can be dried back without damage.
Key Features
- Single-deck and double-deck installation
- Drums from 5 to 100 L (up to 4 x 200 L)
- Adjustable rails fit all common drum sizes
- Rotation speed adjustable via speed control
- Stainless steel - suitable for high humidity
- Panel on unit or in a remote cabinet; climate chamber available
Technical Specifications | SD-11010
| Parameter | Specification |
|---|---|
| Capacity | 5 - 100 L drums as selected; 4 x 200 L drums; varies with drum choice |
| Dimensions (L x W x H) | 3000 x 1065 x 835 mm |
| Electrical connection | 200 - 240 V (±5%), 1 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 1.5 kW / 10 A |
| Noise emission | approx. 65 dB(A), without product |
| Materials | Stainless steel 304 and plastics |
| Weight net / packed | approx. 250 / 300 kg |
| Optional | Drums; remote control cabinet with cable; climate chamber |
| Certification | CE |

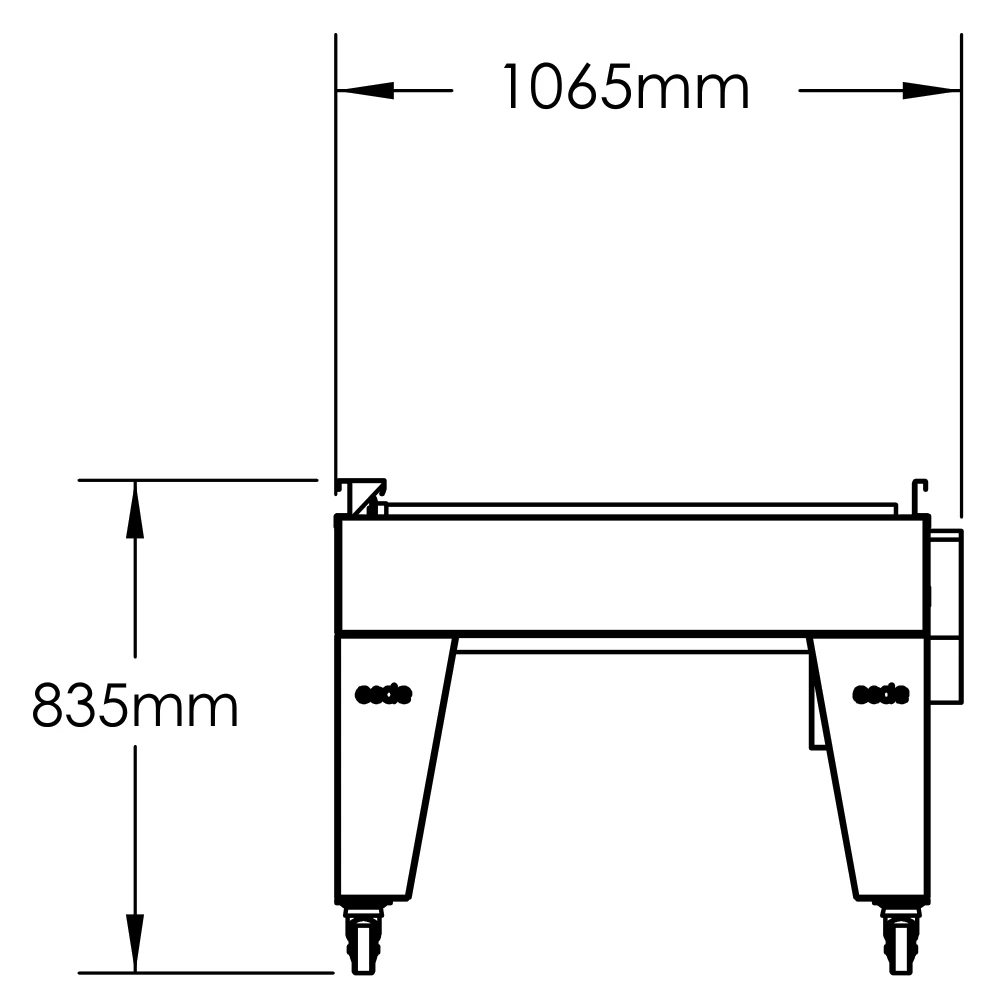

Technical Drawings
