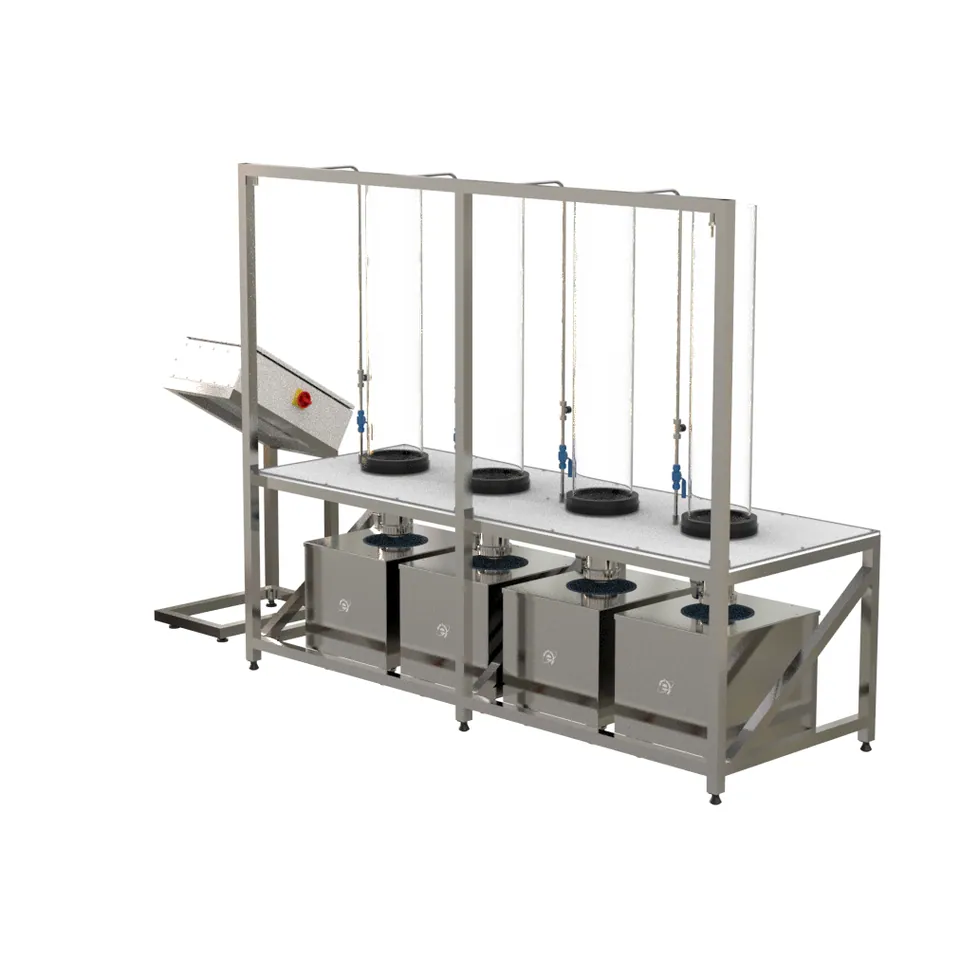

MODEL SD-11240
Commercial Liquid Priming Unit
High-capacity osmotic priming with precise, customisable control.
49 LPer tube
4-8+Tubes
2 kWMax. power

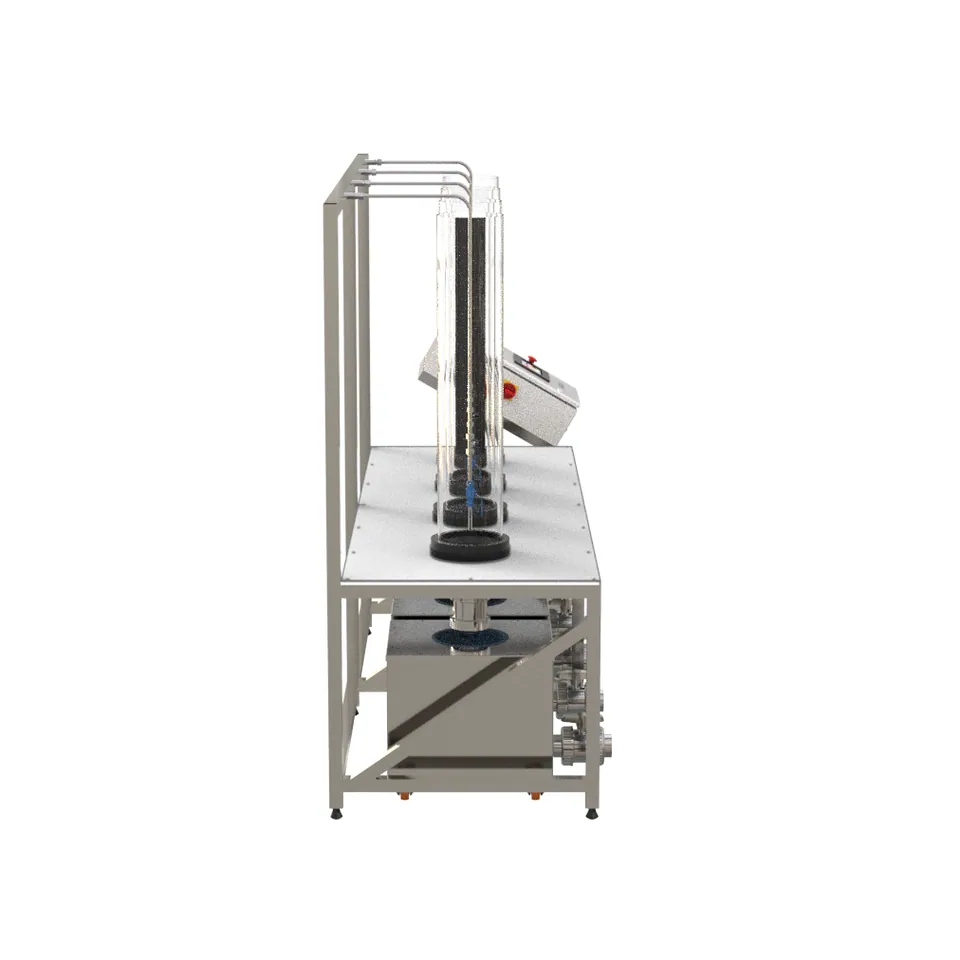

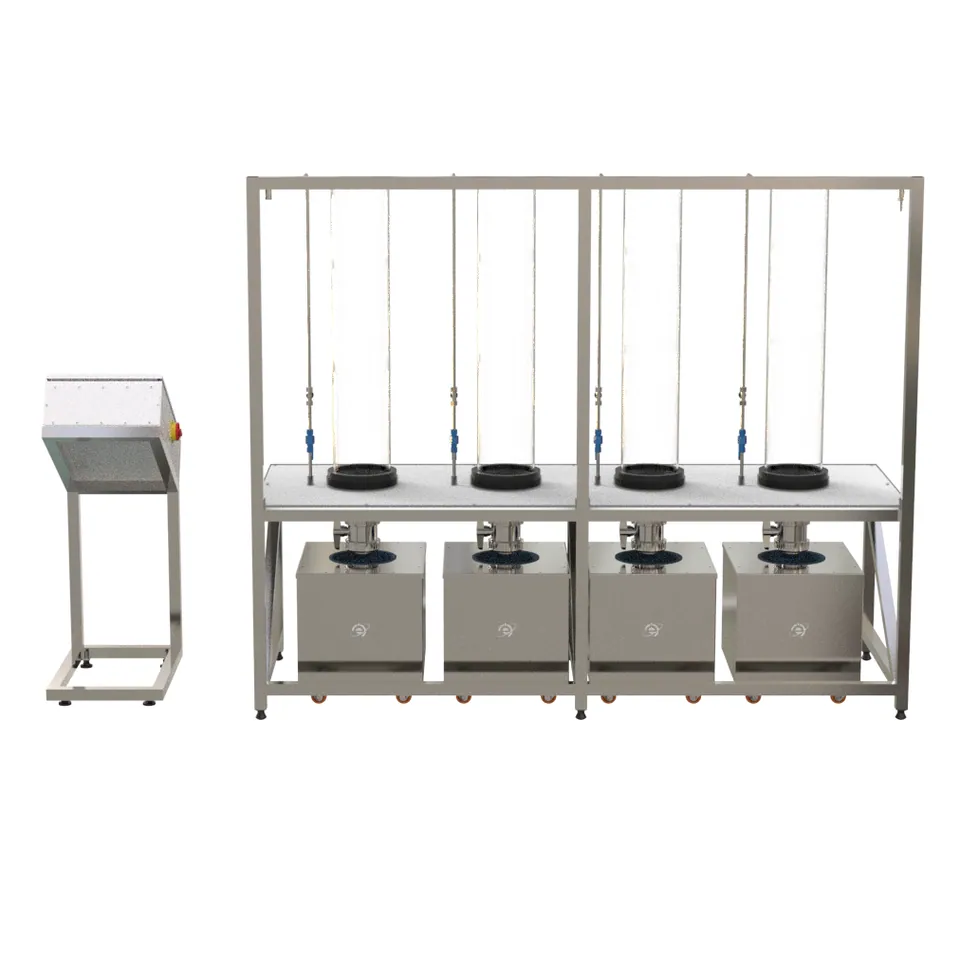

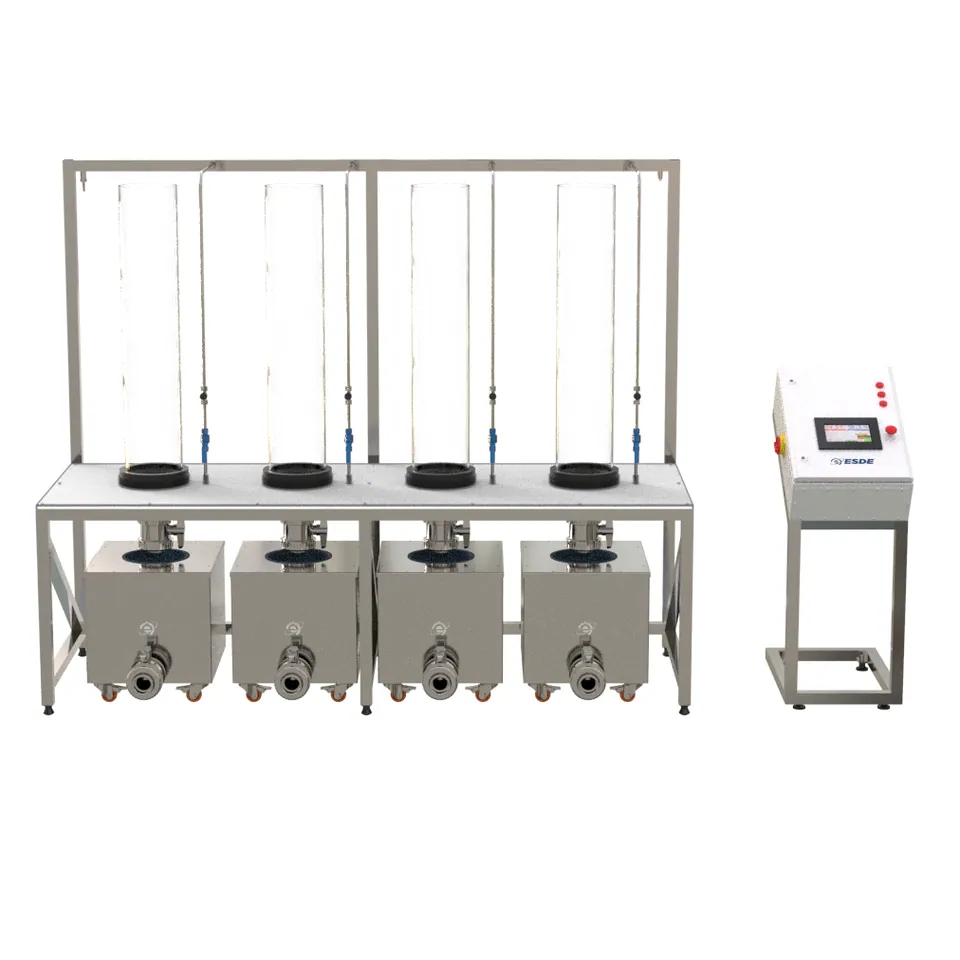

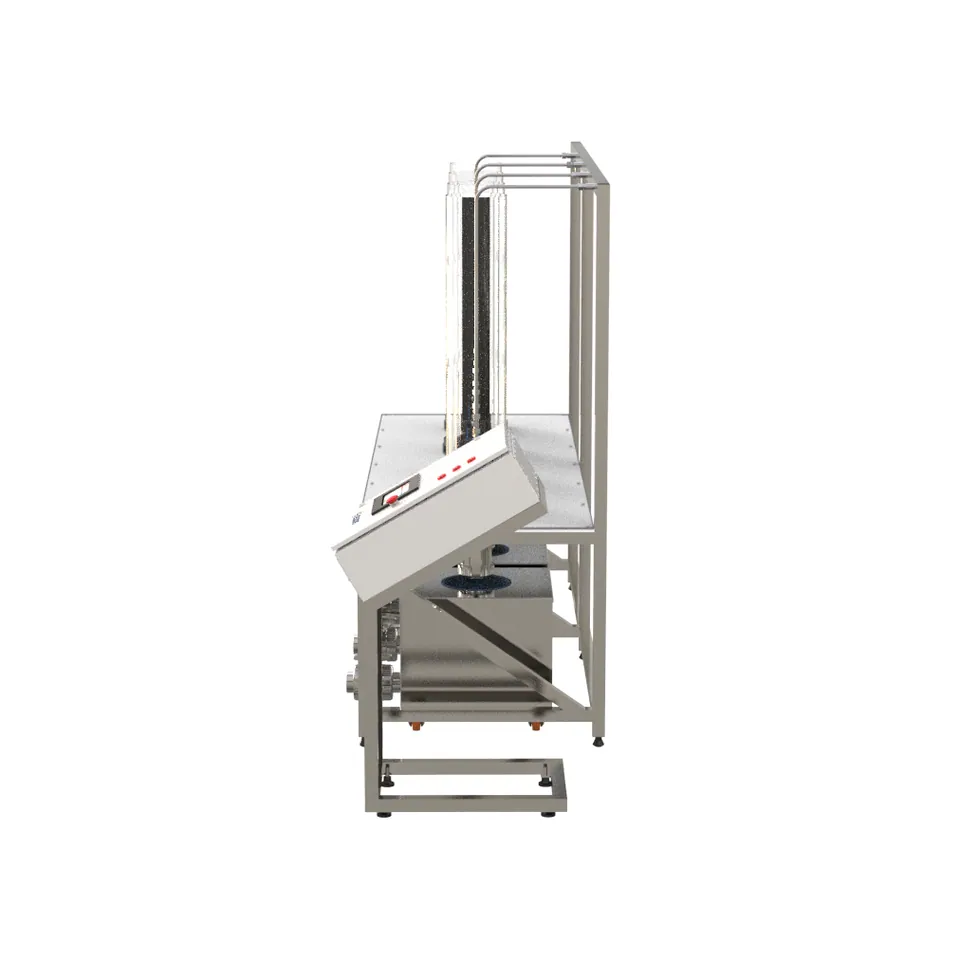

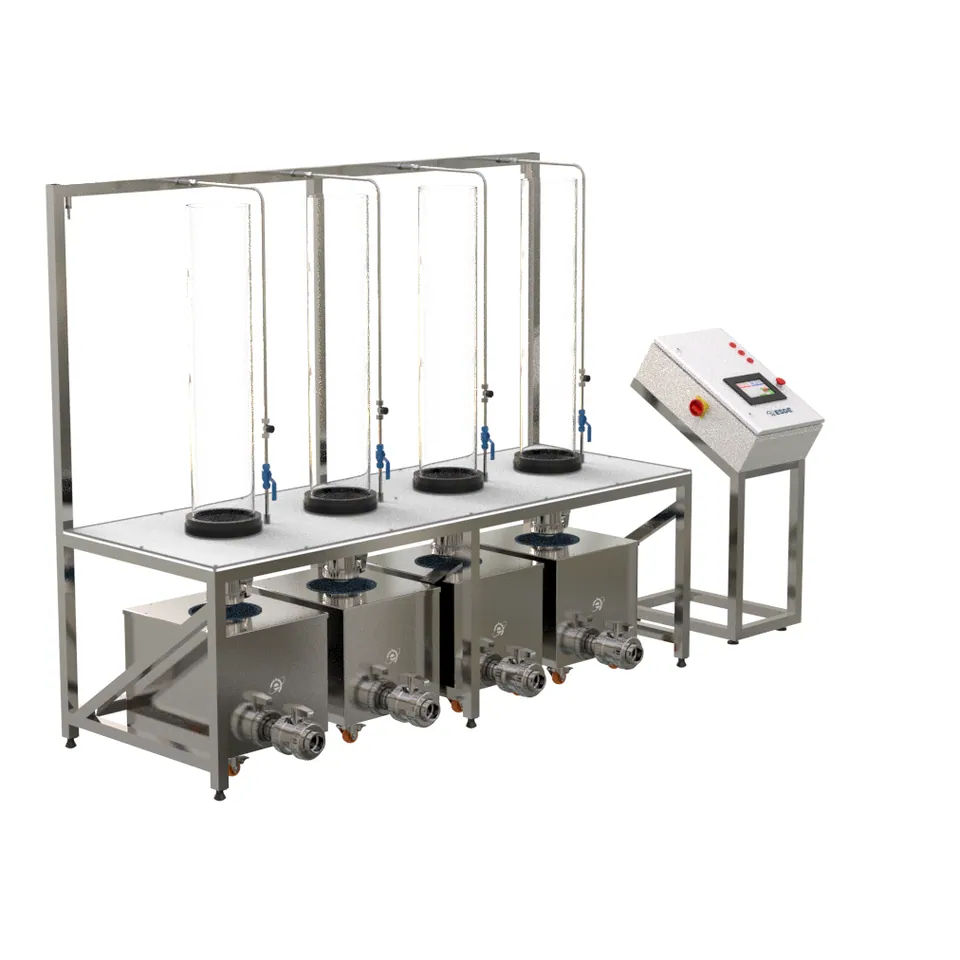

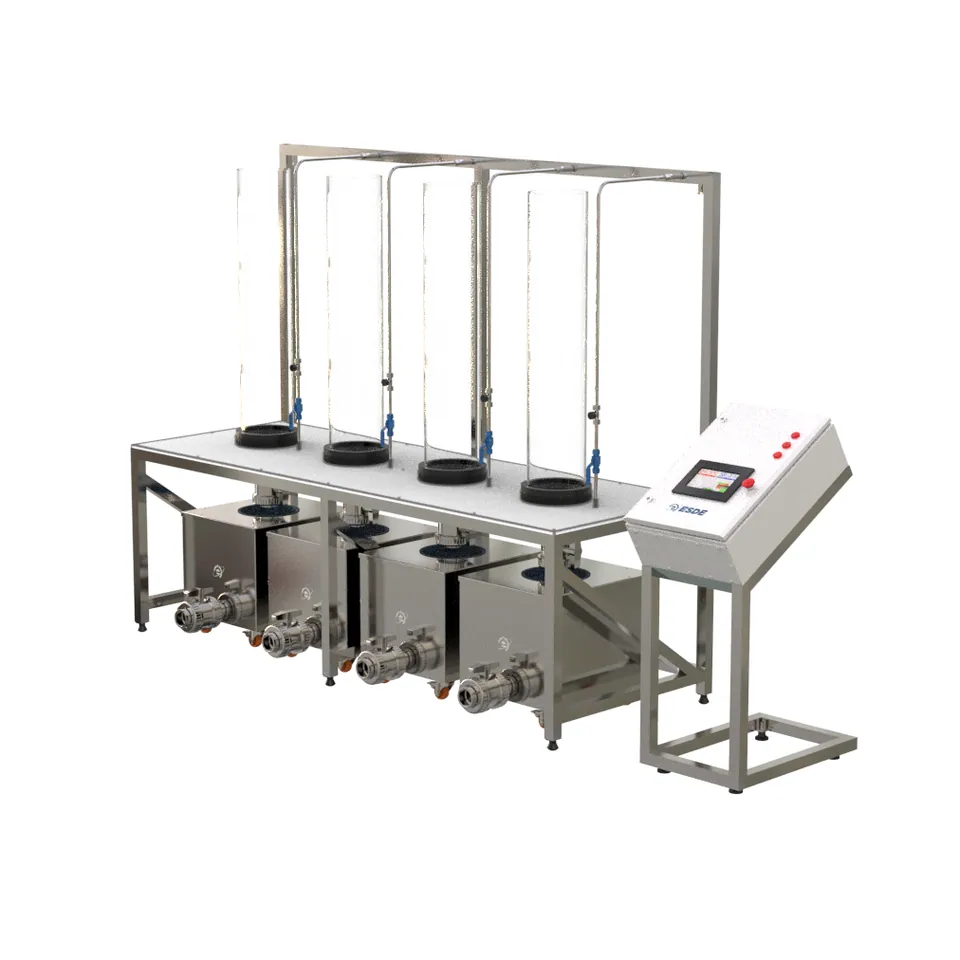

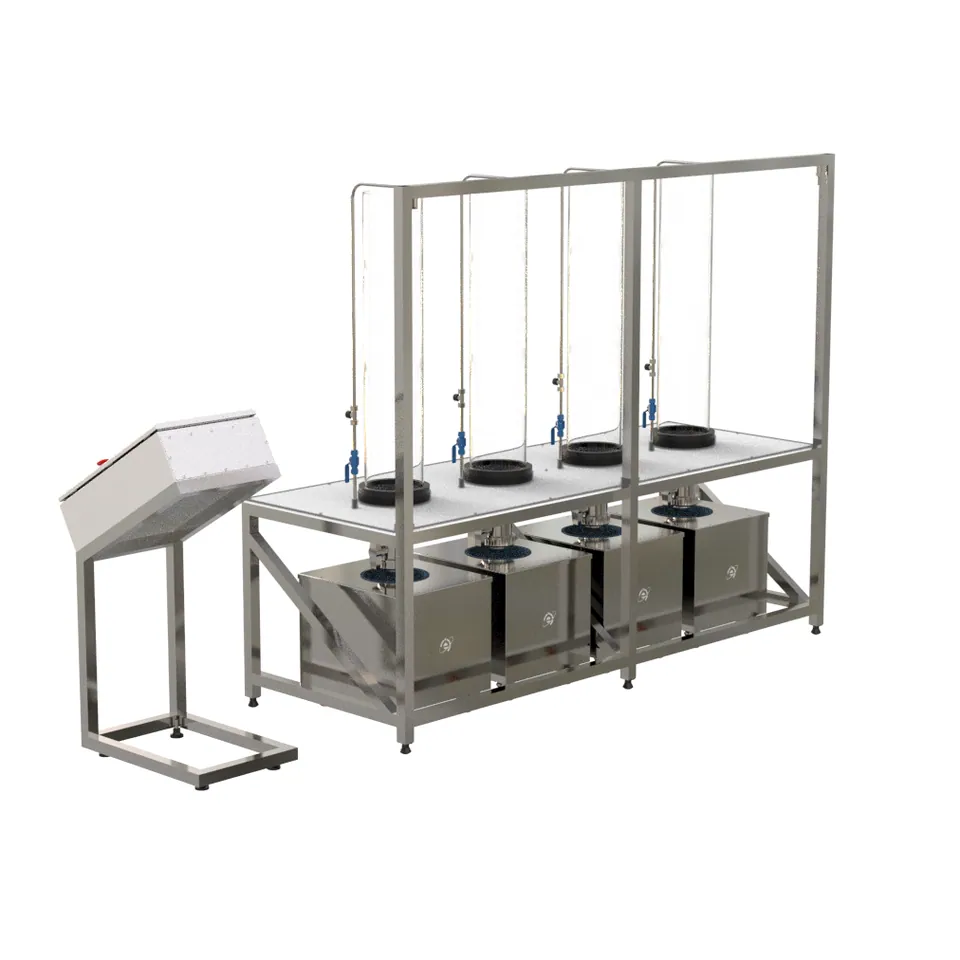

Drag to turn
Overview
Commercial osmotic priming units are essential tools in modern seed processing. The SD-11240 treats large seed quantities efficiently with precise control over solution concentration and duration, ensuring consistent germination and emergence across the entire crop.
Key Features
- High-capacity seed treatment
- Precise control of osmotic solution and duration
- Uniform priming for consistent emergence
- Customisable parameters per variety
- Enhanced germination and faster establishment
- Touch-screen control stand
Technical Specifications | SD-11240
| Parameter | Specification |
|---|---|
| Capacity | 49 L per tube; 4, 6, 8 or more tubes |
| Dimensions (L x W x H) | 2200 x 855 x 1830 mm |
| Electrical connection | 380 - 415 V (±5%), 3 ph + N + ground, 50/60 Hz (other values on request) |
| Max. power / connection | 2 kW / 10 A |
| Drain connection | 90 mm |
| Noise emission | approx. 65 dB(A), without product |
| Materials | Stainless steel 304; liquid-contact parts in 304 Cr-Ni and plexi tubes |
| Weight net / packed | approx. 165 / 200 kg |
| Included | Blower |
| Optional | Seed drain containers |
| Certification | CE |

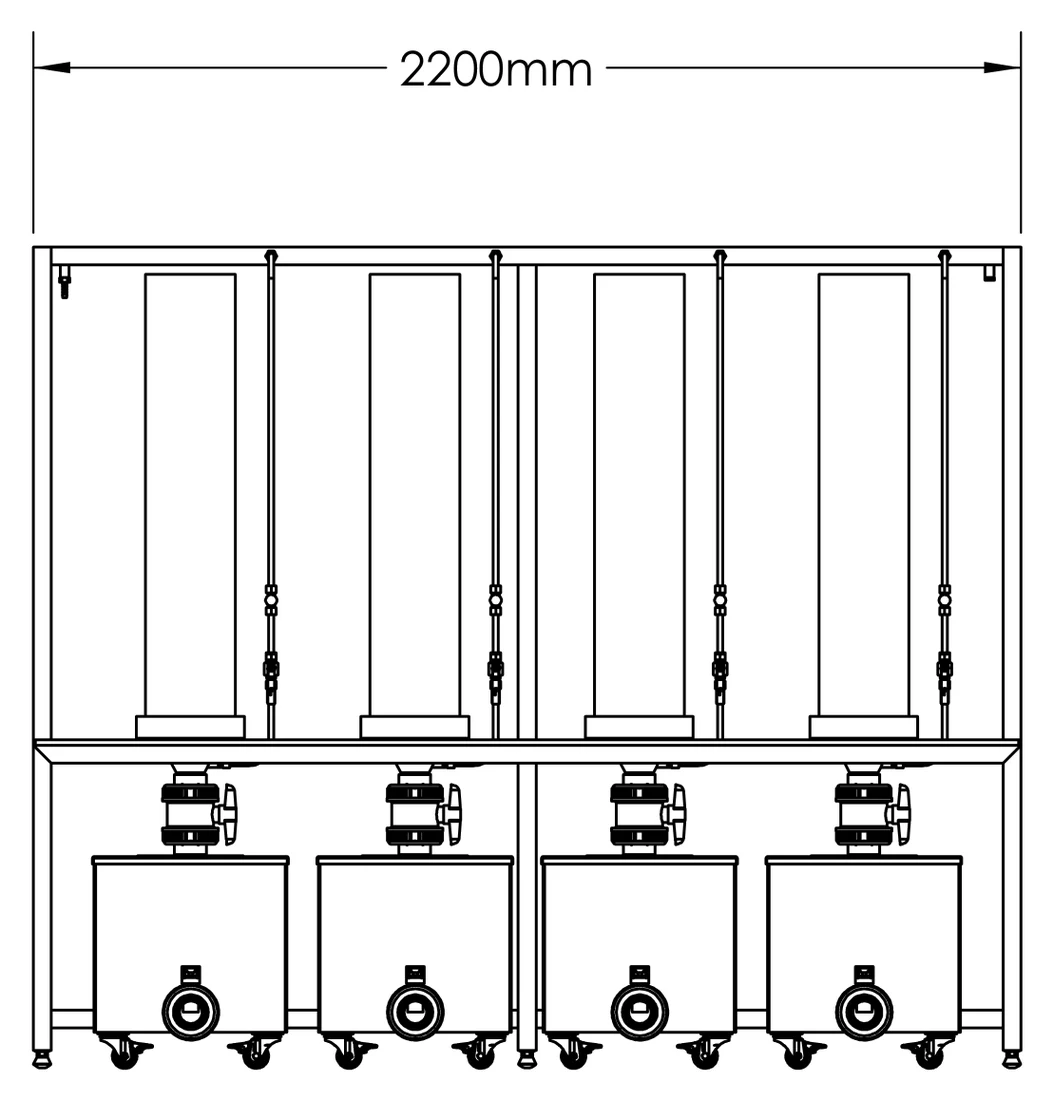

Technical Drawings
